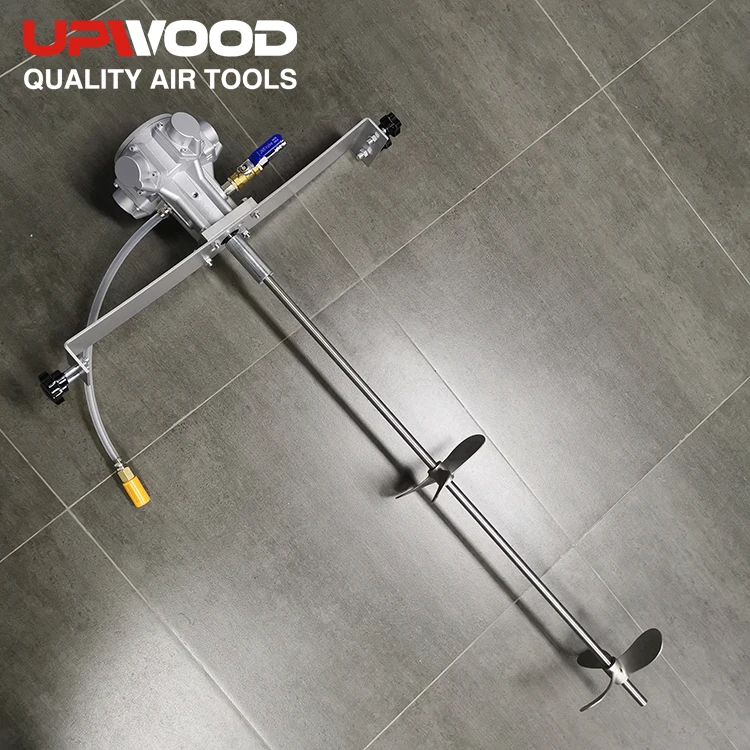

UW A413 Pneumatic Agitator 1/2HP heavy industrial grade for 200L oil drum
- Category: >>>
- Supplier: Hangzhou Upwood Hardware & Tools Co. Ltd.
Share on (1600121926331):
Product Overview
Description
Product Description
1/2HP Heavy Duty Air-Powered Agitator Mixer for IBC Tank
1. For spray paint in the process of mixing, paint (paint) paint mixing plant, especially suitable for the mixing of gas mixed type spray paint, also suitable for other kinds of coating Stir.
2. Suitable for chemical, food, pharmaceutical, cosmetics and other industries of homogeneous, dispersion, emulsion, such as purpose, won't produce sparks, explosion-proof, highly safety performance
2. Suitable for chemical, food, pharmaceutical, cosmetics and other industries of homogeneous, dispersion, emulsion, such as purpose, won't produce sparks, explosion-proof, highly safety performance
3. Compressed air as power source and pneumatic motor as medium power;100% explosion protection
4. Pneumatic motor is with the stepless speed regulating function.
Power: | 1/2HP |
Free Speed: | 1300R.P.M |
Max Torque: | 4.8Nm |
Painting Barral: | 200L |
Air Cons: | 350L/min |
Shaft: | 15*960mm |
Impeller Size: | 8"X2 |
Impeller Type: | 304 S/S impeller |
Air Pressure: | 0.63MPa |
Net Weight: | 11kg |
Box Size: | 114*24*17.5cm |
Carton Size: | 115*51*46cm/4pcs/GW 48kg |
Durable, high-pressure air-powered mixing tool. Especially suitable for the mixing of paints and other various coatings. Also can be applied in the chemical processing, medicine processing, food processing, cosmetics and other industries.
Reliable, safe, 100% explosion protection.

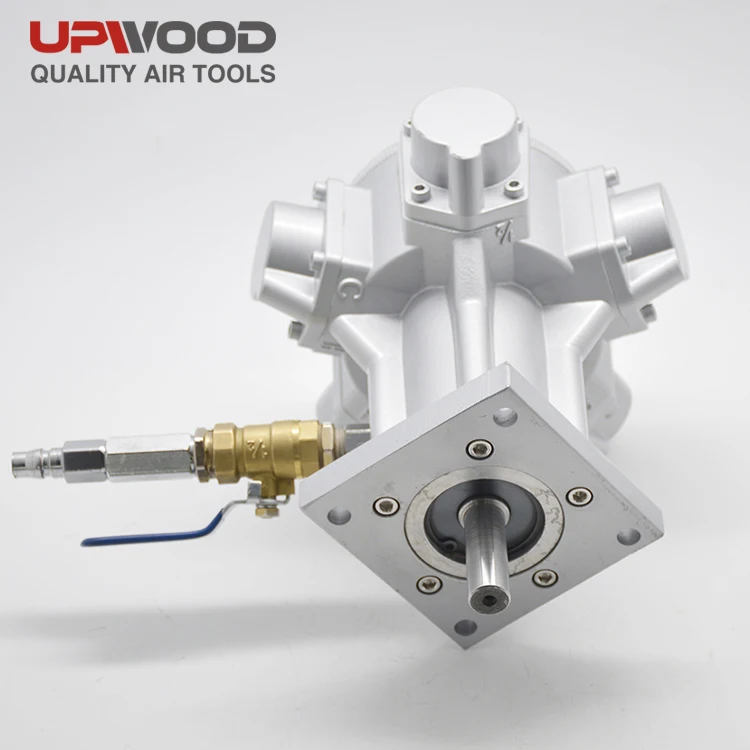

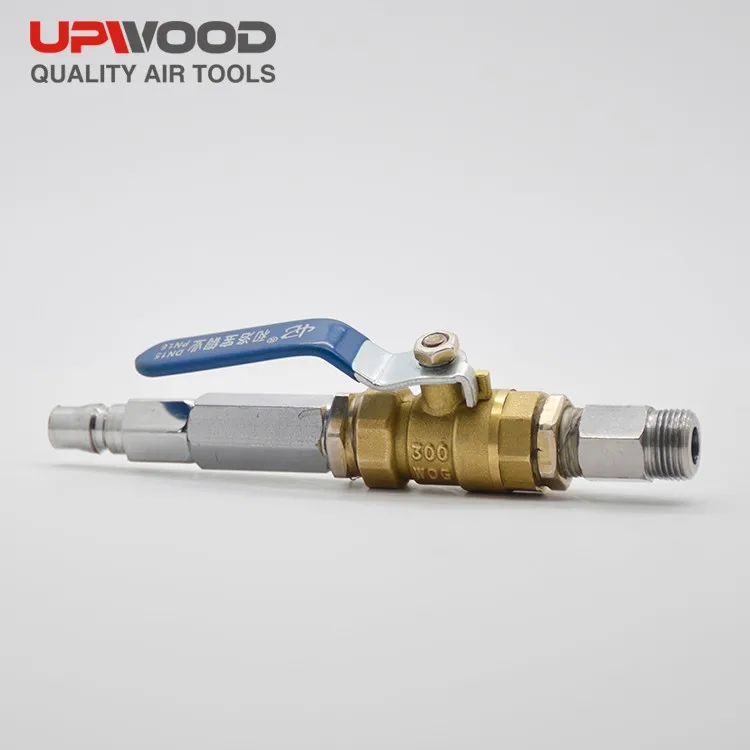

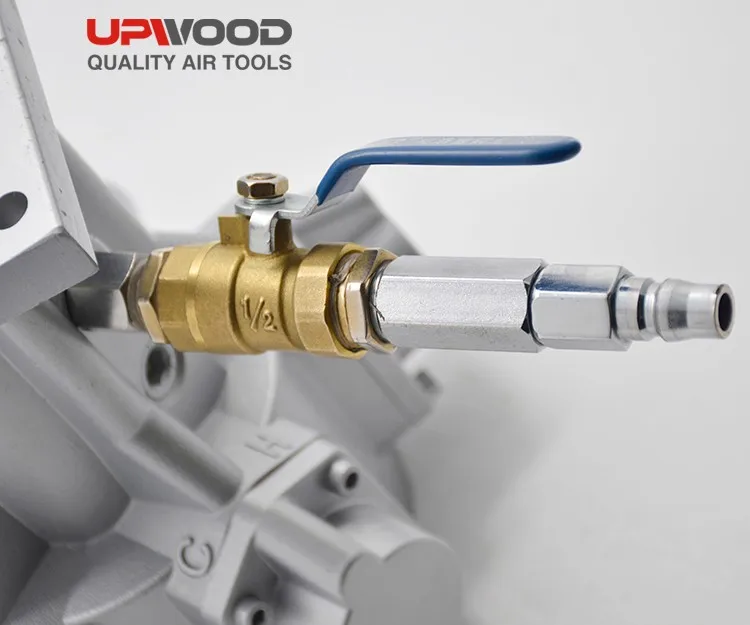

Coppery ball valve, easy to control

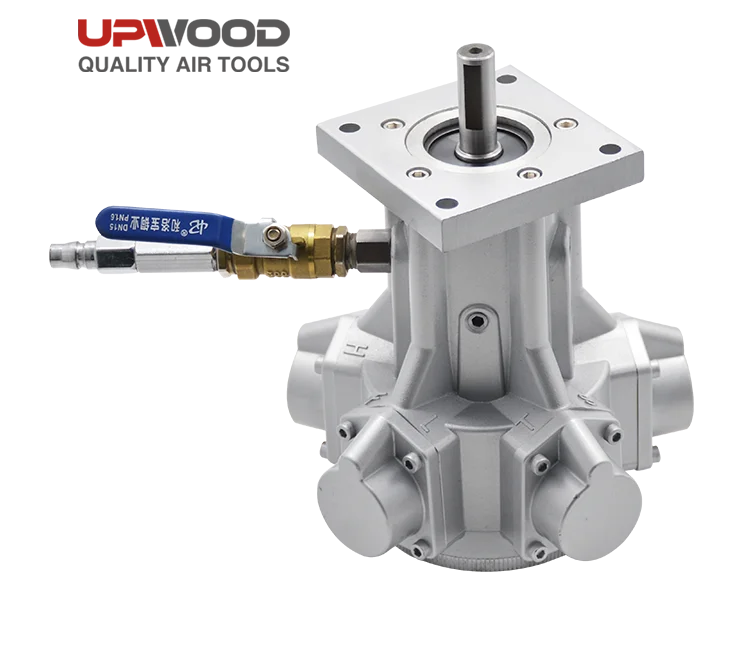

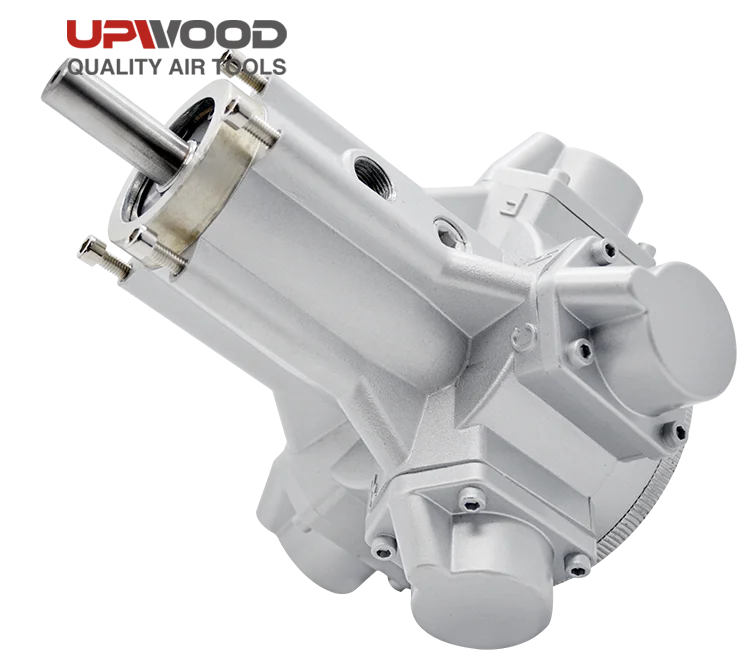

Forged motor body, features in toughness. Other materials like investment casting and cast iron will easy to break.

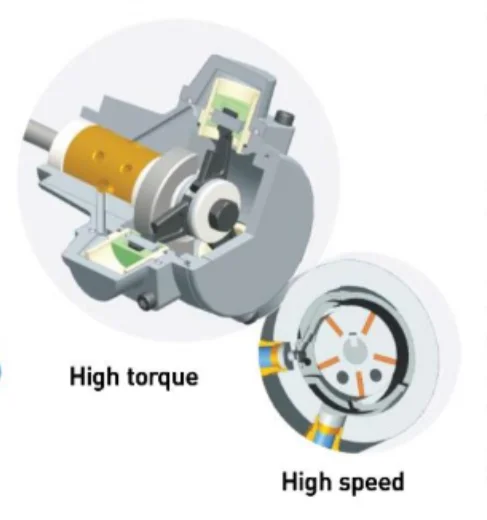

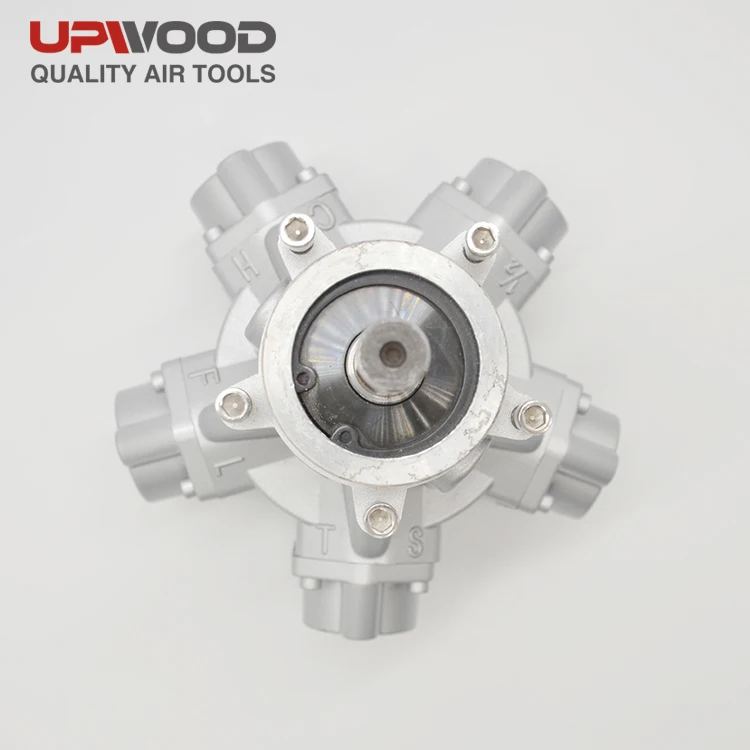

5-cylinder gives to ultra power and high torque, 20%-30% above average.
2. Investment casting connector rod rather than plastic one
3. Brass-made piston rather than alumnium-one.
4. CNC lathe provide high precision process on the cylinder, greatly reducing friction.
All these ensure prolonged service life!

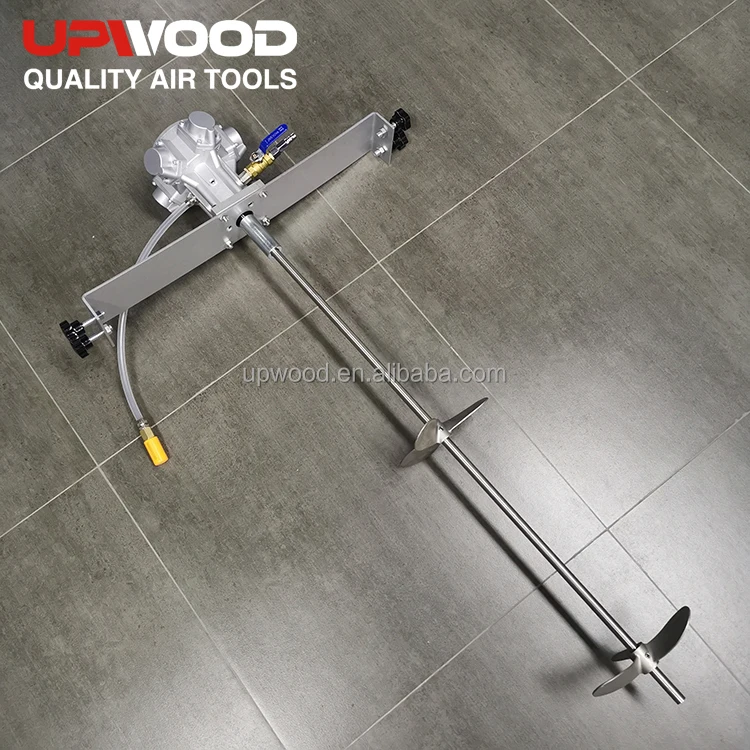

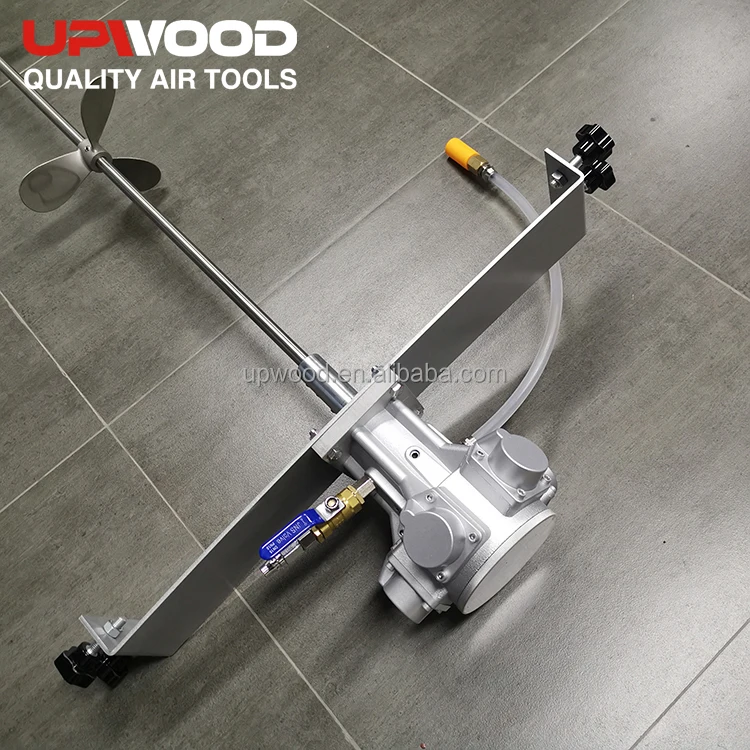

Installation method: vertical, Power: 1/2 HP, Ability: can stir 200-1000 liters standard IBC bank.

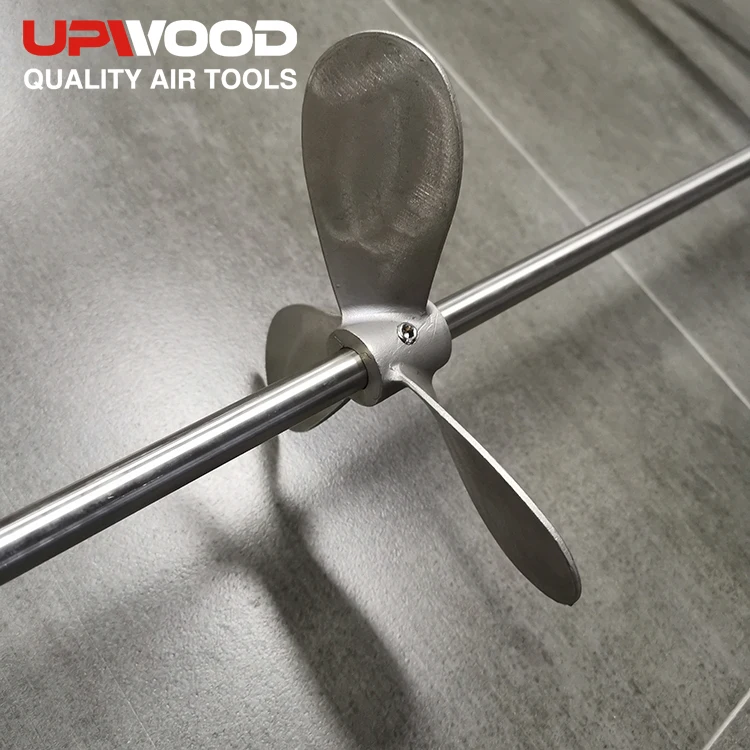

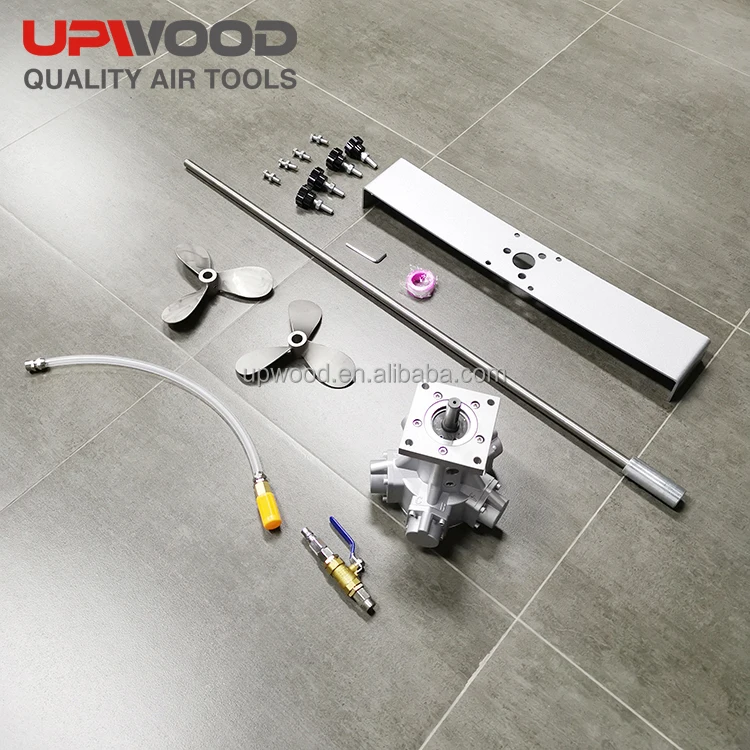

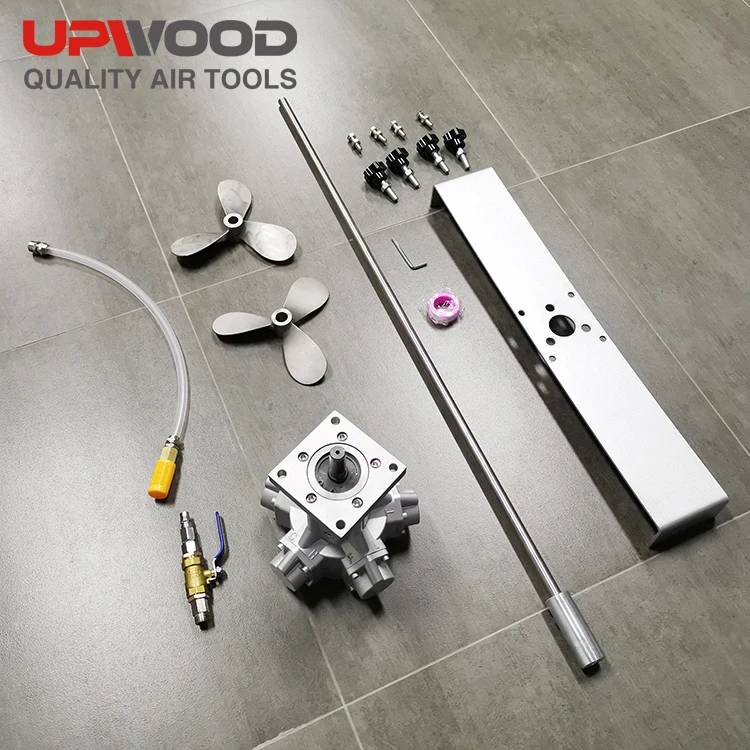

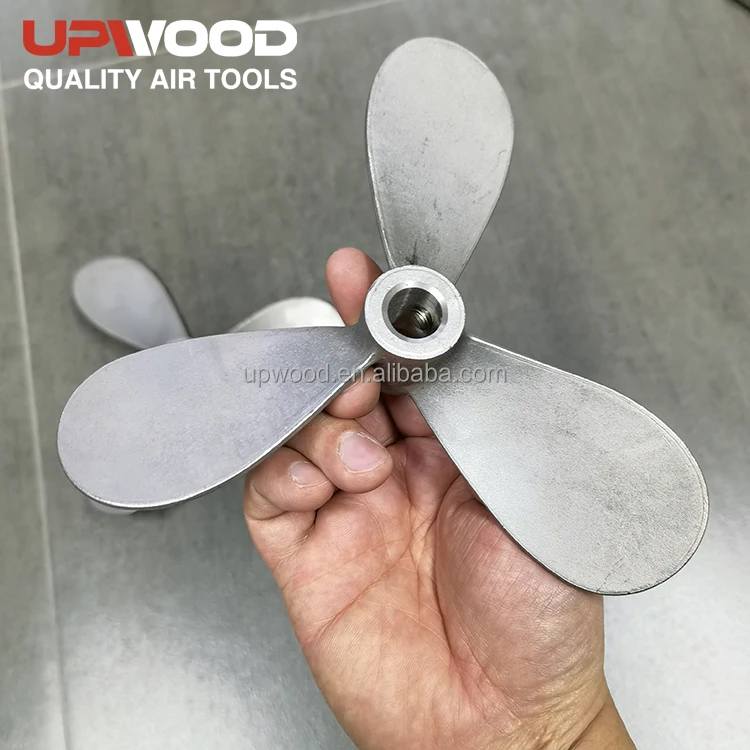

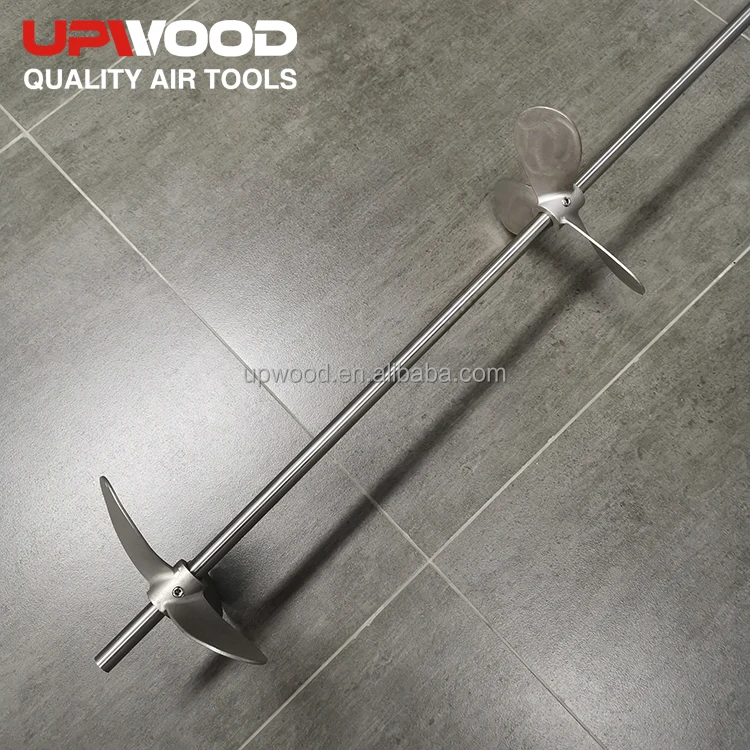

Regularly comes with 2pcs 8'' impellers, 1pcs 15*960mm shaft. All are made of Stainless Steel 304.
Common Liquid viscosity at 20℃ (Unit: cp)
*A413's max capacity is 3000cp.
Ether:0.233 | Alcohol: 1.2 | Concentrated sulfuric acid(98%): 4 | #60 Engine oil: 1000 | Honey: 3000 |
Methyl ketone: 0.4 | Mercury: 1.55 | Peanut oil: 10 | Shampoo: 900-1100 | Ink: 45000 |
Petrol/ Gasoline: 0.8 | Kerosene: 2.3 | Ethylene: 16 | Glycerine: 1180 | Petrolatum:100000 |
Water: 1 | Milk: 3 | Vegetable Oil: 72-500 | Epoxy resin: 1200 |
