Product Overview

Description

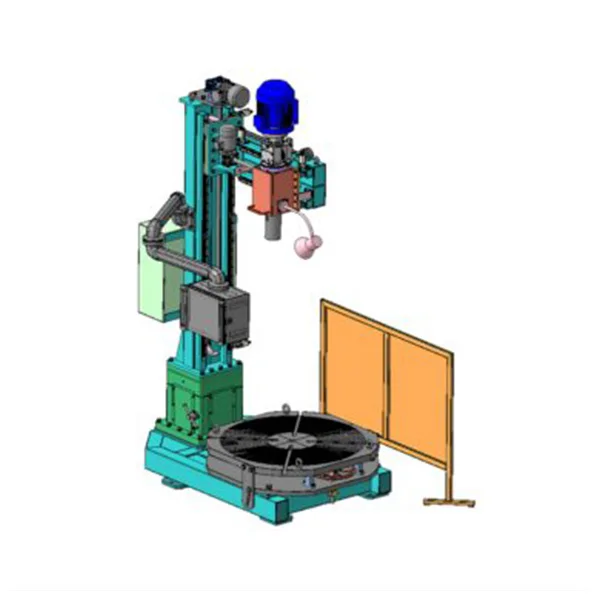

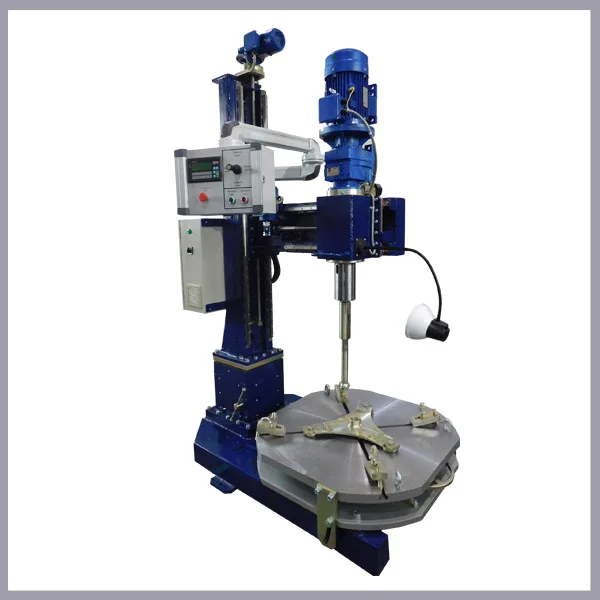

MACHINE FOR GRINDING AND LAPPING, SPTE 3-1

Designed

for grinding and lapping flat sealing surfaces of gate bodies and wedges with Dn 50 - Dn 600 mm.

- the adjustable coordinate table cant allows machining the valve sealing surfaces with different angles of the wedge chamber.

- if completed with an optional tool set, machine SPTE 3-1 can perform (edge cutting) machining of the seats sealing surface in the gate bodies with Dn 50 - Dn 600 mm.

Advantages

- smooth surface machining of both bodies and wedges and slide valves;

- minimal time for tools change-over and control over processes;

- high grade performance and maintainability;

- automatic mode of machining articles with the help of setting rotary speed and a timer;

- there is a digital device for setting the accurate angle;

- wide range of machined surfaces area;

- ergonomics in control over processes.



DN range, mm	50…600
Spindle rotation rate, rpm	14…200
Regulating spindle rotation frequency	unstop
Power of electric motor, kW	2,2
Dimensions, no more, mm	1500x1050x2950
The weight of the machine in full kit, kg	1420



 The CJSC Enterprise “Special Technologies” is a developer and a manufacturer of the equipment offered for delivery, the equipment is produced in the manufacturing area and on the machine-tool equipment owned by the CJSC Enterprise “Special Technologies”. The product will undergo the factory acceptance test in accordance with normative and technical documentation, manufacturer’s manuals and additional requirements specified by the Parties.
