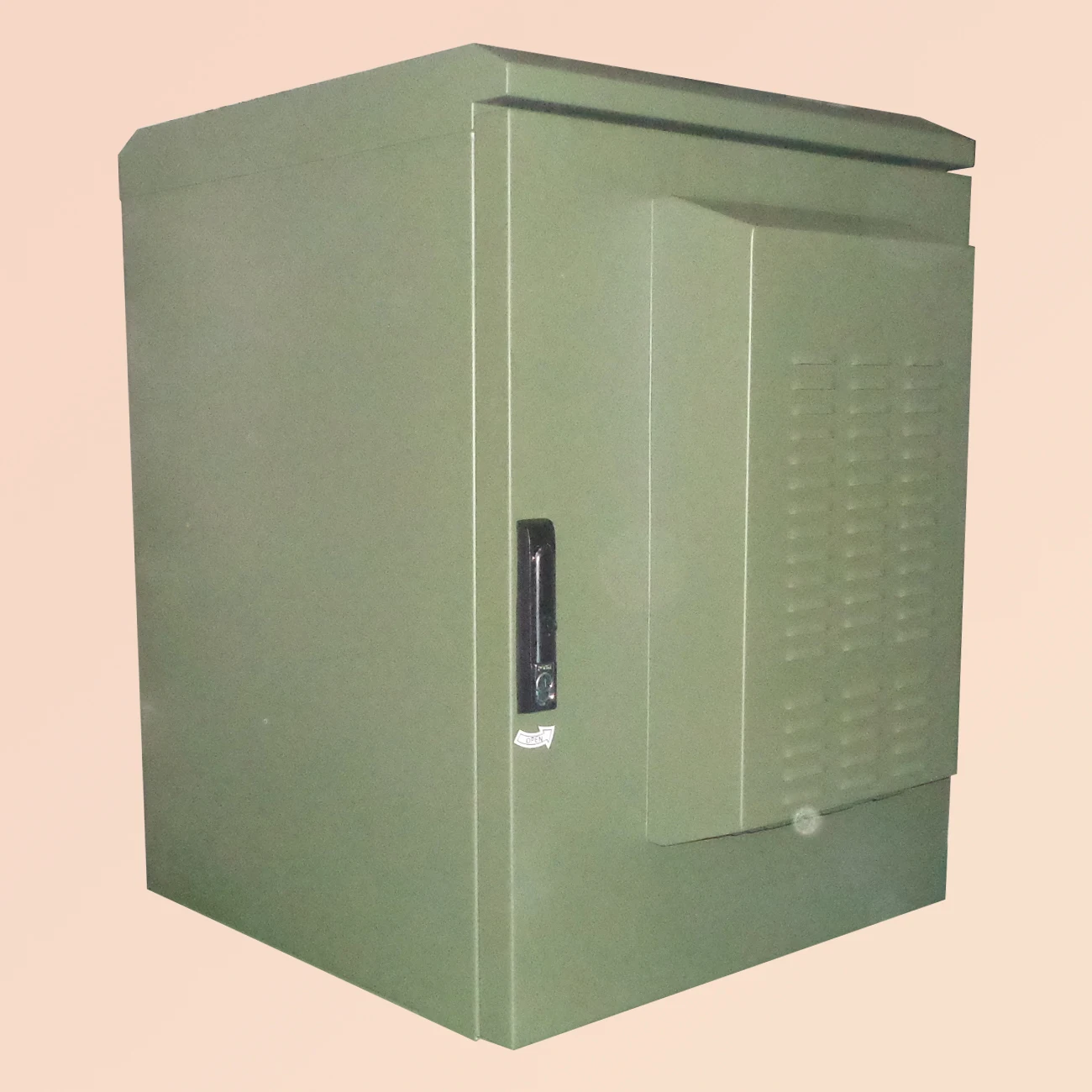

Outdoor Communication Cabinet SK 221 Outdoor base station waterproof enclosure IP65 protection level
- Category: >>>
- Supplier: Tianjin Yanxiang Electronic Science And Technology Co. Ltd.
Share on (1600122236799):
Product Overview
Description

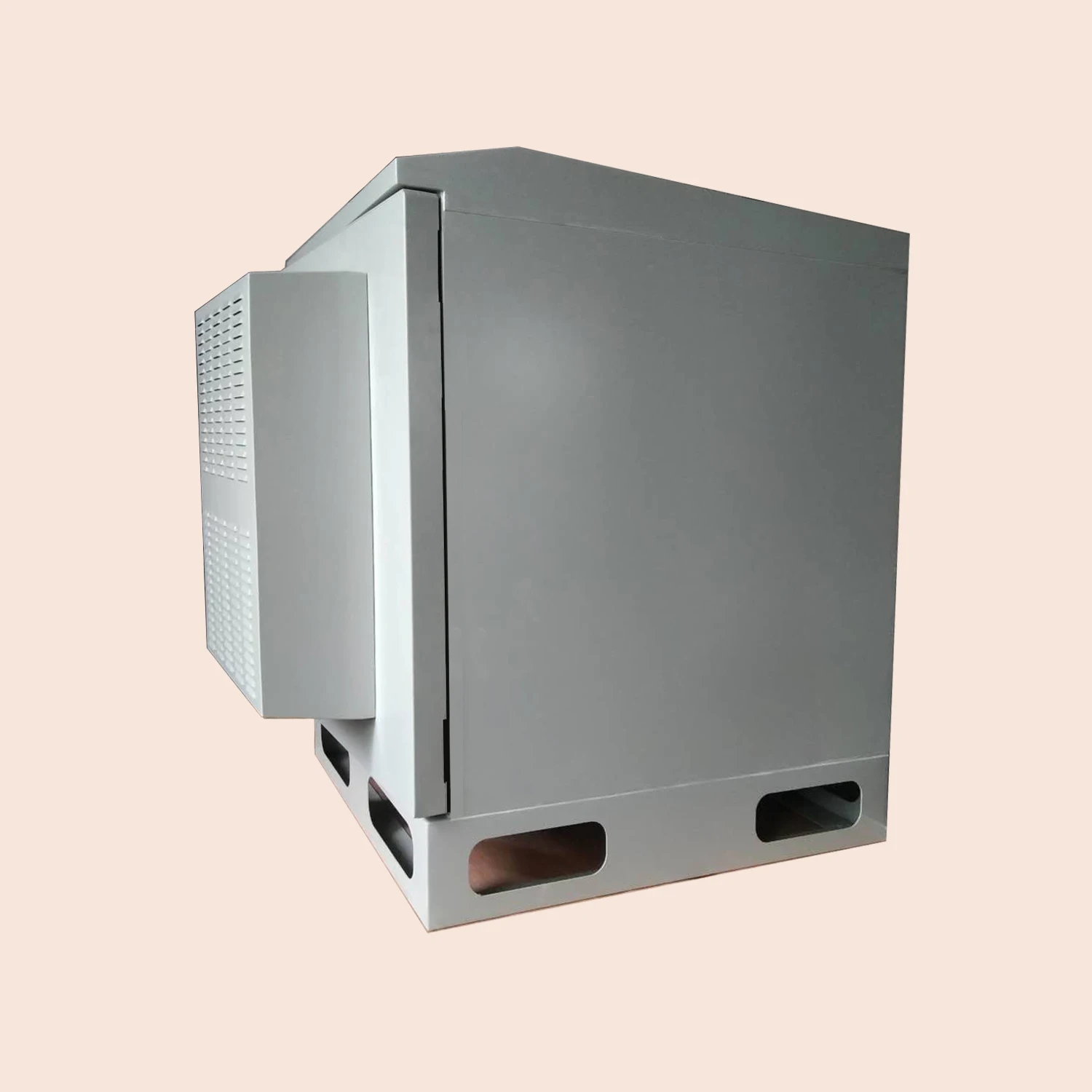

Outdoor Communication Cabinet SK-221
SK-221 series outdoor cabinet products, in line with ANSI/EIA RS-310-D, IEC 60529 standards, compatible with 19 inches international standards, metric standards. Widely used in outdoor communications, base stations, radio and television network systems, monitoring systems, electronic measurement and control and communication systems.
Technical parameter
Dimension | W600*D654 ( 830)*H855mm |
Internal space | 13U 19 inch rack |
Cooling system | 400W air conditioner (Installed at the door. use of 220VAC power supply ) |
Structural Materials | Galvanized steel sheet |
Structural Features | Double layer metal insulation structure Thickness of the side wall insulation plate is 20 mm Thickness of the cabinet top insulation plate is 40 mm |
Mount method | Mounted on the ground |
Protect level | IP65 |
Surface coating | Painting outdoor type static powder in the outside |
Color | RAL 7035 |
N.W. | 75kg |
Package | wooden case. Package: |
|
|

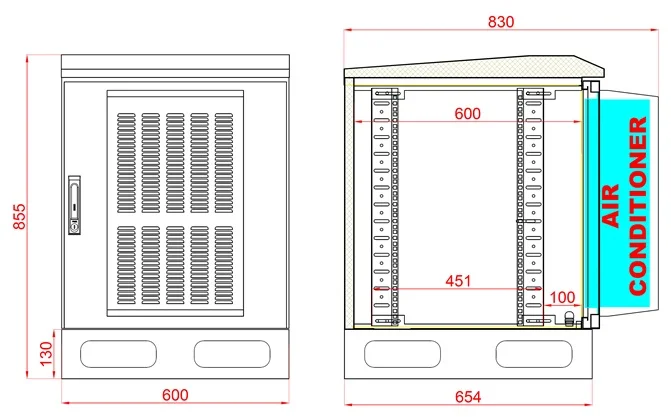

Structure size diagram
ISO 9001 certificate

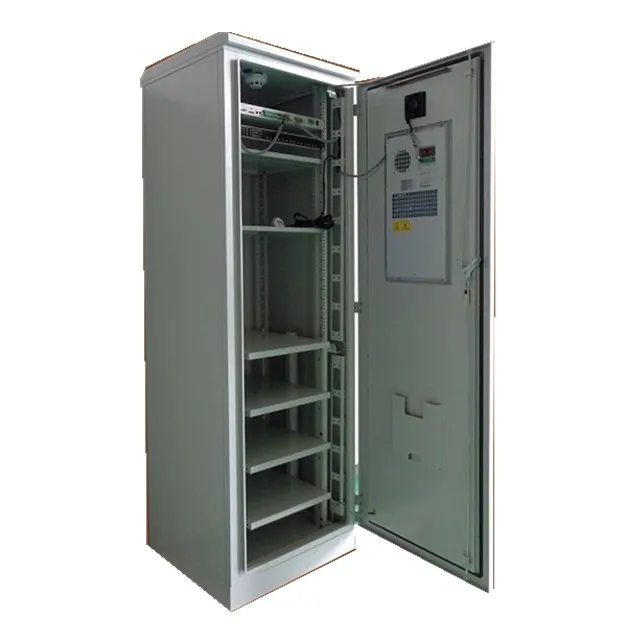

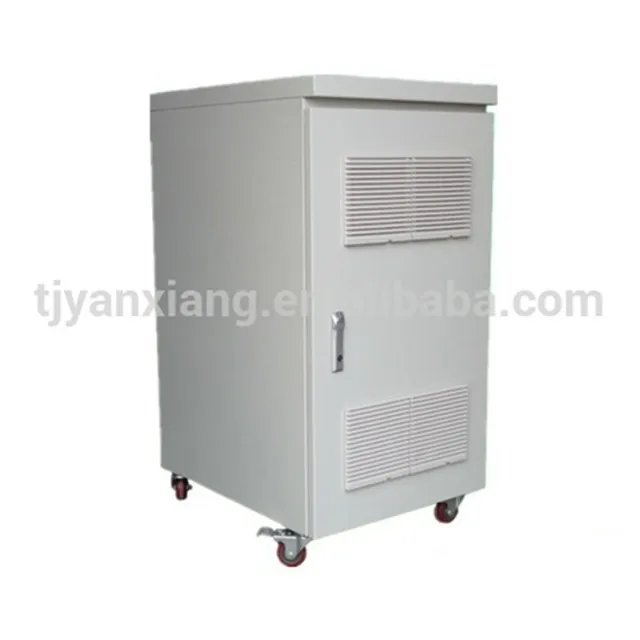

Other outdoor cabinet
