plastic food container making ps fast food box plastic vacuum forming machine

Product Overview

Description

plastic food container making ps fast food box plastic vacuum forming machine

Usage: This machine is used for forming various kinds of disposable fast-food containers,instant noodle bowls,western dinner plates,food coverings(such as

sugar boxes,cake boxes and etc),articles of daily use,hardware coverings,

Major Construction Features:

1. This machine adopts advanced PLC controlling system; it can automatically

finish a series of tasks including feeding, heating, thermoforming, cooling,

drawing off patterns, cutting and stacking.

2. It’s equipped with a feeding device of a precision retarding electric machine,

and geared by a double-lined needle point chain, this machine

can achieve both accuracy and stability during high-speed operations;

what is more, it is also easy to make quick adjustments so as to make good

use of the plastic sheets to reduce waste.

3. Equipped with a unique divided temperature control system and a precision

remote infrared ceramic heater, this machine can get the most stable and even

temperature, and at the same time achieve electricity saving.

4. This machine also possesses some special features: it can be manually pre-started, the switch console can be moved up and down according to needs, it

can achieve a delaying vacuum state or a vacuum state for a second time, and it

can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to

accelerate the forming speed and ensure the quality of the products

5. The major electronic devices and pneumatic components are manufactured

abroad, which can ensure the stability, safety and durability of this machine



Molds on vacuum forming machine:

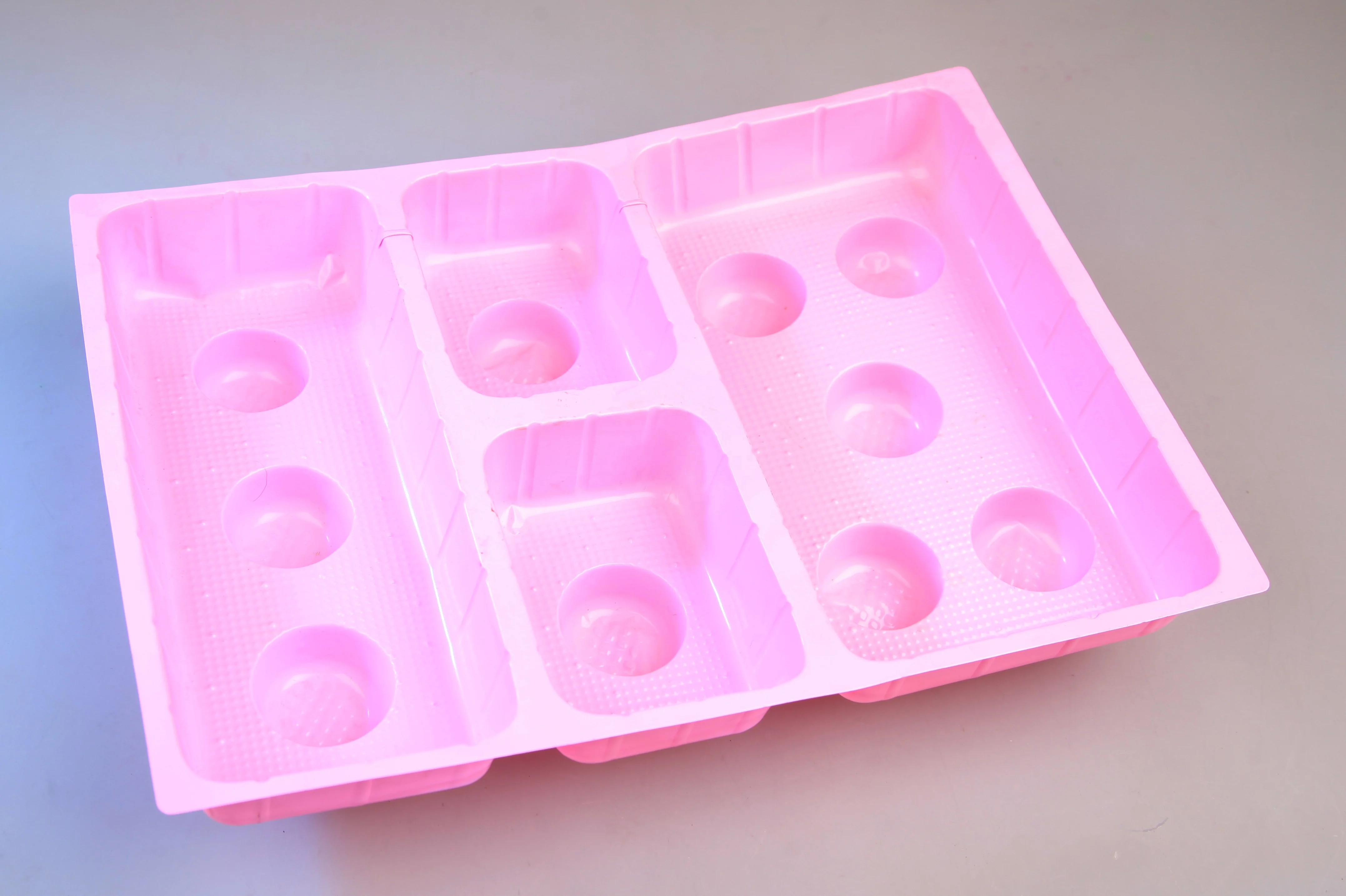

 Samples of products:

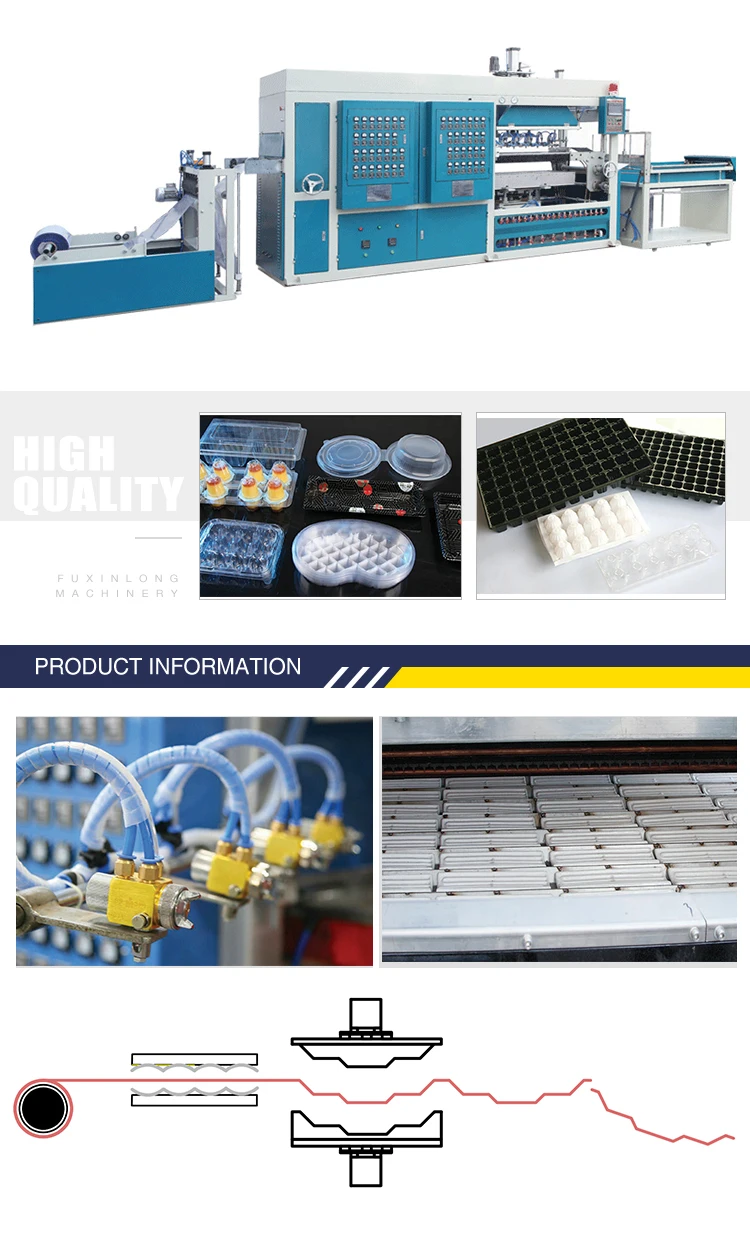

Machine Details:

Main technical parameters:

Model	FJL-700/1200ZK-A	FJL-700/1200ZK-B
Sheet Width	510~740mm
Sheet Thickness	0.1~1.2mm
Forming Length	700~1200mm
Forming Width	480~700mm
Max. Forming Depth	Negative Mould ≤ 180 mm
	Positive Mould ≤ 200mm
Used Sheet	PP, PS, HIPS, PVC,P ET  Sheet Roll
Running Speed	3-12 Moulds/Min
Mode of cutting arrangement.	Off Mould
Heating arrangement	Top Heating with IR  Ceramic Heaters	Top + Bottom  Heating with IR Ceramic Heaters
Heating Power	20KW	35KW
Vacuum Ration	100 m3/h
Air Consumption	1.2 m3/h
Water Consumption	0.6 ~ 0.8 m3/h
Power Supply	380/220V,50Hz, Tri-phase, Four Wire
Overall Dimension	7.8mX1.4 mX2.2m
Weight	3.0T	3.2T



Auxiliary Equipments for Vacuum Forming Machine:

Machine video link:

https://www.youtube.com/watch?v=unj_rR1fbZM

https://youtu.be/cAw7Hs143C8
