Заводская цена ручная машина для растягивания шелковой сетки
- Category: Pre-Press Equipment >>>
- Supplier: Hangzhou,Taoxing,Printing,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Machine Descriptions
Application

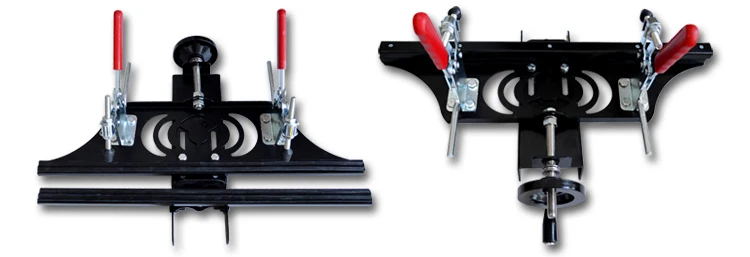

This manual screen stretcher was composed of 4 pcs 60cm width single piece,can be placed directly on the desktop.
The single set(4 pcs) which can hold the frame within 60*60cm.
Six pcs which can hold the frame within 60*120cm.
Eight pcs which can hold the frame within 120*120cm.
Use the machine can reach the tension within 24N.
The single set(4 pcs) which can hold the frame within 60*60cm.
Six pcs which can hold the frame within 60*120cm.
Eight pcs which can hold the frame within 120*120cm.
Use the machine can reach the tension within 24N.
Main Features
The functions and features of this machine:
1.The rubber layer is concave convex; using tasteless and resistant to aging rubber.
2.The rubber layer is completed ,without seams or butt joint, that ensure the screen is equal.
3.The hardness of rubber is reasonable,make the mesh is not loosen.
1.The rubber layer is concave convex; using tasteless and resistant to aging rubber.
2.The rubber layer is completed ,without seams or butt joint, that ensure the screen is equal.
3.The hardness of rubber is reasonable,make the mesh is not loosen.
4.The top rubber and fast fixture adopts split structure,place the top rubber is more convenient.
5.The fast fixture uses auxiliary handle,buckle and loose are more effort.
6.Suitable for the thickness of different frame by adjust the screws.
7.Tighten the handle wheel, rotate the handle wheel more easily.
8.Equipped with whole set installation tools and installation instruction.
5.The fast fixture uses auxiliary handle,buckle and loose are more effort.
6.Suitable for the thickness of different frame by adjust the screws.
7.Tighten the handle wheel, rotate the handle wheel more easily.
8.Equipped with whole set installation tools and installation instruction.
Instructions:
1.According to the size of frame and place the stretcher.
2.According to the thickness of frame and adjust screws,the frame is higher than the stretcher baffle 2-4mm.
3.Place the frame into stretcher,coating the glue for the first time,place for a period of time,while the surface of glue is
dry(the glue is not stick to your fingers).
4.Push the clipboard to the inside,flatten the screen mesh,put the top rubber layer;using the fast fixture presses the top rubber layer.
5.Turn four hand wheels and start to stretch screen mesh; using tension meter tests tension,tighten the screen mesh according to the situation,achieve the required tension.
6.Costing the glue again;place a period of time,while the glue dry completely and remove the frame.
1.According to the size of frame and place the stretcher.
2.According to the thickness of frame and adjust screws,the frame is higher than the stretcher baffle 2-4mm.
3.Place the frame into stretcher,coating the glue for the first time,place for a period of time,while the surface of glue is
dry(the glue is not stick to your fingers).
4.Push the clipboard to the inside,flatten the screen mesh,put the top rubber layer;using the fast fixture presses the top rubber layer.
5.Turn four hand wheels and start to stretch screen mesh; using tension meter tests tension,tighten the screen mesh according to the situation,achieve the required tension.
6.Costing the glue again;place a period of time,while the glue dry completely and remove the frame.
Product Parameter
Product Code | 006261 |
Product Name | SPE6060 Manual screen stretcher |
HS code | 8447909000 |
Product Color | Black |
Stretch size | Below 24*24inch |
Machine using material | steel plate |
Machine surface treatment | Electrostatic spraying |
Attachment material | Stainless steel or zinc plating, nickel plating |
Machine size | 50*50*10in |
Net weight | 64lb |
Gross weight | 68lb |
Packing size | 27*26*9in |
Packing volume | 0.10 m3 |
Packing material | Export carton |
Packing & Delivery
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (40% deposit to start the production, 60% paid before delivery)
3. Delivery date：14 business days after received the payment.
4. Delivery means: By sea from Shanghai
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
To provide you with the best printing solutions
Recommend Products
Semi-auto Printing Machine
Full-auto Printing Machine
Flatbed UV Inkjet Printer
I.R Drying Tunnel
Powder Coating Machine
Carousel Printing Press
Pneumatic Pad Printer
Heat Press Machine
Pre & Post-press Equipment

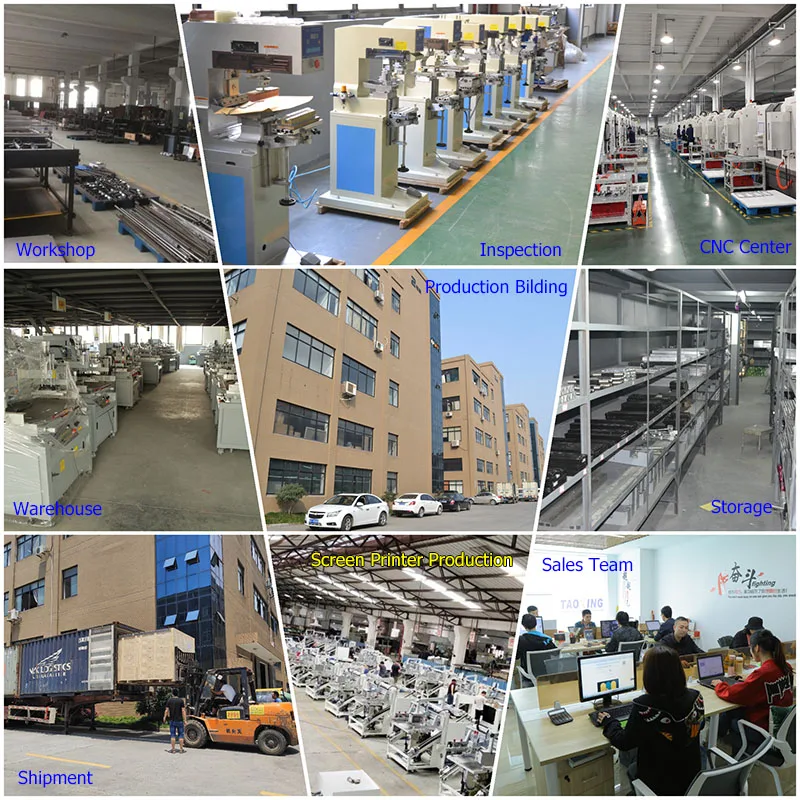

Company Profile
