Waterproof PVC TPO EPDM Geomembrane for tunnel and roof and wall

Product Overview

Description

                                 PVC waterproof geomembrane/pond liner

                                    (Free sample, support customization, sufficient raw material inventory)



Manin features:

√  Weldable- can be welded by welding machine.
√  Anti-age- the span lifet of orighin is more than 70 years.

√  Anti-UV- can be exposed in the sun.

√  temperature resistance- still have good performance in temperature range -70°C~110°C.
√  Puncture Resistance- No additional protection procedure needed during installation.



Surface
	pvc geomembrane	pvc composited with geotextile	reinforced pvc geomembrane
Thickness	0.8mm to 2mm
Roll width	1m-2m, as your request.
Roll length	20m/roll, as your request.
color	black, white, blue, green, as your request.
standards	USA ASTM/GRI-GM13 or China GB, as your request

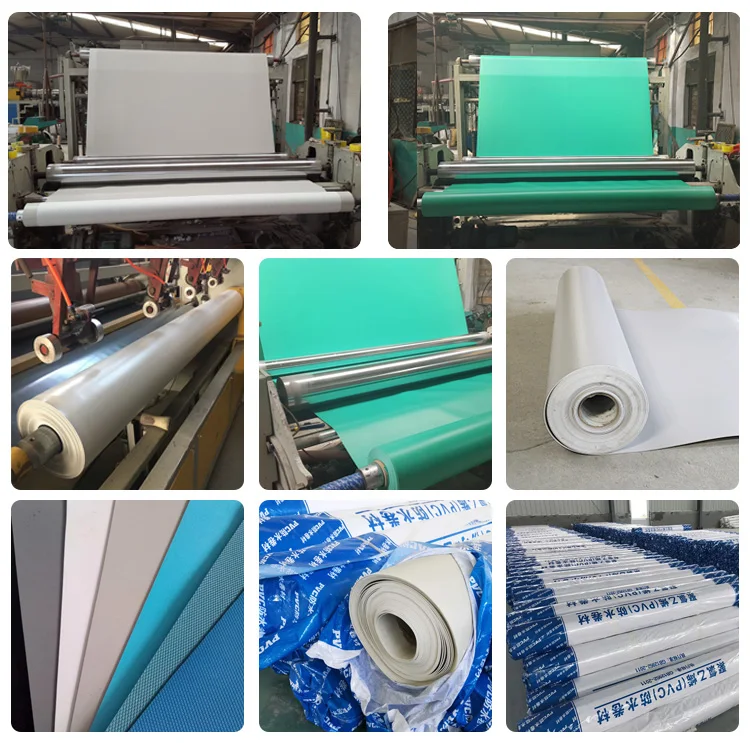

Photos:



USA ASTM/GRI-GM13 or China GB standards.

Minimum density	1.25~1.35 g/cm³
Tensile strength(MD/TD)	≥15/13 Mpa
Elongation at breaking(MD/TD)	≥220/200 N/mm
Tearing strength(MD/TD)	≥40 N/mm
Fold ability at Low Temperature(-20℃)	No crack
Dimensional Changes after Laundering(MD/TD)	≤5 %
Hydrostatic pressure resistance	According to form 1,2 MPa
Osmotic coefficient	≤10¹¹cm/s
Permeability coefficient	According to design or contract (cm³•cm)/(cm²•s•cmHg)
Thermal aging treatment  Appearance	No bubble, no bond, no hole
Thermal aging treatment Relative Change Rate of Tensile Strength MD/TD	≤25%
Thermal aging treatment Relative change rate of elongation at break(MD/TD)	≤25%
Thermal aging treatment Fold ability at Low Temperature(-20℃)	No crack

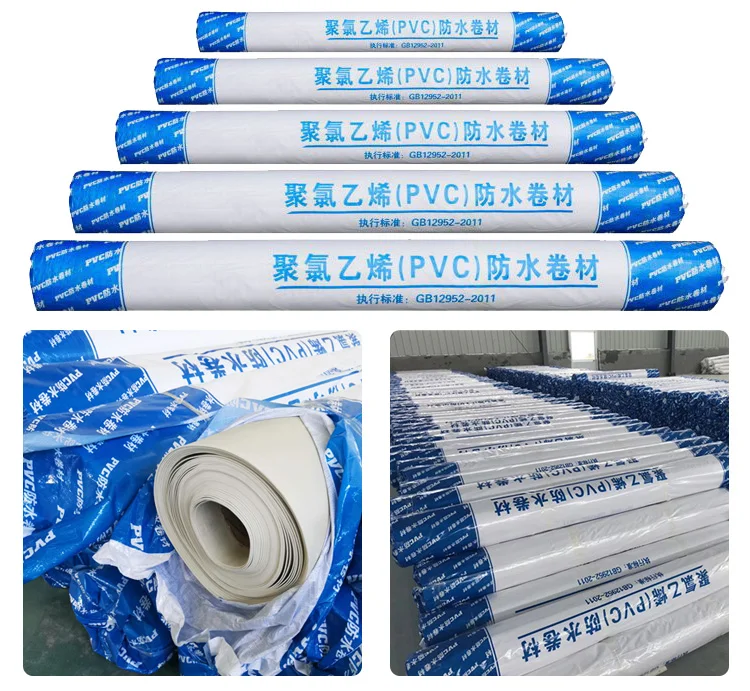

Packed in roll into PP woven bag.

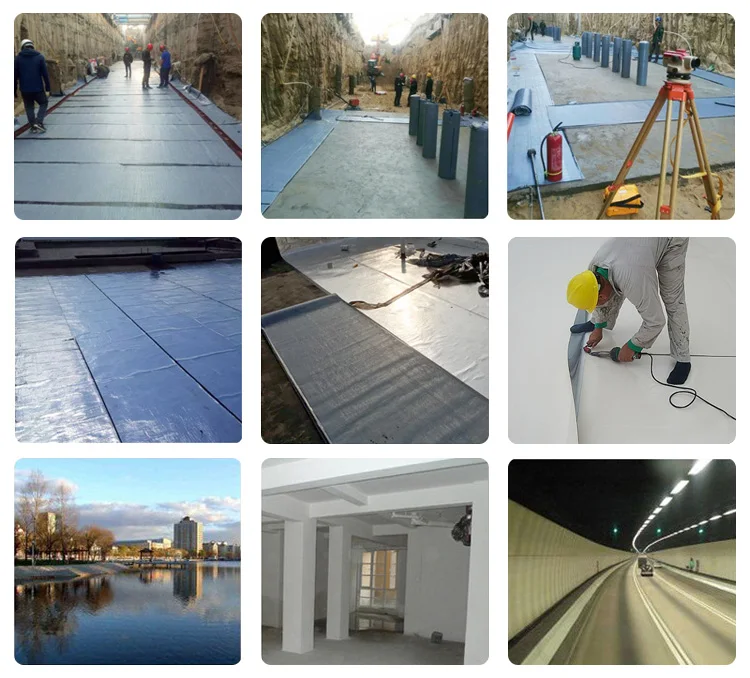

Artificial lakes, Tunnels, Mining, Tanks, Roof waterproof, Basement.



Shandong Bring Plenitude New Materials Co.,Ltd. is located in Tai’an city, China. which is a large manufacturer specializing in the production of geotechnical and waterproof materials.  Products Include geomembrane, steel and plastic/fiberglass/polyester geogrid, non woven geotextile, geocell, geomat, waterproofing sheet, GCL etc.,

The factory quipped with a number of six advanced production lines, the company has obtained ISO9001, ISO14001 and other certifications, our products are not only popular in domestic engineering projects and bidding, but also exported to more than 30 countries and enjoyed a high popularity and reputation.
Looking forward to cooperating with you and welcomes your visit.





A: Can I have a sample?

B: Yes, we supply free A4 size samples for checking quality.

A: What is the payment term?

B: We accept 50% T/T in advcance and 50% T/T after you checking the produce when finish the production.

A: How long is the warranty time?

B: The span life of the geomembrane is more 50 years, the waranty time is 5 years.
