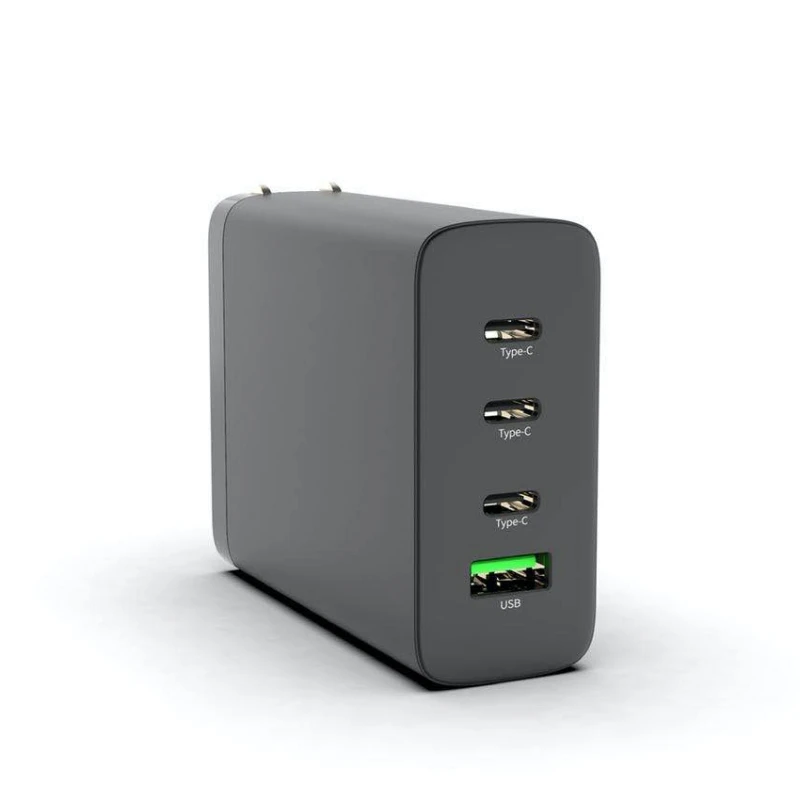

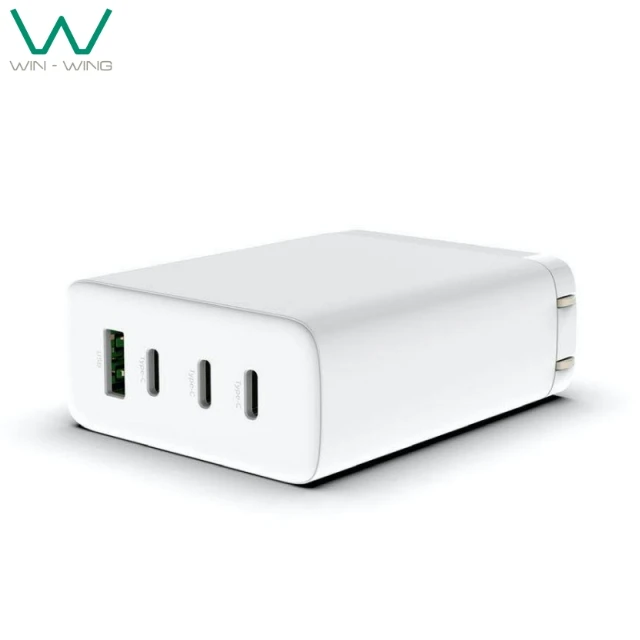

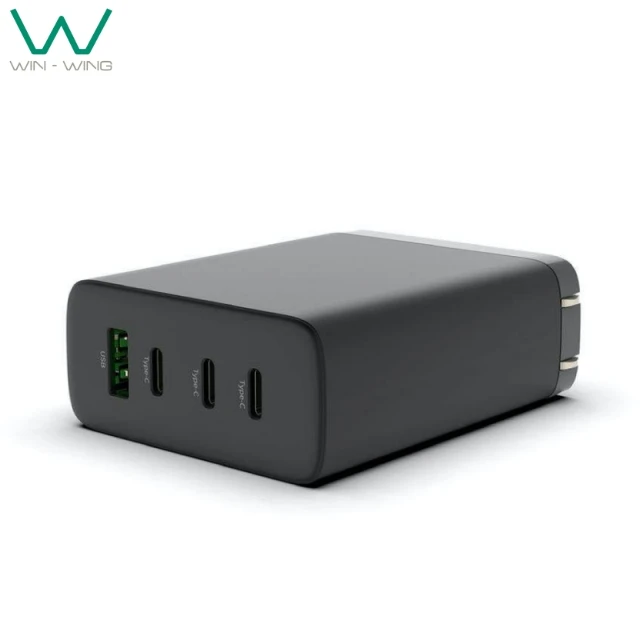

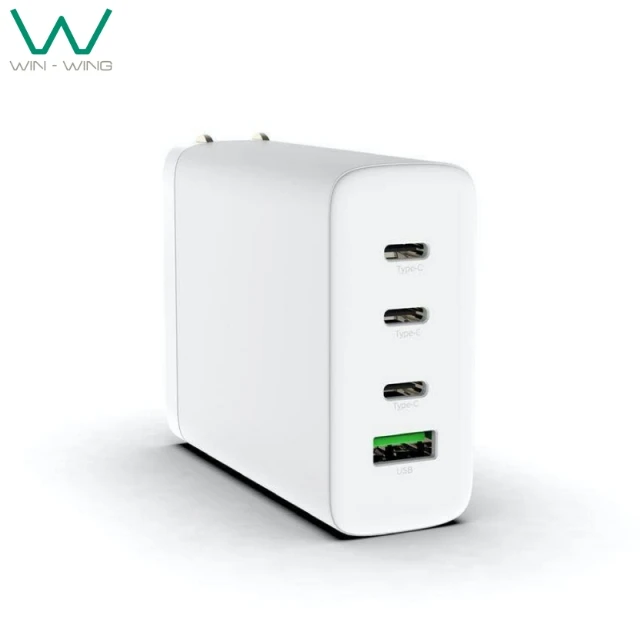

GaN charger 100W 3C 1A 20V 5A PD charger for MacBook ETL PSE CE ROHS Certified
- Category: Charger >>>
- Supplier: Shenzhen Win-Wing Technology Limited
Share on (1600123244652):
Product Overview
Description
Product Description
Main Feature
* 100W GaN technology PD charger * Universal AC input/Full range
* EU US UK AC plug for optional
* ETL/PSE/TUV-GS/CCC/KC certified
* Muti fast charge protocol complaint
* OVP, OCP, SCP
* 2 years warranty
* EU US UK AC plug for optional
* ETL/PSE/TUV-GS/CCC/KC certified
* Muti fast charge protocol complaint
* OVP, OCP, SCP
* 2 years warranty
Specs
Model No. | PQ1003 | ||||||
Input | 100-240，50-60Hz | ||||||
AC plug | AUS EU KR US JP UK | ||||||
USB-CI output | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A | ||||||
USB-C2 output | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A | ||||||
USB-C3 output | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A | ||||||
USB-A output | 4.5V/5A, 5V/4.5A, 9V/3A, 12V/2.5A, 20V/1.5A | ||||||
USB-C1+USB-C2 output | 65WPD+30WPD | ||||||
USB-C1+USB-C3 output | 65WPD+30WPD | ||||||
USB-C1+USB-A output | 65WPD+30W QC/SCP | ||||||
USB-C2+USB-C3 output | 65WPD+30WPD | ||||||
USB-C2+USB-A output | 65WPD+30W QC/SCP | ||||||
USB-C3+USB-A output | 5V 3A | ||||||
USB-C1+USB-C2+USB-C3 output | 45WPD+30WPD+18WPD | ||||||
USB-C1+USB-C2+USB-A output | 45WPD+30WPD+18WQC | ||||||
USB-C1+USB-C3+USB -A output | 65WPD+15W(5V/3A) | ||||||
USB-C2+USB-C3+USB-A output | 65WPD+15W(5V/3A) | ||||||
USB-C1+C2+C3+USB-A output | 45WPD+30WPD+(USB-C3+USB-A)5V/3A | ||||||
Max power | 100W | ||||||
Fast charge | PPS/PD3.0/PD2.0, QC4+/QC4.0/QC3.0/QC2.0, PE2.0, PE1.0, AFC, FCP, SCP, SFCP | ||||||
Port | 3C+1A | ||||||
Dimensions | 75*60*29mm（L*W*H） | ||||||
Net weight | 160G | ||||||
Material of shell | PC+ABS fireproof | ||||||
Certificate | ETL TUV-GS CE RCM CCC KC PSE FCC ROSH | ||||||
MTBF | More than 50,000hrs | ||||||
Operating temperature | -10℃~40℃ | ||||||
Operating humidity | 20%~90% | ||||||
Storage temperature | -20℃~90℃ | ||||||
storage humidity | 0℃~95℃ | ||||||
Detailed Images
Product packaging
Company Profile
Engineering research &development
Purpose to processing high quality product. Equipped with the international advanced testing equipment and adopt international advanced testing methods, various components of stress analysis, high and low temperature cycle test, vibration test, impact test, alternating hot and humid test, safety test, EMC test, MTBF analysis test, FMEA analysis test, accelerated aging test, etc., to ensure that all the high reliability of power supply products.
Production flow
Introduced automation transformer equipment, S M T, high speed AI machine, fully automatic production line, advanced
multi-function testing and aging equipment, with the machine substitutions meanwhile more than 8 engineers, 250 workers and 5 production lines with 30,000pcs daily capacity ensure customer get excellent quality products rapidly
multi-function testing and aging equipment, with the machine substitutions meanwhile more than 8 engineers, 250 workers and 5 production lines with 30,000pcs daily capacity ensure customer get excellent quality products rapidly
