LHD or RHD Dongfeng Single Cab 3t Road recovery vehicle wrecker tow Truck in dubai
- Category: >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (1600123701260):
Product Overview
Description
LHD or RHD Dongfeng Single Cab 3t Road recovery vehicle wrecker tow Truck in dubai

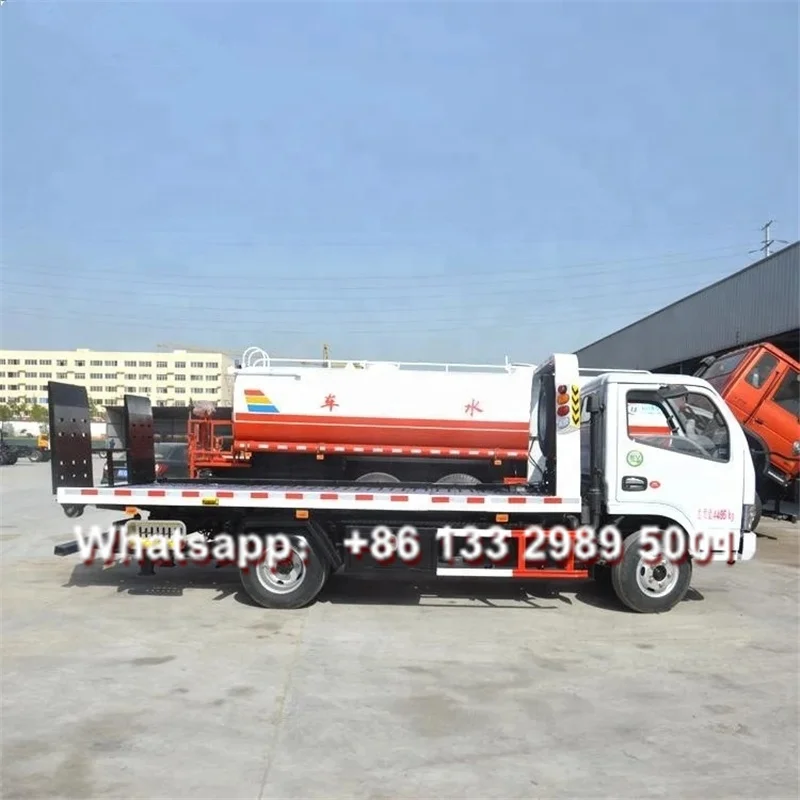

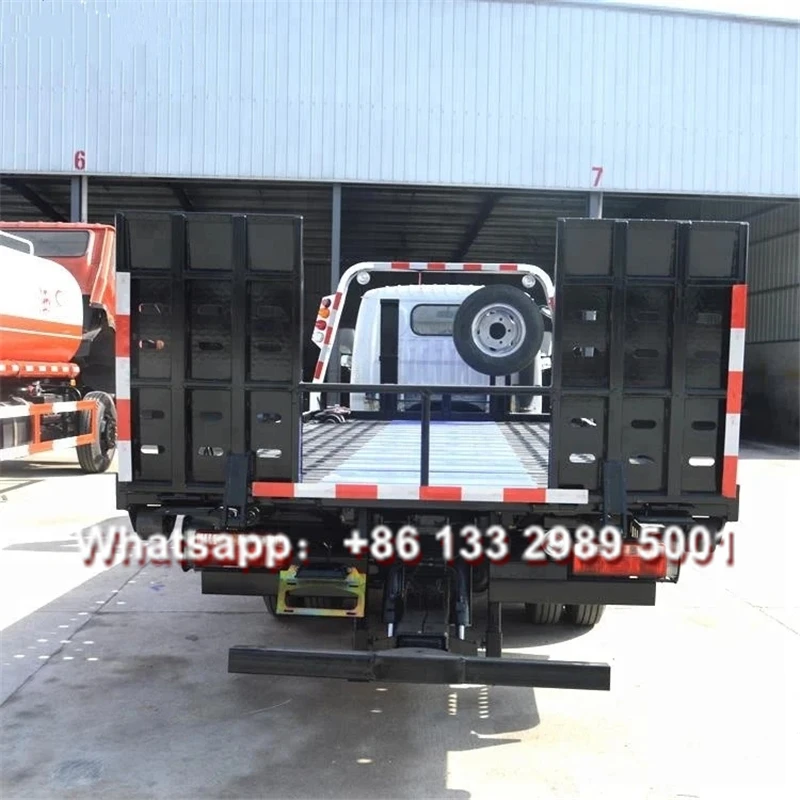

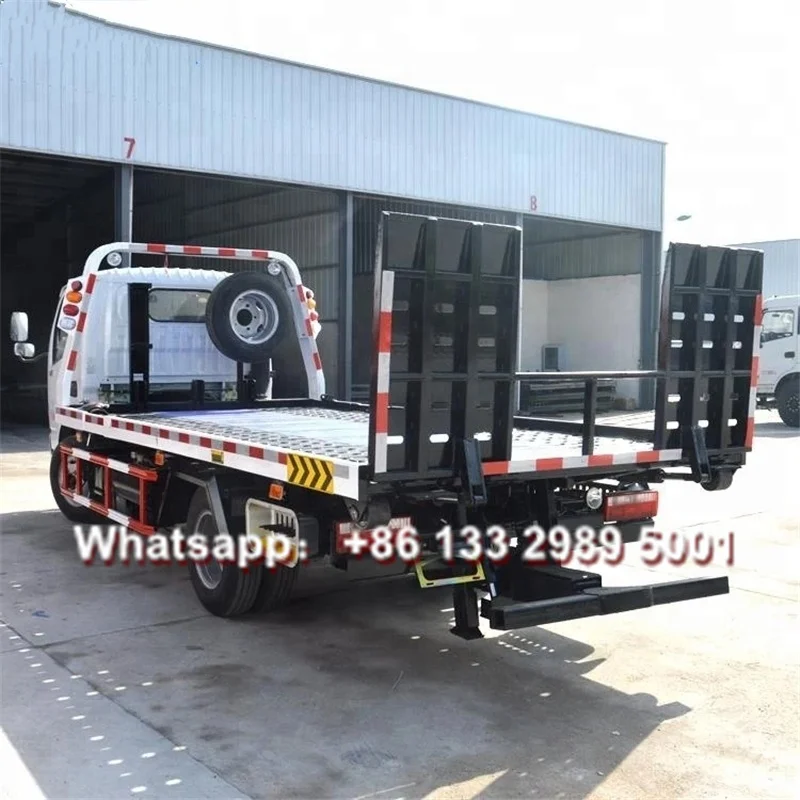

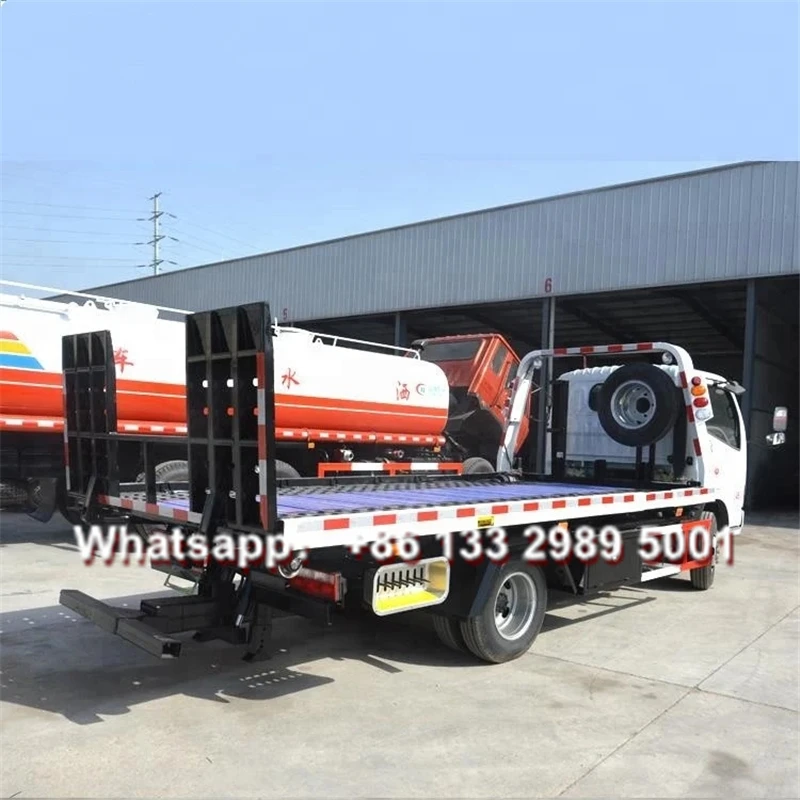

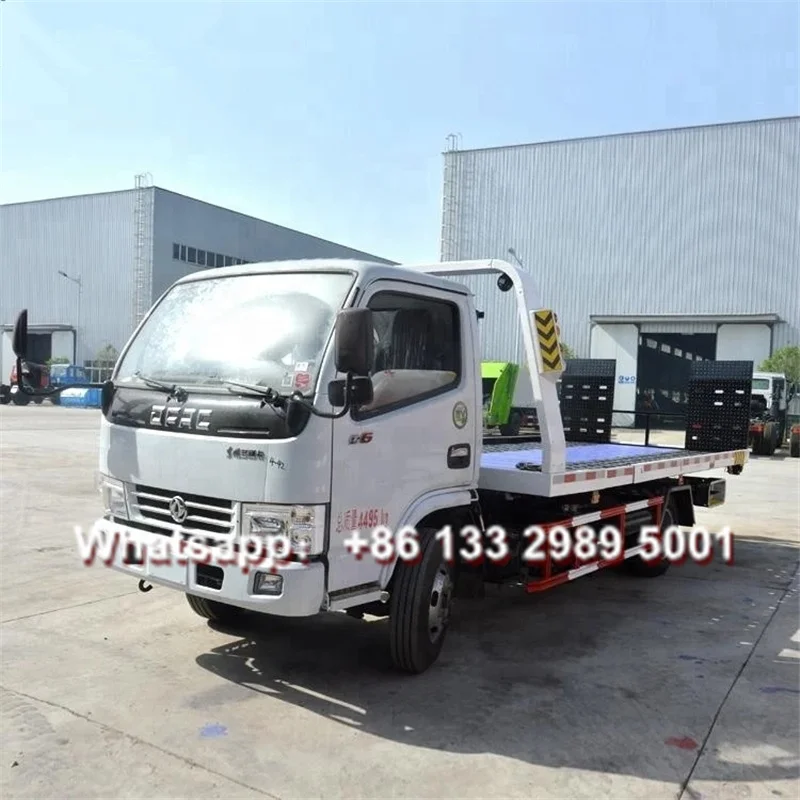

I. DETAILED VIEW OF WRECK TOW TRUCK
II. WRECK TOW TRUCK SPECIFICATION
| Dongfeng single cab 2t 3t Road Rescue Truck Road Wrecker Truck (LDH or RHD) | ||
| ITEM | UNIT | DESCRIPTION |
| Vehicle | DONGFENG tow truck wrecker | |
| Overall dimension | mm | 7470×2350×2440 |
| Flatbed dimension | 5550×2300 | |
| Curb weight | kg | Appro×4910 |
| Flatbed loading weight | Appro×4000 | |
| Carriage arm loading weight | Appro×3000 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 | |
| Approach/departure angle | ° | 24°/10° |
| Standard configuration | 1) 4 tons winch 1 set | |
| 2) Auxiliary wheel 2pcs | ||
| 3) Rear towing arm assembly 1 set | ||
| 4) Steel wire rope 25m | ||
| 5) Bunding belt 4pcs | ||
| 6) Rear tail lights LED,both sides electronic lights. | ||
| 7) Tool box | ||
| Working Performance | 1. It can tow two cars. | |
| 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. | ||
| 3. Winch speed : 8m/min. | ||
| 4. Flatbed working stroke: 2680mm | ||
| 5. Flatbed minimum tilt angle: 10° | ||
| 6. Carriage arm telescopic stroke: 1180mm | ||
| 7. The max effective length of the carriage arm: 1300mm | ||
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers | |
| Drive type | 4×2,left /right hand dirve | |
| Engine | Brand : DONFGENG CHAOCHAI POWER | |
| Model :CY4102-E3C, 120hp | ||
| Type : diesel, 4 cylinder, turbocharged, intercooled. | ||

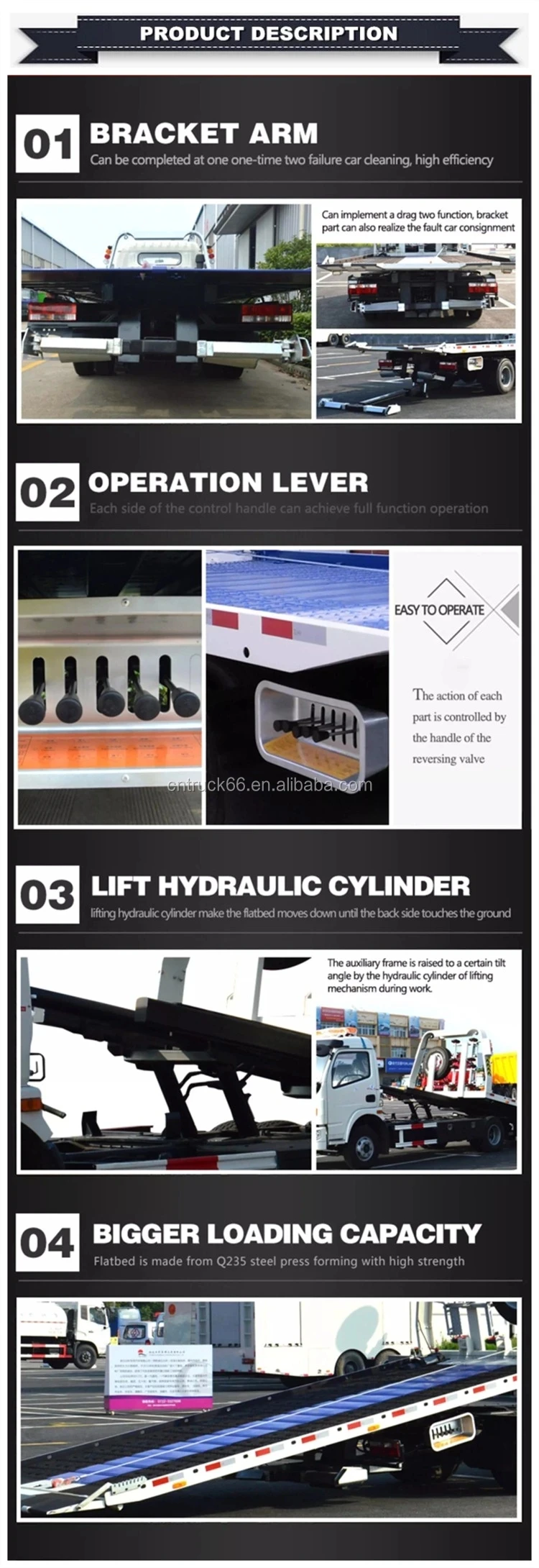

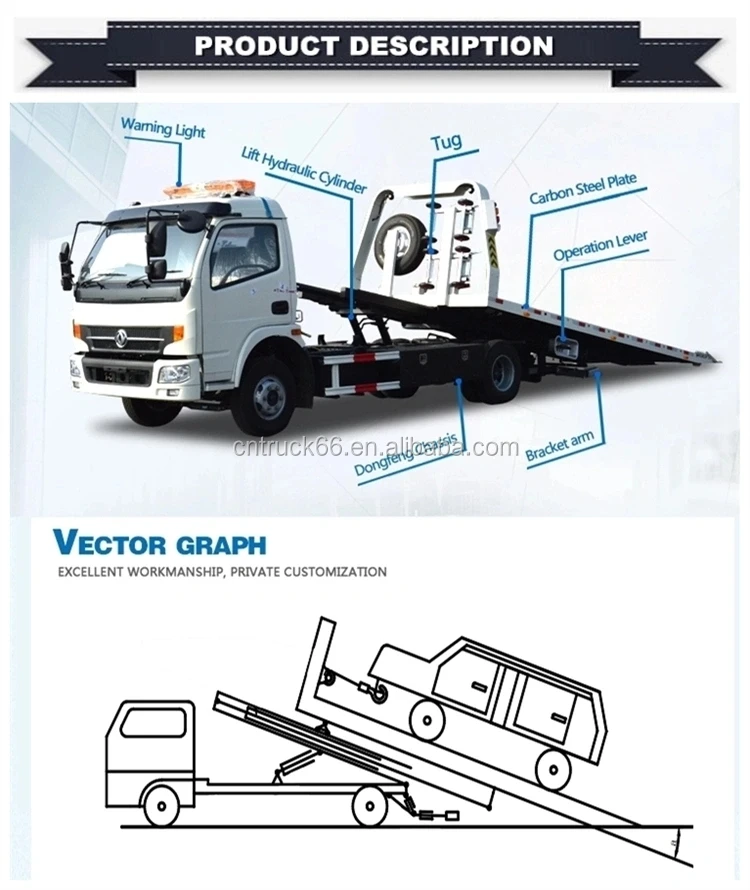

III. WRECK TOW TRUCK DESCRIPTION
IV. WRECK TOW TRUCK TRANSPORTATION
V. FAQ
FAQ 1: Why choose ChengLi Special Vehicle Co., Ltd?
A: We are one of biggest special vehicle manufacturer in China, since 2004 year, until now we have 16 years
exporting experience.
FAQ 2: Can the product enter the local market?
A: We cooperate with many brand for example HOWO, FAW, DONGFENG, JAC, FOTON, SHACMAN,
IVECO, FORD, JMC, ISUZU, etc, The net work in local market.
FAQ 3: How about the after sale service?
A: First we choose the popular brand in local market with after sale service. Second, we can delivery spare parts
and engineers to your place. Make maintenance plan and provide commissioning service.
FAQ 4: How about gurantee and warranty?
A: We provide 16 years spare parts service for exporting vehicles, warranty one year from B/L date.
Warranty of special model vehicle will be negotiated.
