SDEKON JB 500B Semi automatic Charpy Pendulum Metallic Impact Tester

Product Overview

Description

SDEKON JB-500B

Semi-automatic Charpy Pendulum Metallic Impact Tester



Applications:
SDEKON JB-500B Semi-automatic Charpy Pendulum Metallic Impact Tester is used to determine

resistance of metal materials to impact under dynamic load, and to judge the quality of material

under dynamic load.

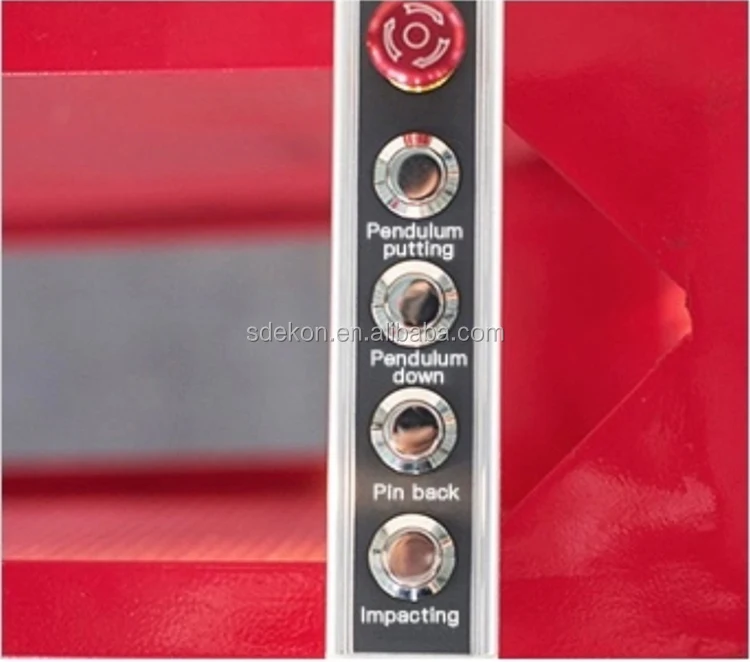

It is a semi-automatic control testing machine with simple operation, high working efficiency,

electric control of swing, impact and swing. It can automatic to use the remaining energy after

punching the sample to prepare for the next test, especially suitable for continuous operation.



Main Specification:

Model	JB-500B
Display Way	Dial Display
Impact Energy	500J / 250J
Impact Speed	5.2 m/s
Pendulum Pre-lifting Angle	150°
Angle Accuracy	0.1°

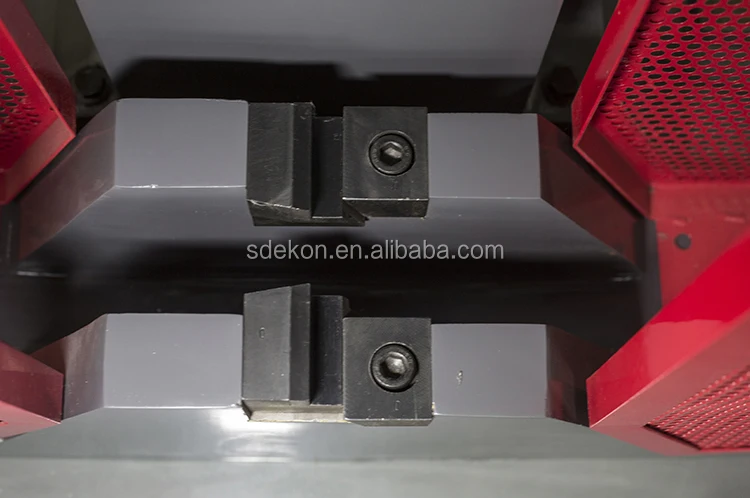

Span of Sample Support	40 mm
Round Corner of Support Jaw	R1.0~1.5 mm
Fillet of Impact Blade	R2.0~2.5 mm
Distance From Pendulum Center To Impact Point	800 mm
Standard Sample Size	10×10 (7.5 or 5) ×55 mm
Pendulum Moment	M=267.9492 N.m  133.9746 N.m

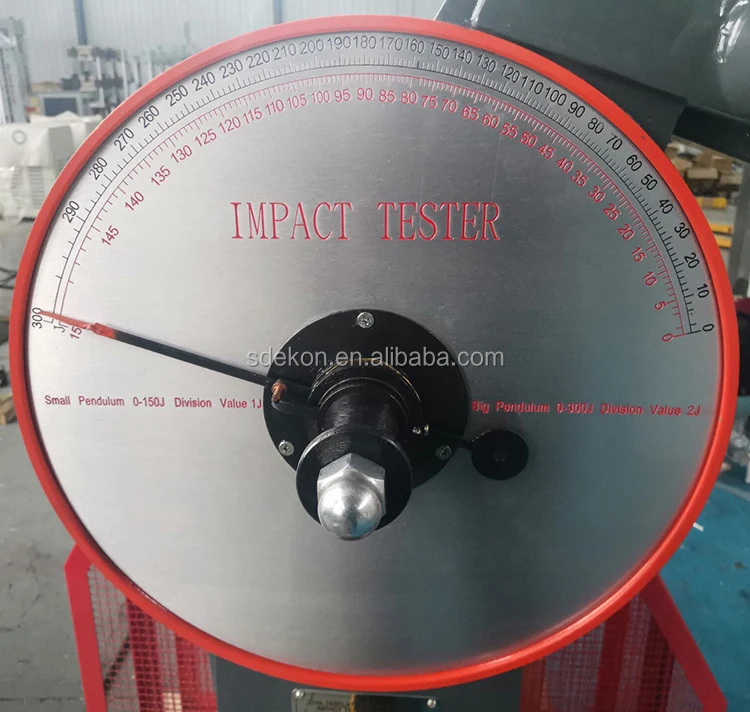

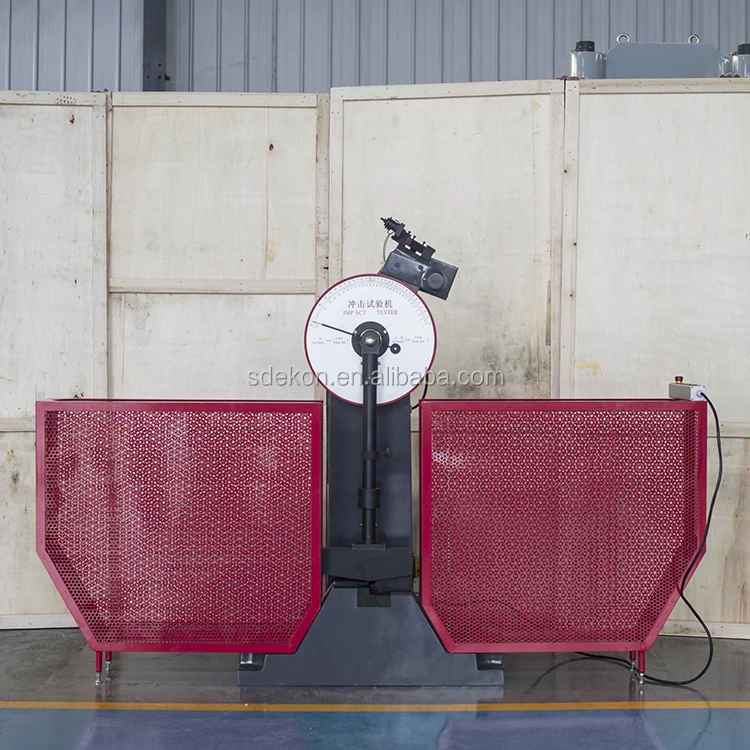

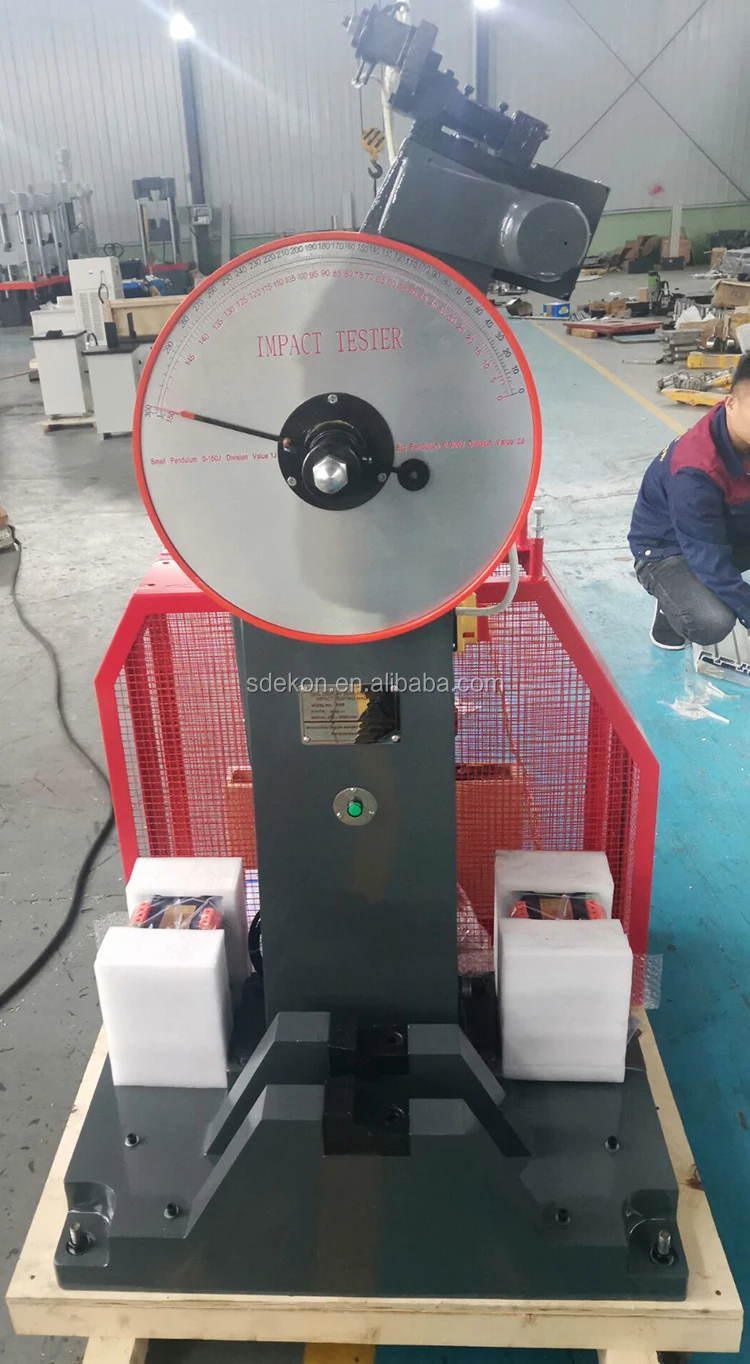

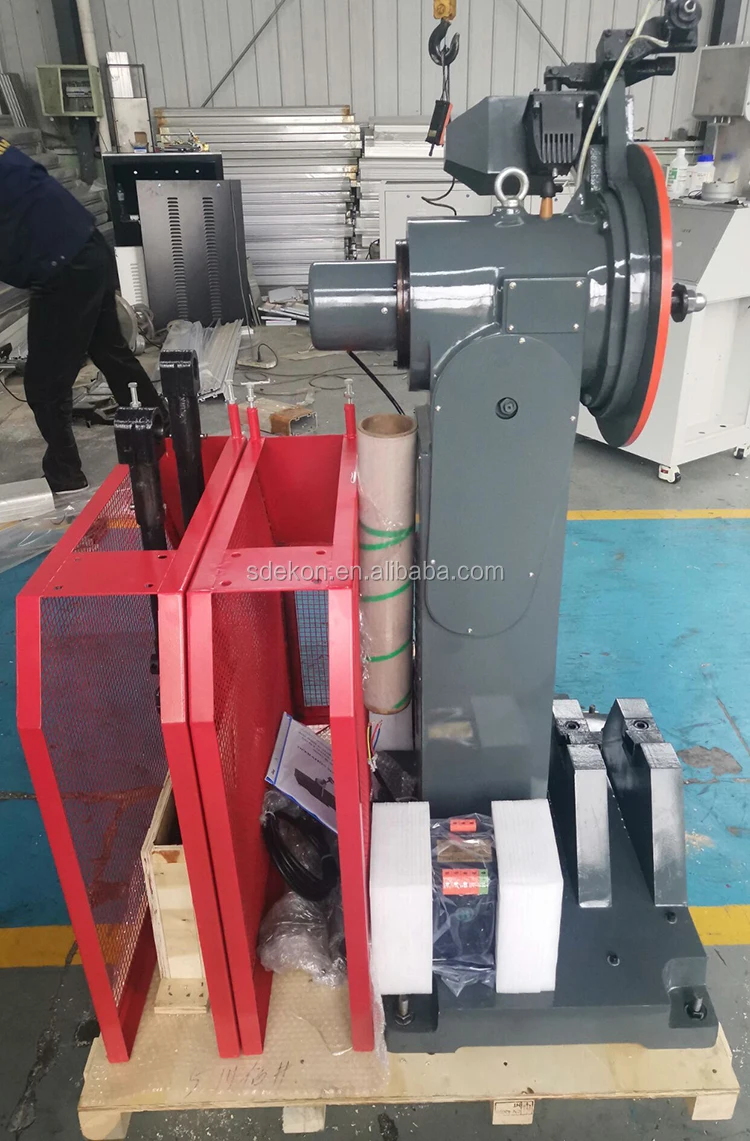

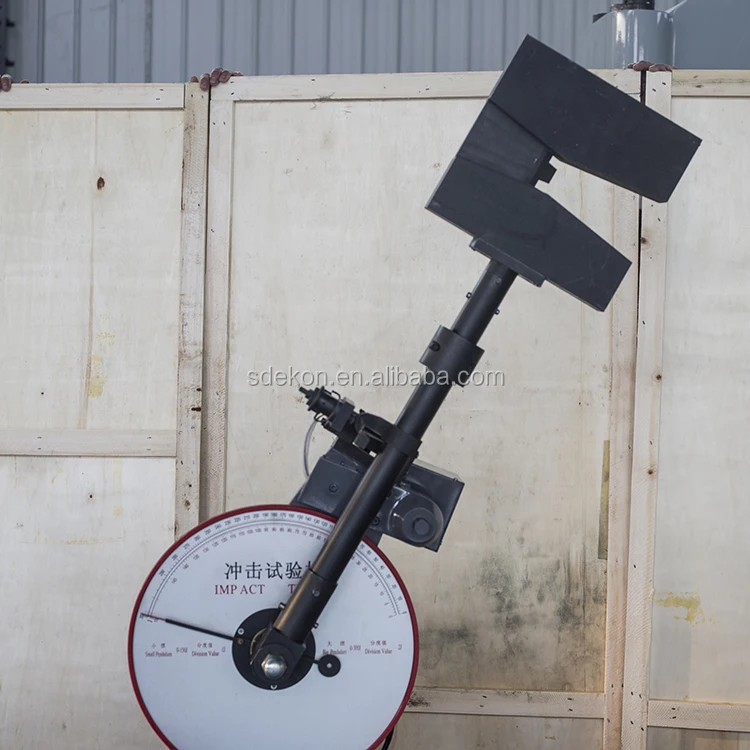

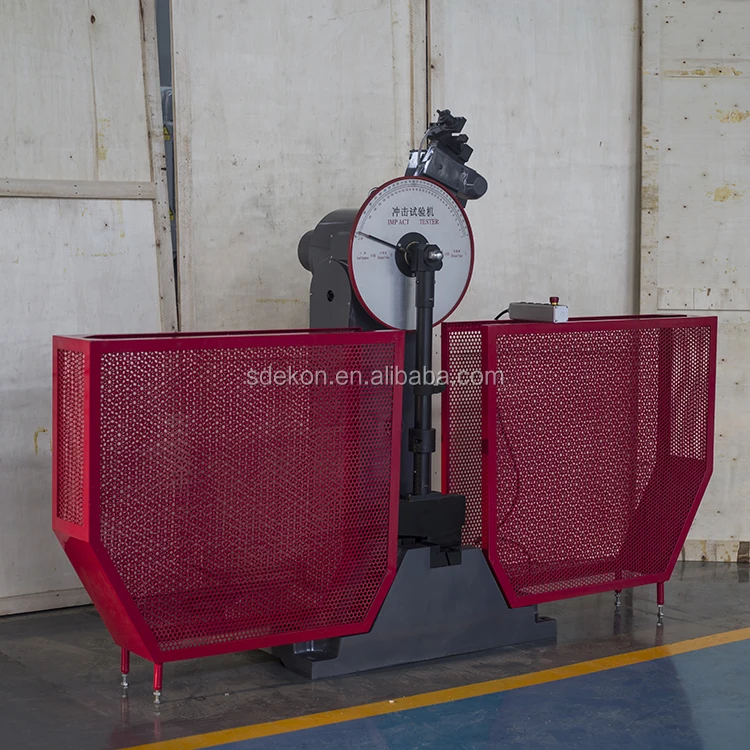

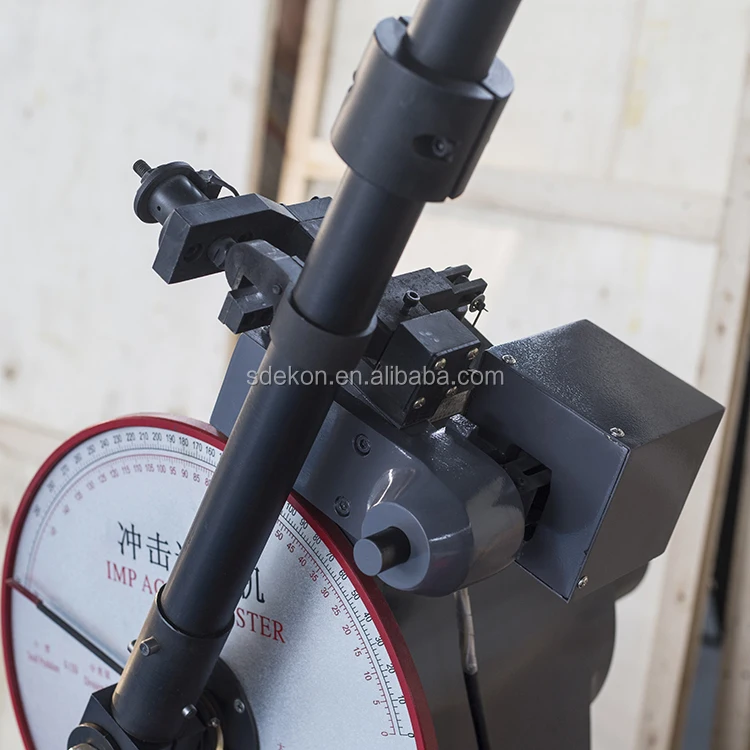

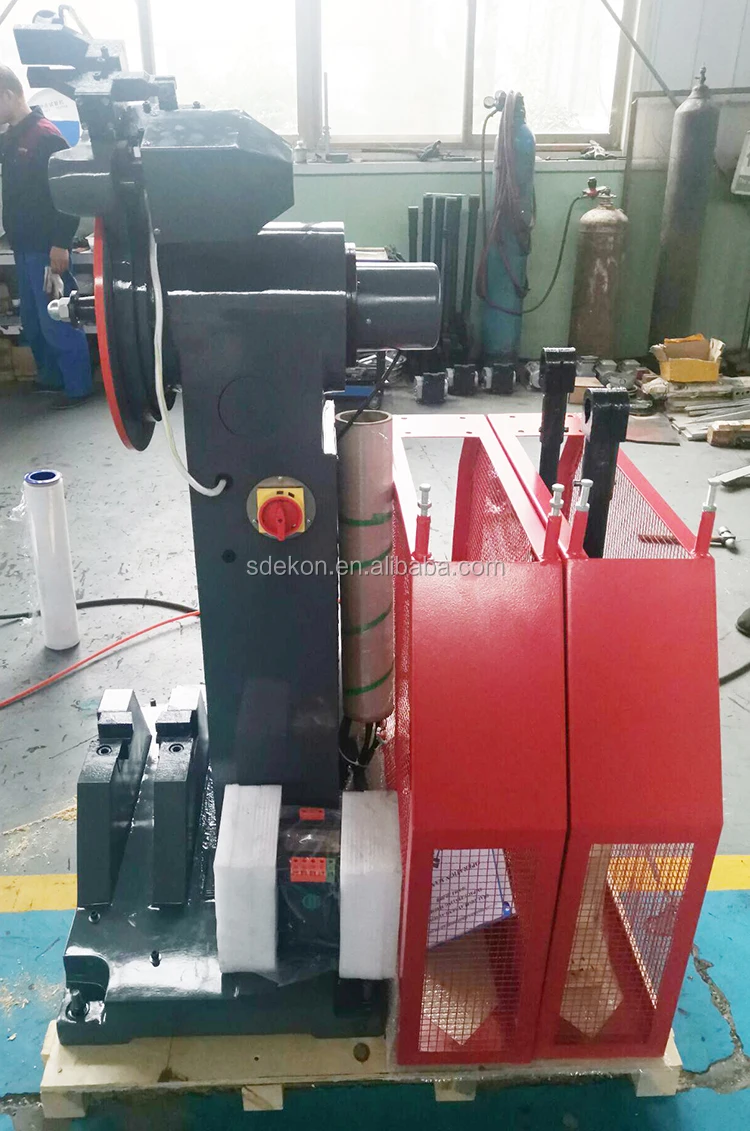

Product Pictures:





Order Operation Process:

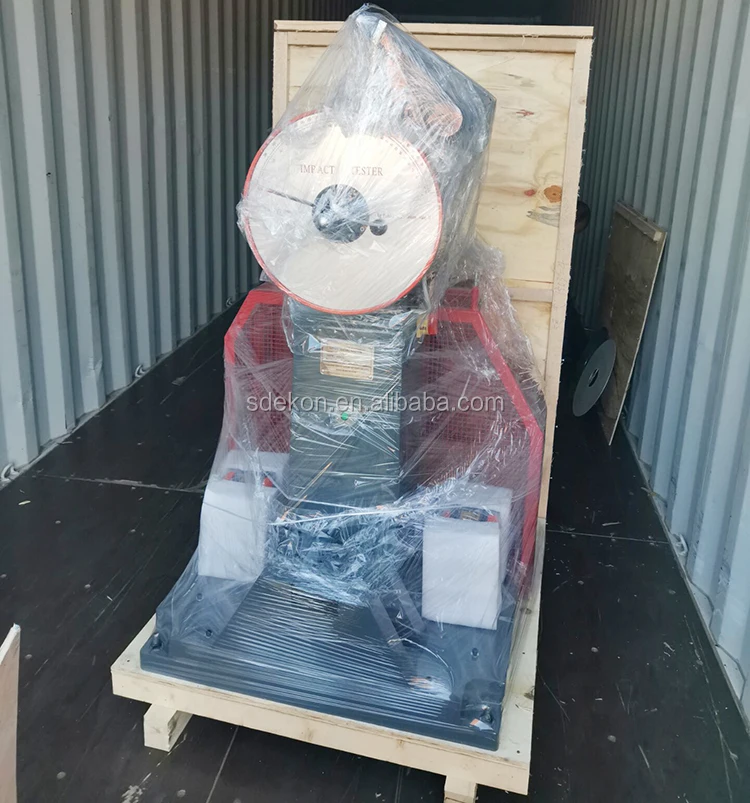

Select The Different Transportation Way:
