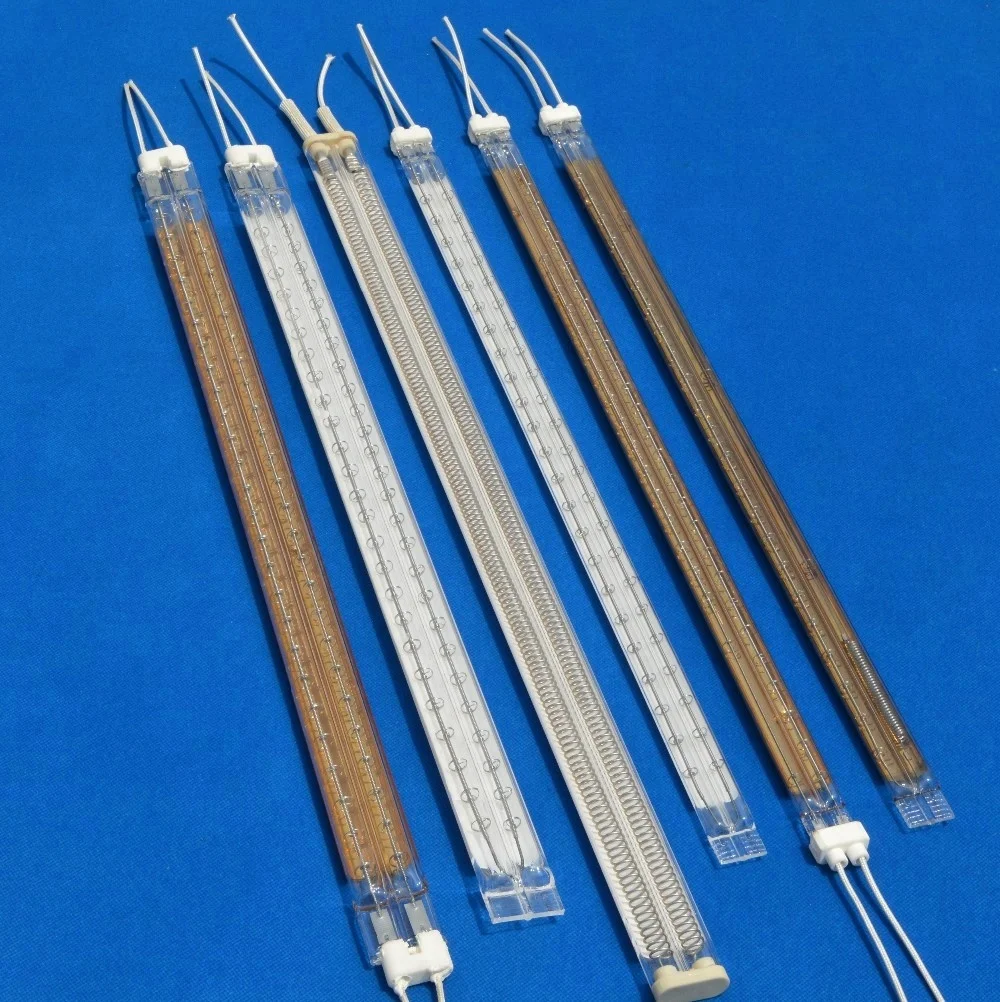

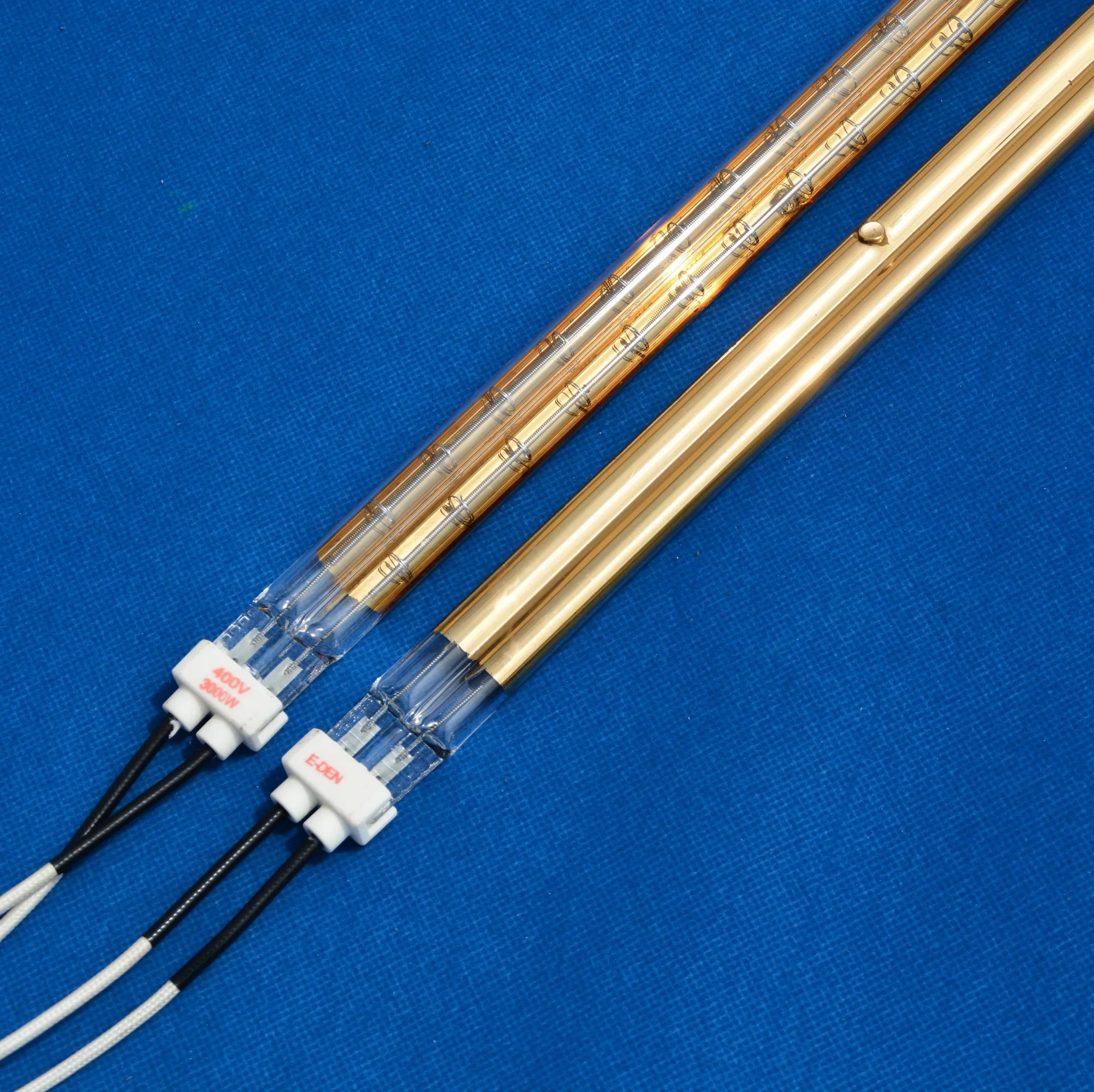

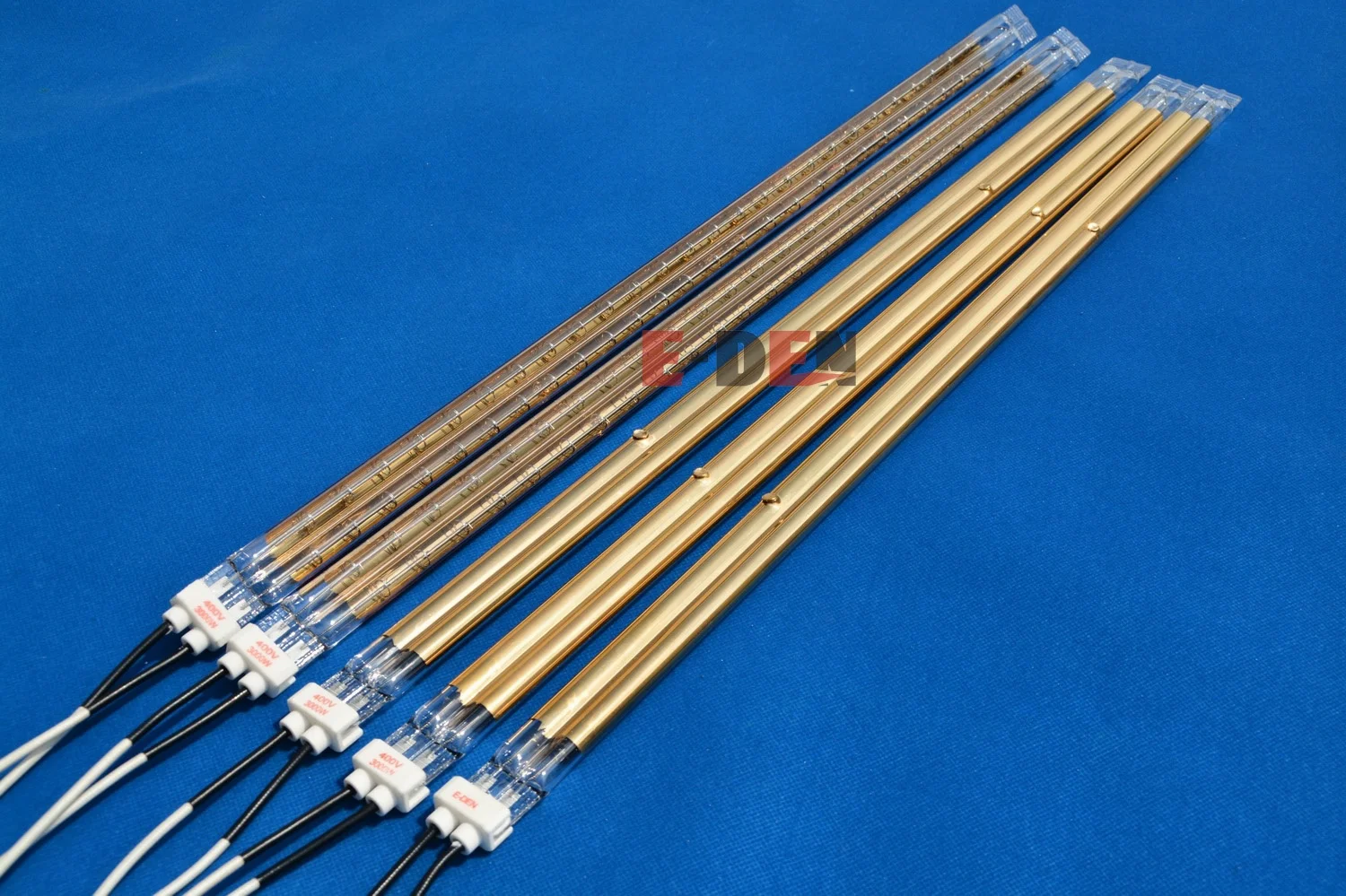

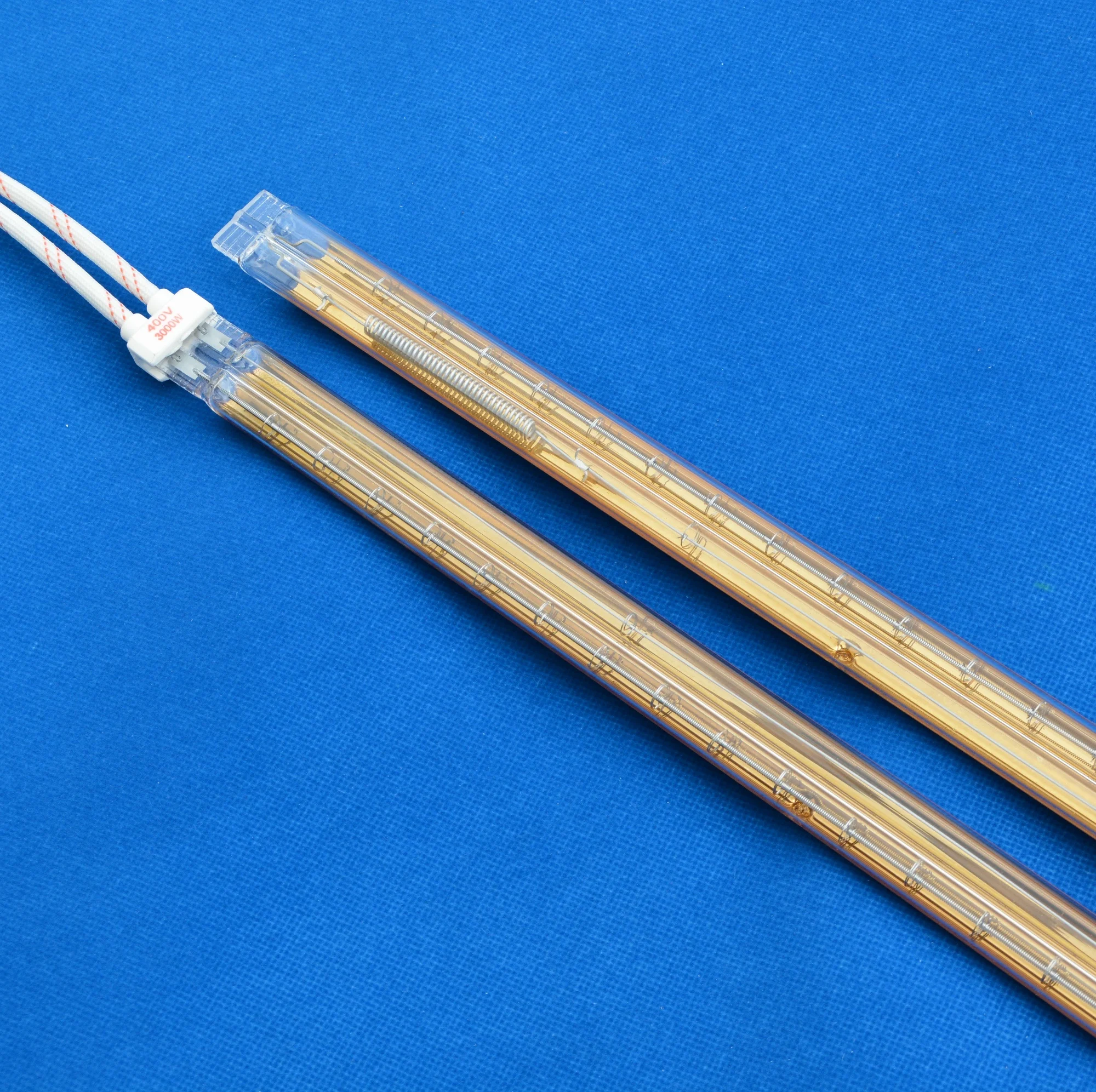

Gold Reflector Twin Tube IR Emitter Lamp High Efficiency Infrared Heating Emitter Lamp

Infrared heating technology radiates and conveys large amounts of energy in a short time. Infrared lamps are suitable for printing、packing、plastic processing、heating food、drying wood、auto industry and other areas what you need. Our lamps are available for large surfaces, for three dimensional shapes and for small work pieces. By matching the optimum wavelength of infrared, the lamps can save energy up to 50%. Twin tube shape is a better stable design for short wave infrared lamp with high radiation density and high power intensity.

E-DEN Infrared Lamps-Advantages

1: E-DEN infrared heating lamps can be switched on and off frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage).
4: Accurate（±1 ℃）IR heating temperature control with SCR regulators or solid state relays.
5: Small installation space, flexible horizontal or vertical burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white reflector (70% reflective rate) coated on IR lamp quartz tube
surface to reflect infrared radiation energy back on heated objects.
8: Different objects different matched IR radiation wavelength-IR lamp Short wave (1.0~1.4μm), Fast response medium wave
(1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output-The highest surface power output of short wave IR lamp is 200KW/M2, Fast response medium wave IR
lamp is 150KW/M2, Carbon medium wave IR lamp is 100KW/M2, Medium wave IR lamp is 60KW/M2.
10: We guarantee ≥5000 hours average working life for most of our infrared quartz heating lamps.

                              Short wave infrared lamp

            Fast response medium wave infrared lamp

                    Carbon medium wave infrared lamp

                        Medium wave infrared lamp

Short Wave Infrared Lamp is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials.

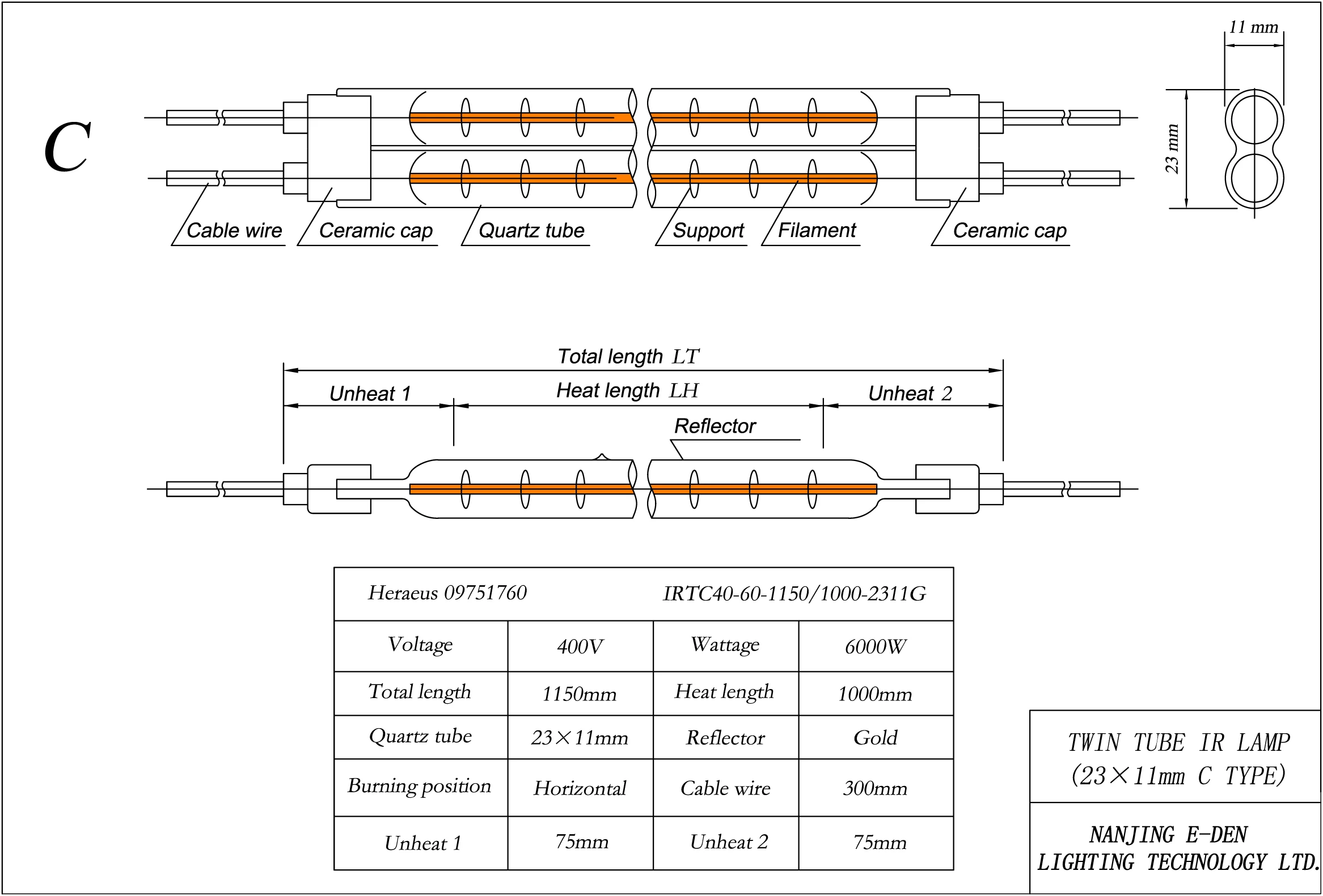

Technical Drawing

Total length LT=?

Heated length LH=?

Lamp Voltage=?

Lamp Wattage=?

Cross section= 23×11mm or 33×15mm

Reflector= Gold or White ceramic

Burning position= Horizontal or Vertical

Lamp type or original photo
