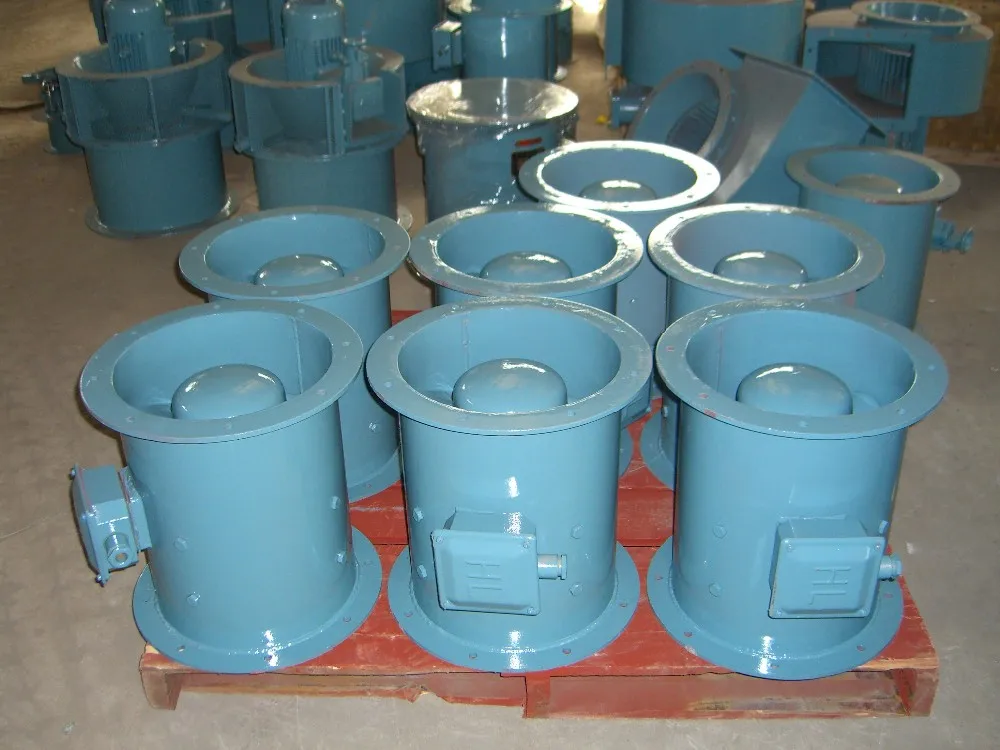

CBZ 40 explosion proof Marine axial Flow fan marine ventilation fan mushroom
- Category: >>>
- Supplier: Nantong Jakarta Trade Co. Ltd.
Share on (1600124604389):
Product Overview
Description

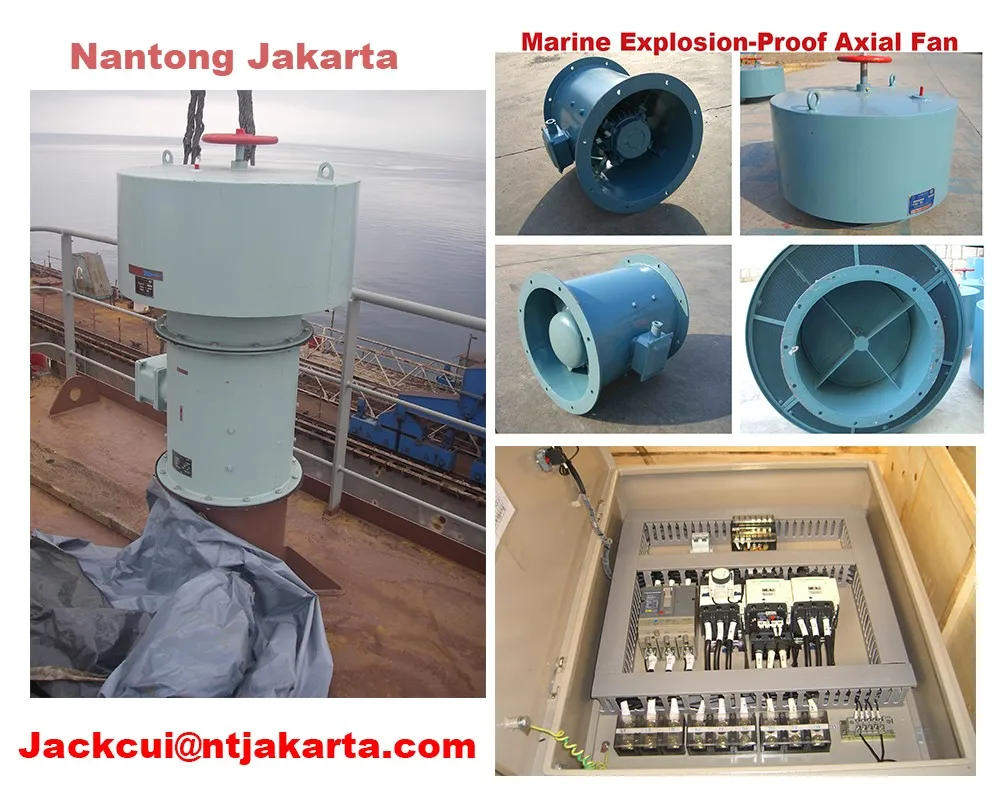

Marine Axial Fan
CBZ 40 explosion proof Marine axial Flow fan Axial fan ventilator ventilation fan mushroom

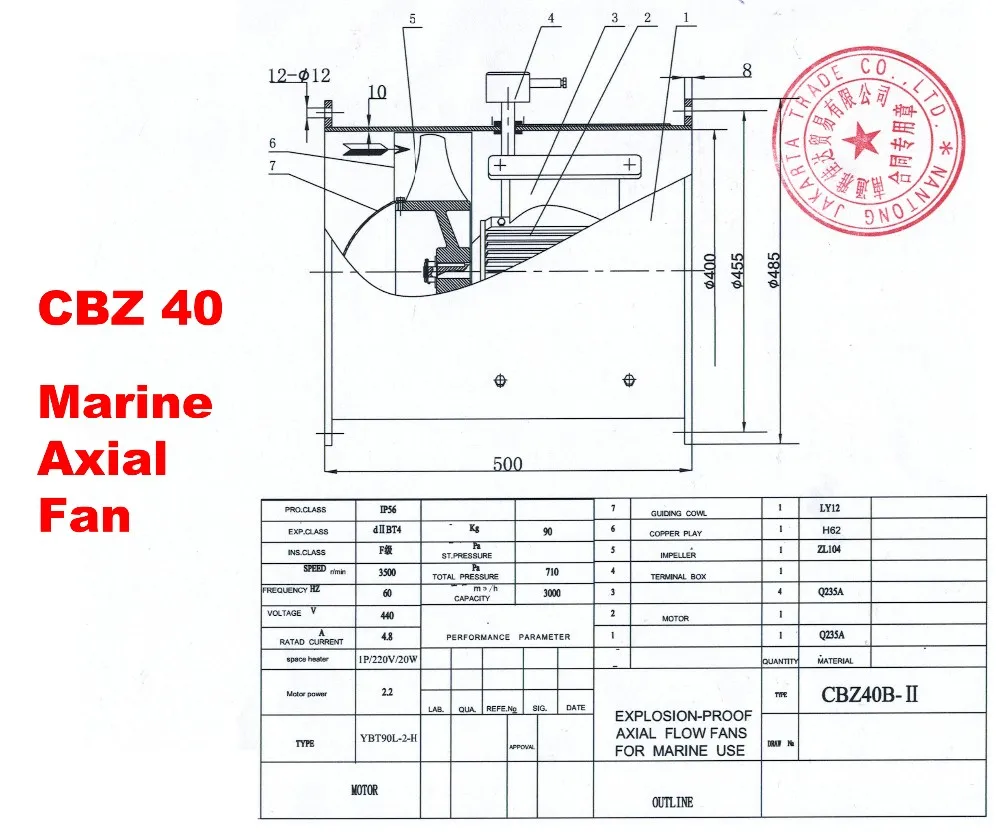

The price we show on Alibaba is for CBZ 40 Explosion proof Marine Axial Flow Fan / Explosion-proof grade:Exd II BT4
CBZ series Marine explosion-proof axial flow fans for marine use are designed and manufactured according to GB11800-2008《Marine Explosion-proof Type Axial Flow Fans》and general description and explosion-proof electrical equipment "d" of GB3836.1-2010《Explosive atmospheres-Part 1 :Equipment-General requirements》and GB3836.2-2010 《Explosive atmospheres-part 2 : Equipment protection by flameproof enclosures"》.
This series fans have been examined and approved by the Explosion-proof Inspection Authority of the PRC and have got the Certificate of Conformity. They also have been examined and approved by CCS (China Classification society) and have got the certificate.
Marine Explosion-proof Axial Flow Fan Advantages
1.Extreme compact structure.
2.Less power consumption.
3.Explosion-proof.
4.Well anti-corrosive.
CBZ Series Marine Explosion-proof Exhaust Fan are designed and manufactured according to GBII800-89 "Marine Explosion-Proof Axial Fan", GB3836.1-2000 .
Classification of Marine Axial Flow Ventilators
These series marine ventilators have been examined and proved up to standard by the explosion-proof inspection authority of the PRC and have got the certificate of inspection. They have also been
examined by the Register of Shipping of PRC and have got the certificate.
Marine Explosion-proof Axial FLow Fan Control Box
1.Can achieve smooth start,positive and reverse rotation
2.According to customer's request,such as voltage
380V / 440V ,frequency 50Hz/ 60Hz.
3.Explosion-proof.
4.Well anti-corrosive.
All CBZ Flow Fan
Parameter List of CBZ explosion proof Marine axial Flow fan Axial fan ventilator ventilation fan mushroom
NO | Type | Volume M3/h | Total Pressure Pa | Static Pressure Pa | Power KW |
1 | CBZ-20 | 500~1000 | 80~160 | 50~150 | 0.25 |
2 | CBZ-25 | 800~1500 | 120~220 | 90~200 | 0.55 |
3 | CBZ-30a | 1200~2100 | 170~360 | 140~330 | 0.75 |
4 | CBZ-30b | 1000~1400 | 150~330 | 140~320 | 0.75 |
5 | CBZ-35a | 3000~5400 | 240~520 | 140~460 | 1.1 |
6 | CBZ-35b | 1800~3600 | 220~510 | 180~490 | 1.1 |
7 | CBZ-40a | 4500~7200 | 470~800 | 370~710 | 2.2 |
8 | CBZ-40b | 3000~5400 | 380~710 | 320~670 | 2.2 |
9 | CBZ-50a | 6000~7200 | 210~300 | 170~240 | 1.1 |
10 | CBZ-50b | 6000~10000 | 560~920 | 460~860 | 3~4 |
11 | CBZ-50c | 9000~14000 | 630~1060 | 460~940 | 4~5.5 |
12 | CBZ-60 | 9000~14000 | 220~380 | 140~320 | 2.2 |
13 | CBZ-70a | 9000~21000 | 210~590 | 120~530 | 2.2~4 |
14 | CBZ-75 | 15000~28000 | 270~730 | 140~660 | 4~7.5 |
15 | CBZ-80a | 21000~36000 | 370~910 | 210~800 | 7.5~11 |
16 | CBZ-80b | 18000~32000 | 290~740 | 160~660 | 5.5~7.5 |
17 | CBZ-90b | 24000~48000 | 330~1060 | 210~940 | 7.5~11 |
18 | CBZ-90c | 30000~43000 | 660~1220 | 510~1070 | 15~18.5 |
19 | CBZ-100a | 36000~46000 | 300~470 | 190~330 | 7.5~11 |
20 | CBZ-100b | 39000~57000 | 450~820 | 280~660 | 11~15 |
21 | CBZ-100c | 42000~60000 | 390~990 | 370~800 | 15~22 |
22 | CBZ-100d | 36000~46000 | 710~1200 | 600~1060 | 15~22 |
23 | CBZ-110a | 42000~72000 | 380~790 | 200~660 | 15~18.5 |
24 | CBZ-110b | 42000~57000 | 260~450 | 140~320 | 7.5~11 |
25 | CBZ-110c | 42000~65000 | 710~1190 | 560~1060 | 18.5~30 |
26 | CBZ-120a | 60000~86000 | 340~590 | 150~400 | 15~18.5 |
27 | CBZ-120b | 72000~100000 | 440~600 | 330~470 | 18.5~30 |
28 | CBZ-140a | 72000~115000 | 500~860 | 320~800 | 22~30 |
29 | CBZ-140b | 96000~138000 | 510~700 | 230~460 | 22~30 |

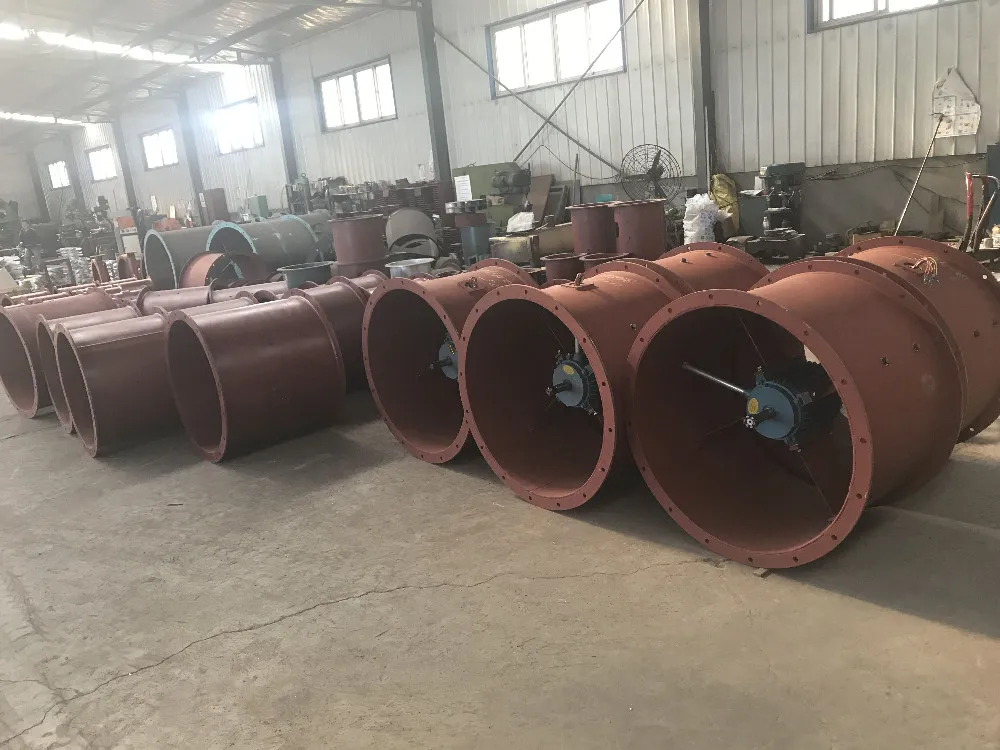

Detailed Images
Company Profile
Our Great Service Team
Best Quality and Service are Our Life
Exhibition scene
We participated in exhibitions and achieved good results.
Our Team and Foreign customers
We carry out annual meetings every year, inviting Domestic and foreign customers to join us, increasing our friendship and cooperation to achieve win-win results.
Why Choose Us
Good Quality and Service are Our Life
CBZ Series Marine Explosion-proof Exhaust Fan are designed and manufactured according to GBII800-89 "Marine Explosion-Proof Axial Ventilators", GB3836.1-2000 "Electrical Apparatus for Explosive Atmosphere", GB3836.2-2000 "Electrical Apparatus for Explosive Atmosphere and Explosion-Proof Electrical Equipment "d"", and "Rules for Steel Sea Ship in Class and Building".
These series ventilators have been examined and proved up to standard by the explosion-proof inspection authority of the PRC and have got the certificate of inspection. They have also been examined by the Register of Shipping of PRC and have got the certificate.
Product Guide:Explosion-proof, safe and reliable in operation, well anti-corrosive, strongly capable of resisting swing,vibration and shocking.
There are four structural types: Type I (deck type), type II (tube type), type III (separated cabins type), and type IV (up outlet). The construction is of no-sparking.
Type I explosion-proof fan has an explosion-proof motor installed on the top of the frame and a wire mesh guarded with 2 inch, being made of stainless steel, surrounding the frame. The fan is vertically fixed on the deck; and it may be used for air supply or air extraction.
According to the customer's special requirement, the ventilator can be made into Type III structure, i.e. the ventilator and the motor are put in different cabins, with a driving device, a stuffing box and flexible coupling. It is used primarily for exhaust of dangerous compartment.
Taking a front view from the motor, you will see a structure with its impeller turning clockwise.
