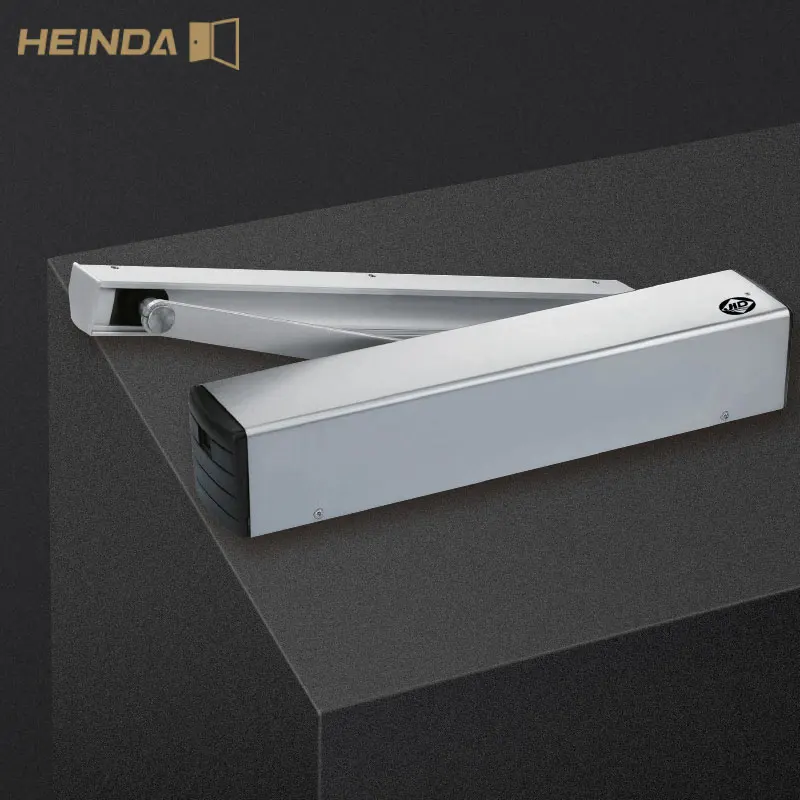

Automatic Swing Door Operator 120kg Heavy Duty Electric Door Closer With DC Brushless Motor CD 80

Product Overview

Description

Automatic Swing Door Operator 120kg Heavy Duty Electric Door Closer With DC Brushless Motor CD-80

Door Weight	<120KGS
Door Width	<1200mm
Voltage to power source	AC110~230V
Input power	5W, Max 40W
Opening angle	90°-130° adjustable
Opening direction	One way
Opening rate	4-10s adjustable
Closing rate	4-10s adjustable
Opening hold	1~30s adjustable
Closing buffer	Applied
Electric lock	Applied
Remote control	Applied
Remote control functions	Open/close/hold open/stop



Products Features

The automatic door of this model are the 3rd generationsingle-opened one-way buried doors developed by our company

They are characterized by small volume, low noise at running , easy installation, and stable performance, etc.

The door is to be driven by the DC brushless motor, which has a long service life and responds repidly. This is fully embodied in the anti-trap function of the door.

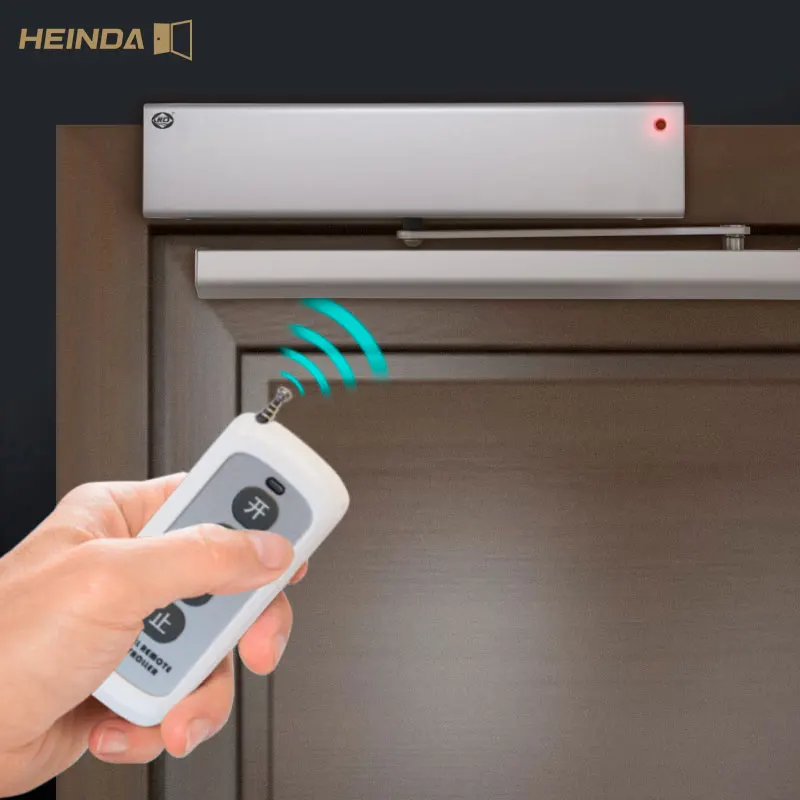

It can be matched with manual remote control, sensor, button&other access device.

With safety protection function(prevent the door from counterclockwise closing when it is blocked).

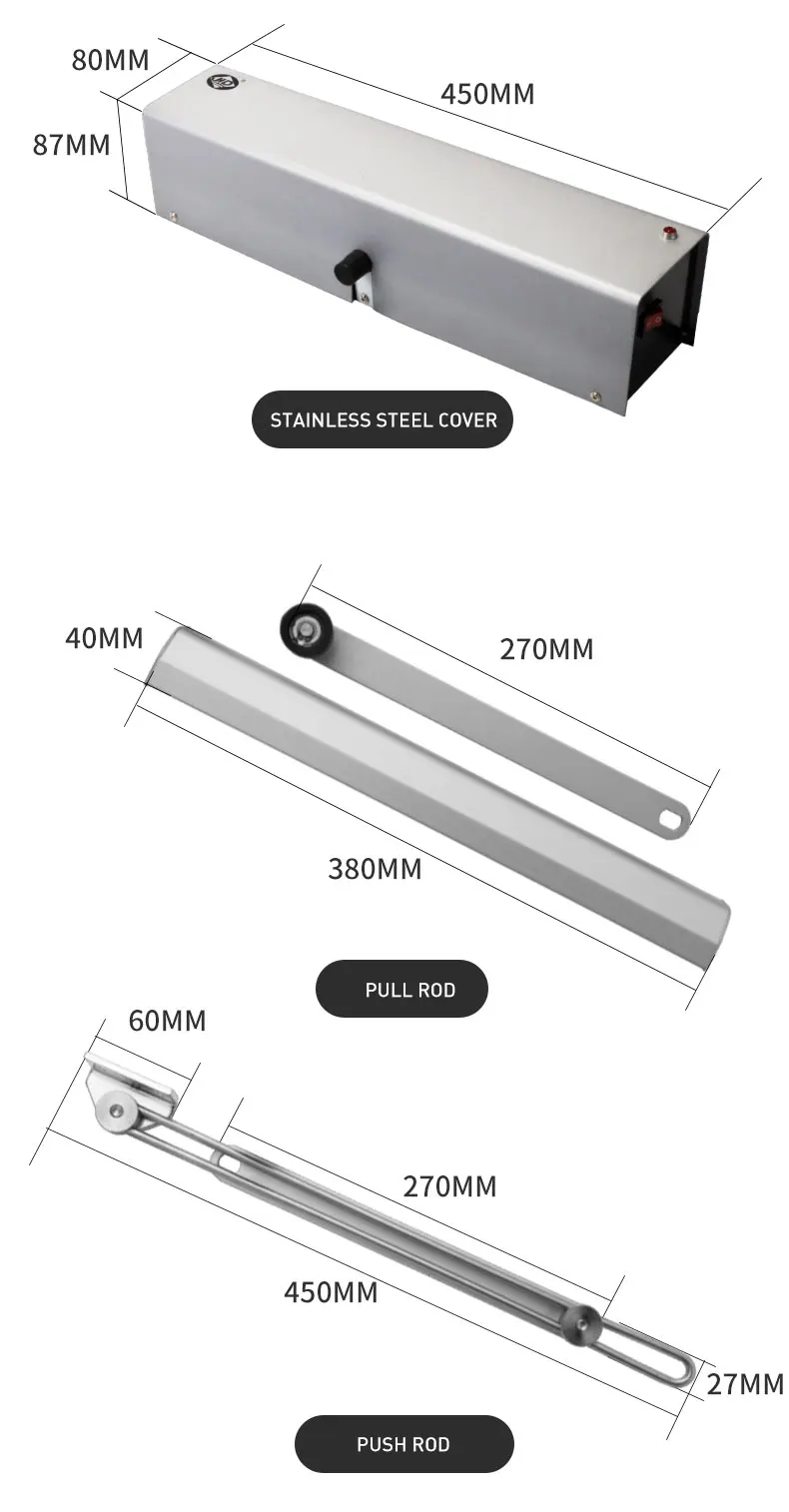

Products Size



Fault Description&solution
FAULT	REASON	SOLUTION
No response of door	Power not connected	Check power connect and switch
	Some problem of motor line	Check motor line
		Check whether use original line to make circuit longer(cannot use signal line)
	Automatic protection of door	Check there is any scratch of door or obstacles in outside
The door cannot open	Controller signal	Check whether the signal line of the controller is interrupted
	Remote	Check whether the remote control has pressed the lock function
The door can't be fully opened	Half open mode	Check whether set half mode
	Automatic protection of door	Confirm whether the self check action is completed after the machine is powered on
		Check whether the door opening signal is dry contact signal, i.e. no margin normally open signal, to ensure that the signal is instantaneous
The Door cannot be closed	Opening singal	Check whether there is moving object before sensor
	Remote Signal	Check whether the remote control has pressed the normally open function
	Controller signal wire short circuit	Whether it can return to normal after disconnection
	Sensor	Check whether there is moving object before sensor
Abnormal operation	High running resistance	Check for obstructions or scratches
	Unreasonable adjustment of opening and closing speed	Check speed set
