switch regulating AC220V 380V DC24V Electric PVC three way ball valve
- Category: >>>
- Supplier: Zhejiang Longzheng Automatic Control Valve Technology Co. Ltd.
Share on (1600124808047):
Product Overview
Description
Product Overview

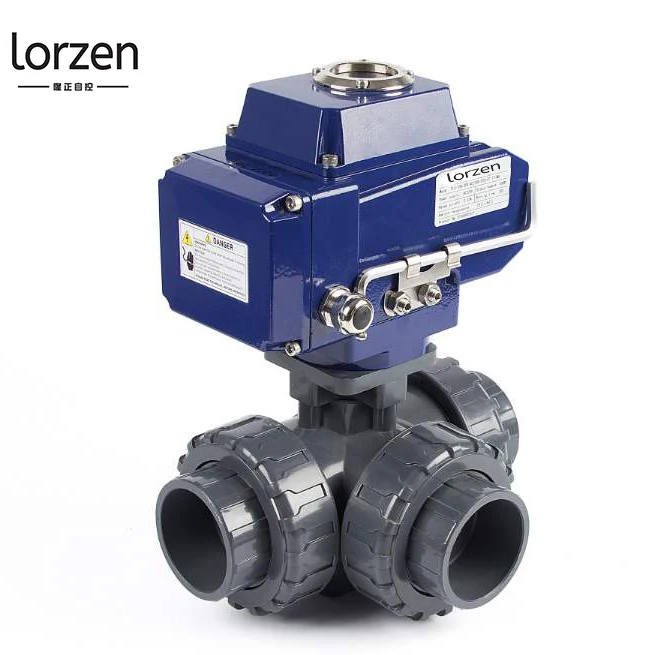

Electric PVC three way ball valve
The electric PVC three-way ball valve is composed of angle stroke series intelligent actuator and three-way ball valve. It is a rotary cut-off regulating valve. The electric PVC plastic three-way ball valve has the advantages of tight closing, compact structure, light weight and convenient maintenance. The electric three-way regulating ball valve is widely used in the pipeline automation control of gas, liquid, steam, oil and other corrosive media. The electric three-way ball valve with two seat sealing has the advantages of compact structure, beautiful appearance and good sealing performance. The electric three-way ball valve can switch the flow direction of medium in the pipeline. It can also make two mutually perpendicular channels connected or closed. The three-way valve seat is compact and has reasonable sealing structure. The electric three-way ball valve can not only realize the switching of medium flow direction, but also make the three channels connected with each other. At present, any channel can be closed to connect the other two channels, so as to flexibly control the confluence or diversion of medium in the pipeline. Therefore, it is called electric three-way reversing ball valve.
FEATURES AT A GLANCE
1. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe.
2. Simple structure, small volume and light weight.
3. It is compact, reliable and well sealed, and has been widely used in vacuum system.
2. Simple structure, small volume and light weight.
3. It is compact, reliable and well sealed, and has been widely used in vacuum system.
4. It is easy to operate and fast to open and close. Only 90 ° rotation is needed from full opening to full closing, which is convenient for remote control.
5. The sealing ring is easy to be replaced.
6. When the valve is fully open or closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not cause erosion of the valve sealing surface.
7. Wide range of application, diameter from small to several millimeters, large to several meters, from high vacuum to high pressure.
6. When the valve is fully open or closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not cause erosion of the valve sealing surface.
7. Wide range of application, diameter from small to several millimeters, large to several meters, from high vacuum to high pressure.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Nominal pressure | 0.6Mpa-1.6Mpa |
2 | Body material | UPVC, CPVC, FRPP, PVC |
3 | Operating temperature | -29℃-70℃ |
4 | Product size | DN15-DN80 |
5 | Product standard | GB/American standard/Japanese standard/German standard |
6 | Applicable medium | water, oil, gas, steam, acid. |
SALES AND SERVICE NETWORK
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2019,sell to Mid East(40.00%),Southeast Asia(30.00%),South
America(20.00%),Africa(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pneumatica actuator,electric actuator,pneumatic valve,electric valve
4. why should you buy from us not from other suppliers?
Introduce advanced technology and technology from the United States, have its own independent research and development team, and
independently develop and produce high-quality new products in the field of fluid control
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Portuguese
We are based in Zhejiang, China, start from 2019,sell to Mid East(40.00%),Southeast Asia(30.00%),South
America(20.00%),Africa(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pneumatica actuator,electric actuator,pneumatic valve,electric valve
4. why should you buy from us not from other suppliers?
Introduce advanced technology and technology from the United States, have its own independent research and development team, and
independently develop and produce high-quality new products in the field of fluid control
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Portuguese
