Newheek X Ray hand switch for Exposure of X Ray machine, medical device standard, quality approval

Product Overview

Description

X ray  L01  hand switch applicable to x-ray exposure of radiography or fluoroscopy equipment



Exposure L01 Hand Switch

1. Product Highlights

√ Applicable to x-ray exposure of radiography or fluoroscopy equipment.

√ Streamline design outlook, comfortable handle.

√ Housing adopt ABC engineering plastic, anti-shock and fire retardant.

√ Two steps design, 3-core or 4-core wire can be chosen freely.

√ Inner adopt OMRON micor switch, high sensativity.

√ Mechanical life of 50 ,000,000 times above.

√ Electrical life of 300,000 times above.

2. Technical Features

Operation Voltage	Current	Housing Material	Hand Switch Cable Core
			Red	White	Green
125V	3A	white, ABS plastic	I Step	Common Point	II Step
Ambient Temperature		Relative Humidity		Atmospheric Pressure
-20°C-70°C		≤ 93%		50-106kPa

3. Configuration

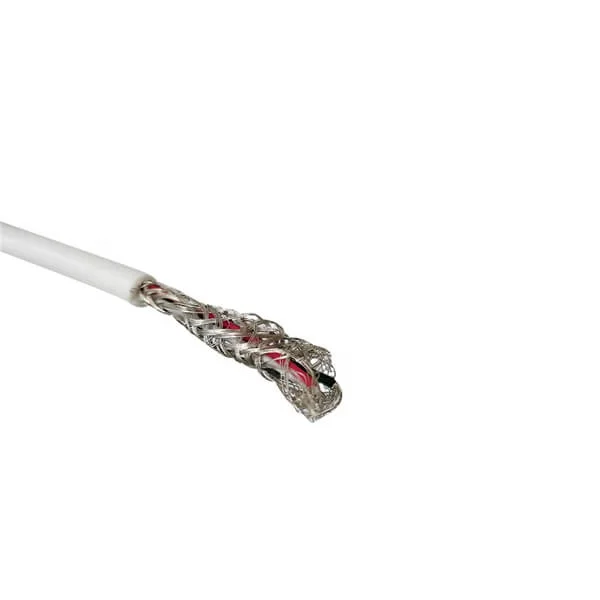

Standard	3-core, 3m-wire	4-core, 3m-wire
Customized	3-core, 6m or 10m wire	4-core, 6m or 10m wire
	Other requirement	Other requirement

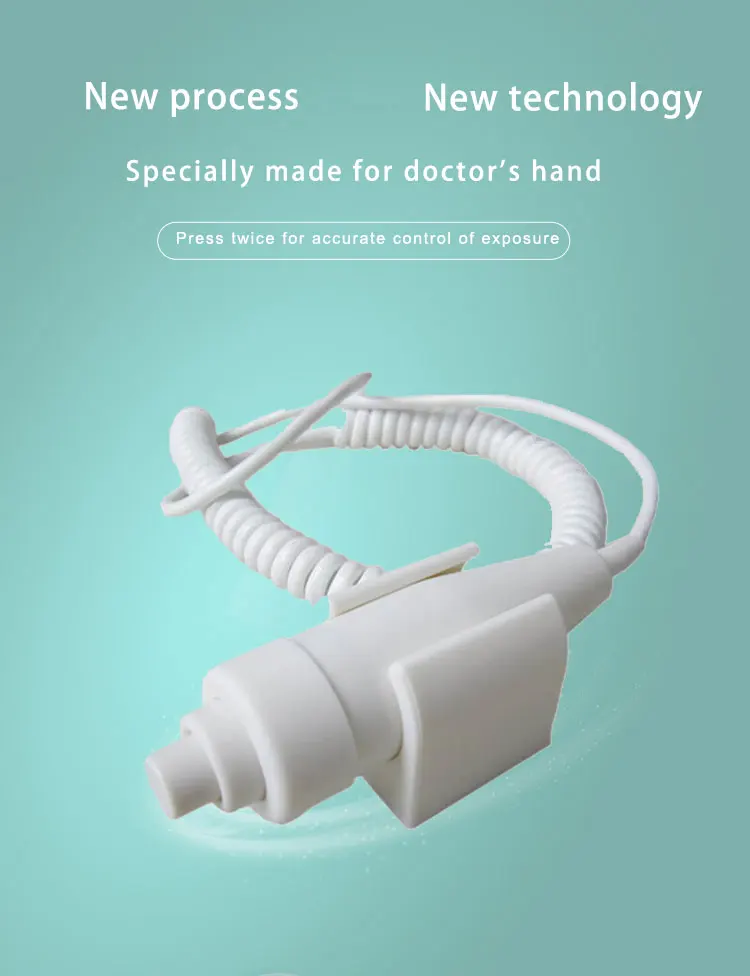

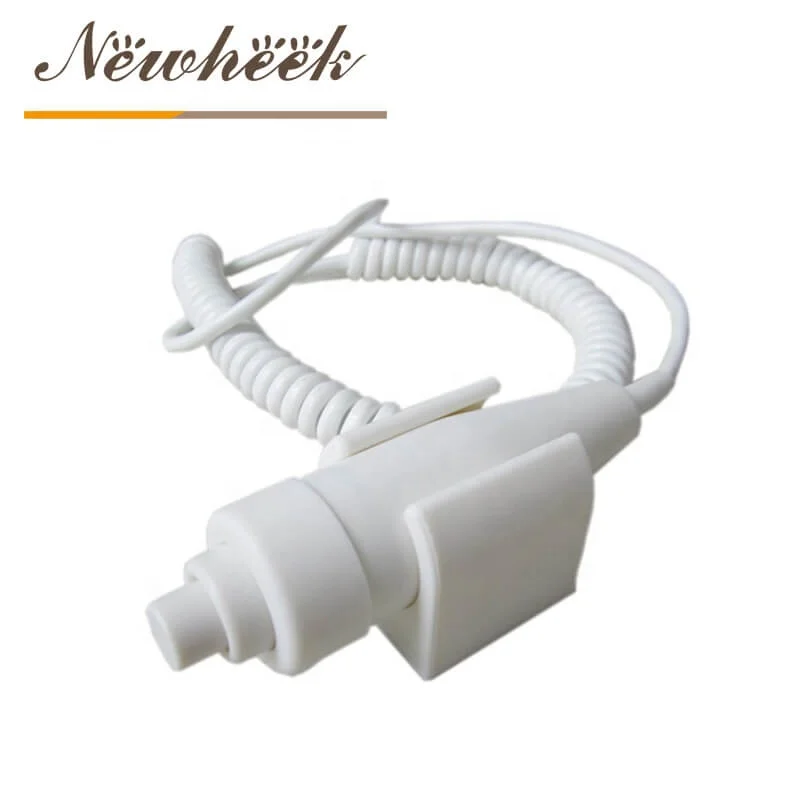

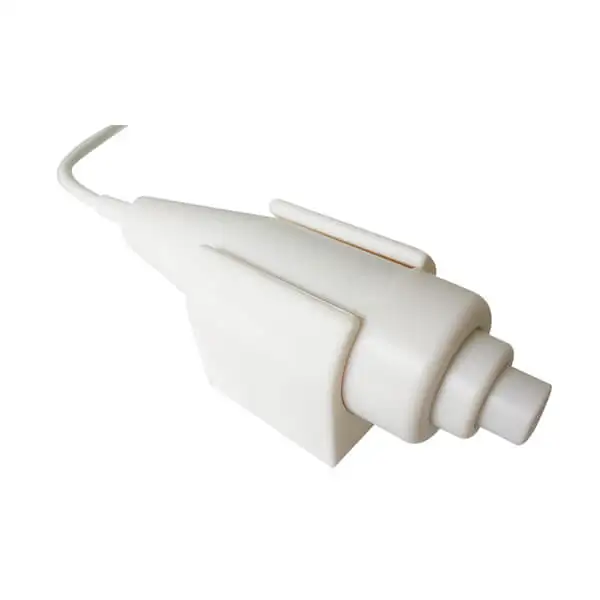

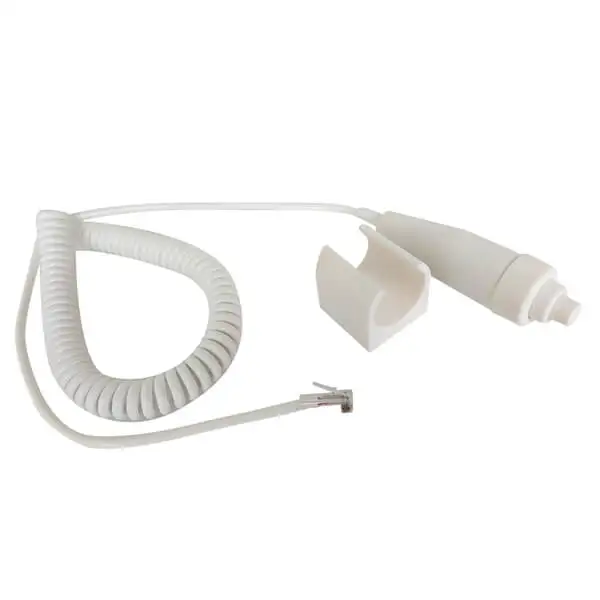

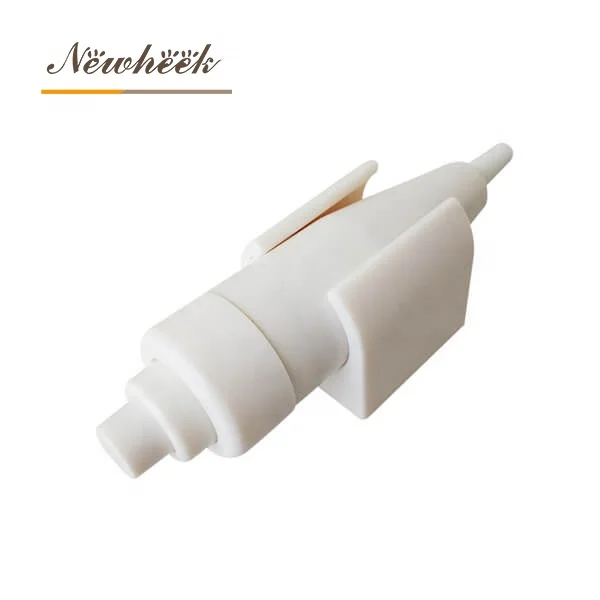

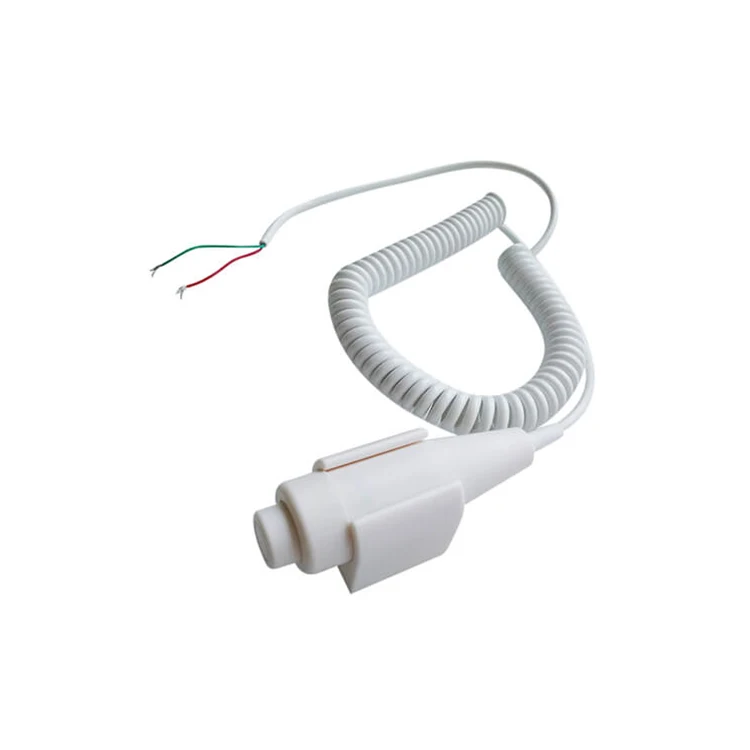

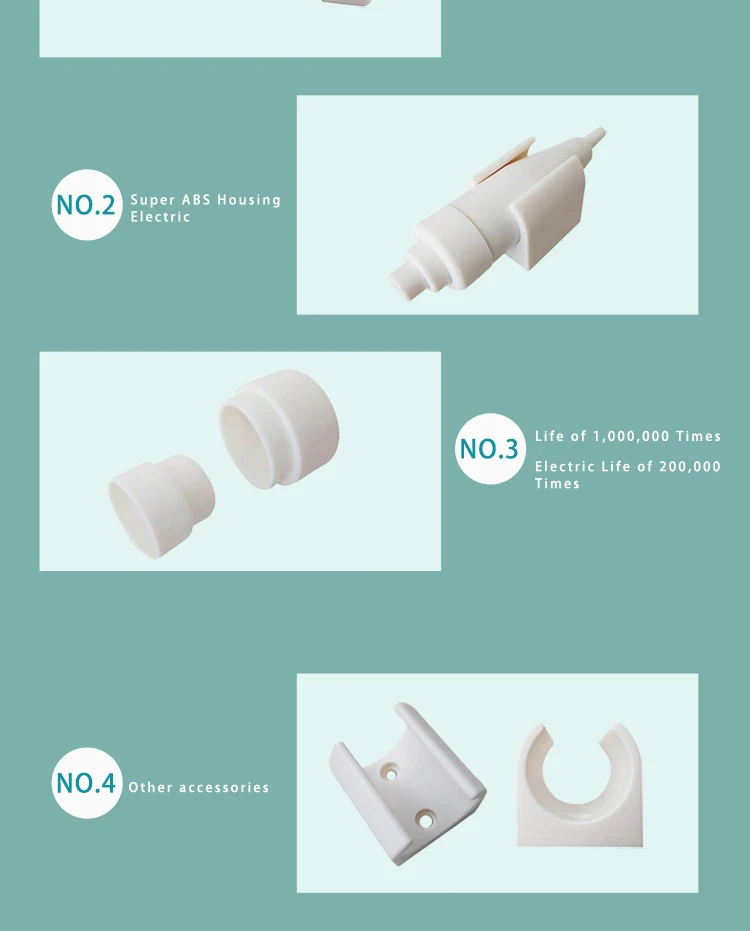

 4.Product Image



5.FAQ -- Technical Knowledge of Exposure Hand Switch

1)Q: What is the working principle of exposure hand switch for x-ray machine?

  A: The exposure hand switch has two steps, when press the first step, the x-ray machine enter into the exposure ready status, when the two stepps pressed together, the x-ray machine finish exposure.

2) Q: How could we make special requirement order?

  A: If you have any special requirement, just only contact our service, we will customized the satisfied products for you.
