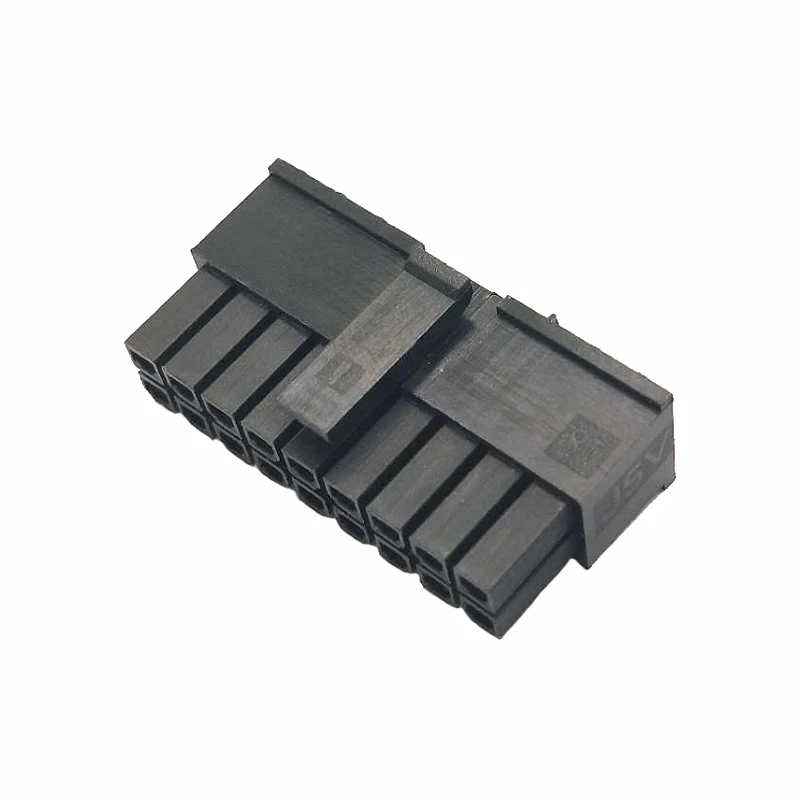

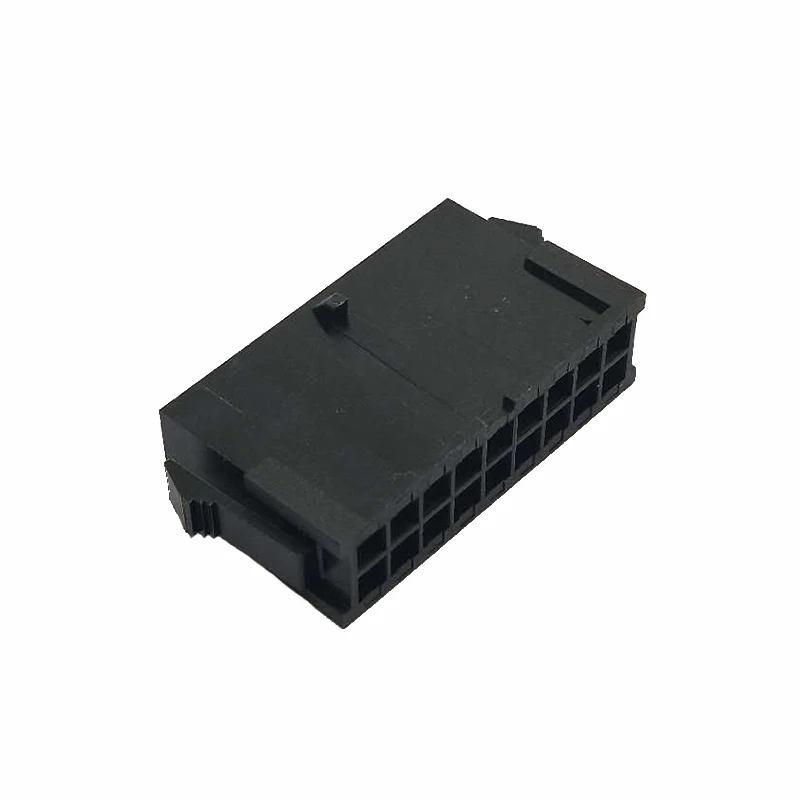

3.0mm 12/16/18pin 43025/43020 electrical connectors kits Dual Row 5 pin Male/Female Molex Connector
- Category: >>>
- Supplier: Dongguan Pin Rui Electronics Co. Ltd. [Guangdong China]Dongguan
Share on (1600125397376):
Product Overview
Description
Quick Details
| Port: | Guangdong, China |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 2000000 Piece/Pieces per Week |
| Specifications: | 3.00mm pin |
| Center Contact Plating: | Nickle |
| Housing Finish: | Nylon |
| Voltage Rating: | 250V |
| Center Gender: | N/A |
| Voltage - Rated: | 250V |
| Gender: | N/A |
| Recommended Working Height: | as drawing |
| Connector type: | Male Terminals |
| FFC, FCB Thickness: | as drawing |
| Number of Positions/Bay/Row: | Nil |
| Approved Countries: | Canada/US/Germany |
| Terminal Block Type: | crimp |
| Board Thickness: | as drawing |
| Wire Termination: | AC/DC |
| Cable End Type: | as drawing |
| Number of Positions/Contacts: | N/A |
| Color: | Black |
| housing material: | nylon |
| Terminal Type: | crimp terminal |
| Size / Dimension: | to be advince |
| Mounting Type: | to be advince |
| Model Number: | C3030 |
| Cross Reference: | 43025,43020 |
| Brand: | JSV |
| Center Conductor Diameter: | 3.00mm |
| Contact Size: | See drawing |
| Number of Columns: | 1 |
| Module Capacity: | as drawing |
| Region Utilized: | World |
| Pitch: | 3.00mm |
| Packaging: | Bulk |
| D/C: | 202010 |
| Board Size: | as drawing |
| Minimum Working Height: | as drawing |
| Port Direction: | as drawing |
| Shell Material: | Nylon |
| Contact Termination: | N/A |
| Head Style: | wire to wire |
| Current: | 5A |
| Frequency - Max: | N/A |
| Application: | Widely application |
| Adapter Series: | c3030 series |
| Certificate: | IS09001/ROHS/CE/FCC |
| Description: | connectors |
| color: | natural |
| Current Rating (Amps): | 5A |
| Connector Usage: | Widely application |
| Maximum Working Height: | as drawing |
| Diameter - Outside: | N/A |
| Convert To (Adapter End): | N/A |
| Supplier Type: | Original manufacturer,ODM |
| Current Rating (Per Contact): | 5A |
| Number of Ports: | See drawing |
| Plug/Mating Plug Diameter: | N/A |
| Voltage: | 250V |
| Media Available: | molex connectors |
| Features: | nil |
| Withstanding voltage: | 1500V AC/MIN |
| Contact Resistance: | 10mΩMax |
| Interface Type: | AC/DC |
| Insulation resistance: | 1000mΩMin |
| Convert From (Adapter End): | N/A |
| Number of Rows: | 1-2 |
| Place of Origin: | China |
| Number of Positions: | customize |
| Termination: | wire to wire |
| Material: | Nylon |
| Panel Mount Type: | Crimp |
| terminal: | tin with nickel cover |
| Pin or Socket: | Pin |
| terminal Material: | Brass |
| Type: | Headers and PCB Receptacles,Circular Connectors,Terminal Connectors,Contact Connector,Power connector,Backplane Connector |
| Product name: | connector |
| Number of Circuits: | 2 |
| Packaging Detail: | most molex electrical connectors be packed in plastic bag and Terminals in double paper board, then in cartons, according to customers' requirement. |
| Package Preview: | https://sc03.alicdn.com/kf/H94a12b232b014119bd3a1759986f2cd2s.jpg_640x640.jpg |
