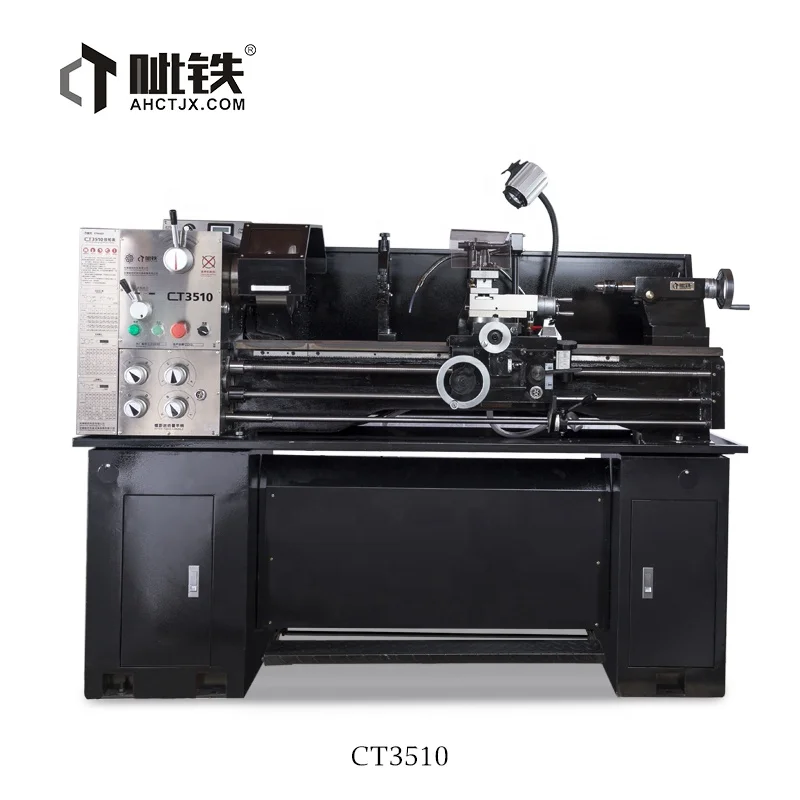

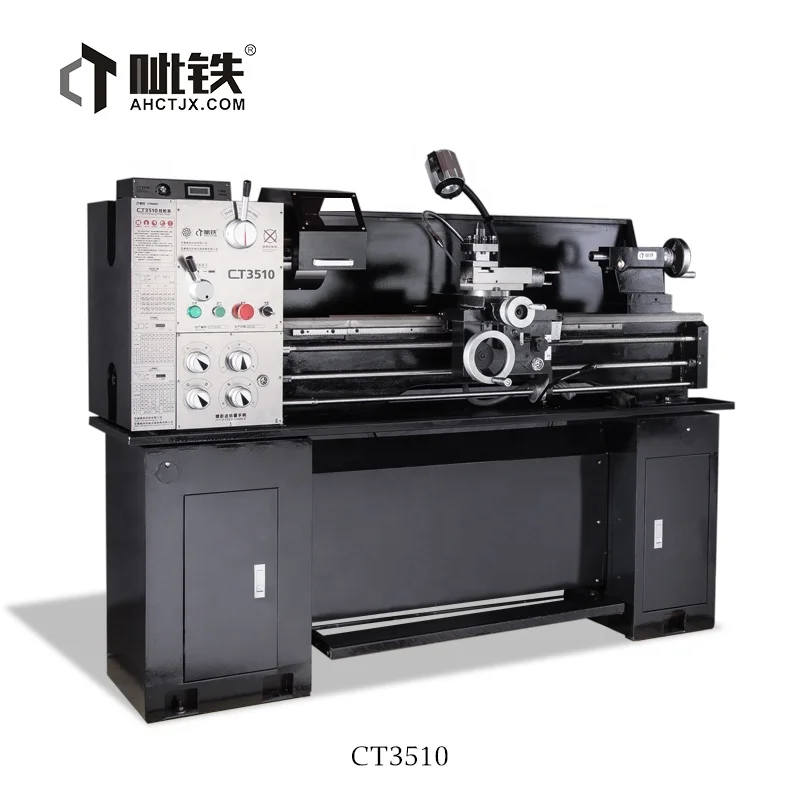

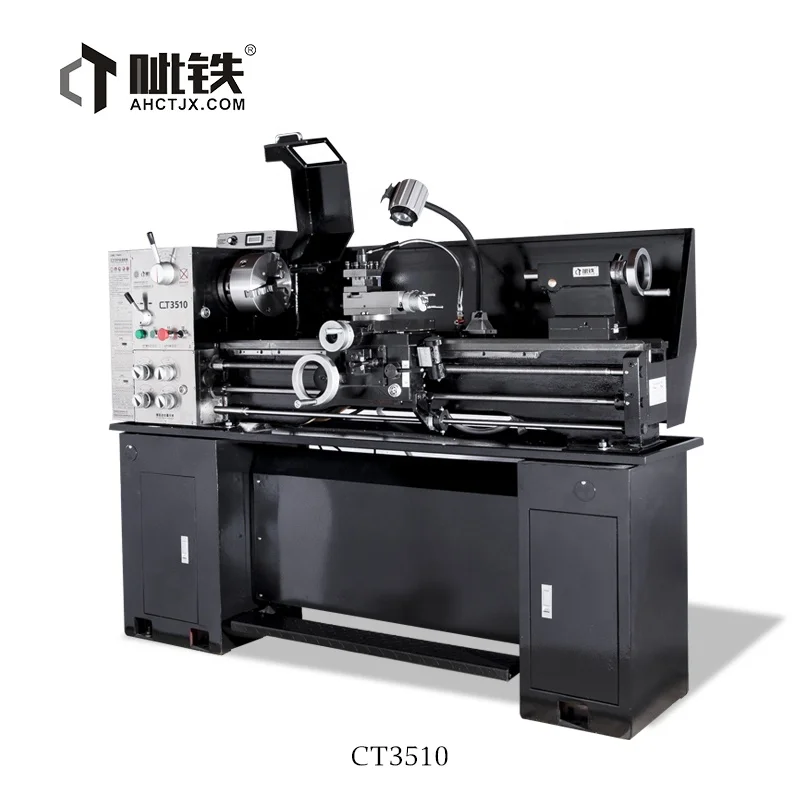

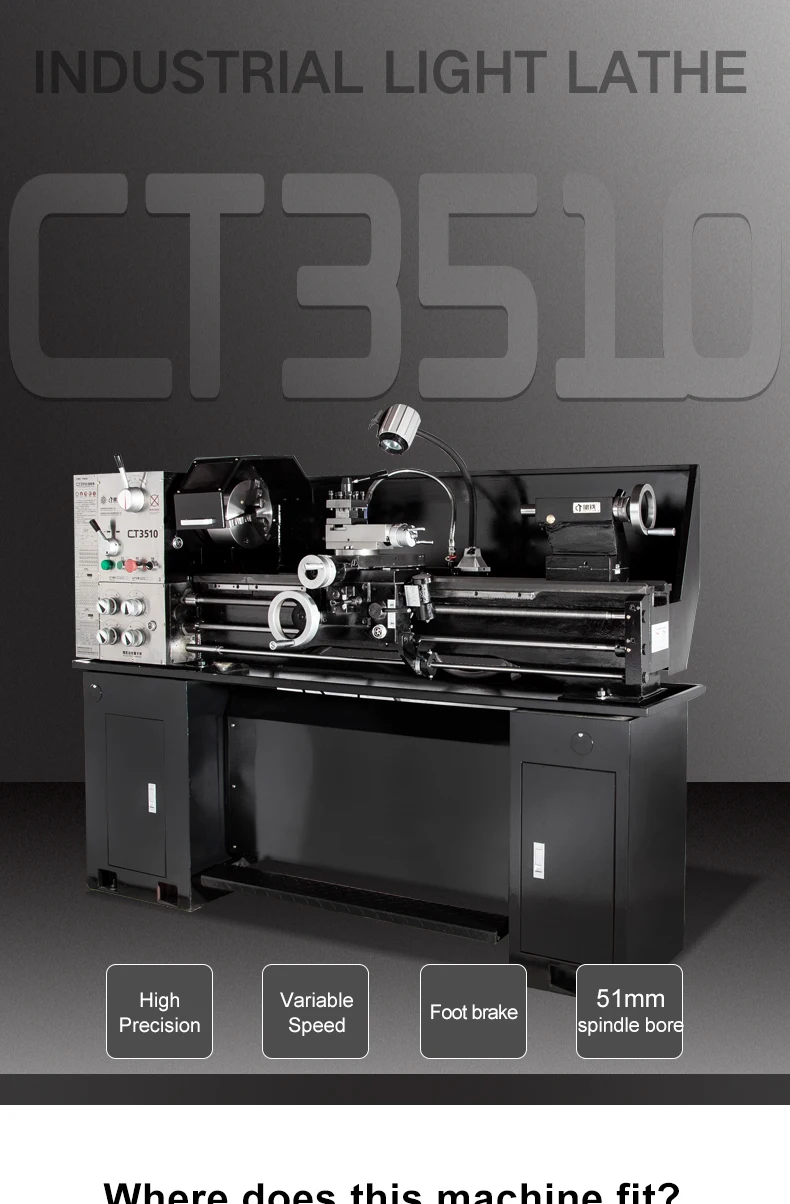

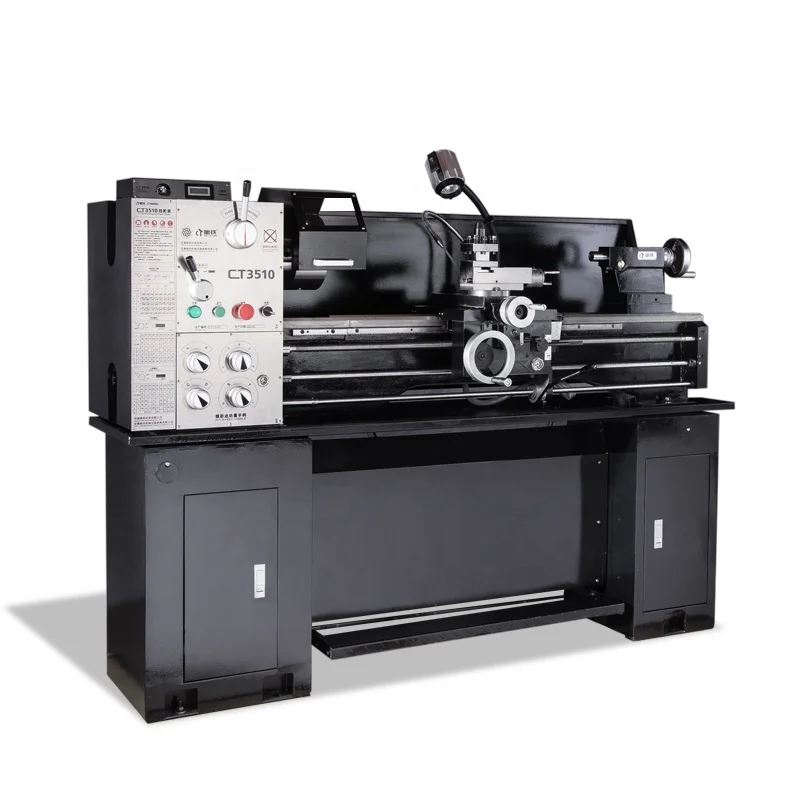

China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price
China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price

China manufacturer CT3510 lathe machine metal lathe machine bench lathe with low price

Share on (1600125448306):


Price:$2,980.00 - $3,230.00

Quantity:


Product Overview

Description

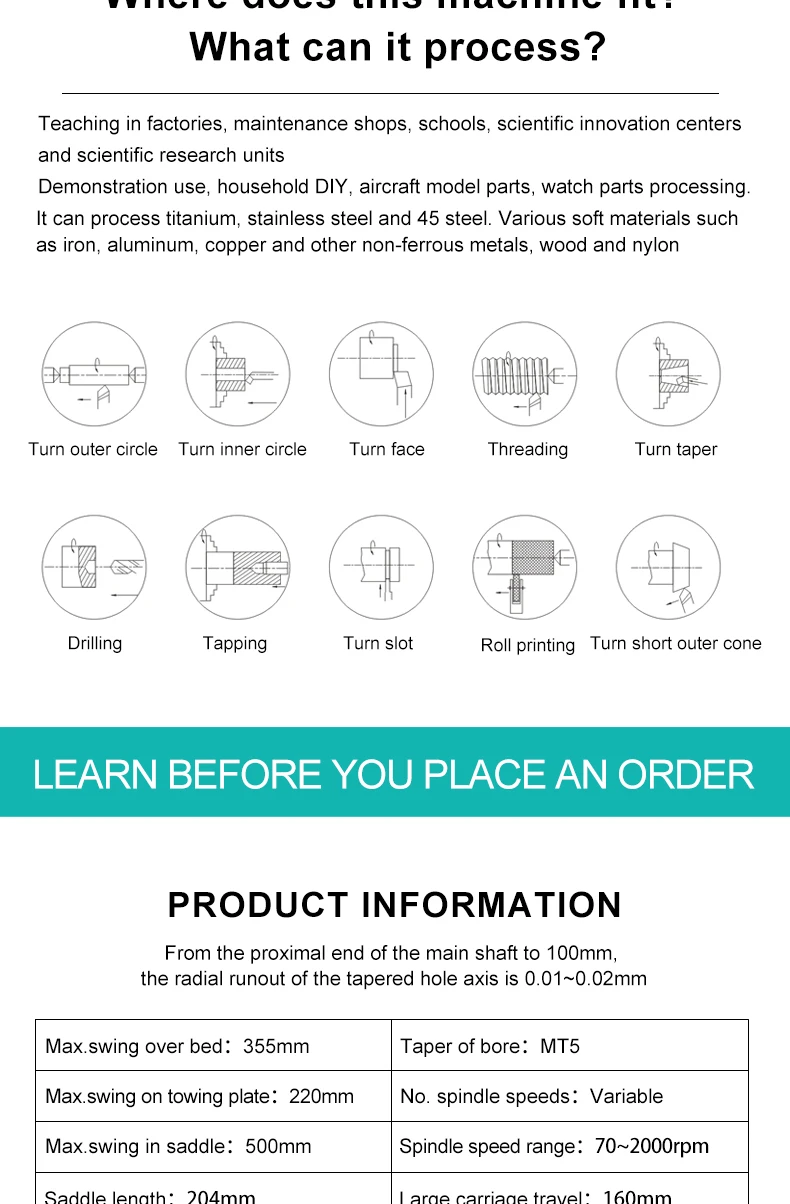

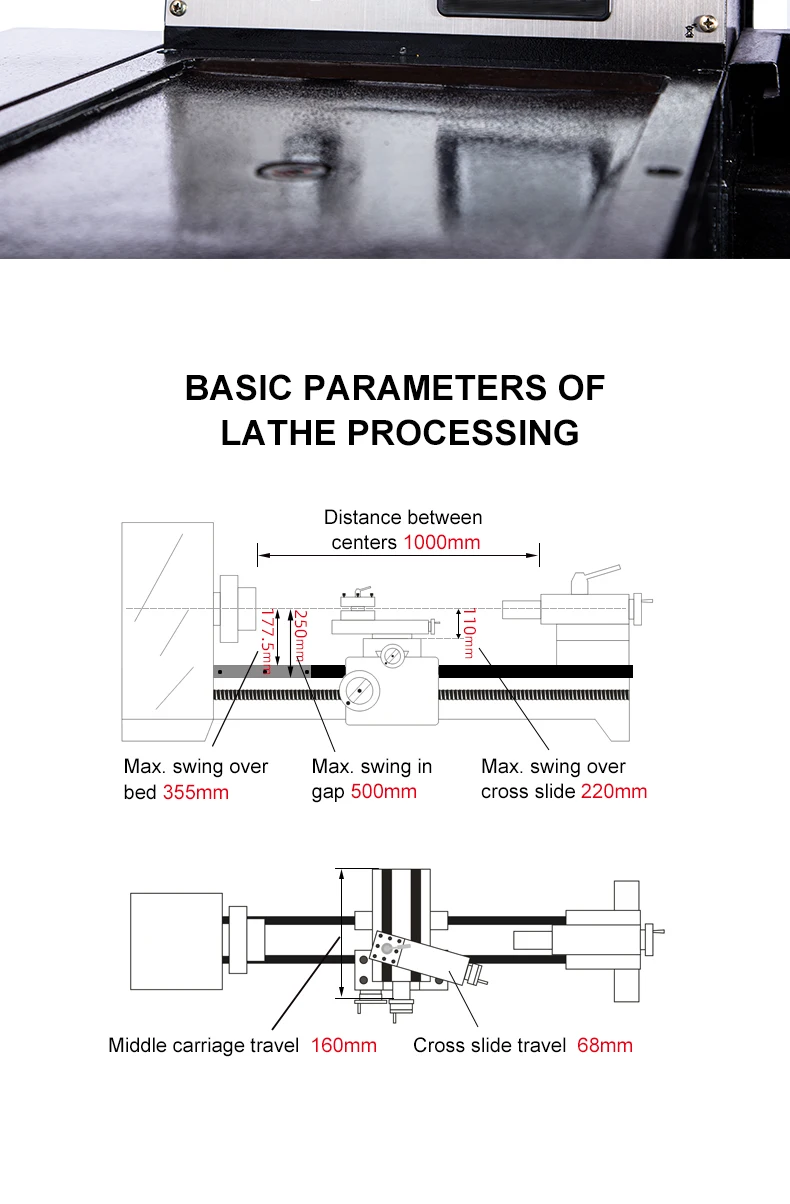

Maximum turning diameter bed355mm
Maximum turning diameter of middle carriage220mm
Maximum turning diameter in the saddle500mm
Saddle length204mm
Two top distance1000mm
Width of bed187mm
Spindle speed range/Grade70-2000rpm/variable
Taper of spindle boreMT5

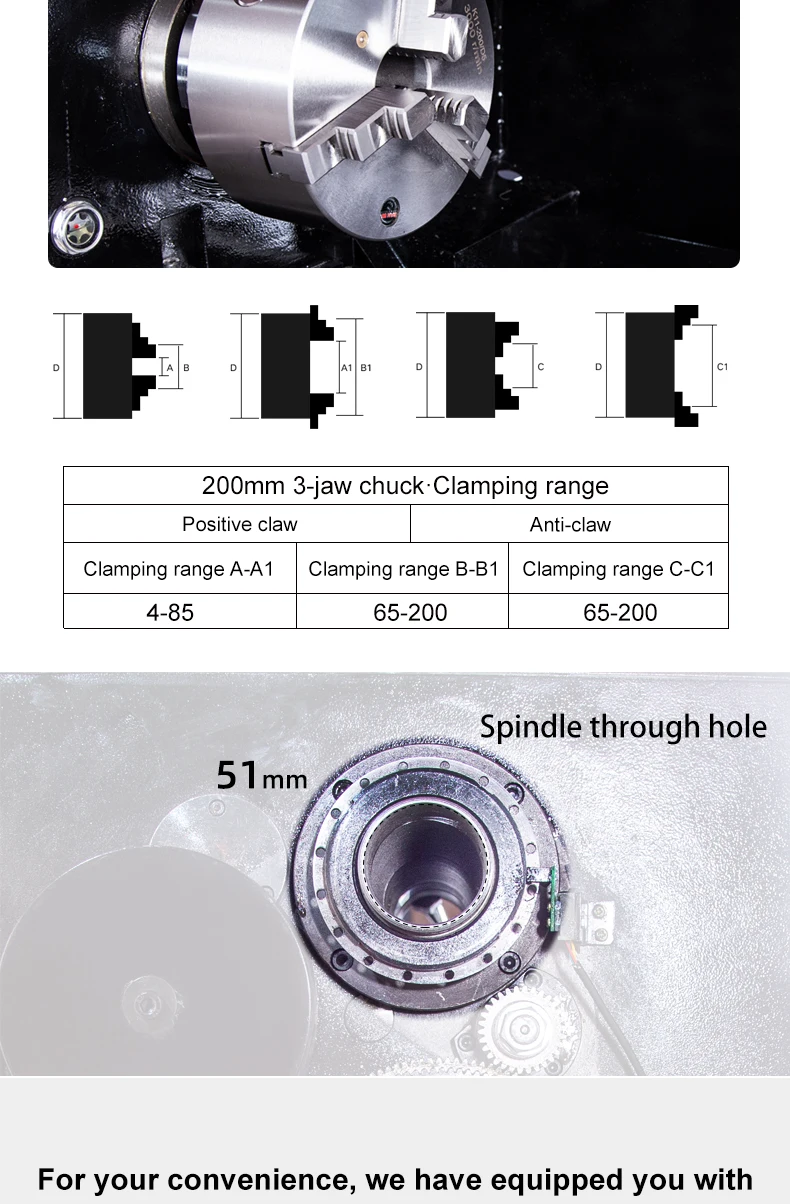

Chuck specifications200mm
Spindle bore51mm

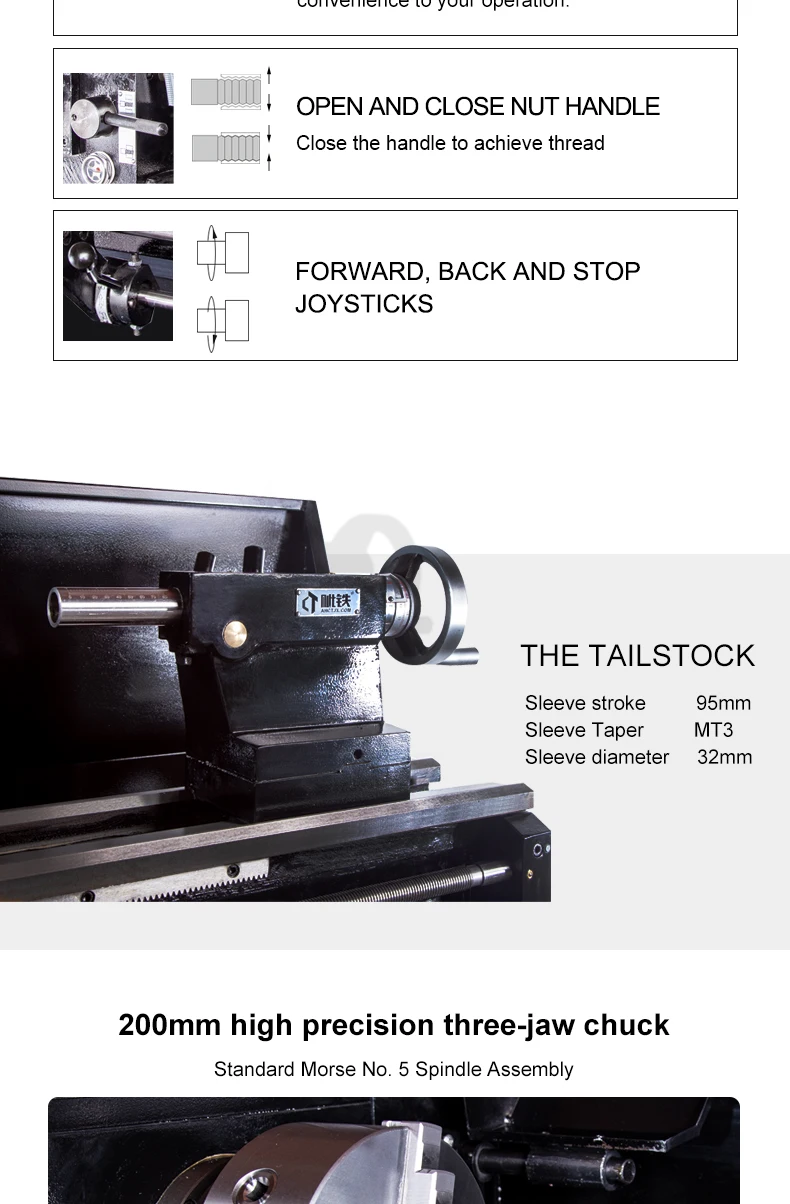

Tailstock quill travel95mm
Tailstock quill diameter32mm
Taper of tailstock quillMT3
Cross slide travel160mm
Top slide travel68mm

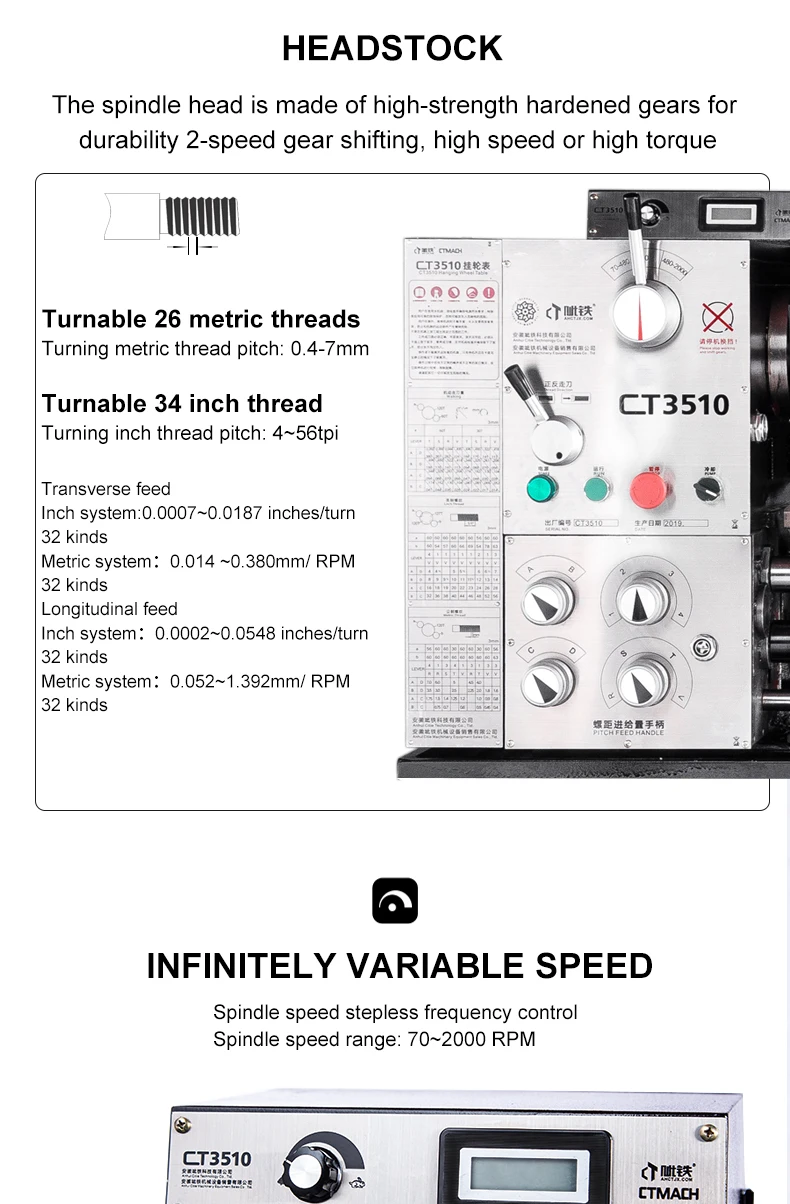

Range of metric threads/Grade0.4-7mm/26
Range of inch threads/Grade4-56T.P.I/34
Range of cross feeds0.014-0.38mm/r
Range of longitudinal feeds0.052-1.392mm/r

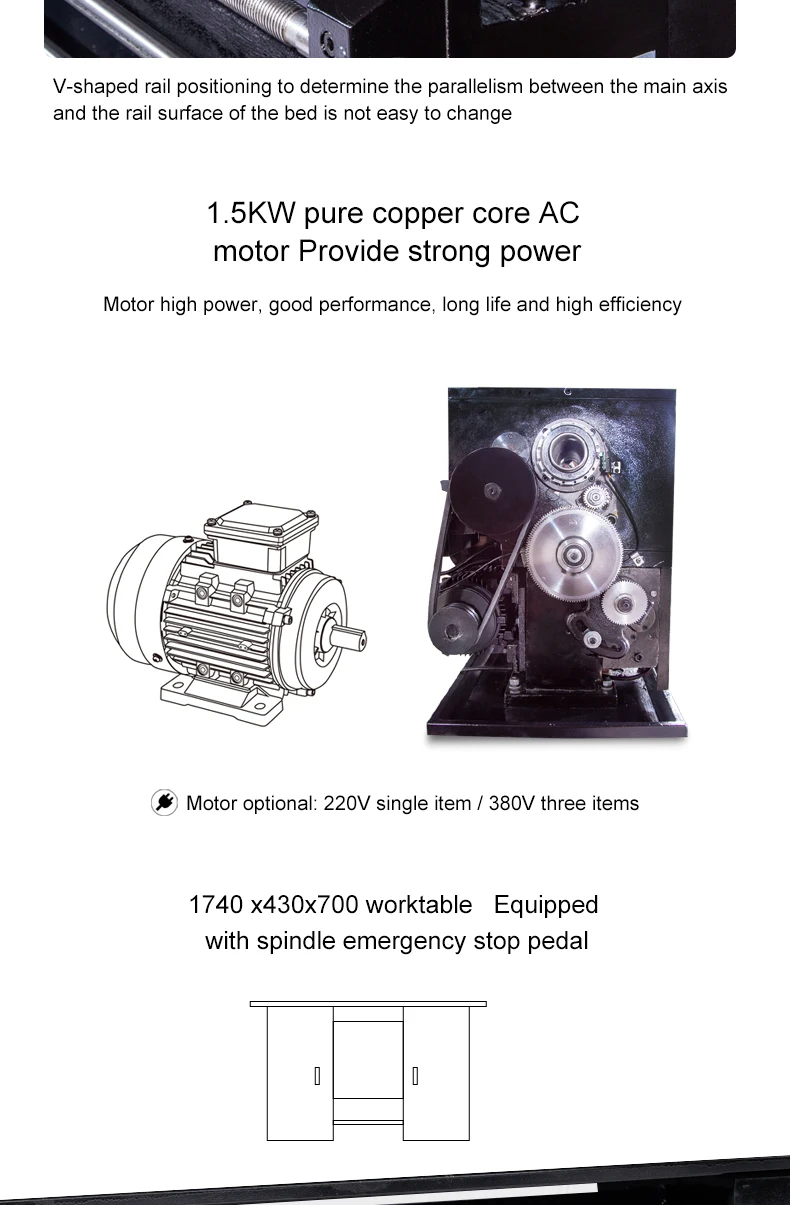

Motor220v(380v)/1.5kw

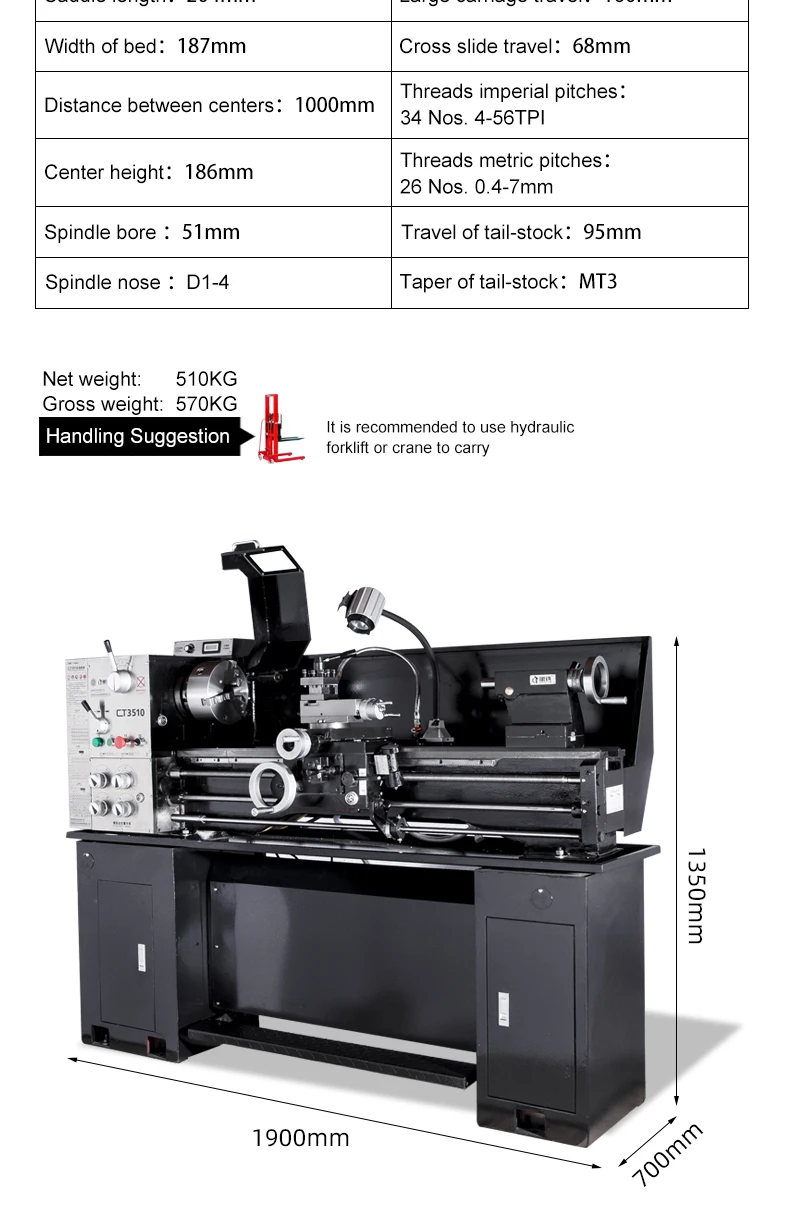

N.W./G.W.510/570kg

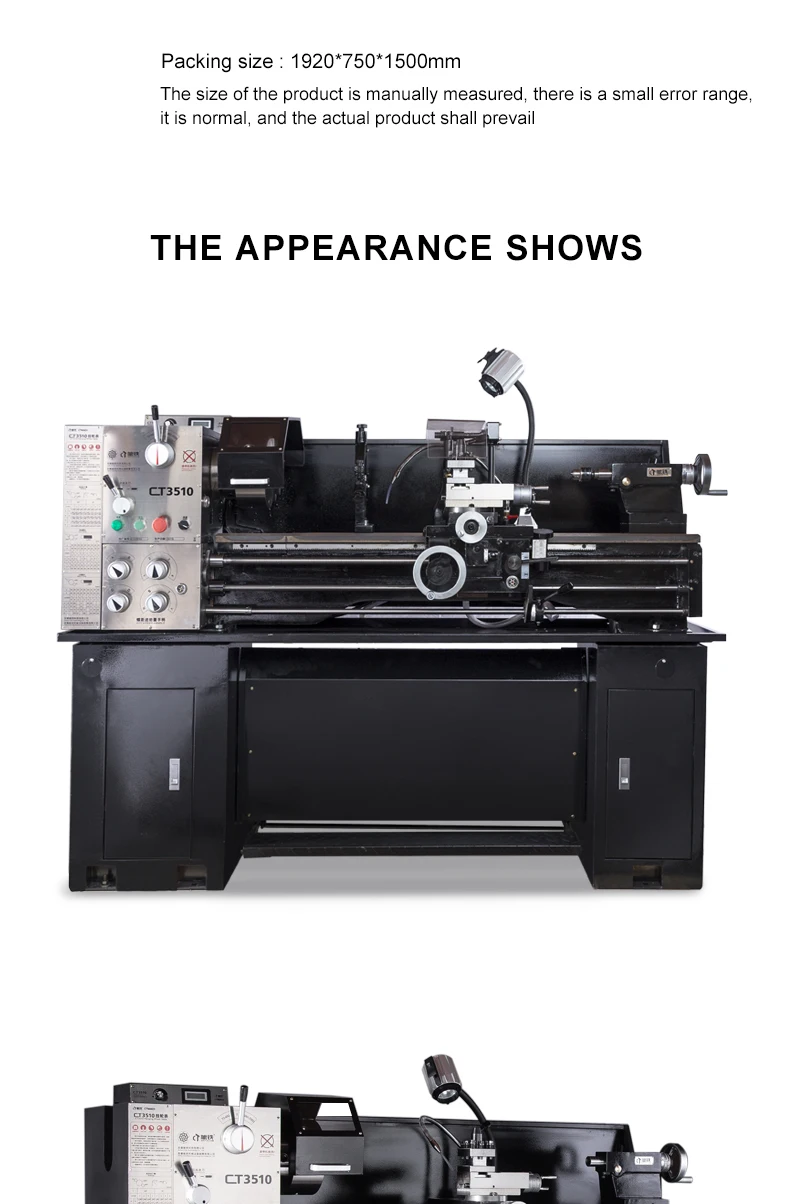

Machine size1920×750×1500mm
Work cabinet size1740×430×700mm
