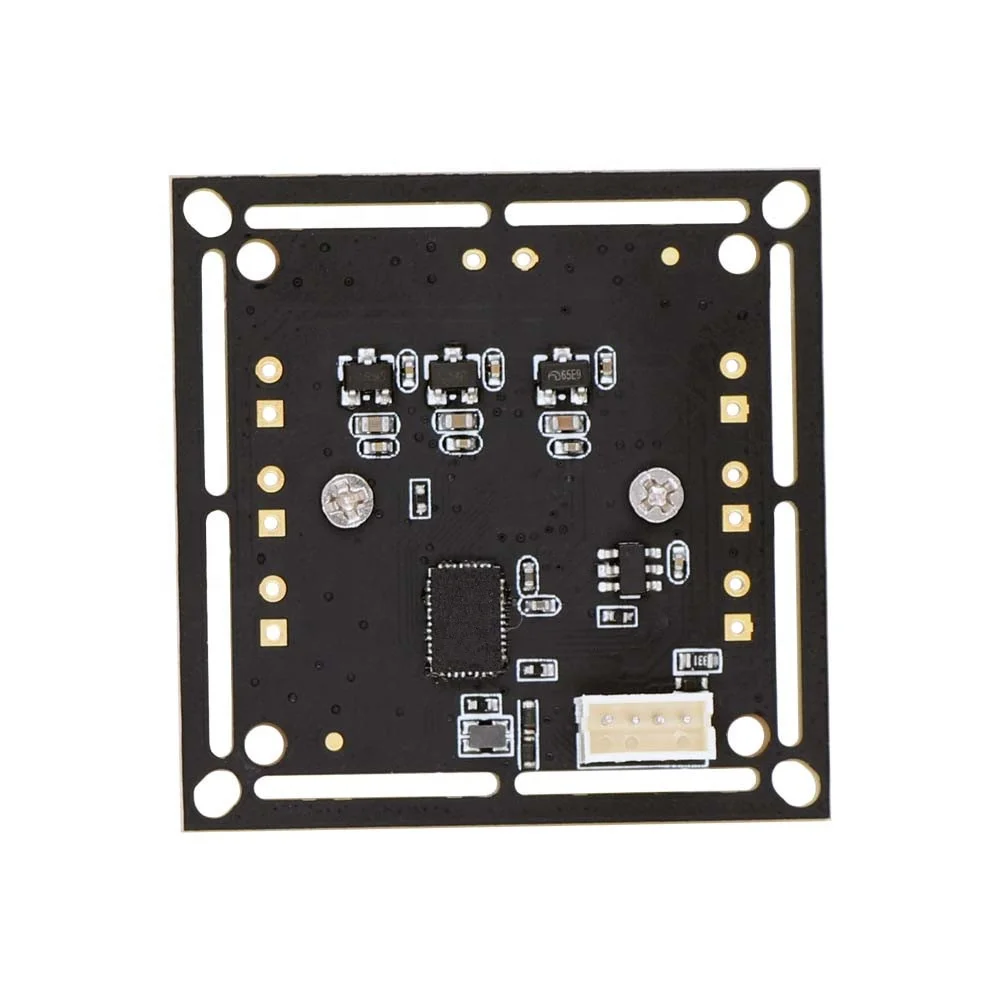

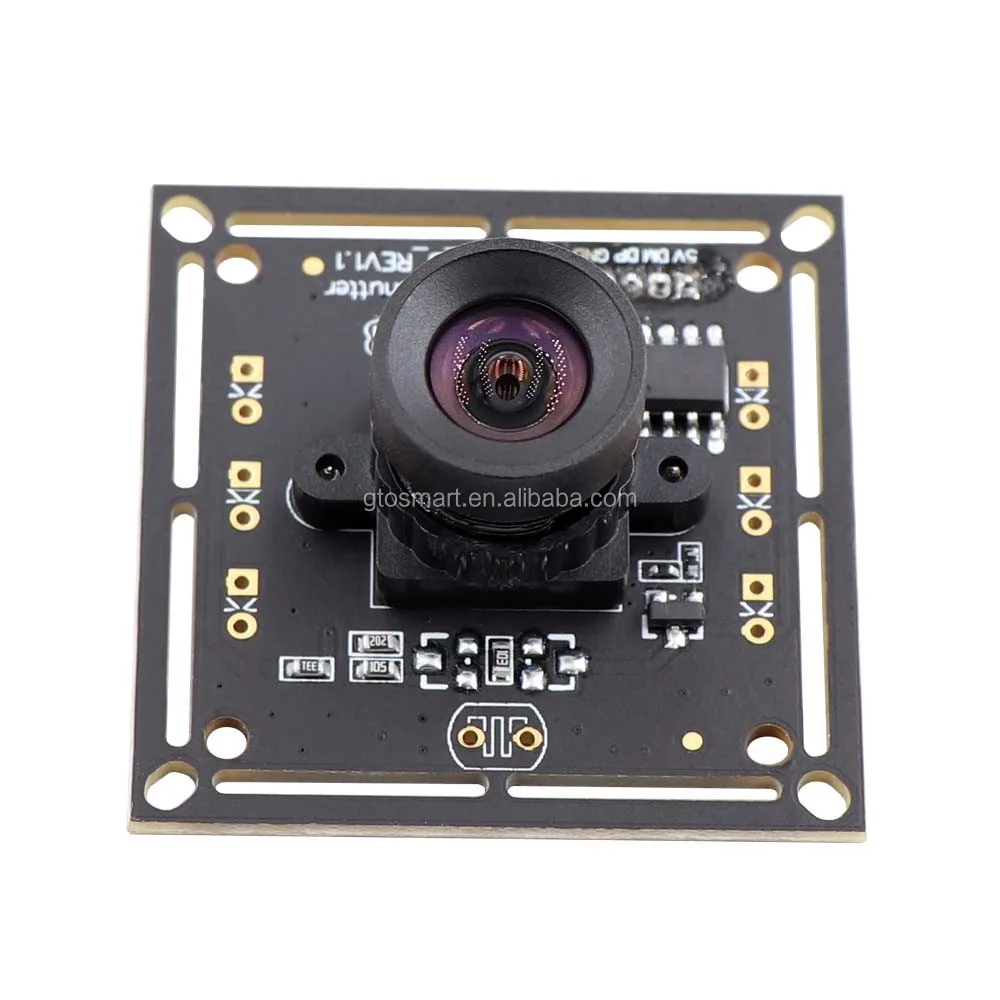

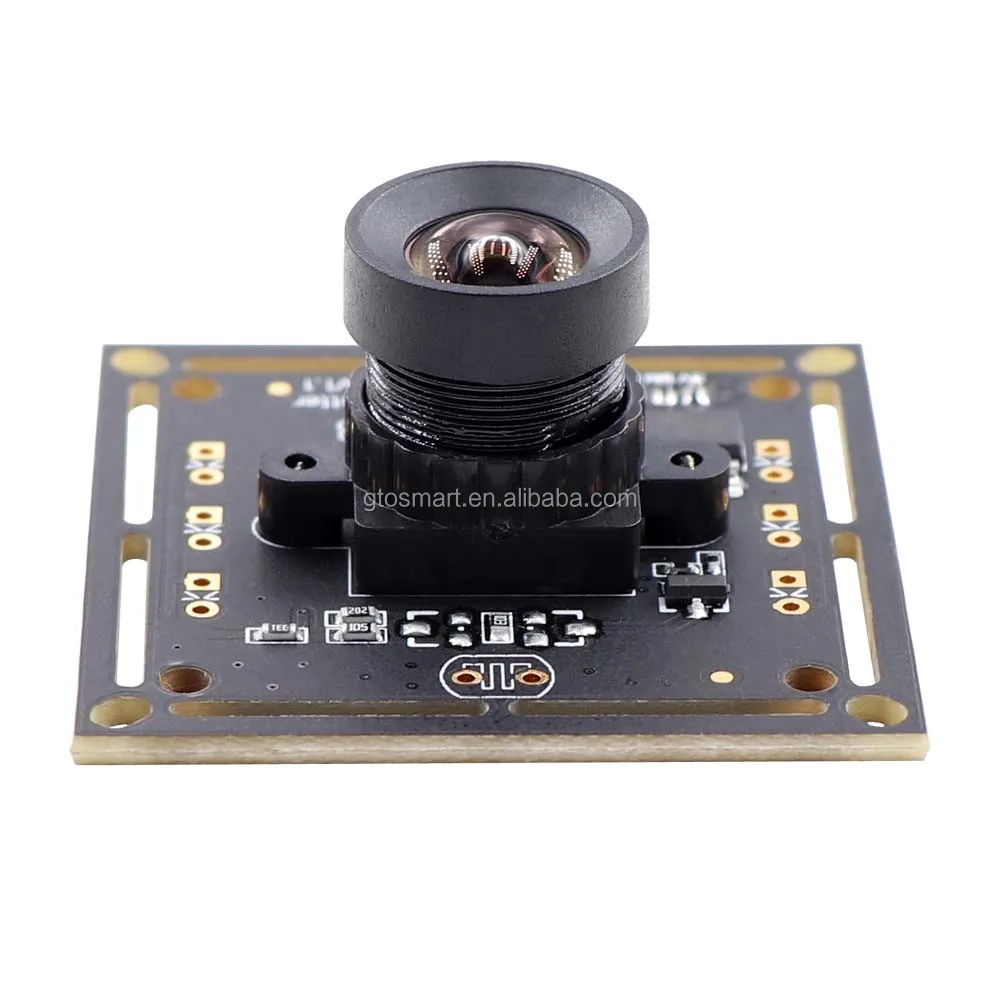

Low Price 0.3MP VGA 640x480P USB 2.0 Camera 120fps Global Shutter usb camera module
- Category: >>>
- Supplier: Shenzhen Dingdang Smart Technology Co. Ltd.
Share on (1600125739764):
Product Overview
Description
USB Camera Serial
Low Price 0.3MP VGA 640x480P USB Camera 120fps Global Shutter camera module
Feature:
*0.3MP 480P Resolution with 120FPS Global Shutter Monochrome Black&White vision
*High Speed USB2.0 Interface
*Small outline for embedded Application
*OTG support,UVC compliance for use in OS Windows,Linux,Androdi,Mac
Specification:
| Model: | GTO-UCM03GSK |
| Sensor: | Cmos Sensor Image |
| Shutter Type: | Global Shutter |
| Resolution: | 0.3MP |
| Image: | MonoChrome Vision |
| Focus: | Manually adjustable |
| Focusing Range: | 20mm to Infinity |
| Resolution & frame : | 640x480 MJPEG @120fps 640x400 MJPEG @120fps |
| Compression format: | MJPEG |
| Interface: | USB2.0 |
| Lens Parameter: | Default Non-Distortion 50 degree FOV lens,other can be optional |
| Voltage: | DC5V |
| Night Vision: | Suppoer with the use of IR leds Only |
| IR-CUT Filter(IR Filter) | Default at 650nm,custom options at 850 or 940nm |
| IR Illumination | IR leds not suppported,can customize with IR leds board upon request |
| USB Video Class(UVC) | Support |
| OTG: | Support |
| Auto Exposure AEC: | Support |
| Auto white blance AEB: | Support |
| Adjustable parameters: | Brightness/Contrast/ Saturation/Hue/Sharpness/Gamma/Definition/ WB/Exposure |
| Dimension: | 38x38mm(32x32mm) |
| Operating Temperature: | -20 to 75°C |
| Support OS: | Windows,Linux,Mac,Android |
Product Description
Packaging & Shipping
In Color Box or Netural Packaging,do as customer's requirement.
1. Worldwide Shipping.(Except some countries)
2. Orders processed timely after the payment verification.Usually,we can ship in 1-7days.
3. We only ship to comfirm order addresses.Your order address MUST MATCH your shiping address.
4. Express: Around 3-7 working days to arrive.
5. International Air Mail: around 2-4 weeks to arrive according different country
Payment:
1.Alipay ,Paypal , T/T, Trade Assurance,Western Union,Visa ,MasterCard ,Escrow are acceptable.
2.Discount is available if you need a large amount , please contact us .
Our Services
| Quick Response | Within 24hours you can get a reply. |
| Sample | Sample is available,it will be send 2-3day after your paid sample charge and shiping cost. |
| Shipping method | By sea,by air,by express(DHL,UPS,FEDEX,TNT,HK post,China post,EMS,SF etc) |
| OEM&ODM | OEM desgin,OEM color,OEM packing,ODM are highly welcome. |
| Trade Terms | EXW,FOB,CIF or as per your request. |
| QC | Each product will be 100% inspected before shiping. |
| After-Service | Responsible and effective |
| Warranty | 12 months. |
FAQ
♦Are you manufacturer?
Yes,we are designer and manufacturer for smart camera for more than 13 years!
♦What Lens optional you have?
We have normal M12 2.1/2.6/2.8/3.2/3.6/4/6/8/12/16mm lens,wide angle fisheye lens and varifocal lens etc.
♦What resolution camera you have?
We have 0.3/1.0/2.0/3.0/4.0/5.0/8.0/13.0 MegaPixel Camera.
♦How do I know which camera and lens is right for me?
Pls tell us the application of your camera,what is the distance of object you need to see.
Then we will use our best judgement to recommend you.
♦Do you accept samll order?
Yes,Sampler order available.
♦Are OEM&ODM available?
Yes,the lens,cable,panel,Image Sensor Chip,gift box,carton,mould,screen logo is available.
♦What's the delivery date for my order?
Most of item have stock.Bulk order about 10-15 days.
♦What's your warranty policy?
All of our products has 1 year warranty. If our products have problem.We will resend a new one or partial refund.All returned items must provide us with the shipping tracking number,specific reason for the return,and you PO#.
As the item returned,buyer should pay for the return shipping fee.
