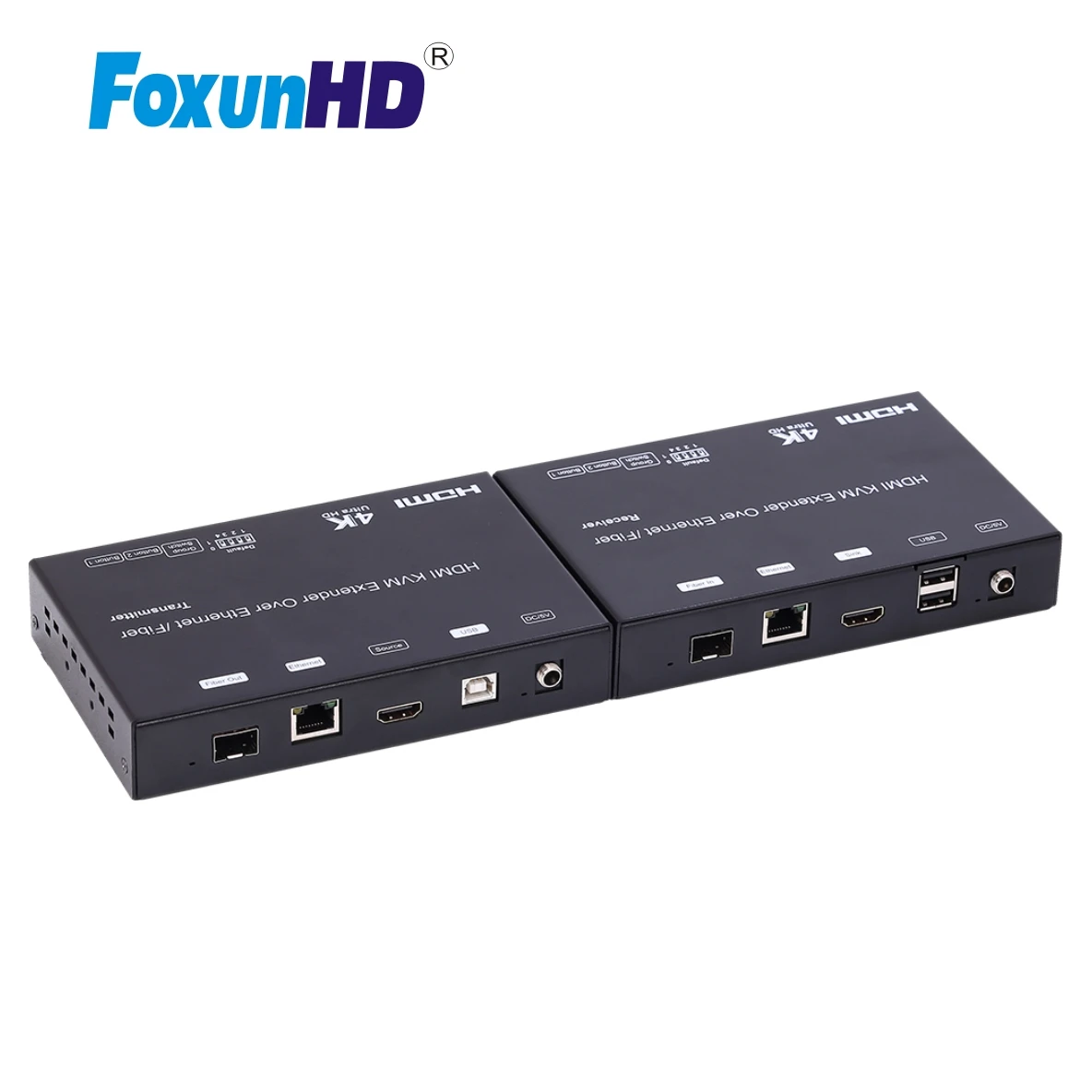

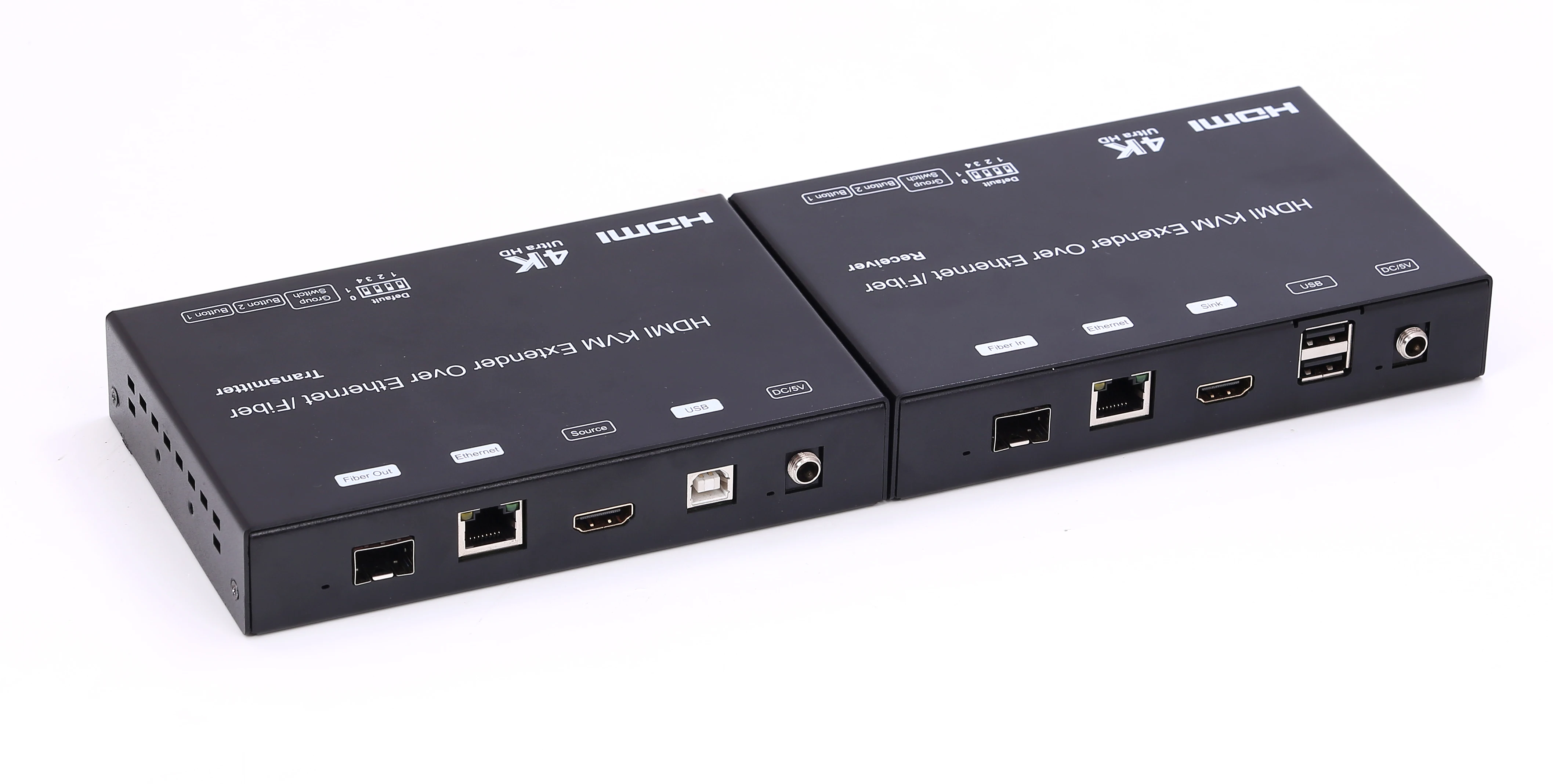

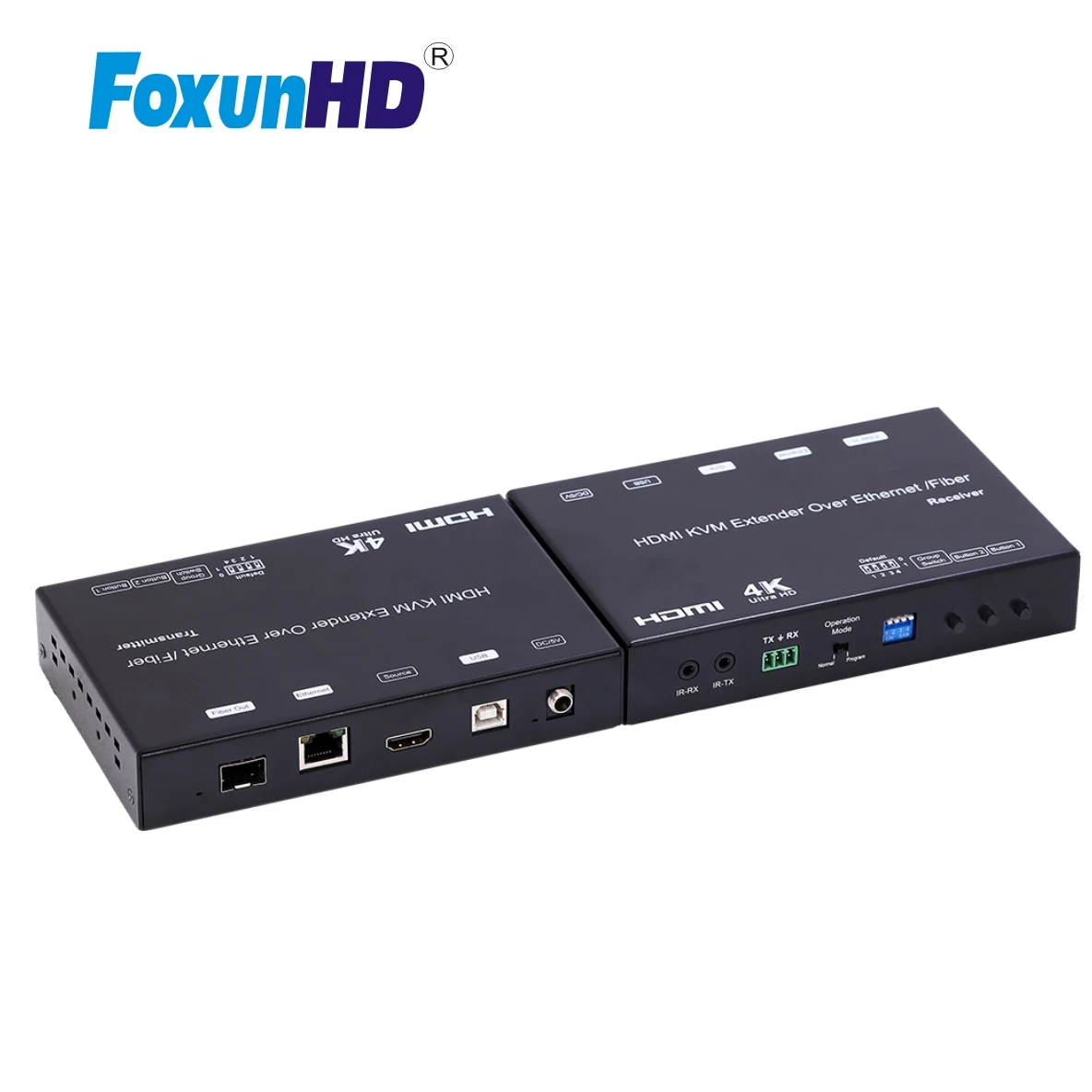

4K HDMI+USB KVM Extender over IP / Fiber With POE
Features
* 4K UHD HDMI over IP extension
* USB 2.0 over IP extension
* RS232 bi-directional extension and RS232 control
* 4 bits switch for 16 stream channel selection
* Support Dolby True HD, DTS-HD Master Audio
* Support two way Wide Band IR extension (38khz-56khz)
* Transmit over single Cat5e/6 cable up to 120m
* Transmitter over Fiber Optical cable up to 60km (Single Mode)
* Networking environment under Giga Ethernet switch and CAT5e cable
* Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
* Output video rotation
* Output video partial enlargement
* 802.3af compliant POE (No need power supply when connecting with POE Switch)
* HDCP 1.4 compliant
* USB 2.0 over IP extension
* RS232 bi-directional extension and RS232 control
* 4 bits switch for 16 stream channel selection
* Support Dolby True HD, DTS-HD Master Audio
* Support two way Wide Band IR extension (38khz-56khz)
* Transmit over single Cat5e/6 cable up to 120m
* Transmitter over Fiber Optical cable up to 60km (Single Mode)
* Networking environment under Giga Ethernet switch and CAT5e cable
* Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
* Output video rotation
* Output video partial enlargement
* 802.3af compliant POE (No need power supply when connecting with POE Switch)
* HDCP 1.4 compliant
Specification
Performance | ||
Protocol | TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 | |
Support Video format | 4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i | |
Support Audio format | Stereo 192Kbps | |
HDCP | Compliant | |
IR Frequency | 38 -56 KHZ | |
RS232 Baud rate | Default 115200bps, total 8 kinds optional | |
IP setting &Group ID setting | ||
Default IP | Automatic allocation | |
Group ID | Group 00 ~ group 16 | |
Request for Switch/Router | Support IGMP, support DHCP | |
Connectors on Transmitter | ||
Input | 1xHDMI Female port, 1xUSB B type | |
Output | 1x RJ45 output, 1x Fiber output | |
RS232 | Phoenix RS232 port | |
IR | 1x IR TX port; 1x IR RX port, Support 38K-56KHz | |
Connectors on Receiver | ||
Input | 1xRJ45 input, 1x Fiber input | |
Output | 1x HDMI Female port, 2x USB A type | |
RS232 | Phoenix RS232 port | |
IR | 1x IR TX port; 1x IR RX port, Support 38K-56KHz | |
Environmental & Power Requirements | ||
Operating temperature | -5 to +35 ℃ （ +23 to +95℉） | |
Operating Humidity Range | 5 to 90%RH (No Condensation) | |
Power supply | DC 5V | |
Power consumption | Max 3 watt | |
Physical | ||
Dimension | TX: 160x103.2x30mm ; RX: 160x103.2x30mm | |
Net Weight | TX: 485.2G ; RX:483.4G | |

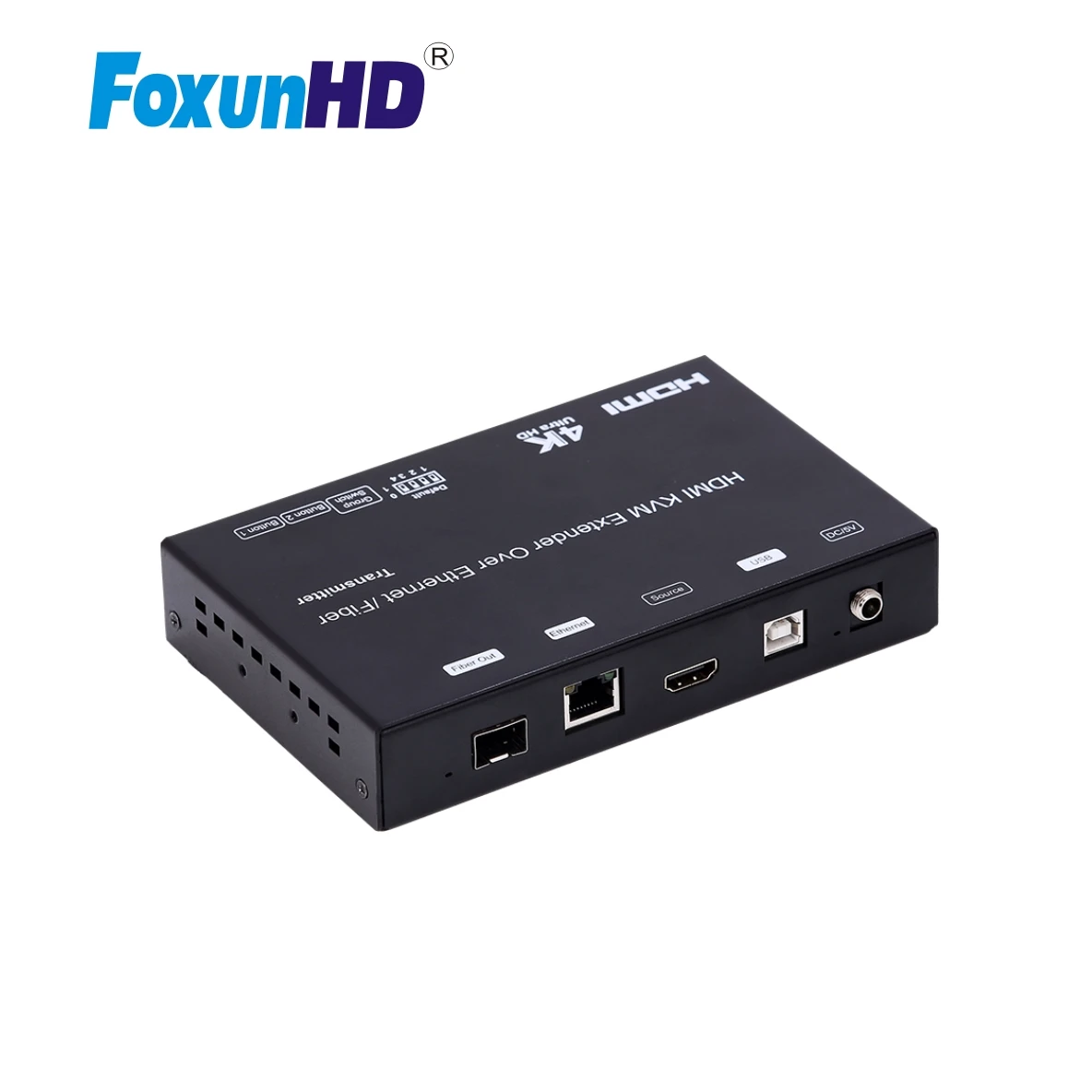

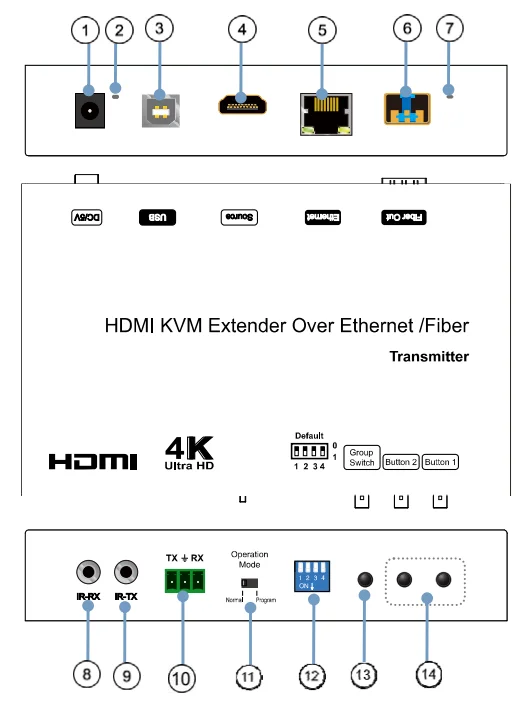

1) Power input port
2) Power input indicator
3) USB
4) HDMI input
4) HDMI input
5) Ethernet port
6) Fiber Out
7) Indicator of status
7) Indicator of status

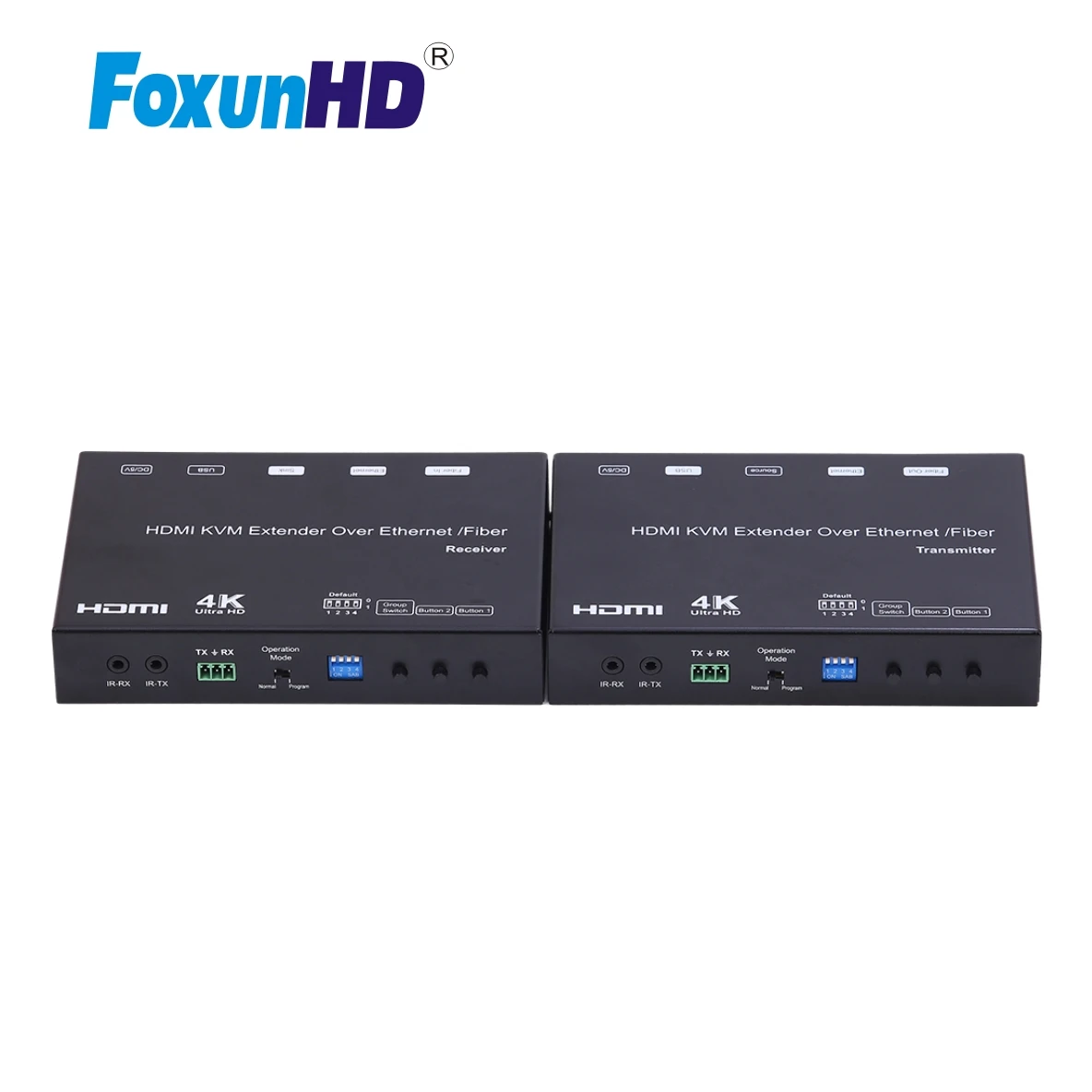

8) IR-RX port
9) IR-TX port
10) RS232 port
11) Normal: For serial over IP; Program: For serial control or getting the debug information
12) 4 bit Dip switch
10) RS232 port
11) Normal: For serial over IP; Program: For serial control or getting the debug information
12) 4 bit Dip switch
13) Group Switch
14) Button 1 & 2

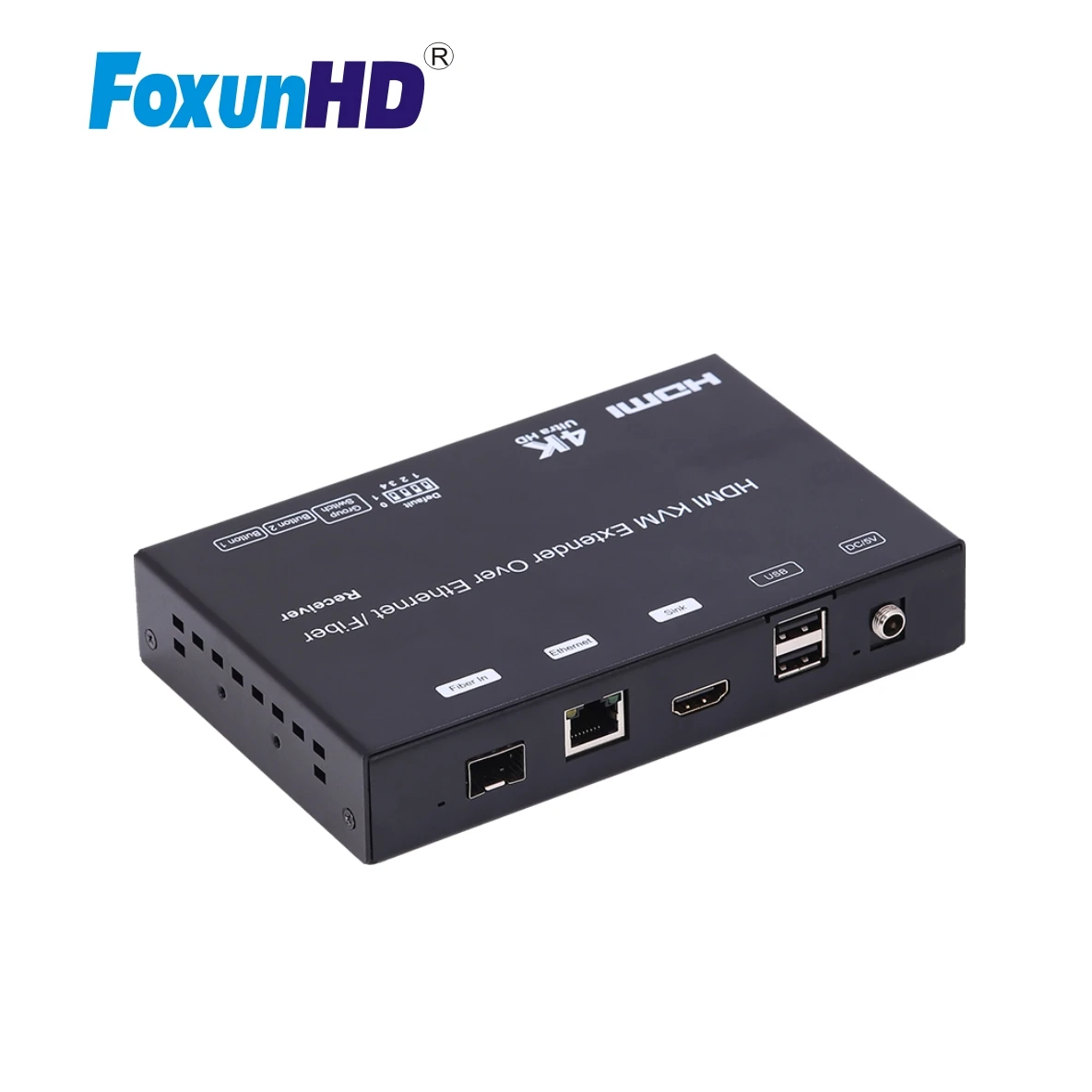

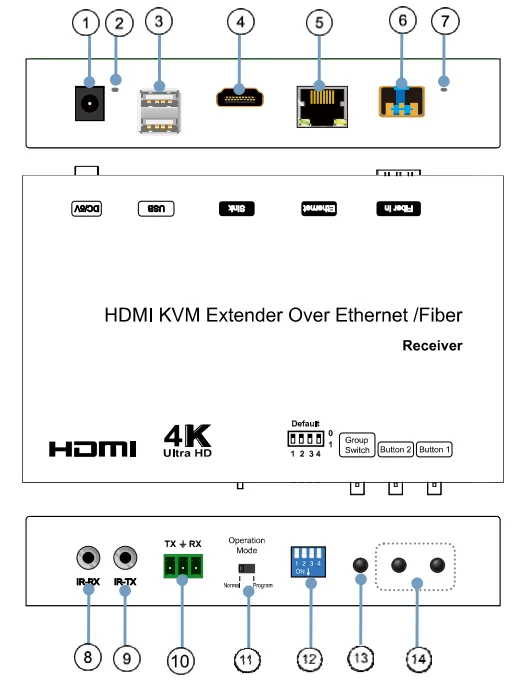

1) Power input port
2) Power input indicator
3) USB
4) HDMI output
4) HDMI output
5) Ethernet port
6) Fiber In
7) Indicator of status
7) Indicator of status

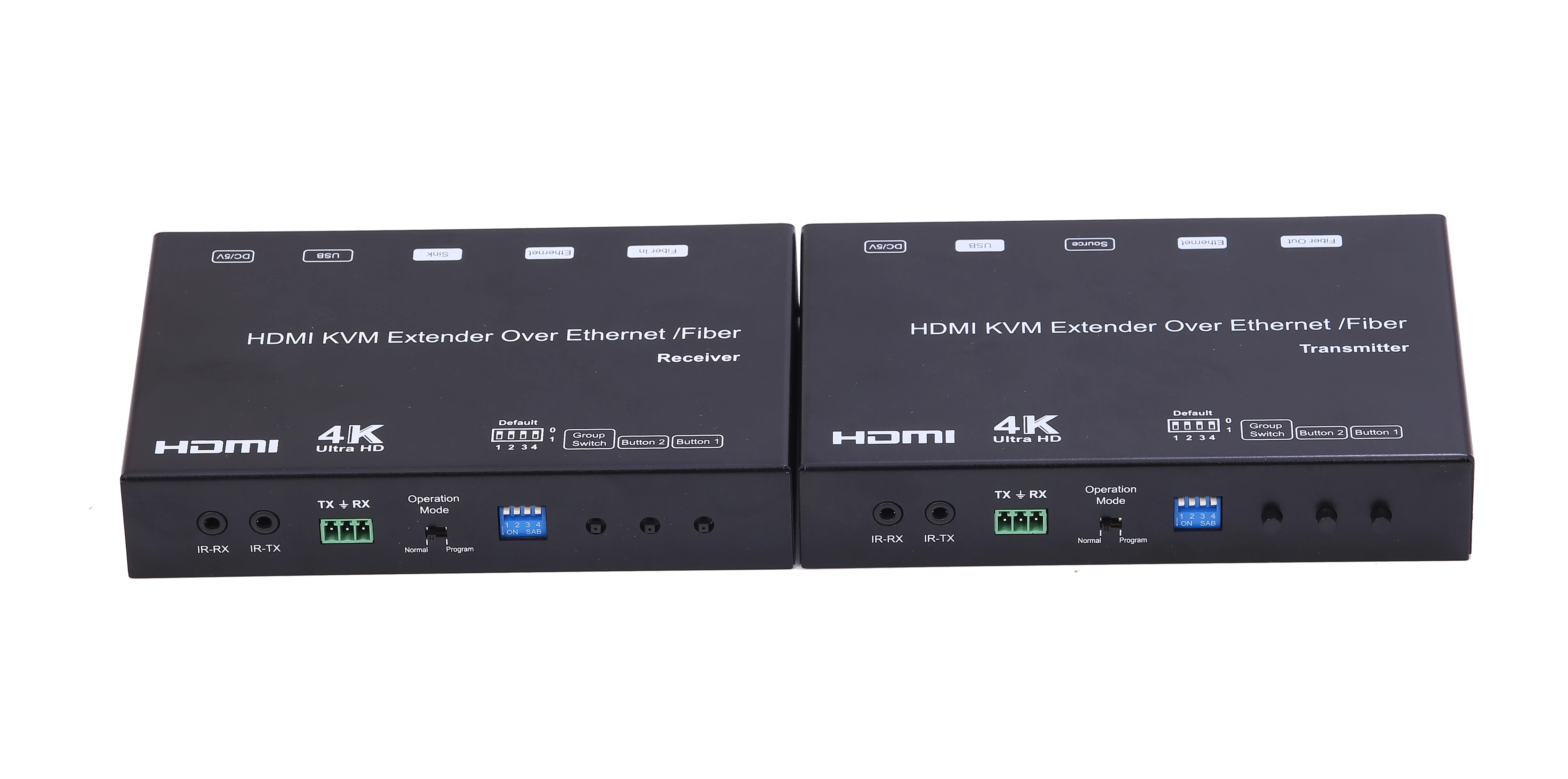

8) IR-RX port
9) IR-TX port
10) RS232 port
11) Normal: For serial over IP; Program: For serial control or getting the debug information
12) 4 bit Dip switch
10) RS232 port
11) Normal: For serial over IP; Program: For serial control or getting the debug information
12) 4 bit Dip switch
13) Group Switch
14) Button 1 & 2
Wiring Diagram
Certifications
Packing & Delivery
1). Main Unit. HDMI Extender (Transmitter & Receiver)
2). Power adapter DC 5V x2PCS
3). 2xIR TX cables, 2x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 4x screws
6). Rear bracket x2
7). Operating Instruction manual
2). Power adapter DC 5V x2PCS
3). 2xIR TX cables, 2x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 4x screws
6). Rear bracket x2
7). Operating Instruction manual
