Oilfield Use API 11B Grade D Sucker Rod
US $20.00
Инструмент для анкерного крутящего момента TorqStopper 5 1/2*2 7/8 для 5,5 в корпусе с комплектом для возмещения
- Category: Centralizer >>>
- Supplier: WEIFANG,VICTORY,MACHINERY,TECHNOLOGY,CO.,LTD.
Share on:
Product Overview
Description
Products Description
Setting Procedure
1. Hand the tool tighten to the pump stator and tubing. Then apply the correct torque to the connections as required for the diameter and grade of tubing used.
2. Run to desired depth
3. Install dognut
4. Rotate tubing to the right (CW) until the tool sets. When the tool has set apply an approximate preload equal to 50 to 60% of the recommended make-up torque for diameter and grade of tubing being used.
5. While maintaining torque, land the dognut
6. The TorqStopper is set
Release Procedure
1. Pick up on dognut
2. Rotate tubing to the left (CCW) until preload is released, then rotate a further ¼ - ½ turn to left (CCW) to release tool.
3. Pull up on the tubing
4. The TorqStopper is released
Attention!
1. When installing any TorqStopper onto a Pump Stator or other hardware, the diameter of the stator or other hardware must not exceed the diameter of the TorqStopper. If this instruction is not followed, the TorqStopper will not function correctly.
2. If down-hole data equipment (e.g sensors) is used and the above instruction is not followed, damage to the equipment may occur.
1. Hand the tool tighten to the pump stator and tubing. Then apply the correct torque to the connections as required for the diameter and grade of tubing used.
2. Run to desired depth
3. Install dognut
4. Rotate tubing to the right (CW) until the tool sets. When the tool has set apply an approximate preload equal to 50 to 60% of the recommended make-up torque for diameter and grade of tubing being used.
5. While maintaining torque, land the dognut
6. The TorqStopper is set
Release Procedure
1. Pick up on dognut
2. Rotate tubing to the left (CCW) until preload is released, then rotate a further ¼ - ½ turn to left (CCW) to release tool.
3. Pull up on the tubing
4. The TorqStopper is released
Attention!
1. When installing any TorqStopper onto a Pump Stator or other hardware, the diameter of the stator or other hardware must not exceed the diameter of the TorqStopper. If this instruction is not followed, the TorqStopper will not function correctly.
2. If down-hole data equipment (e.g sensors) is used and the above instruction is not followed, damage to the equipment may occur.

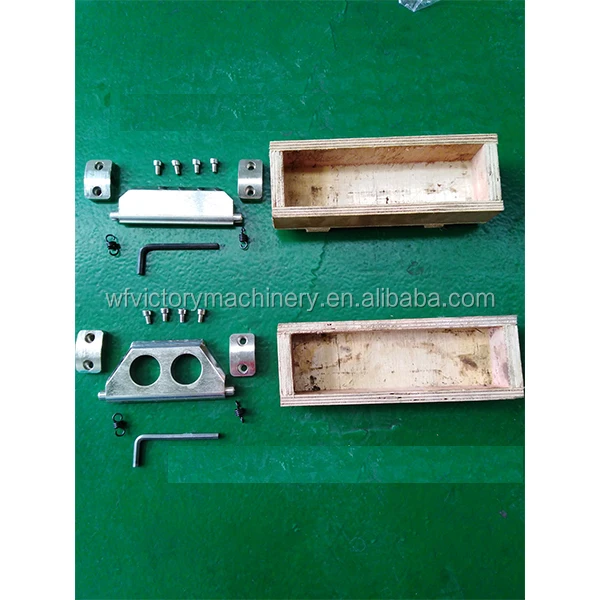

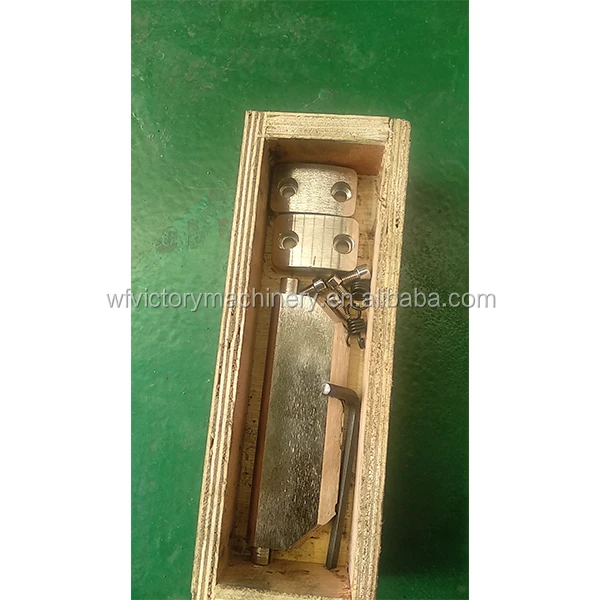

TorqStopper Redress kit
Anchor Block pcs | Springs pcs | Screw & Bolt pair | Anchor Seat Lock pcs | Wrench pcs |
1 | 2 | 4 | 2 | 1 |
