New design multifunctional grain dryer machine for corn wheat rice
- Category: Other Farm Machines >>>
- Supplier: Henan,Yunshan,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

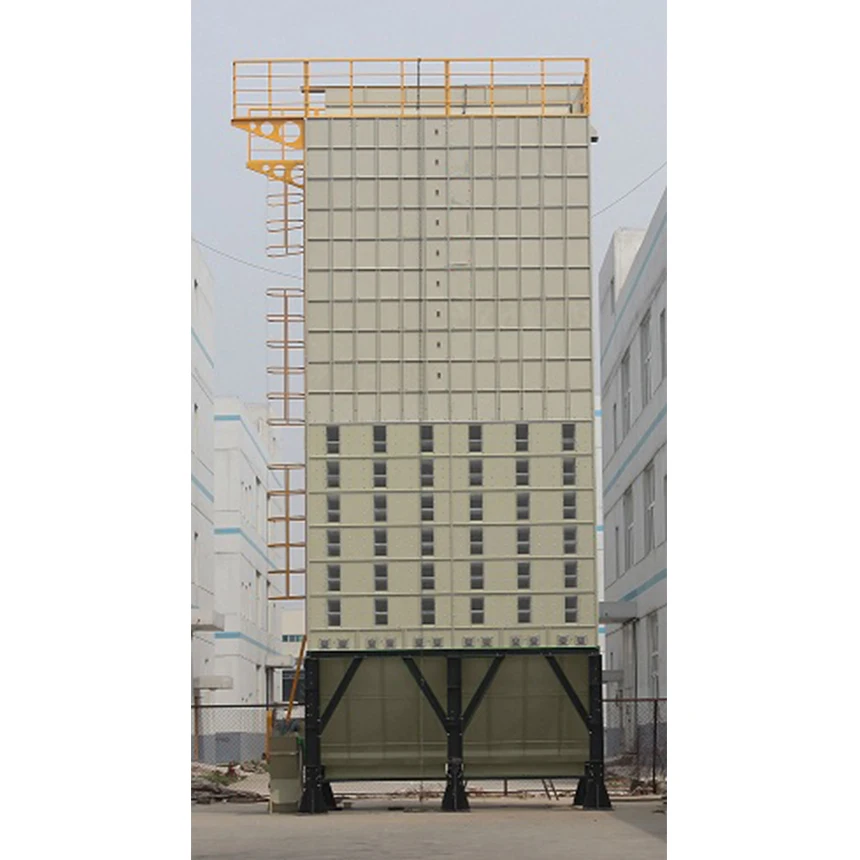

This rice dryer machine is a low temperature batch cycle rice dryer, which adopt mixed-flow drying technology to meet the drying requirements of different grain crops under different precipitation amplitudes, such as rice, wheat, soybean, corn, etc.
The dryer adopts multi-functional one-machine design, indirect hot air heating, large capacity, increase drying layer area. Because of the ingenious structural design, the required power is reduced and the drying efficiency is improved on the basis of saving the land area and energy for the users.
The rice dryer can effectively reduce the rate of grain drying crack and improve the grain precision, thereby improve the quality of grain.
Technical parameters of rice dryer machine | ||||||||||
Model | YSXH-10 | YSXH-15 | YSXH-20 | YSXH-30 | YSXH-50 | |||||
Capacity (kg) | 10000 | 15000 | 20000 | 30000 | 50000 | |||||
Overall Dimension (mm) | 3150×1935×8480 | 3250×1935×10500 | 3250×2190×10900 | 3900×3100×11750 | 4600×3700×12500 | |||||
Precipitation rate (%) | 5-15 | |||||||||
Hot air temperature (℃) | <120 | |||||||||
The highest heating temperature of grain (℃) | <55 | |||||||||
Heating medium | Pure hot air | |||||||||
Dryness heterogeneity (%) | 1 | |||||||||
Breakage increment (%) | <0.5 | |||||||||
Feeding time (min) | 35-40 | 42-46 | 47-52 | 52-60 | 60-65 | |||||
Discharging time (min) | 32-37 | 38-45 | 45-50 | 50-55 | 55-60 | |||||
Safety device | Full bin alarm, fault alarm, leakage protection, grain temperature detection | |||||||||
Product Features
Compared with the traditional dryer under the same conditions, our rice drying machine has 7 advantages.
1, Low broken rate
2, Low failure
3, Little brown rice
4, Energy-saving, low cost
5, Drying fast
6, Discharging fast
7, Easy to operate and use
Working Principle
The wet grain that needs to be dried enters the grain dryer through the grain equalizing mechanism.
When the grain reaches the low level in the grain storage section, the hot air blower is started to supply hot air to dry the grain.
When the grain reaches the level in the grain storage section, the level device starts and sends out an electric signal to start the grain discharge motor to start the grain discharge.
When the grain reaches the high level in the grain storage section, the police will stop feeding.
At this time, the food rationing continued, and the level of grain began to decline.
When it fell to the middle level, it resumed to feed, so that the cycle proceeded.
Adjust the feed rate to keep the system in dynamic balance.
After the wet grain passes through the grain storage section and enters the air distribution section, it is evenly distributed in the ventilation ducts of the air distribution section, and the hot air flows outside the ventilation duct to heat the grain; then the grain flow and the hot air flow downward simultaneously into the drying section, heating the grain in the drying section to vaporize the grain moisture, and then vaporizing the grain moisture in the form of exhaust gas.
The grain is dried by discharging the waste gas from the corner box.
The dried grain is cooled down to the appropriate temperature in the cooling section and discharged from the discharging section through the hopper.
When the grain reaches the low level in the grain storage section, the hot air blower is started to supply hot air to dry the grain.
When the grain reaches the level in the grain storage section, the level device starts and sends out an electric signal to start the grain discharge motor to start the grain discharge.
When the grain reaches the high level in the grain storage section, the police will stop feeding.
At this time, the food rationing continued, and the level of grain began to decline.
When it fell to the middle level, it resumed to feed, so that the cycle proceeded.
Adjust the feed rate to keep the system in dynamic balance.
After the wet grain passes through the grain storage section and enters the air distribution section, it is evenly distributed in the ventilation ducts of the air distribution section, and the hot air flows outside the ventilation duct to heat the grain; then the grain flow and the hot air flow downward simultaneously into the drying section, heating the grain in the drying section to vaporize the grain moisture, and then vaporizing the grain moisture in the form of exhaust gas.
The grain is dried by discharging the waste gas from the corner box.
The dried grain is cooled down to the appropriate temperature in the cooling section and discharged from the discharging section through the hopper.

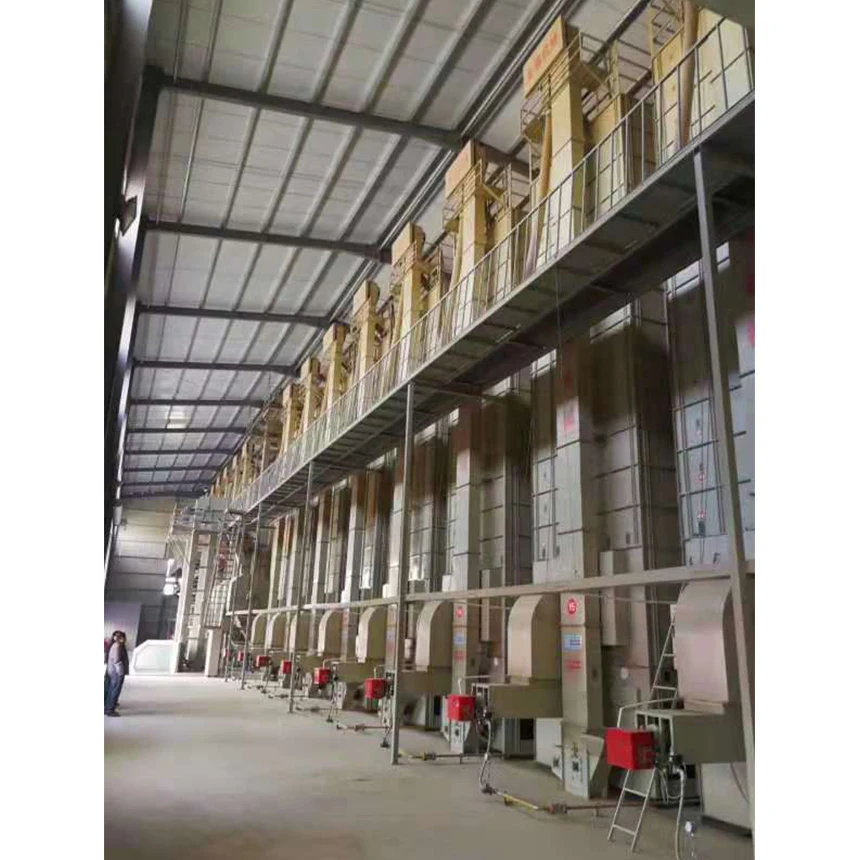

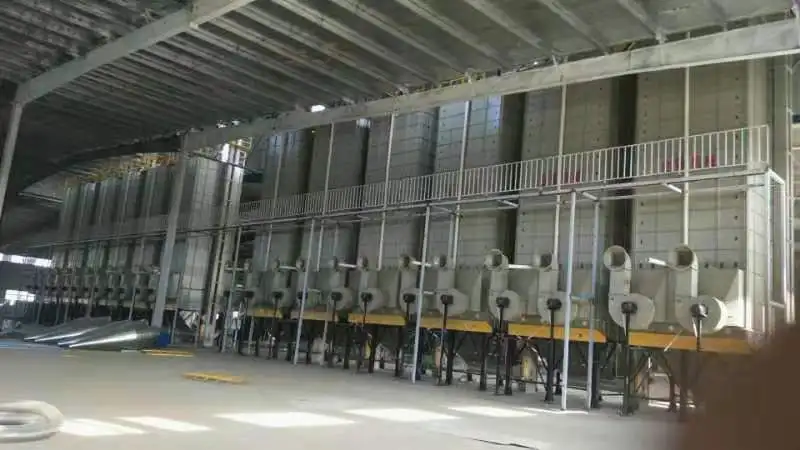

We can provide 20-1000t/d grain drying equipment according to the user's requirement.
