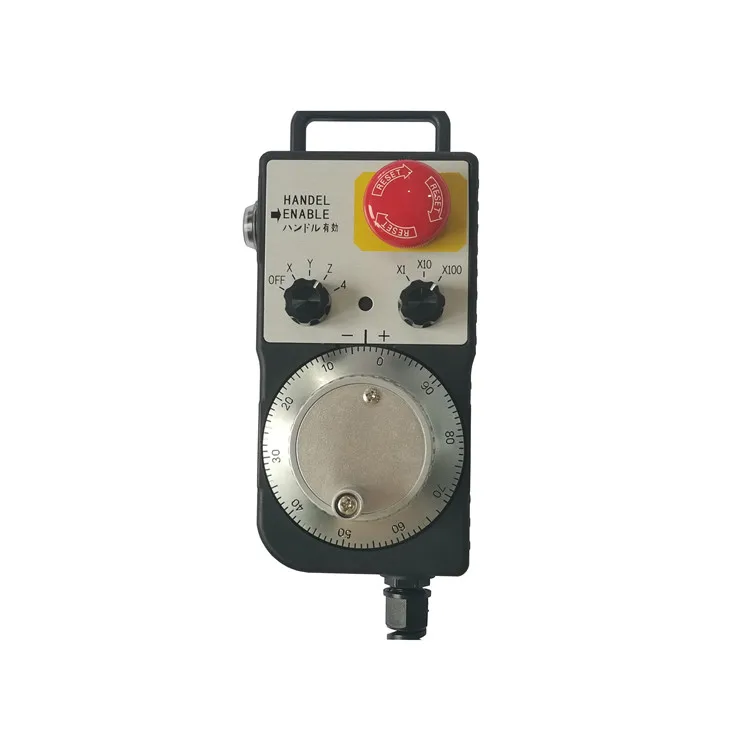

Chinese factory cnc machine hand wheel control pendant JAPAN NEMICON Ihandwheel
- Category: >>>
- Supplier: Zhongshan Bengao Refrigeration Equipment Technology Co. Ltd.
Share on (1600127057847):
Product Overview
Description
Product Description

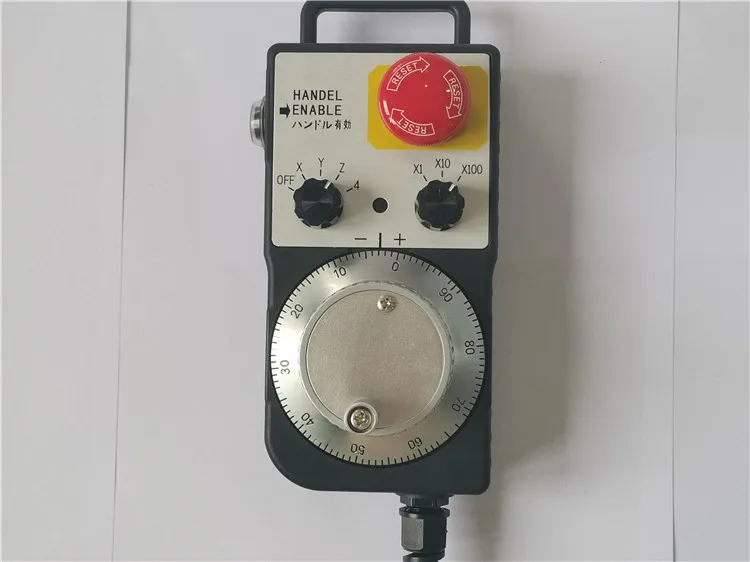

Chinese factory cnc machine hand wheel control pendant bakelite spoked handwheel
Product details
| product name | HP-L Handy MPG |
| Weight | 1.5kg |
| cable | 4m |
| axis | XYZ4~7axis |
| voltage | 5v/12v/24v |
| rotation | 25/100ppr |
| packing | carton |
| temperature rang | -10C~+60C |
| LAMP | LED DC24V GREEN |
| Magnet | strong magnet |
JAPAN NEMICON HP-L SERIES MANUAL PULSE GENERATOR
| TPYE | Z1 | Z9 | H | D |
| Power voltage | HP-L:DC+5V±10% HP-V:DC4.5V to 13.2V | DC5V±10% | DC12V±10% | DC5V±10% |
| Current consumption | ≤50mA | ≤70mA | ≤50mA | ≤150mA |
| Revolution | 100PPR•25PPR | 25PPR | 100PPR•25PPR | |
| output voltage | within -1power voltage | +5V±10% | ≥2.5V | |
| Max.Response Frequency | 5kHz | |||
| sign rising&falling time | ≤1us | ≤1.5us | ≤200ns | |
| Max.sinking Current | 200mA MAX | |||
| rotary switch Contact rating | 0.4VA | |||
| rotary switch Max switch volatge | 25v | |||
| rotary switch switch current | 0.1~50mA | |||
| Enable switch AC | AC220V 0.5A AC110V 1.0A | |||
| Enale switch DC | DC24V 1.0A | |||
| Emergency stop switch AC | AC220V 0.5A AC110 1.0A | |||
| Emergency stop switch DC | DC30V 1.0A | |||
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. OEM/ODM accept . But the MOQ of OEM/ODM is at least 100 sets.
