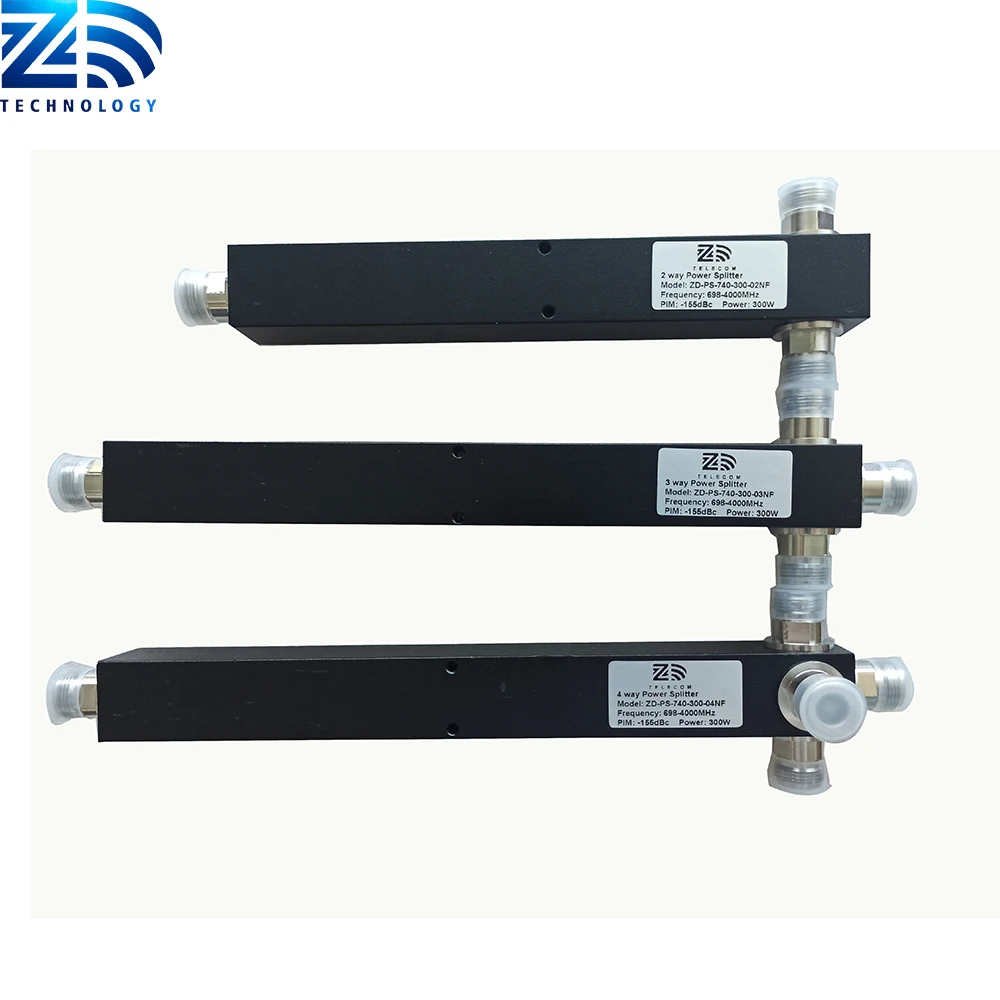

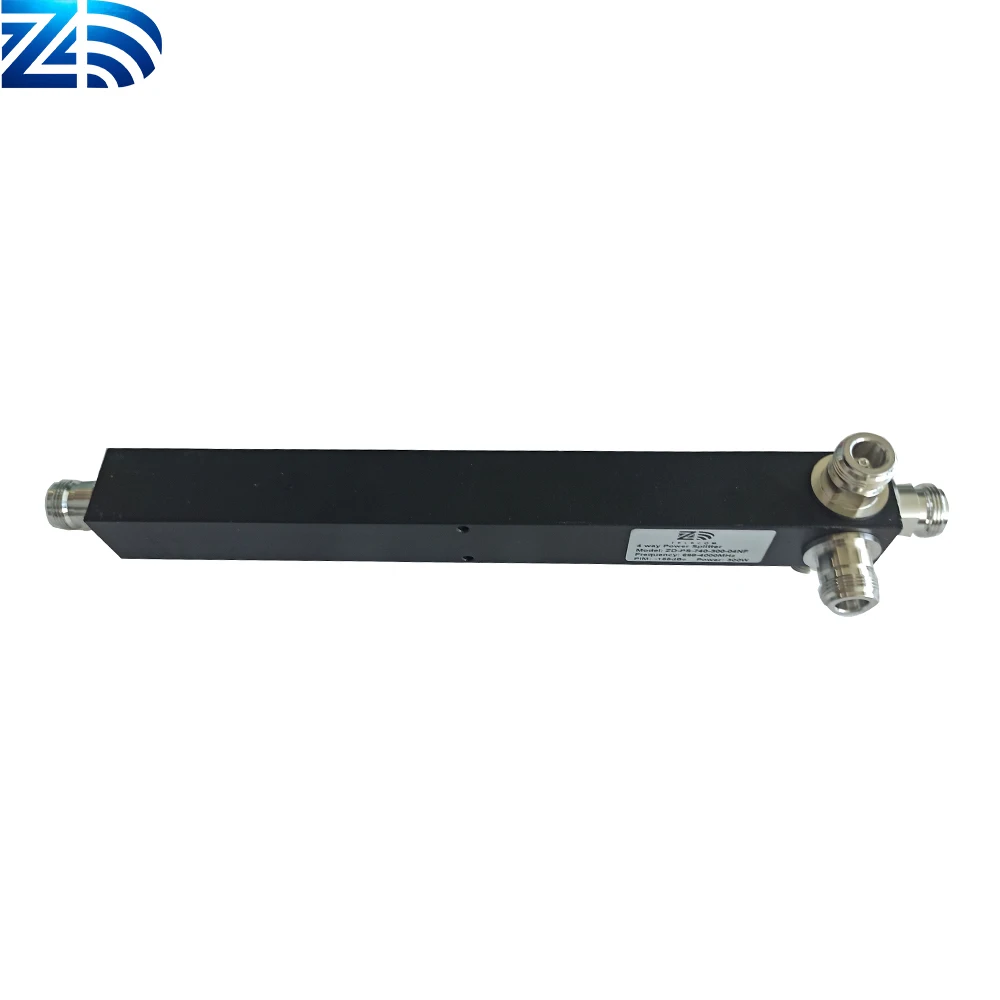

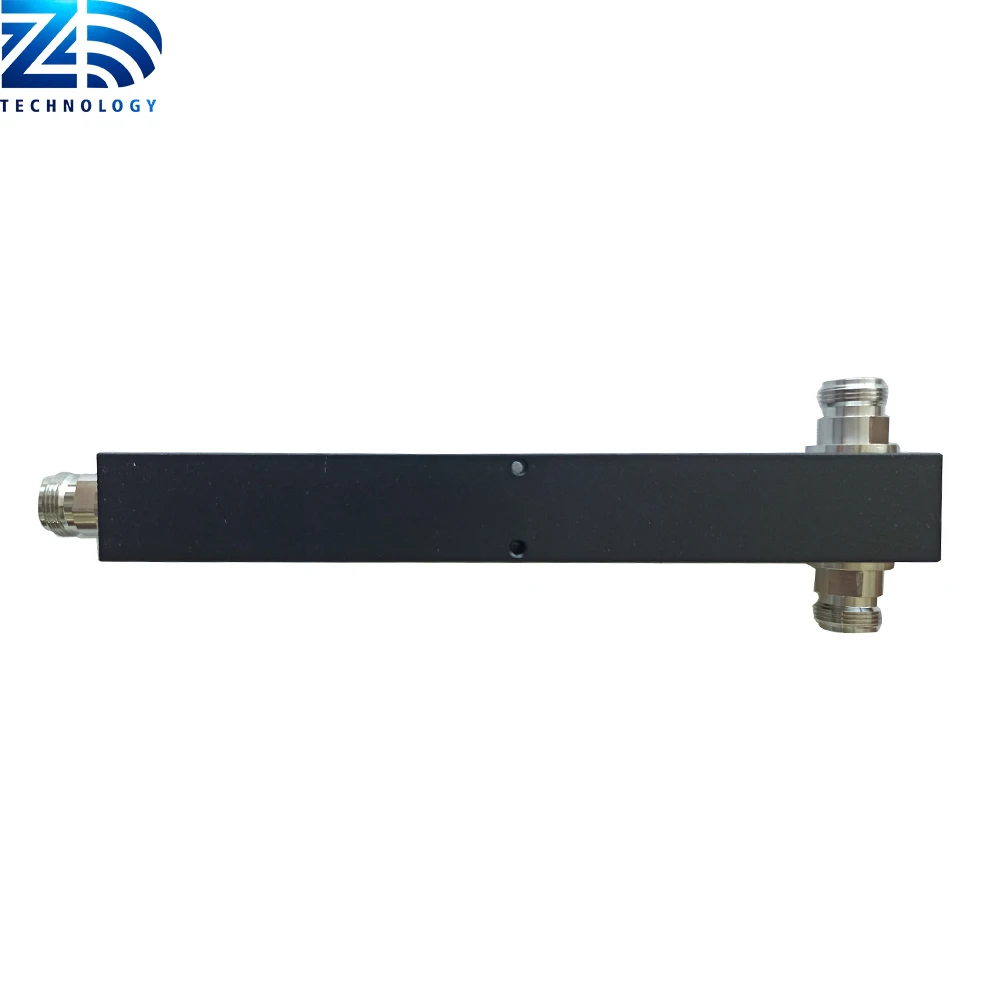

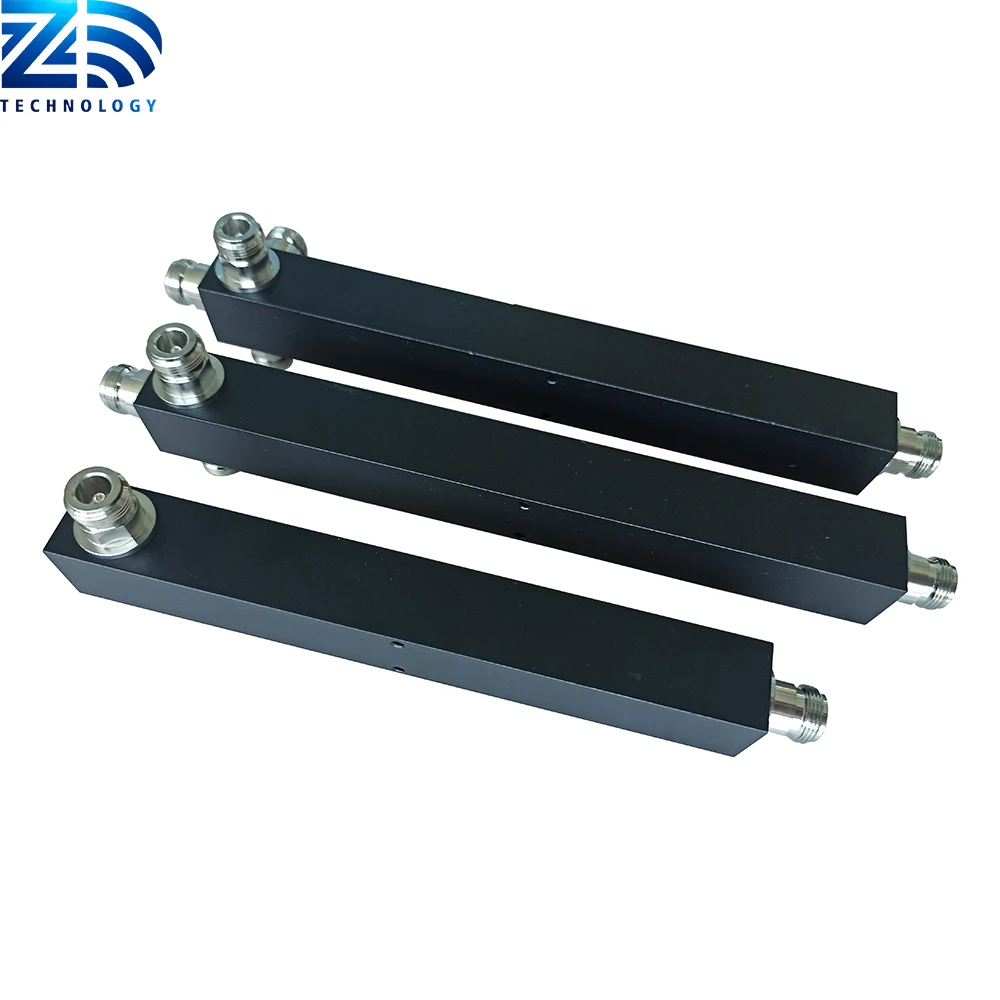

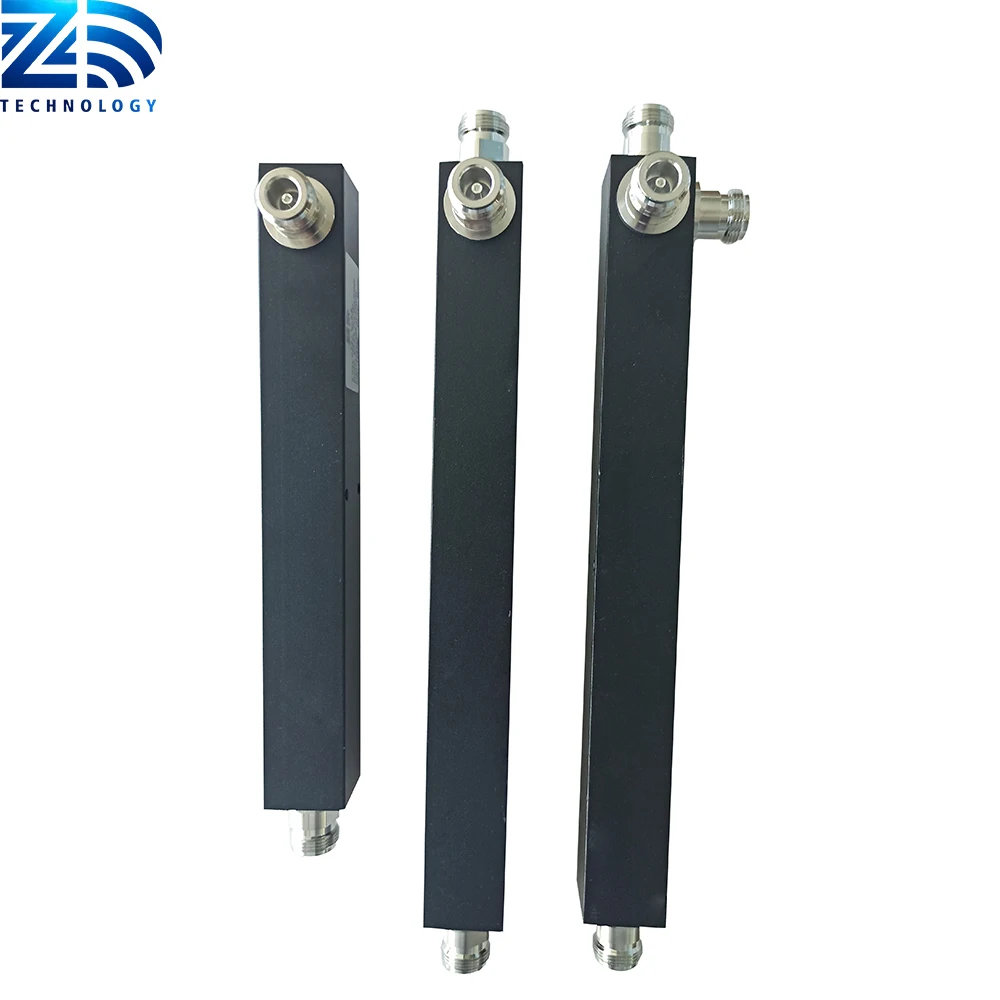

ZD Brand 300w 5g 4 Way divider For Cavity Dual Band power splitter with N female connector
- Category: >>>
- Supplier: Shenzhen ZD Tech Co. Ltd.
Share on (1600127615071):
Product Overview
Description
ZD Brand 300w 5g 4 Way divider For Cavity Dual Band power splitter with N female connector
Pin Throat Mic Radio Air Tube Earpiece Vhf 2 Way For Radios Cavity Dual Band Combiner Duplexer
5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with N-Female Connectors
Specification:
Variants | 2-way | 3-way | 4-way |
Frequency Range(MHz) | 700~4000 | ||
Insertion Loss(dB) | ＜3.4 | ＜5.4 | ＜6.6 |
VSWR | ＜1.3 | ||
PIM(dBc) | ＜-150@2×+43dBm | ||
Impedance(Ω) | 50 | ||
Connectors | N-F | ||
Power Handling(W) | 300 | ||
Operating Temperature(℃) | -25~+65 | ||
Application | Indoor | ||
Colour | Black | ||

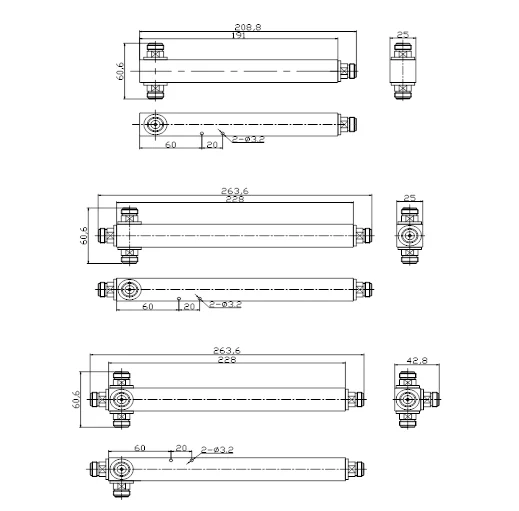

2, Outline:
Application
Related Products
Company Information
FAQ
Q: Can offer the free sample?
A: Yes, we offer 1 free sample (But customer pay the shipping charge), or more samples need to
pay on your account, the sample cost will be refunded once order conirmed.
Q: How do normally take payments?
A: T/T, Paypal, we also accept West Union.
Q: If goods are not the same as described in the contract pictures or
samplesprovided?
A: Contact us within 48 hours: Return in exchange for replacement; Retum in exchange for full refund.
