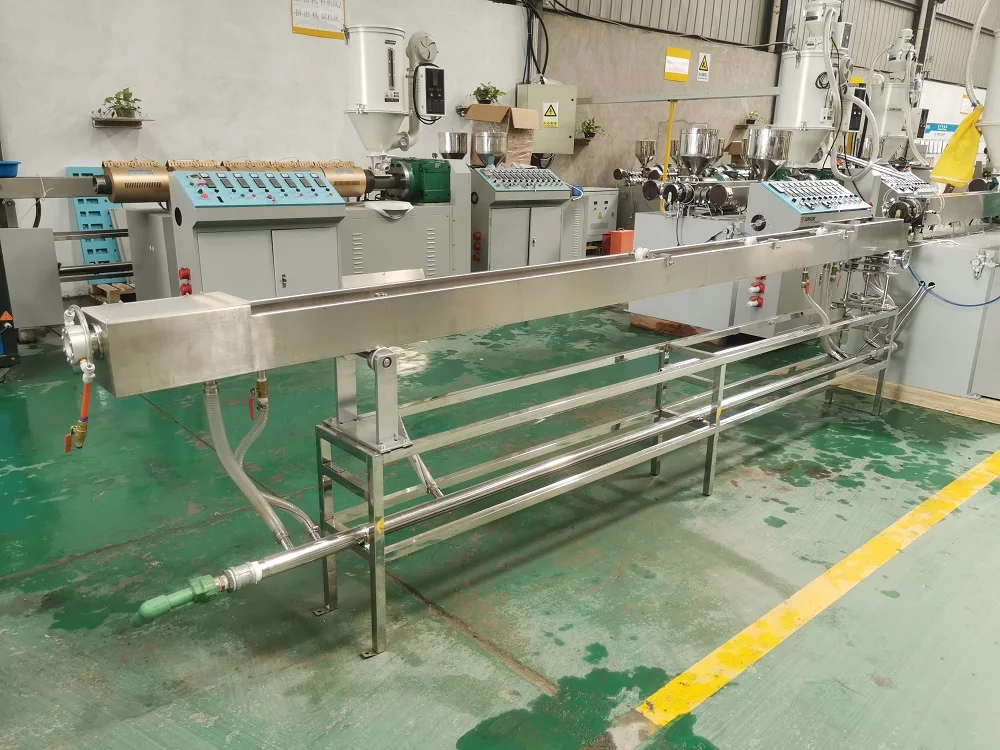

PLA/Biodegradable Straw Making Machine

Product Overview

Description



1. Introduction

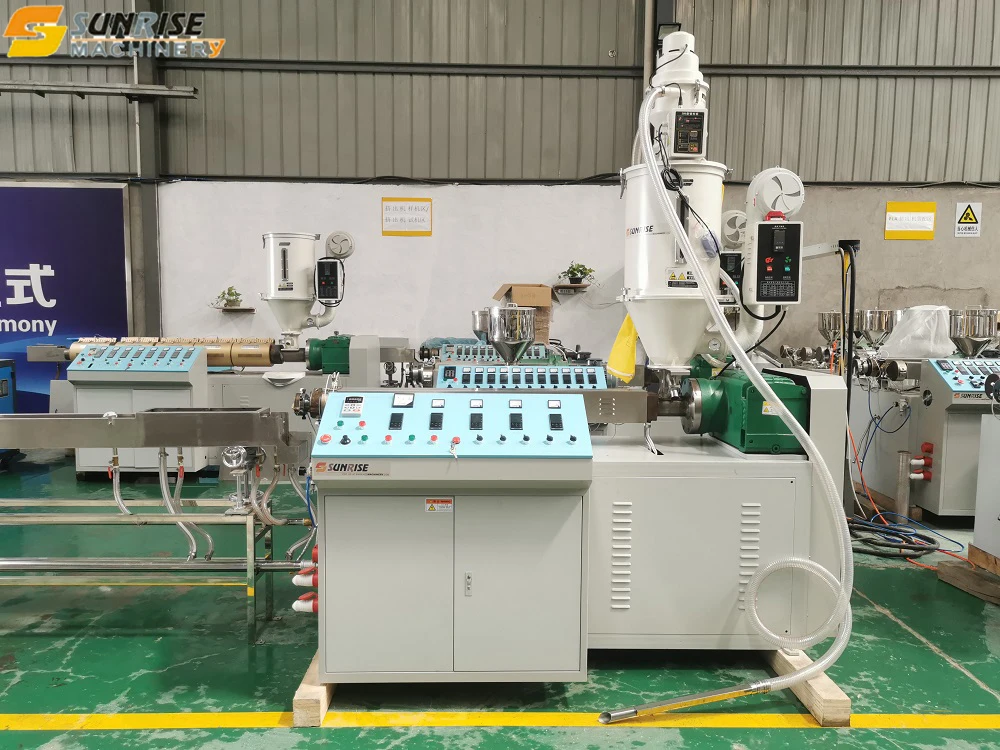

An ideal drinking straw machine for making straight straws.  This machine is comprised by two colors extruder,air compressor,water cooling bath,straw hauling & cutting unit,  water constant temperature system and water chiller.

2. Characteristics

Colors: two, spiral stripes, straight stripes.
Cut end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
All the direct contact parts made from stainless steel.

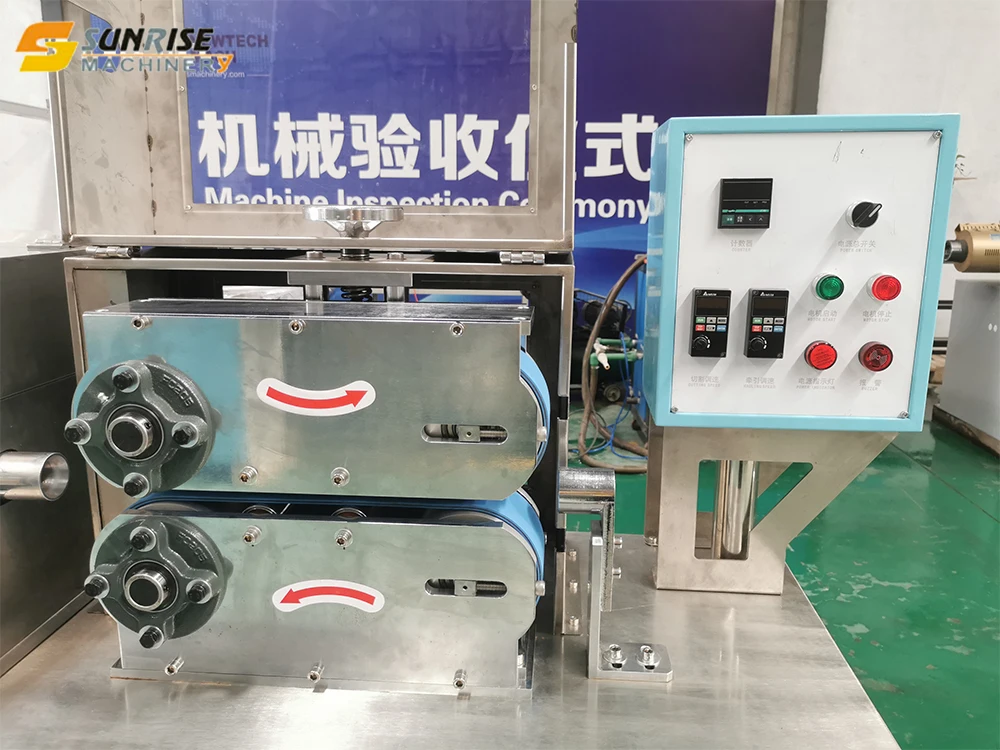

The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker, AC contactor and knob switch brand is CHINT
The inverter is DELTA

3.Technical data

Colour	Single	Two	Three
Diameter of screw:	50mm	50mm+1x25mm	50mm+2x25mm
L:D	28:1	28:1 / 20:1	28:1 / 20:1/20:1
Max. extrusion capacity	35kgs/h
Material	PE / PP/ PLA/ PHA/ PBAT/ PVA/ PBS/ PCL
Specification of straw	Diameter.:φ3- φ 12mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Capacity	30000-60000pcs/h
Power of extruder	15kw,380v,50hz	15kw+0.75kw,380v,50hz	15kw+2x0.75kw,380v,50hz
Power of hauling machine	0.75kw,380v,50hz
Power of cutter	0.75kw,380v,50hz
Power of gathering system	0.18kw,380v,50hz
Temperature controlling	5 sections	8 sections	11 sections
