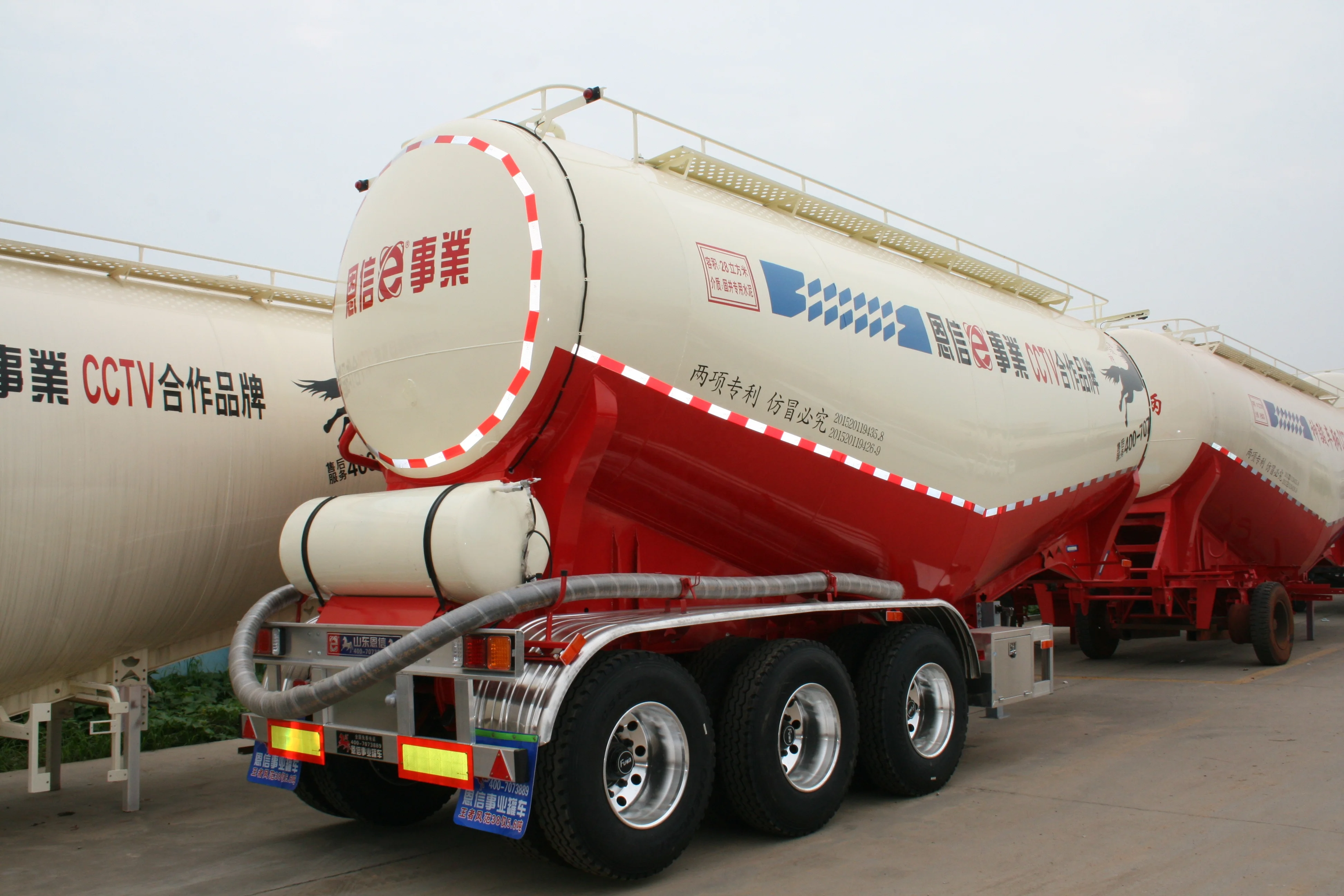

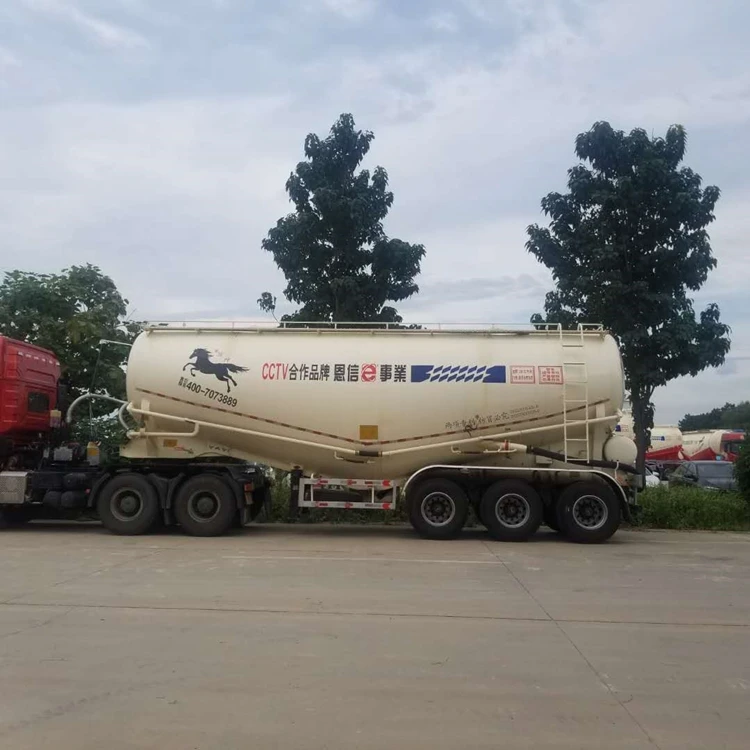

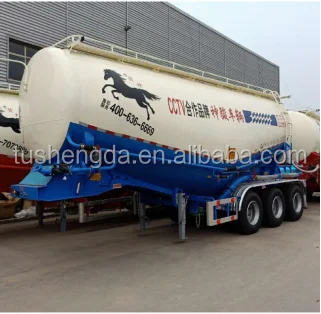

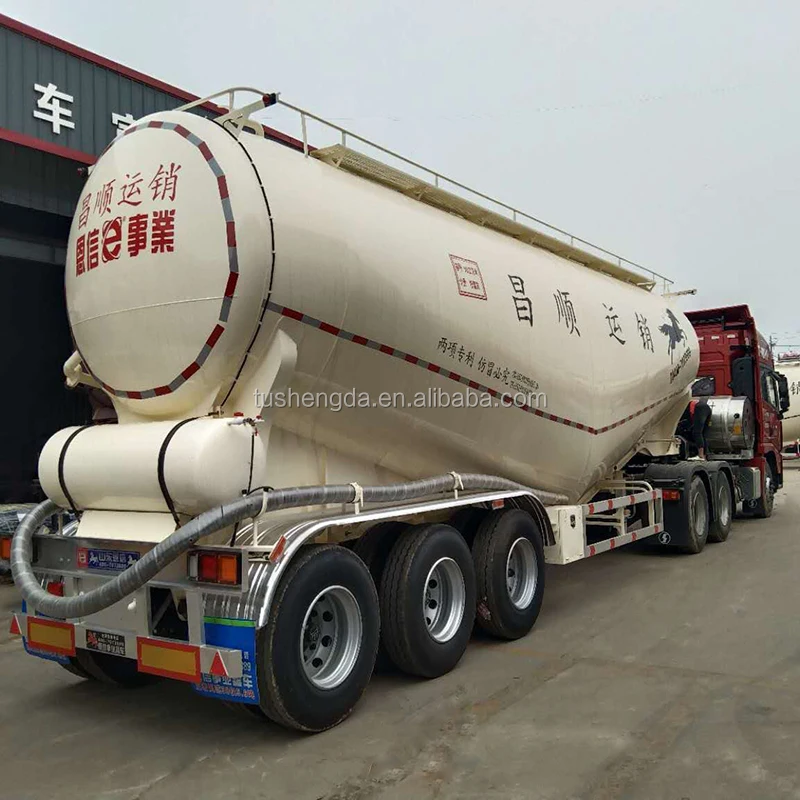

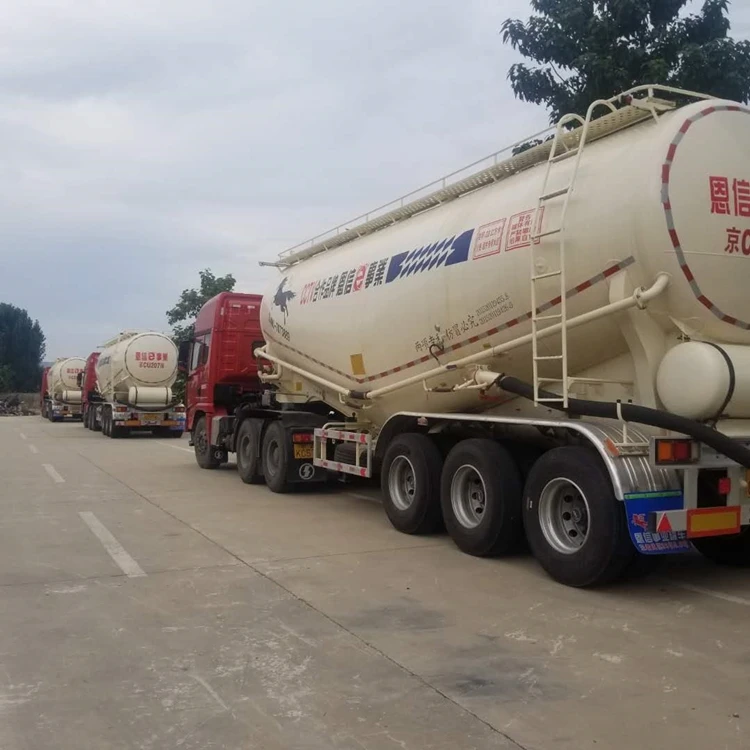

Cement bulker powder tanker semi trailer with optional volume
- Category: >>>
- Supplier: Shandong Tsd Special Vehicle Manufacturing Co. Ltd.
Share on (1600128034293):
Product Overview
Description
Bulk cement semi trailer rely on our 20 years experience, professional design, quality parts fitting, provide higher performance, durable, stable. Help clients get more, cost less. Bulk cement trailer manufacture consummate with quality raw material and parts, good performance and durable. This trailer can carry bulk cement, grain, sodium bicarbonate and any bulk powder materials.There are 40ton–80ton loading capacity, V type, W type and tipping type for your choose. We also support Customized design, it helps getting most suitable vehicles.
Parameter | ||
Payload | 40Ton-80ton (30m3-60m3) | |
Tare weight | 80,00kg-10000KG | |
Dimension | 10000 to 13000(length)*2500(width)* 3950(heigh)mm | |
Wheel base | 1310mm | |
Fabric | ||
Main beam | Beam height 500mm, upper plate-14mm, bottom plate double 16mm, middle plate-8mm, made of Q345 steel | |
Tank body Thickness(mm) | Q235 4mm | |
End plate Thickness(mm) | Q235 5mm | |
Painting | Complete chassis sand blasting to clean rust,coat of anti-corrosive prime,2coatsof finalpaints | |
Tool box | 1piecs | |
Welding | Long member beams be CO2 Arc welded by 80% penetration on external side and bead.All | |
other parts welding with MAG process | ||

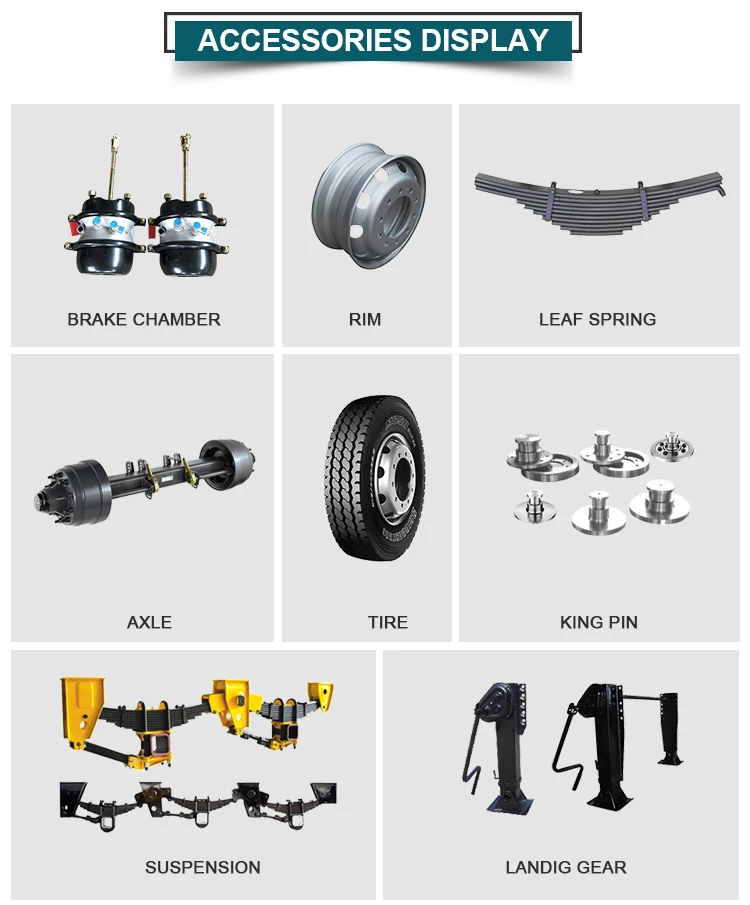

Parts | ||
Axle | 3/4/5/6 picecs x13/16/20ton FUWA Axle | |
Suspension | Mechanical suspension | |
Leaf spring | 90(W)mm*13(thickness)mm*10Layers | |
Tyre | 12R22.5 /315/80R22.5/11R20 /365/80R22.0 | |
Rim | 9.0-22.5/9.5-22.5/8.0-20/11.5-22.5 | |
King pin | JOST King Pin bolt-in type 2’ or 3.5’ interchangeable | |
Landing gear | Double speed,external 28tons, | |
Brake system | Dual line pneumatic brake system with WABCO emergency relay valve | |
Electrical system | 1 :voltage 24v 2: Receptacle:7ways(7wire harness), | |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Diesel Engine | Weichai brand Model 4105/4102 | |
Air Compressor | Bohai brand 12m3 /14m3 double cylinders | |
1. The tank body and chassis are made of durable high-strength steel.
2. Cement semi trailers are used for transporting large quantity of powder materials such as fly ash, lime powder and cement etc
3. This design emphasises safety and durability. Shock resistant, off-road, multiple reinforcement points, ABS and sensitive brakes
4..High Tensile Steel - lighter tare weight of cement tank trailer but strong tank body against high pressure.
2. Cement semi trailers are used for transporting large quantity of powder materials such as fly ash, lime powder and cement etc
3. This design emphasises safety and durability. Shock resistant, off-road, multiple reinforcement points, ABS and sensitive brakes
4..High Tensile Steel - lighter tare weight of cement tank trailer but strong tank body against high pressure.

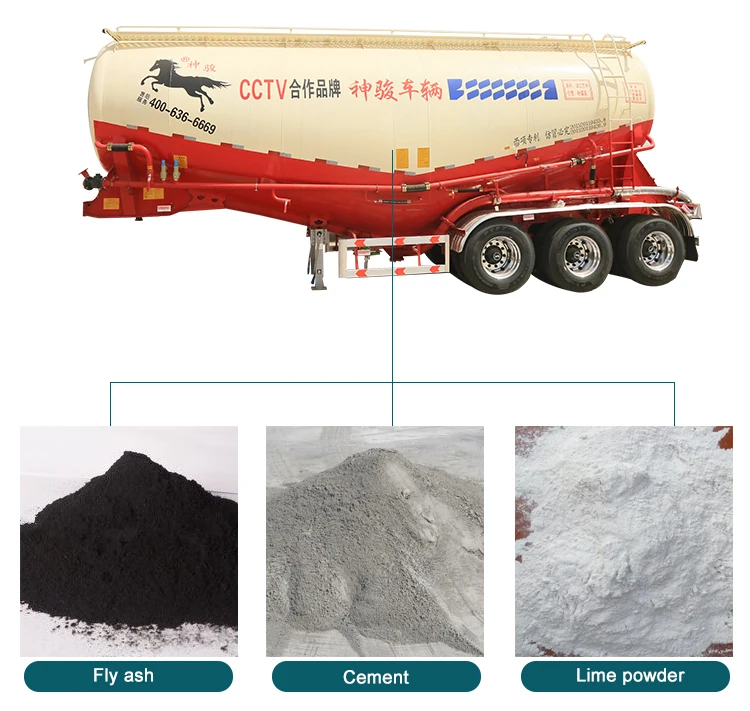

Dry bulk cement silo tank semi trailer is suitable for transportation and pneumaticunloading of dry powder materials with particle diameters less than 0.1mm, such as fly ash, cement, lime powder

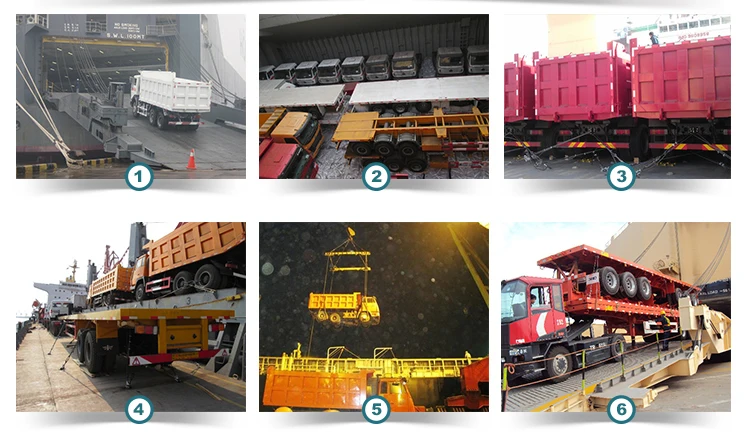

Packing: standard exported package
Delivery :within 15 days after confirming the payment
Delivery :within 15 days after confirming the payment
Shandong TSD Special Vehicle manufacturing CO.,Ltd locating in China biggest semi trailers production base—Liangshan county, Shandong Province. Here you can get everything regarding to all kinds of semi trailers. Since 1960s, the General Machinery Plant of China Construction Second Engineering Bureau become an early domestic leading enterprise engaged in the production of powder material transport vehicles, special oilfield vehicles, and construction machinery vehicles. As a sub branch of GMPC, TSD Special Vehicle keep focus on bulk cement tanks and other semi trailers, With two technology patent of our own, SHENJUN cement tank trailers is sharing almost 1/3 in domestic market and enjoying very good reputation also. In 2020, the company introduced domestic advanced technology and talents, and cooperated with Zoomlion and Hubei Wuhuan to start production
of sanitation vehicles, rod sweepers, rod sprinklers, garbage trucks, fire trucks, truck mounted cranes, ambulances, etc.the factory has a high-level professional, hard-working and dedicated modern staff team, more than 20 years of exploration and enterprising, and accumulated rich experience in design, development and production. We warmly welcome all friends to visit our factory any time, learn from each others and improve business, WIN-WIN TOGETHER.
of sanitation vehicles, rod sweepers, rod sprinklers, garbage trucks, fire trucks, truck mounted cranes, ambulances, etc.the factory has a high-level professional, hard-working and dedicated modern staff team, more than 20 years of exploration and enterprising, and accumulated rich experience in design, development and production. We warmly welcome all friends to visit our factory any time, learn from each others and improve business, WIN-WIN TOGETHER.
