8x8 channel professional audio system digital audio processor with advanced DSP processing technology
- Category: >>>
- Supplier: Shenzhen S-Track Science & Technology Co. Ltd.
Share on (1600128106919):
Product Overview
Description
Product Description
Best manufacturer with high quality 8channel DSP sound processor

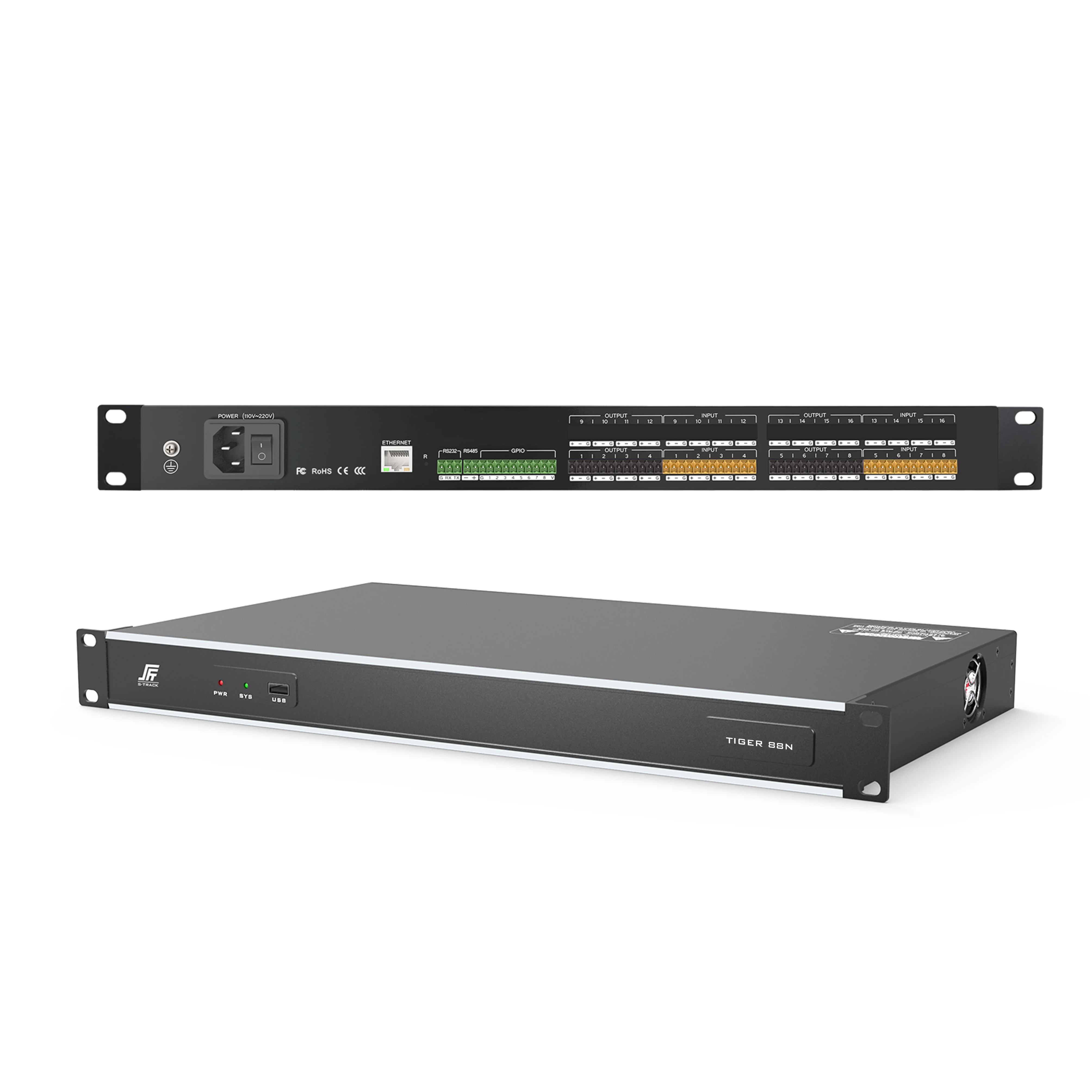

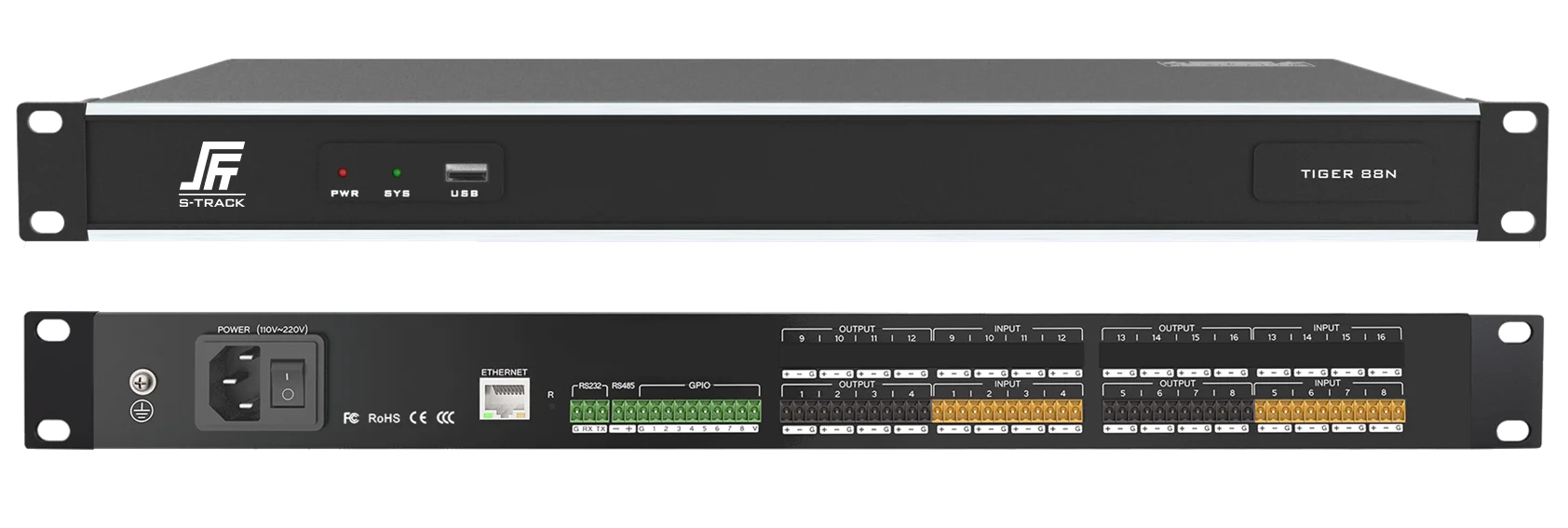

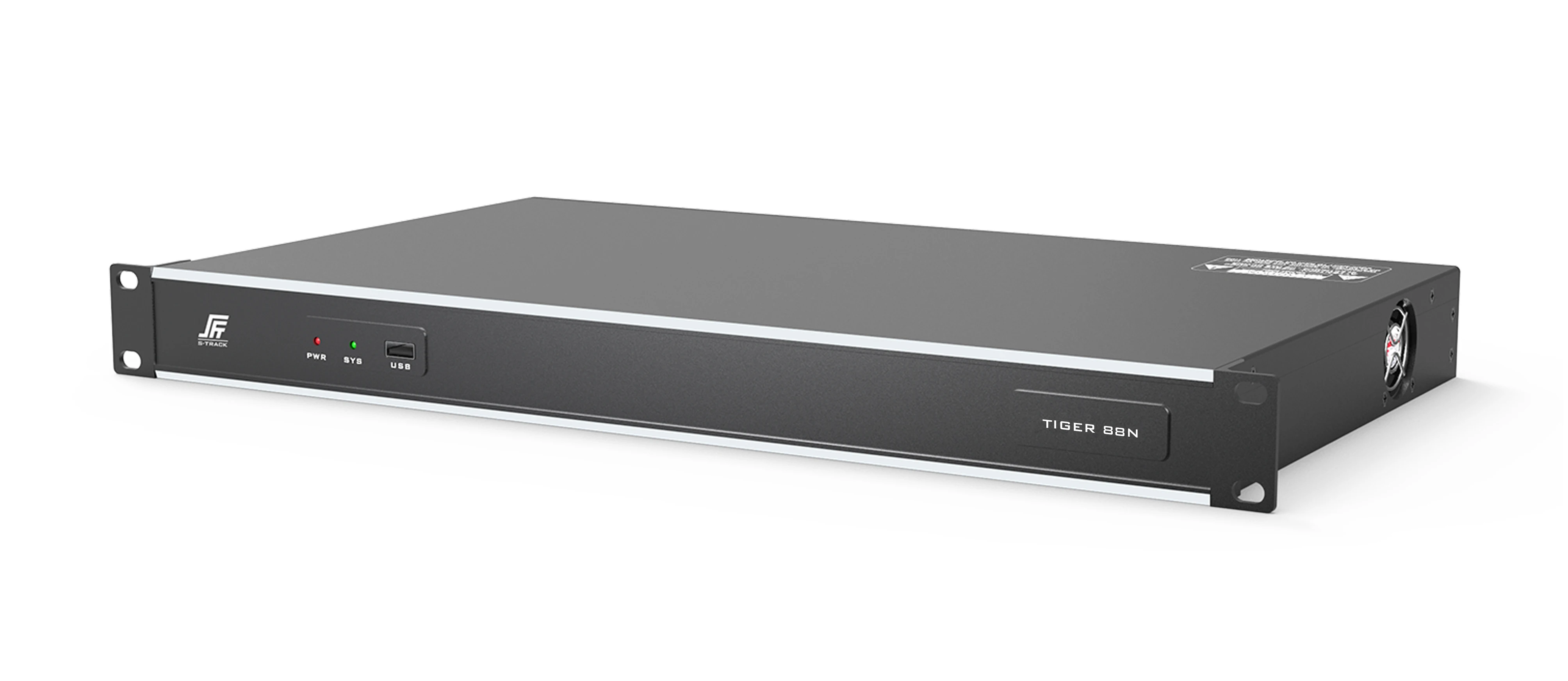

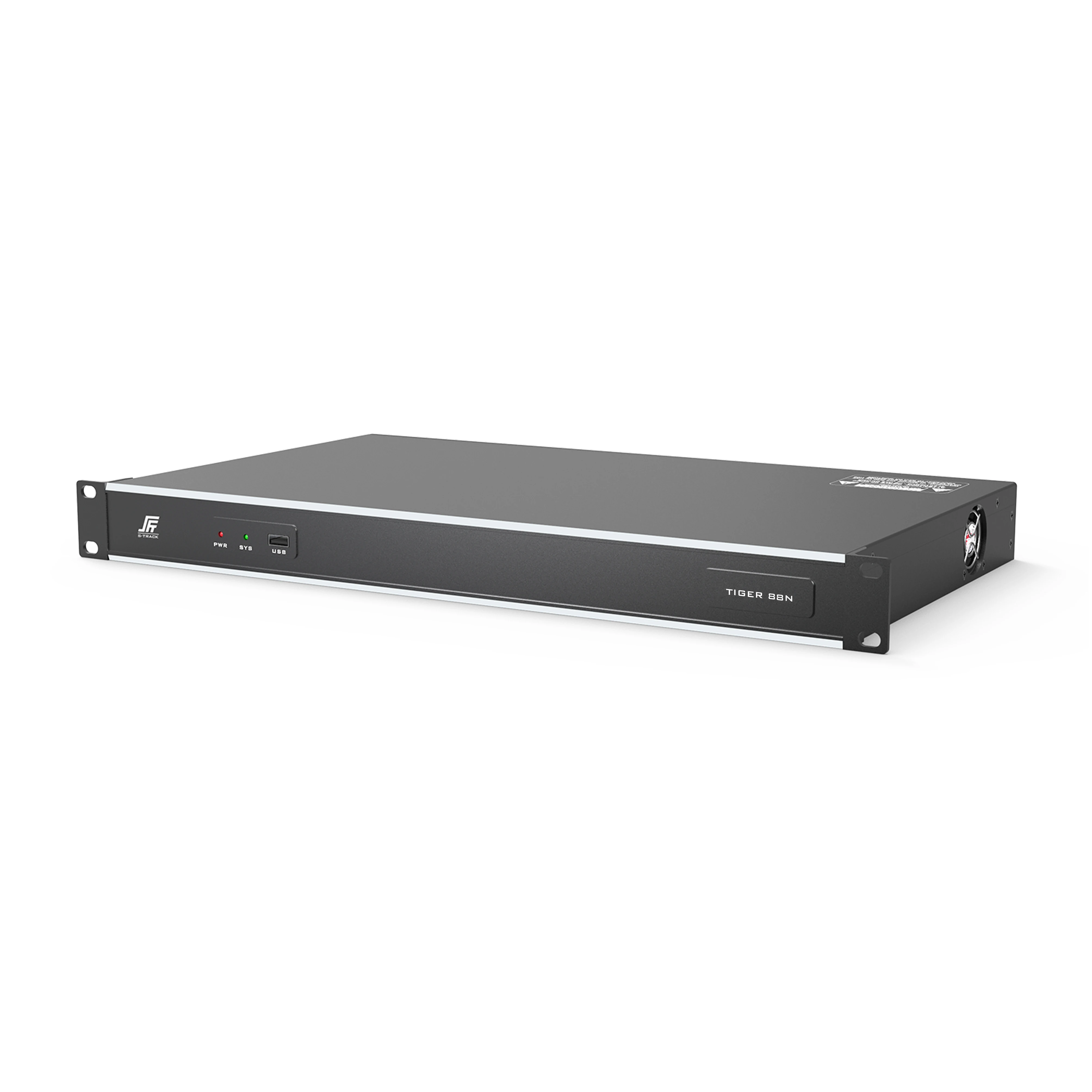

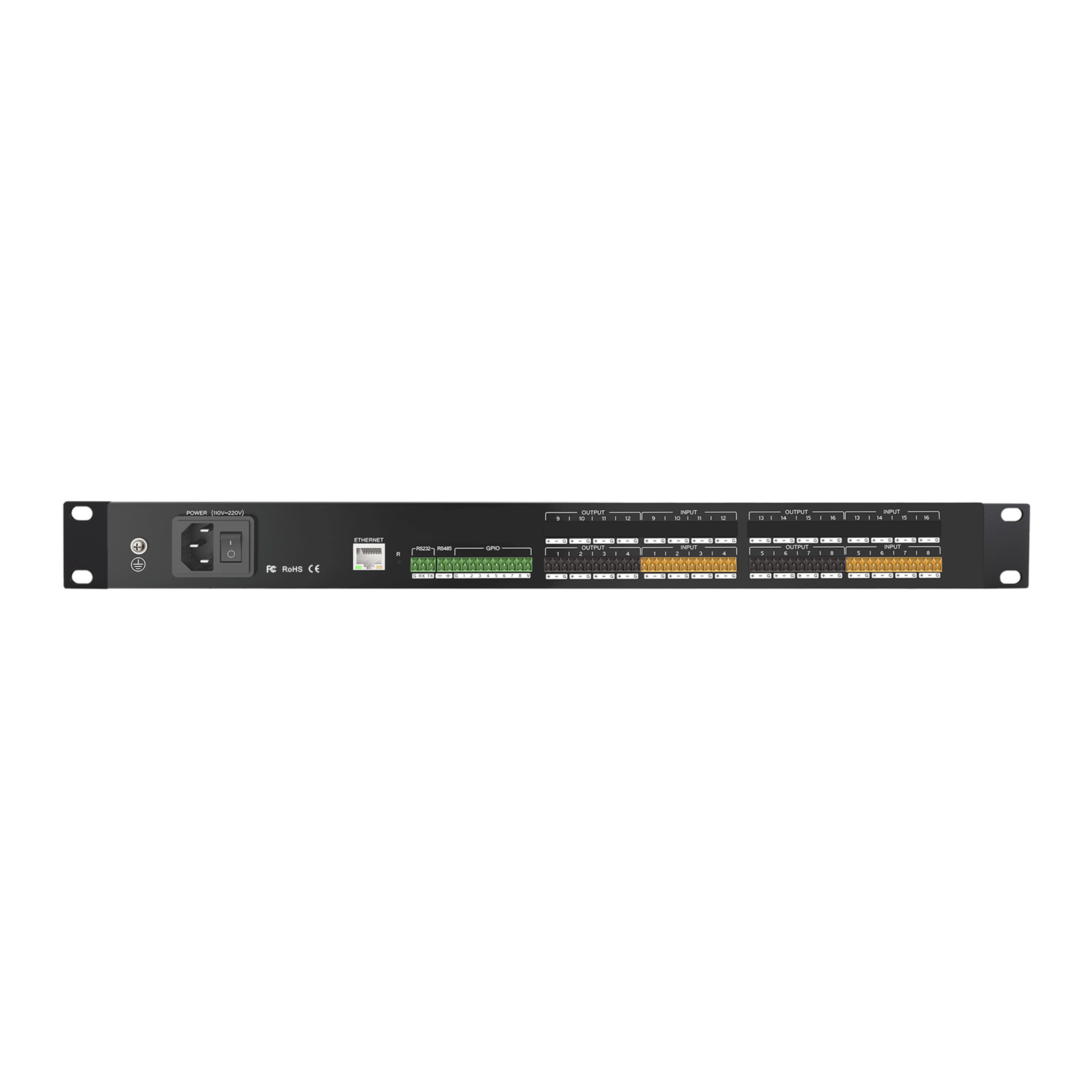

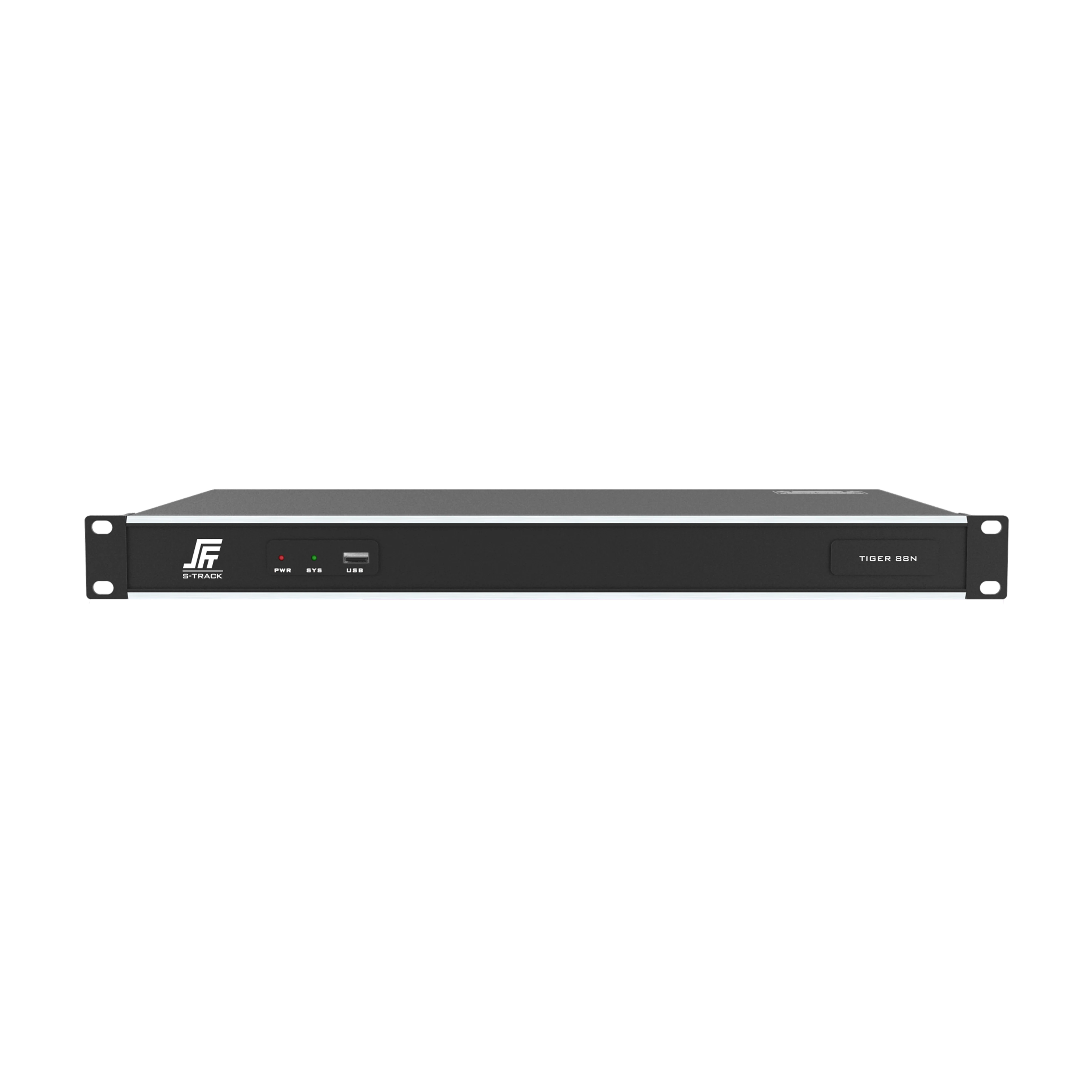

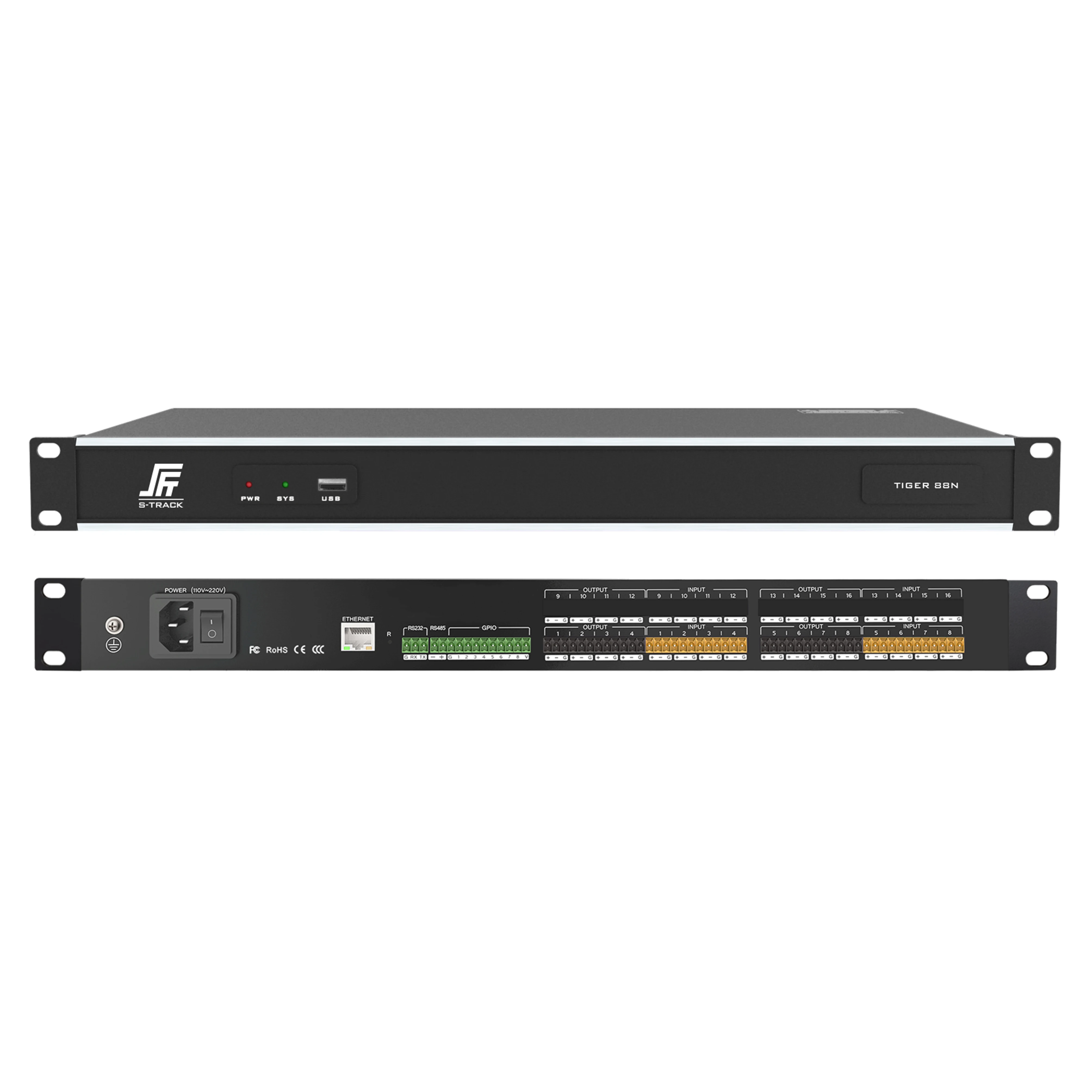

The TIGER 88N audio processor is a freely designed audio processing and control system.
It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination(AFC), Echo cancellation(AEC),Noise Cancellation (ANC) etc, targeted to solve various practical problems in the application scene.
Main Features:
• USB Background music playback and recording function
• Support mobile phone, tablet control and distributed cloud control
•DSP audio processing, built-in automatic mixer, optional feedback elimination, echo elimination, noise elimination module
•Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
• Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
• Full function matrix remix
• Built-in automatic camera tracking function
• Support for scenario presets;
• Automatic memory protection when power off
• 1U Whole aluminum chassis
| |
Product Name | Audio Processor |
Model No. | Tiger 88N |
DSP Processing | Ti 456MHz FLOPS DSP |
Number of analog channels | 8 Input +8 Output |
Automatic mixing, feedback elimination, echo elimination, noise elimination | |
GPIO | 8 ( Including input and output) |
RS232/RS485 | 1 |
RJ45 control interface | 1 |
USB Port | 1 |
RJ11 phone interface | 0 |
| 0 |
Simulated maximum gain | 51dB |
Digitalizing bit | 24bit |
| 48k |
±0.2dB | |
Analog-to-digital dynamic range (A-weighted) | 114dB |
Digital-to-analog dynamic range (A-weighted) | 120dB |
Input to output dynamic range | 108dB |
Total harmonic distortion + noise | <0.003% @1KHz ,4dBu |
Floor noise (A- weighted) | -90dBu |
Delay storage | 2s |
Analog input to output system delay | 3ms |
Input impedance (balance -type) | 20KOhm |
Output impedance (balance -type) | 100Ohm |
| +18dBu,balance |
| Maximum Output Level | +18dBu,balance |
| Equivalent input noise EIN(20-20kHz,A-weighted). | ≤-131dBU |
| Phantom power (per input) | 48V |
| Input common mode rejection,60Hz | 70dB |
| Channel Isolation,1kHz | 104dB |
| Dimensions (W*D*H) | 482*258*45(mm) |
| Weight | 3Kg |
| Operating Temperature | -10 - 50℃ |
| Working Power Supply | AC110V-220V,50Hz/60Hz |
Packaging & Shipping
Packing: Standard export cartons
1Carton:5Set
Net weight:3KG
Gross Weight:3.5KG
Carton Size:60*35*13
Company Information
• S-Track was founded in 2013,who is a pioneer in the audio field in China;
• With core audio processing technology, it is a national high-tech enterprise with independent research and development,production,sales of audio products;
• The earliest manufacturer to launch a network audio system in China,It is also the enterprise with the most complete production line of Dante network audio in China;
• It is committed to digitizing, networking and intelligentizing audio and video products, actively building AI intelligent audio and video ecosystem, and providing users with comfortable audio experience.
Team & Exhibition:
Certificates:
Our Services
1.Fast Delivery Time:Sample order:During 3 days,Bulk order:7-15Days depends on the quantity
2.Strong R&D Team,we have over 40 R&D engineer,we can provide OEM,ODM services.
FAQ
1.Q:Are you the manufacturer?
A:Yes,We are the manufacturer located in Shenzhen.
2.Q:Are you provide OEM/ODM services?
A:Yes,We can provide OEM,ODM.
3.Q:What's the warranty of the audio processor?
A:We can provide three years warranty.
4.Q:What certificates do you have?
A:Our products passed CE,ROHS,CCC certificates.
