Product Overview
Description
Handheld Portable Ultrasonic Flow Meter Price Water Digital Flowmeter
water flow meter digital flowmeter ultrasonic flow meter price flow meter portable
Product Description
1. Brief Introduction of Portable Flow Meter

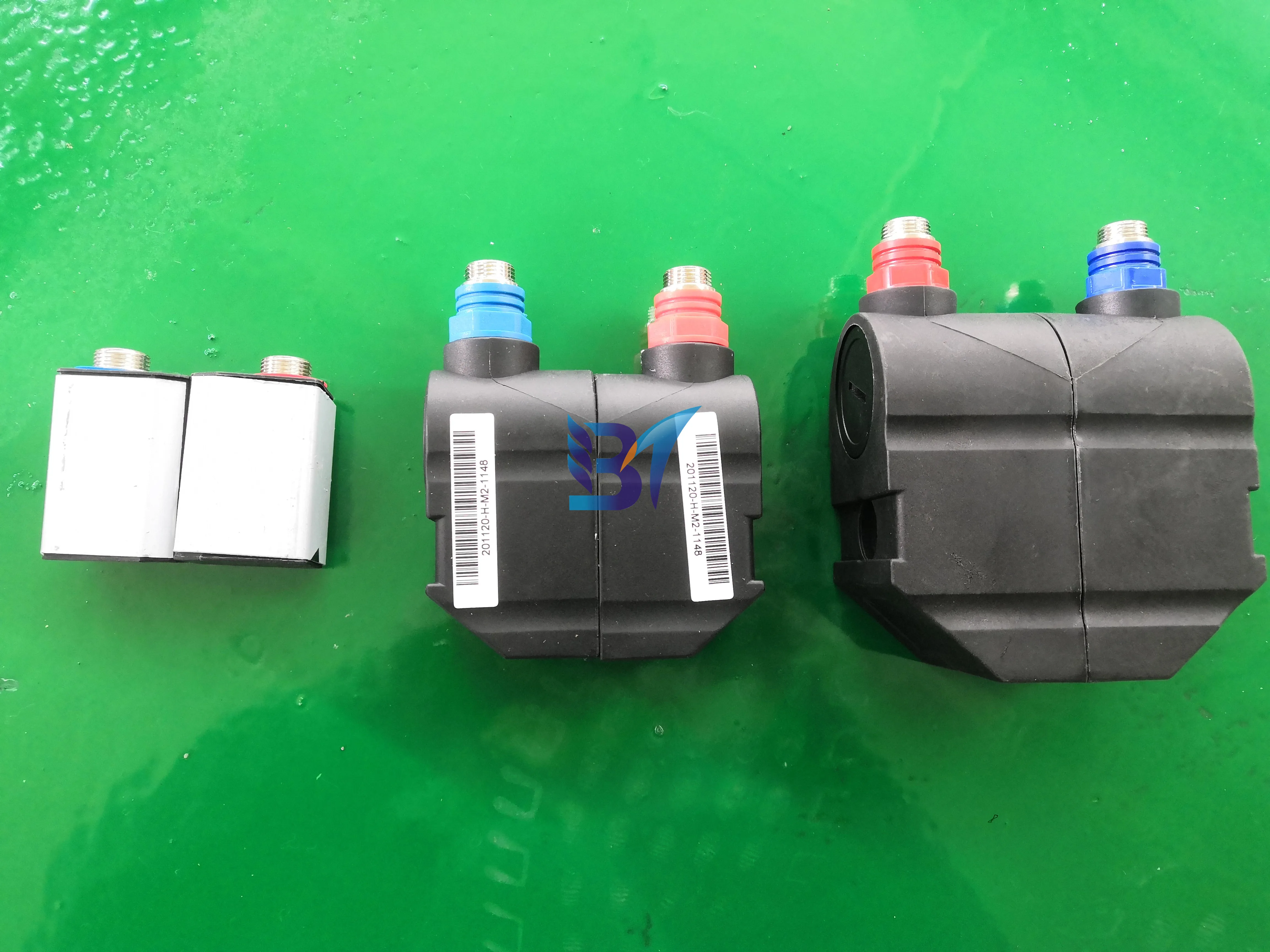

2. Clamp on S M L sensors
3. Signal cable 5m*2
4. Fastener
5. Couplant
6. Charger
7. Ruler

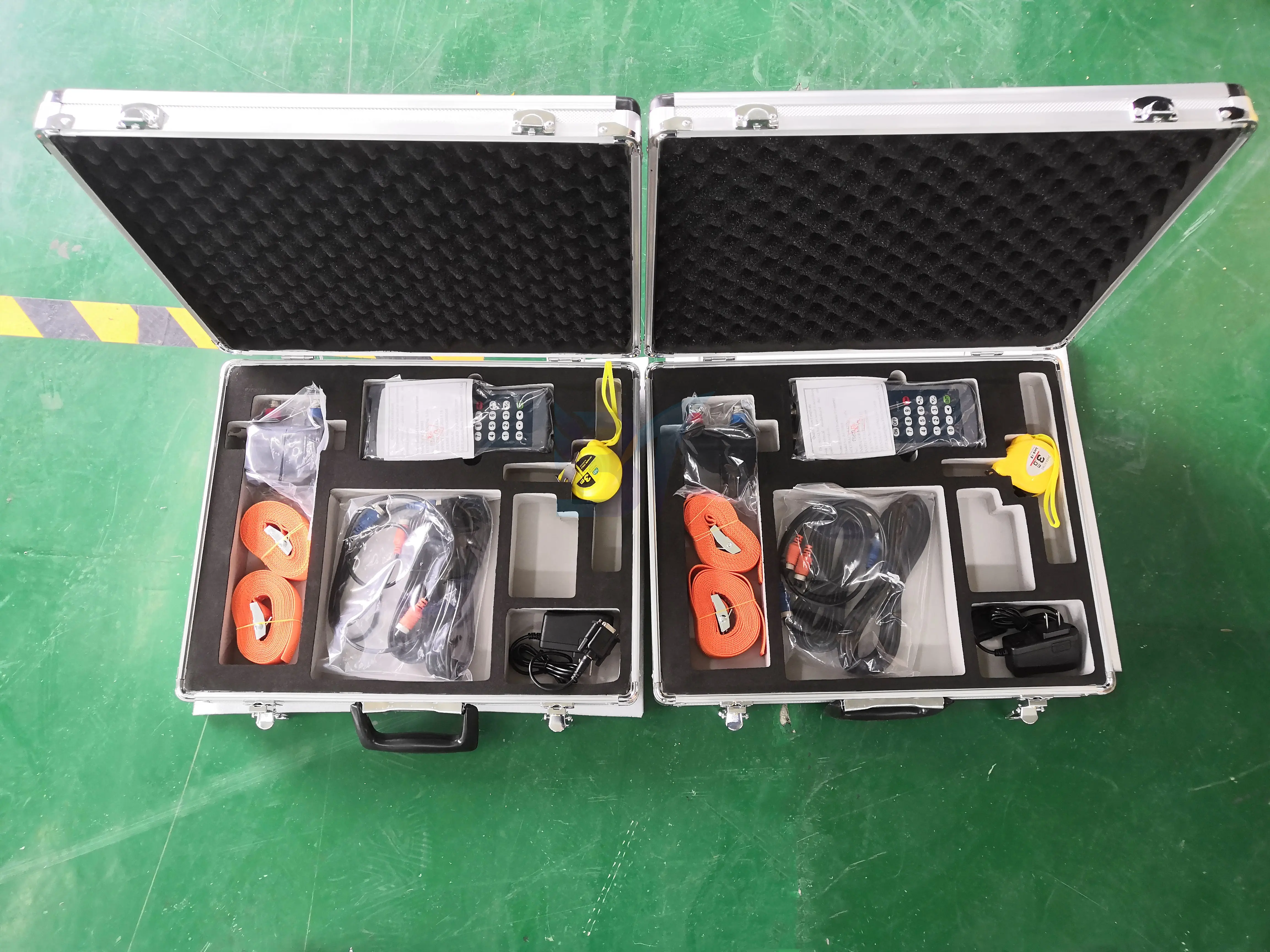

8. Aluminum alloy box

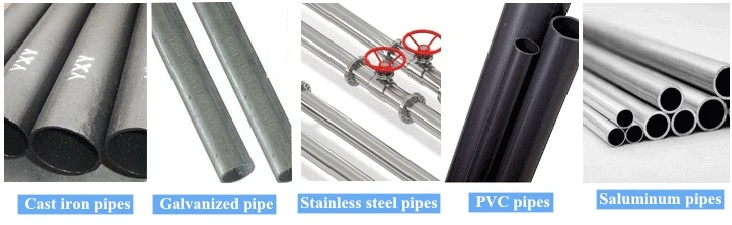

2. Compatible with Pipes of Various Materials
Applicable pipe materials
From the common iron pipe, carbon steel pipe, stainless steel pipe, glass steel pipe, to all kinds of aluminum copper pipe, PVC pipe, PE pipe and other hard pipes of various materials,the sensor with response is selected.
Applications for Portable Ultrasonic Flowmeter
ü Water supply Sewage treatment
ü Sea water desalination Pure water
ü Ultra-pure water Industrial circulating water
From the common iron pipe, carbon steel pipe, stainless steel pipe, glass steel pipe, to all kinds of aluminum copper pipe, PVC pipe, PE pipe and other hard pipes of various materials,the sensor with response is selected.
Applications for Portable Ultrasonic Flowmeter
ü Water supply Sewage treatment
ü Sea water desalination Pure water
ü Ultra-pure water Industrial circulating water
Technical Parameter
3. Parameter list of Portable Flow Meter
Item | handheld ultrasonic flow meter |
Principle | Transit-time measurement principle |
Suitable diameter | DN15-DN6000mm (S: DN15-100mm M: DN50-700mm L: DN300-6000mm) |
Linearity | 0.5% |
Accuracy | ±1% |
Repeatability | 0.2% |
LCD Display | 4*8 Chinese characters or 4*16 English letters |

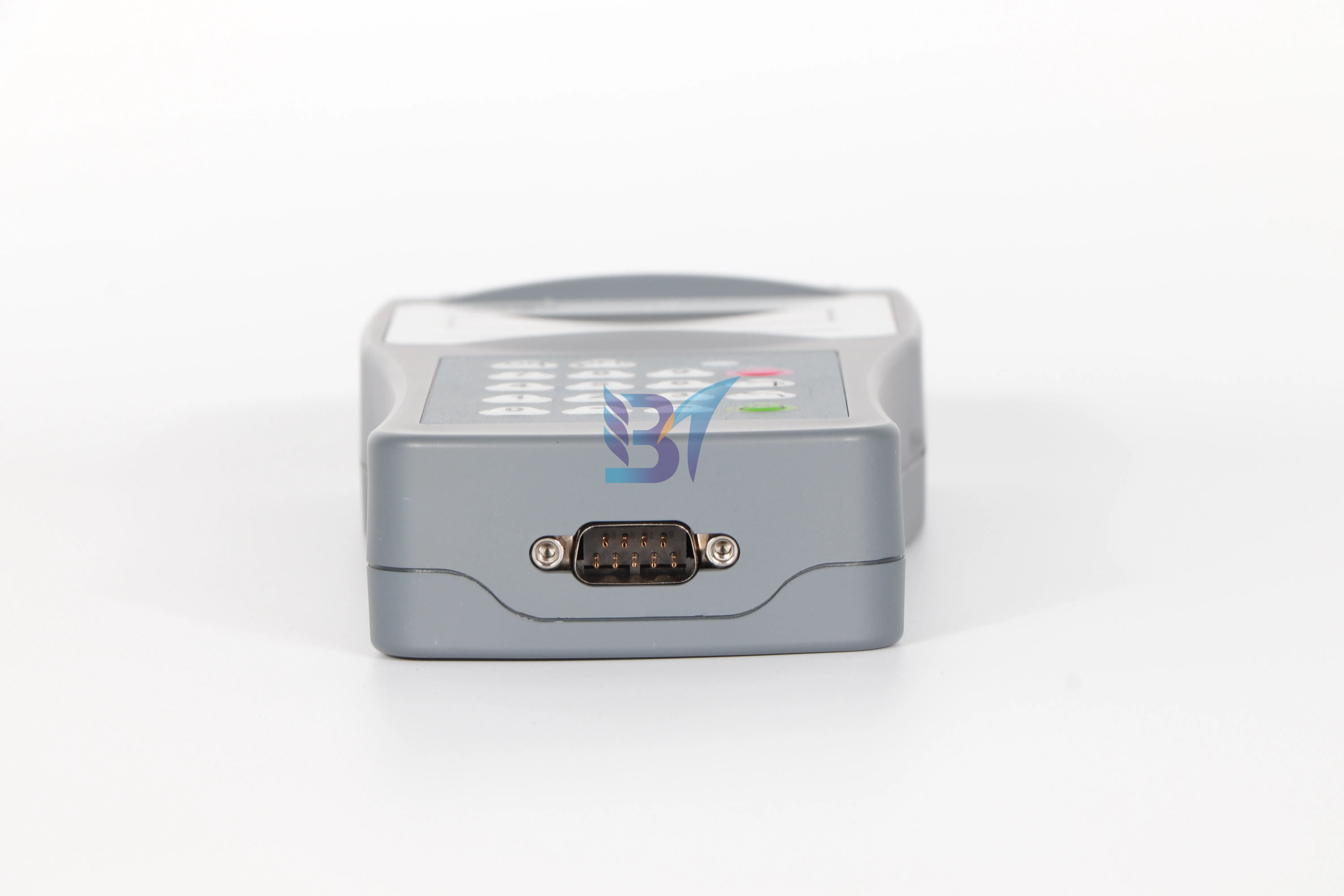

Data Interface | RS232/RS485. Used for networking to detect or export recorded data |
Data loggor | Built-in data logger can store over 2000 lines of data |
Signal line | Standard: 5M*2 Option:10m*2 |
Power | 3AAA Ni-H built-in batteries can work continuously for more than 12 hours. 100-240VAC for the charger |
Medium temperature | ≤110℃ |
Housing material | ABS |
CUSTOMER FEEDBACK
Details Images

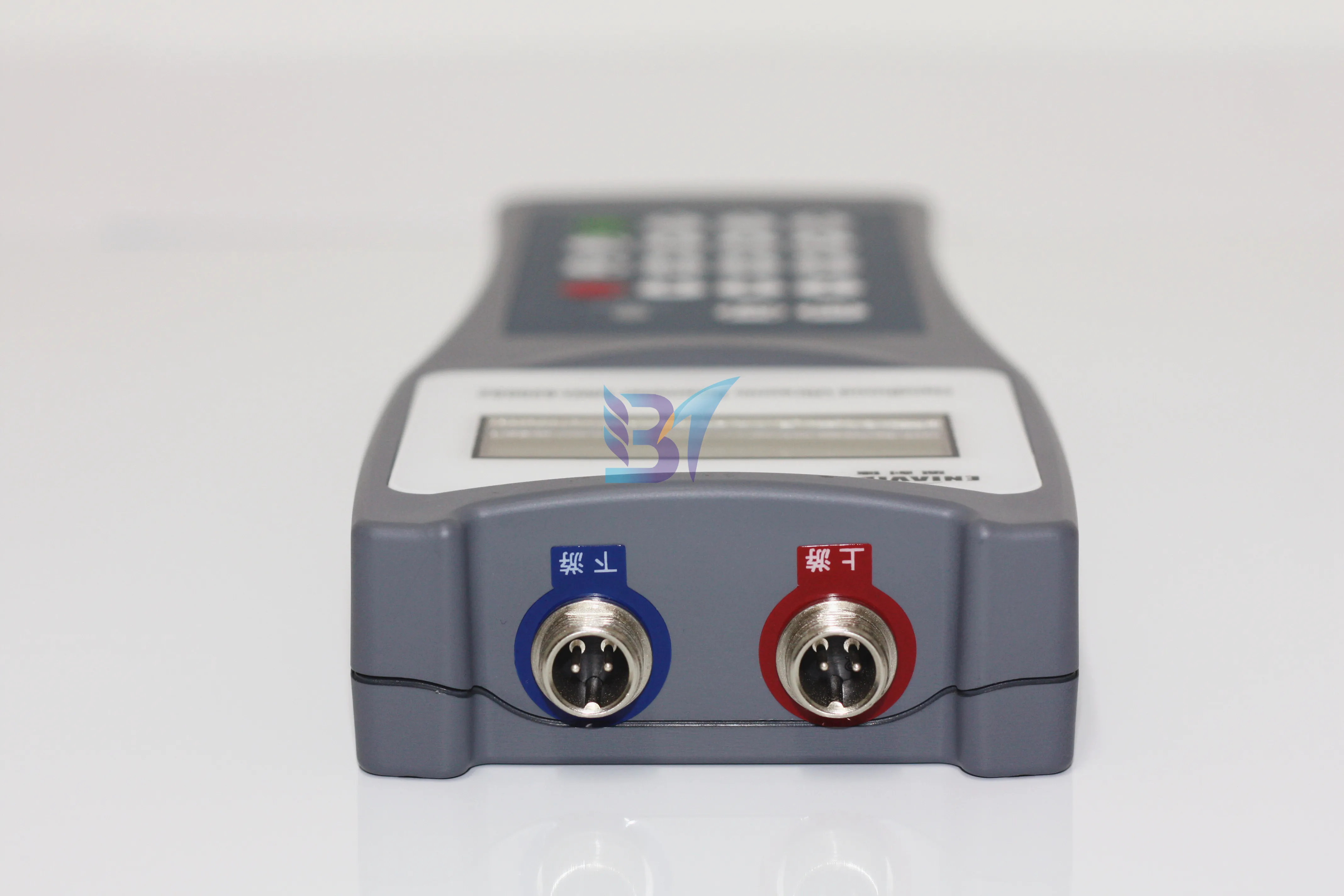

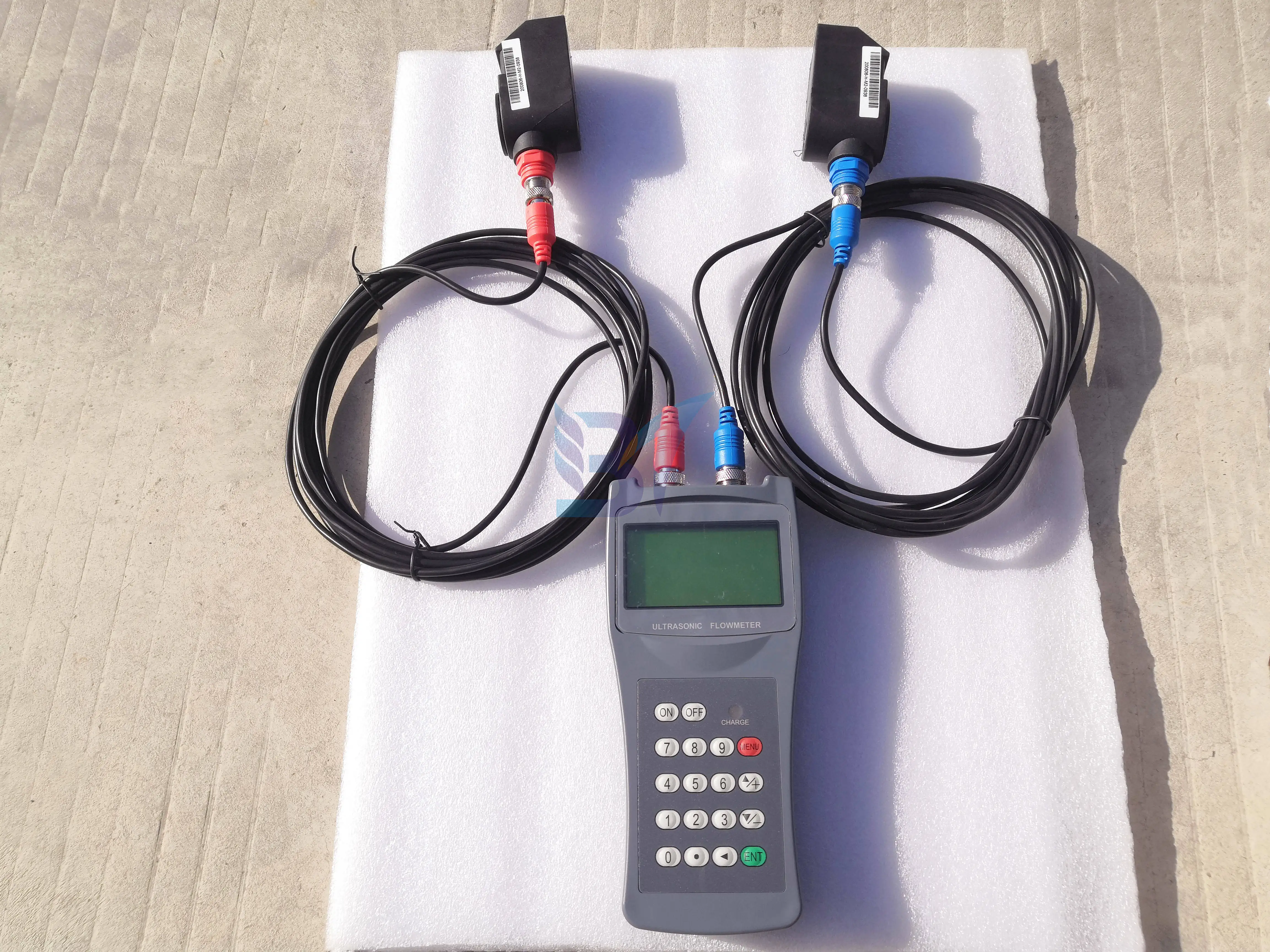

4. Details design of portable flow meter
Stable performance, easy to use.
100-240VAC for the charger
M for DN50-700mm
L for DN300-6000mm
L for DN300-6000mm
Installation Method
V-method Installation
Related product
Packing:
1. Foam box packing
2. Carton box
3. wooden caseDelivery:
Express, air express or sea
handheld ultrasonic flow meter

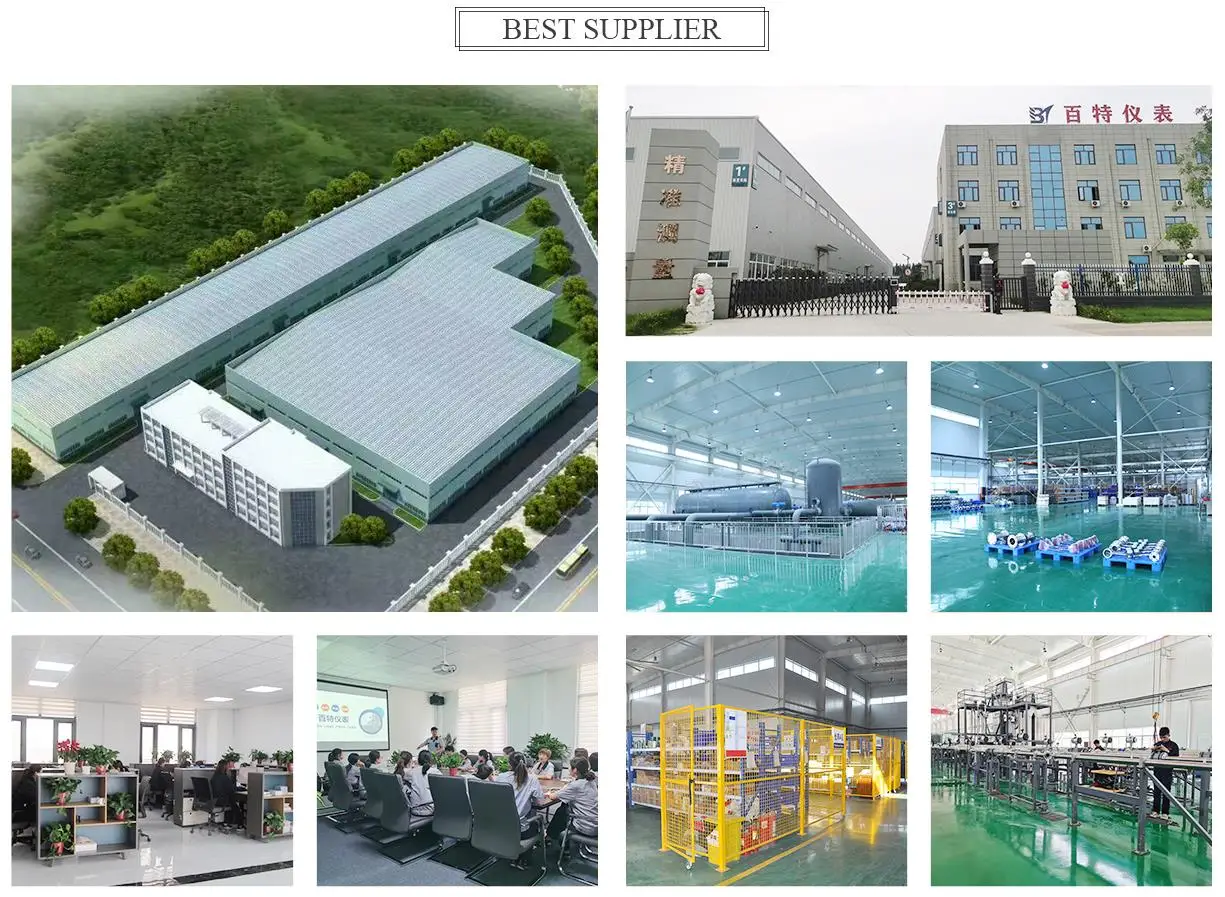

Company Profile
Kaifeng Baite Flow Instrument Co., Ltd.
Nowadays, we have 120 employees and a construction area of 18,000 square meters. Mainly engaged in electromagnetic, vortex, turbine, thermal, ultrasonic, liquid level meter and other flow meters.
BT has successively passed CE, ISO9001:2015, CNAS and various product manufacturing equipment licenses and explosion-proof certificates, and has more than 20 national patents and software copyrights. 35 pieces of the company's automatic welding machines, CNC lathes, laser cutting, calibration devices, pressure test equipment, etc., have entered automated production. Sufficient stocking and timely delivery.
