LG Panel 49" 3.5mm LCD Factory Made Multiple Advertising Video Wall TV Display

Share on (1600128669543):


Price:RUB 47,613.71

Quantity:


Product Overview

Description

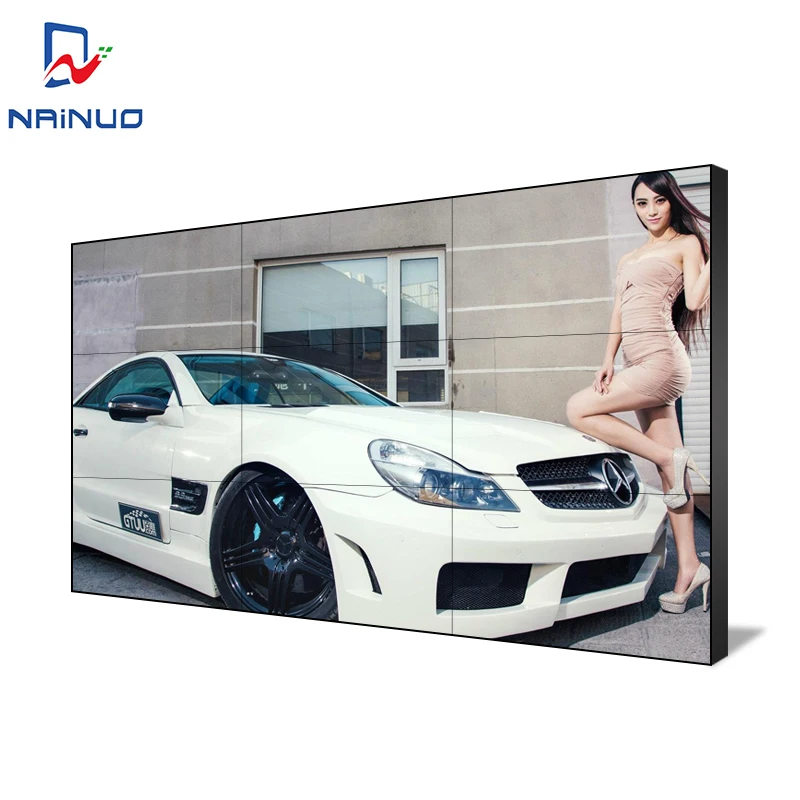

LG Panel 49" 3.5mm LCD Factory Made Multiple Advertising Video Wall TV Display

1)  Narrow bezel between screens, Ultra-slim Bezel after combine;

2)  No need separate controller to connect the screens, connect any screens to display one image or video by a software system;

3)  Support multi-zone screen,the screen can be divided into many display areas which can play different content respectively;

4)  Support video, audio, images and text playing function,Support file format: avi, mpg/mpeg, vob, dat, divx, mp3, bmp, jpeg, txt file;

5)  Support text\photo rolling display;

6)  OSD Language is Chinese or English, other languages can be customized;

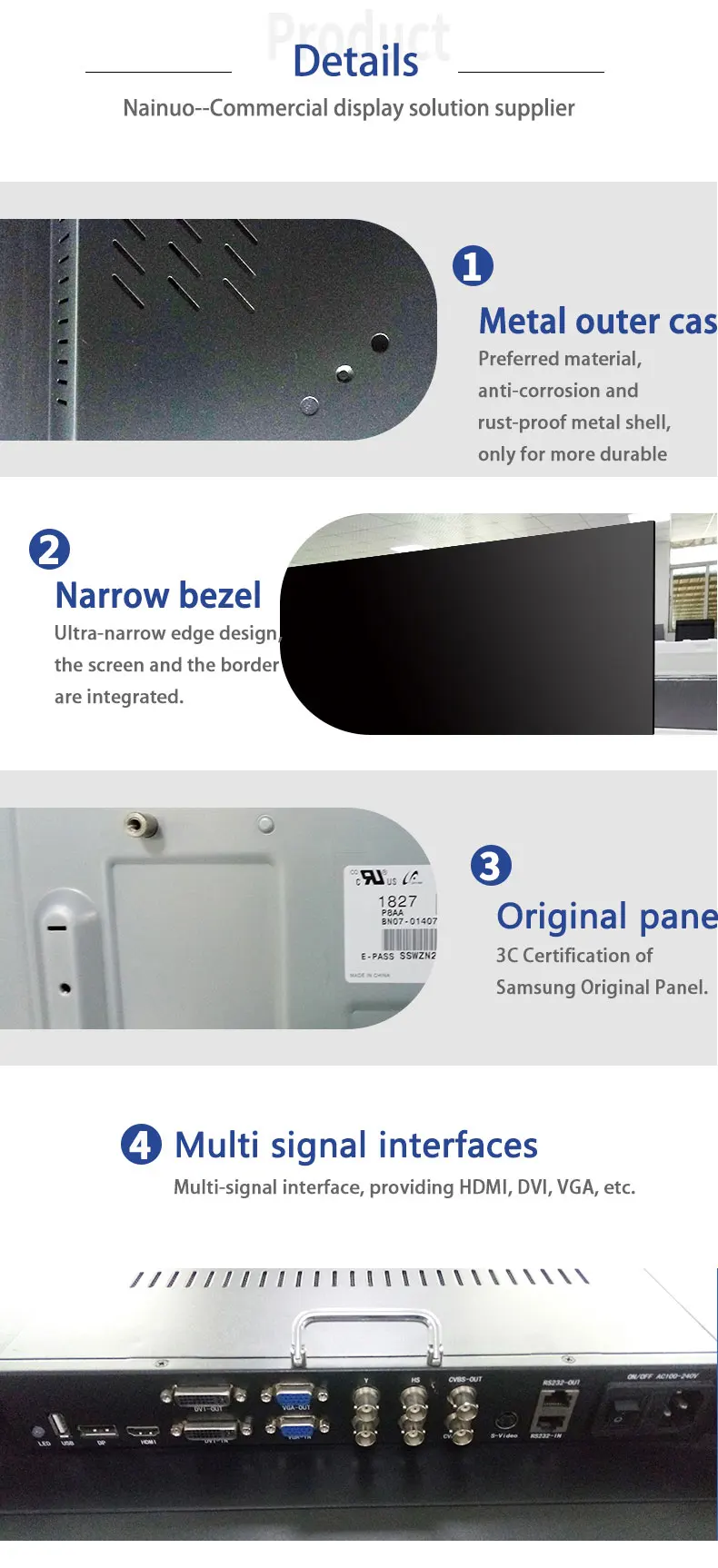

7)  Metallic housing is good for protective the panel;

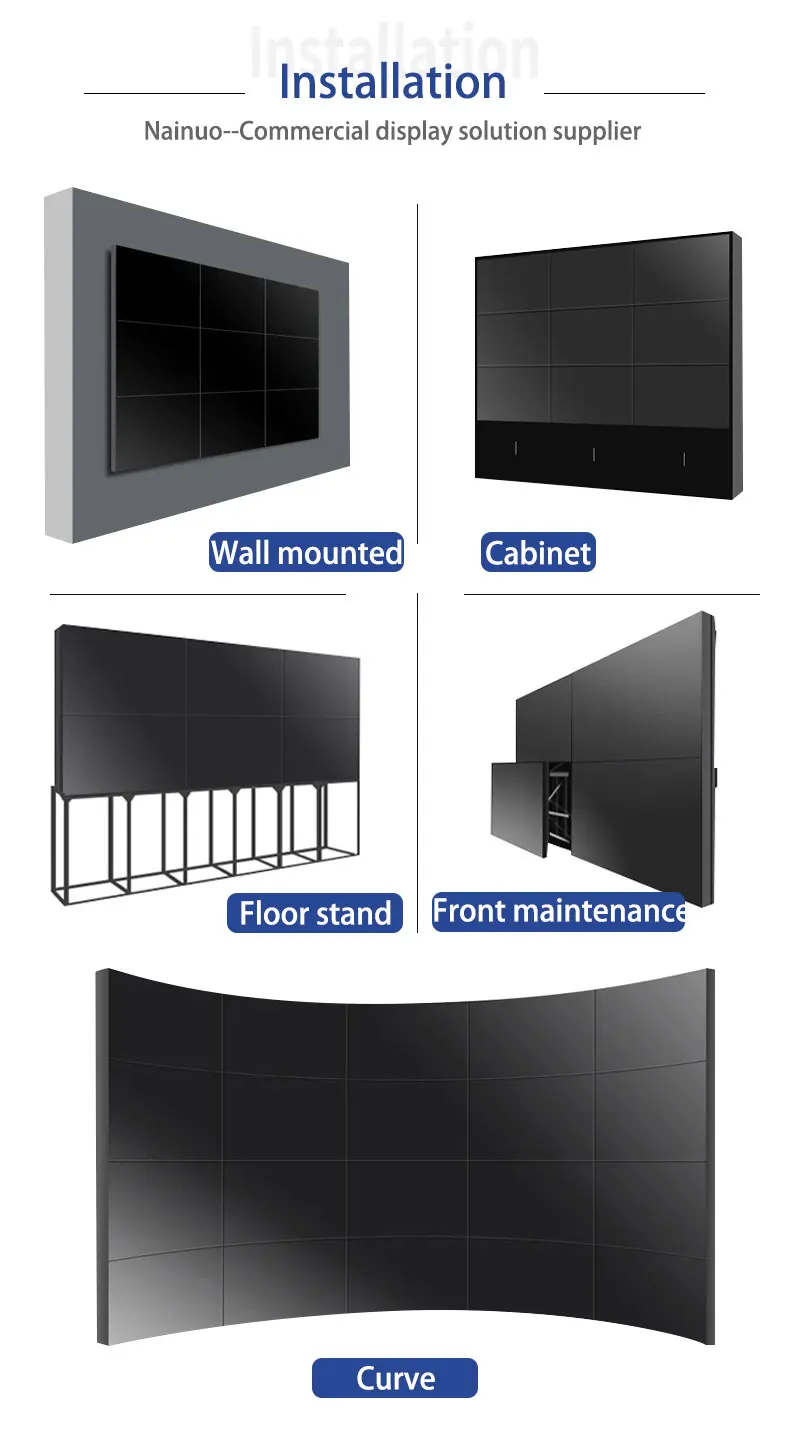

8)  Different show way: Wall-mounting, Flooring Standing etc.;

9)  Certificate: RoHS, FCC, CCC, CE etc..

10)  Qualified Screen: all of our screen are SAMSUNG, LG, SHARP;

11)  Support max. 15x15 Screen combine;

12)  Suooprt 24hrs x 7 days working;

13)  Packing: carton & wood box;

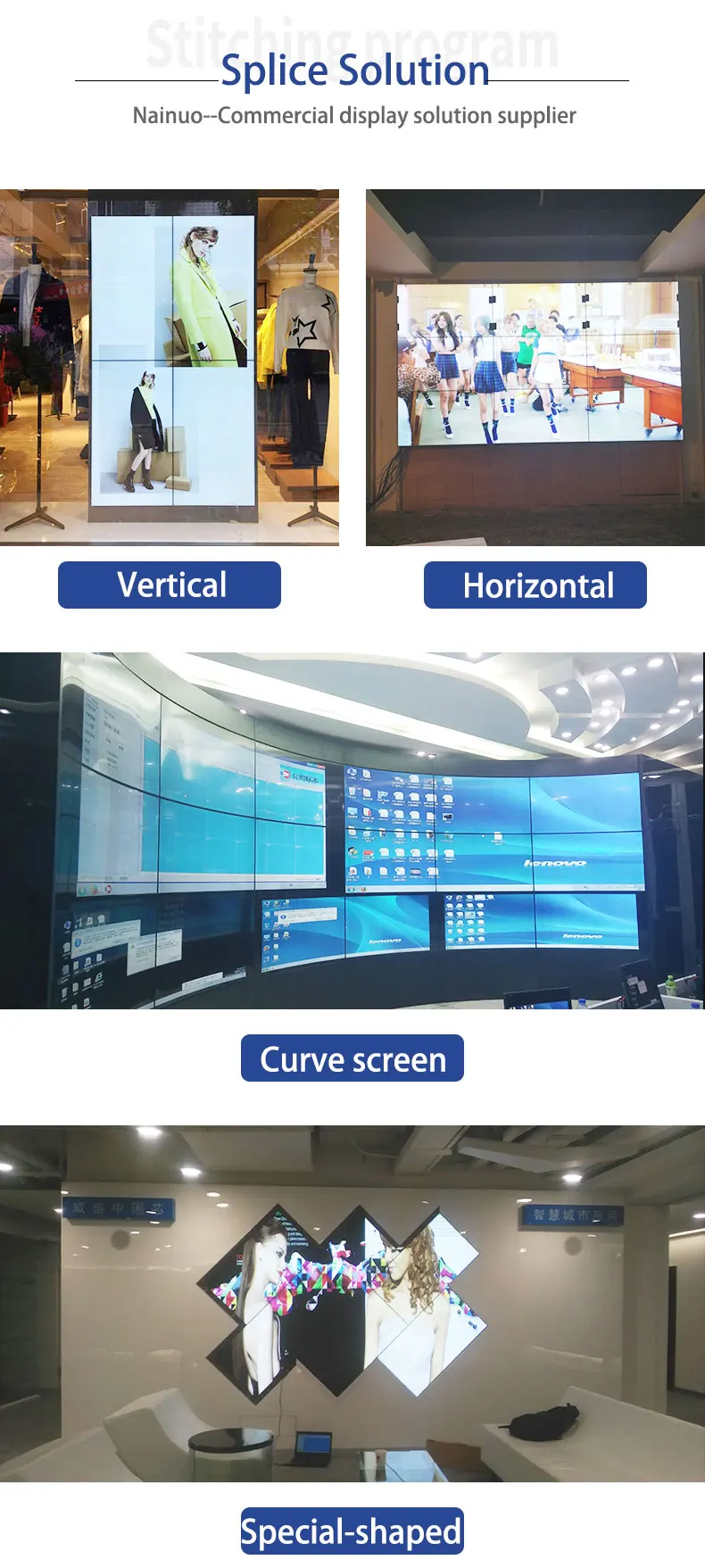

14) Application: Video Wall, Advertising Media Player, Advertising Display Board, Split Screen TV Wall, Wall Mounting Display Board, Replacement tv screen.



Specification of 46 inch LCD video wall
Model NZ49015-L5
LCD Panel SPEC  Size 49"
Panel Brand LG
 Panel Model LD490DUN-THC1
Panel type TFT-LED
Resolution 1920 x 1080
Connecting Cracks 3.5mm
Brightnees (typ)/(min) 450 cd (typ.)
 Contrast(typ) 1300:1 (Typ.)
 Response Time  8ms (typ.)
 Pixel Pitch 0.5593×0.5593 mm
Visual angle  Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)
Life(typ) 50,000 hrs (min.)
Colour saturation(x% NTSC) 0.72
 Display Area 1209.6×680.4 mm (H×V)
 Colour 8bit, 16.7 Million co1074.1(W)×604.3(H) mmlors

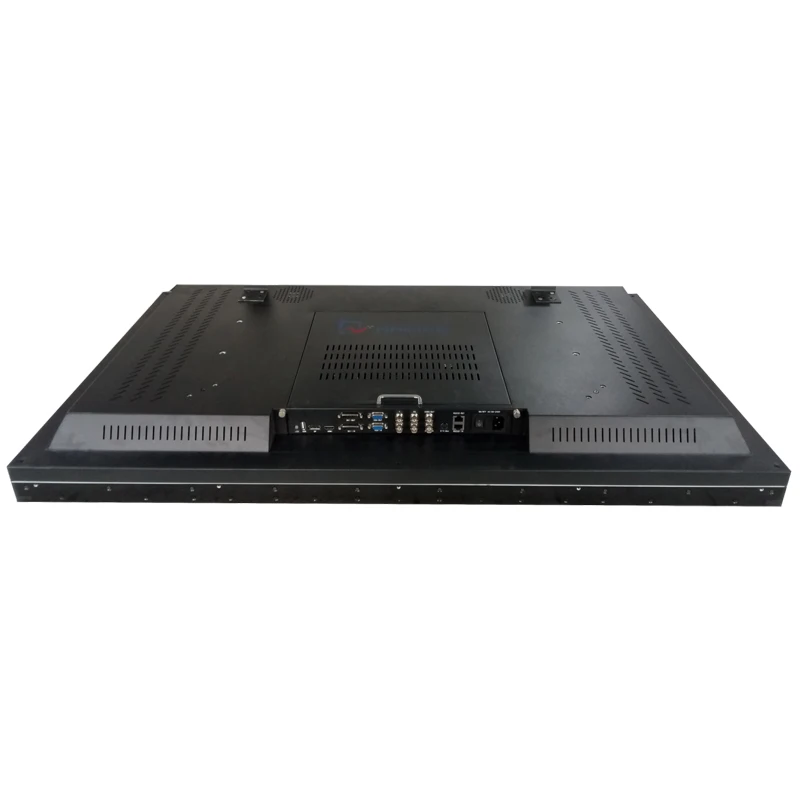

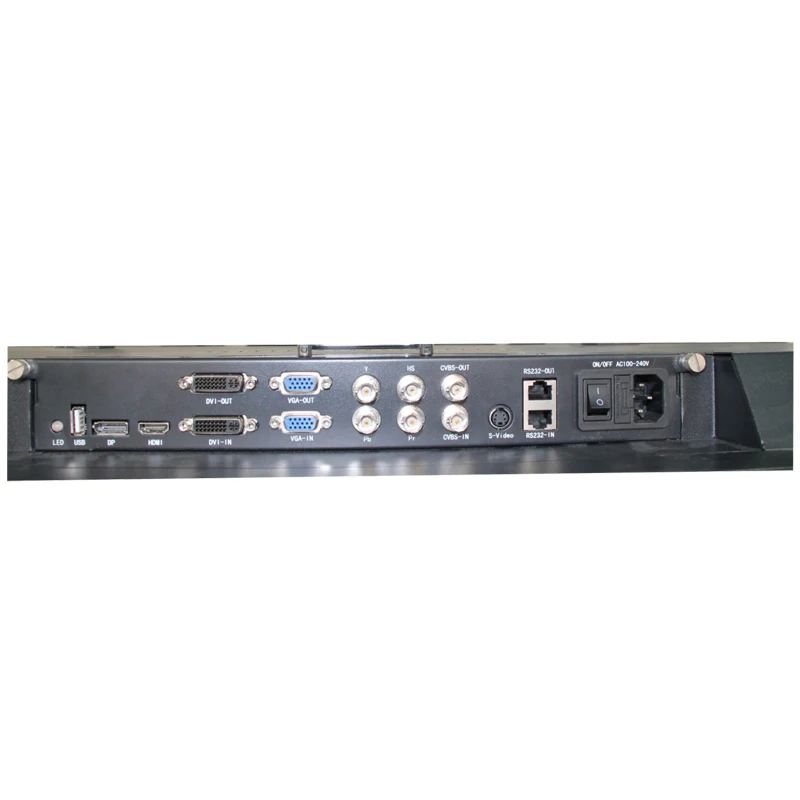

 I/O Interface USB *1    USB2.0
Displayport *1   1080P  Maximum resolution 1080P
HDMI *1  compatible with HDMI 1.4 and downward
DVI  *1    1080P  Maximum resolution 1080P
VGA  *1
Ypbpr *4
CVBS *1
S-Video *1
RJ45 *1
DVI *1 LOOP
VGA *1 LOOP
CVBS *1  LOOP
RJ45 *1
Video Feature Display mode  Normal, Soft, Users, Dynamic
3D digital comb filter, 3D image noise reduction, 3D motion adaptive comb filter, etc
  OSD Language Multilanguage Optional
Power  Input Voltage AC100 V ~ 240 V, 50-60 Hz
Power consumption(Watt) ≤220W
Standby (Watt) ≤1W
Environmental Working temperature (dC) 0℃~40℃
Storage temperature(dC) -20℃~55℃
Storage humidity 10%~90% RH Non-Condensing
Working humidity 20%~80% RH Non-Condensing
The day longest time (hours/day) 18Hours
Other Fan 80*80mm
AC Power Input *1
 Power I/O *1
Structure Net weight TBD    24  Kg
 Gross weight(Plywooden case) TBD   40   Kg
 (WxHxD)                                          Outline dimension 1075.58*605.8*110(MM)
(WxHxD)Packing size (carton/wooden case)
Shell material   (NCT) Metal
Shell color   Black
accessory Power Cord (1.5M) * 1; Certificate * 1; Instruction Manual * 1; Warranty Card * 1
Remark 1, Above detailed specifications have a number of optional features, for reference only, the final interpretation of all Nainuo, the optional features will increase the cost, please select the relevant functional parameters, the final confirmation to people each other Confirmed as accurate.



 LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49LG Panel 49

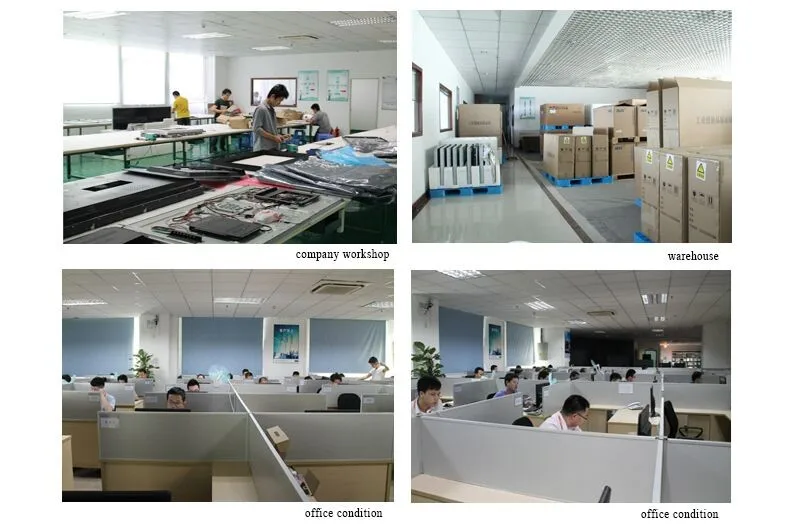

Company Information

Shenzhen Nainuo Technology Co.,Ltd.is a professional engaged insecurity monitoring dsplay, LCD monitor machine,touch one machine,DID TV systems. Our  products have passed ISO9001:2008, and won the "SHENZHEN High-tech Enterprise"in 2013, related products also passed 3C, CE, Rohs, FCC certification and so on. Our brand "NAINUO"  already as a famous brand, our customers including Chinese government, Entertainment etc..

LG Panel 49LG Panel 49

Exhibition

 Las Vegas, Nevada, United States

DSE 2016 American international digital signage ads show

initpintu_

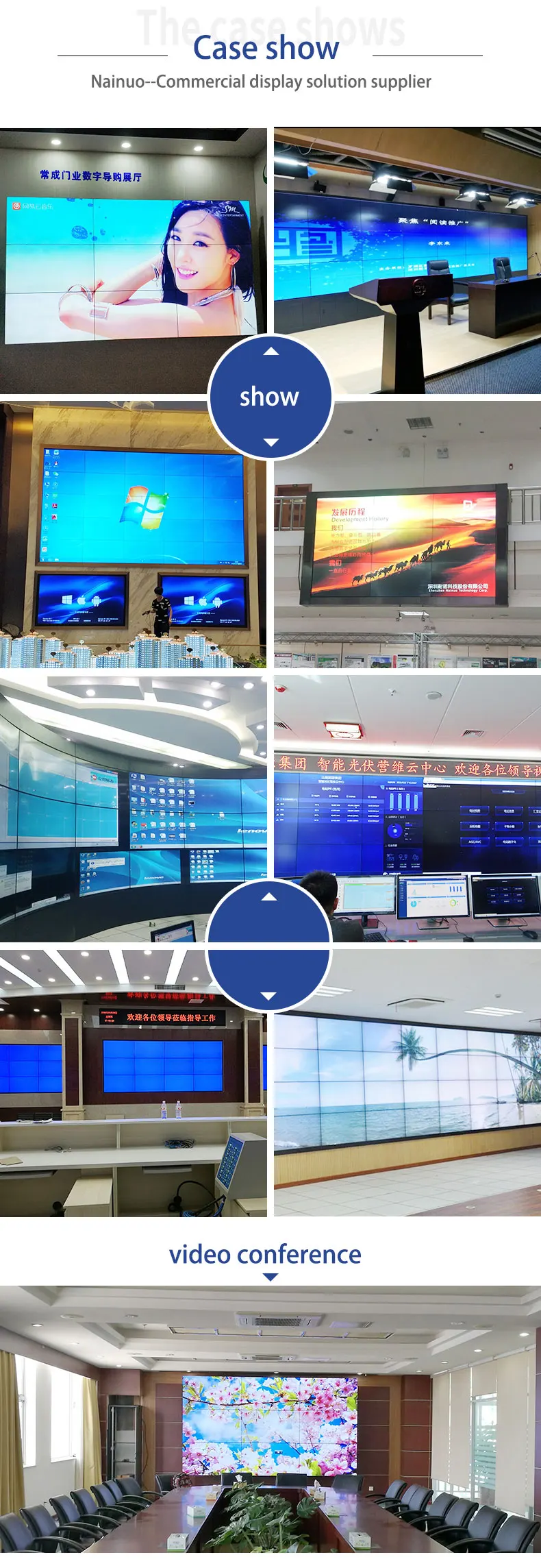

Scope of application

USE

Packaging & Shipping

1.Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery. (Western Union or paypal are welcomed)

2.Production lead time for 10~50pcs:15~ 20 days, 50~100pcs:20~25 days

3.Sample can be delivered in 3~5 days

4.Shipping freight are quoted under your requests

5.Shipping port: Shenzhen

6.Discounts are offered based on order quantities

7.MOQ:1set



Our Services

 1. Consulting services: users in use process have any problems

2. Replacement service: replacement period of product, if appear the quality problem caused by the manufacturer for sure, the user can free to a distributor in new (appearance damage, make the warranty processing).

3. Warranty service, warranty of products, if quality problems, the user can enjoy the warranty service to the local after-sales service center;No local after-sales service center, users can entrust dealer for warranty service.

4. Services: maintenance period of products, if quality problems, the user can go to the local service center or entrust the dealer maintenance services.

5.Provide installation
