Precast Concrete Interior Wall Panels Hollow Core MgO 90mm Wall Panel for Prefab House Villas

Onekin ready made partition insualted sandwich walls for india Application:

Industrial buildings: factory wall partitions, school dividing wall

Commercial buildings: shopping mall, KTV, high office building partitions

Residential houses: low- rise & high-rise

Government housing project, prefab house

Fire rated wall partitions 1-4 hours

Onekin ready made partition insualted sandwich walls for india introduction

   Onekin wall panel is a kind of environmental-friendly board which is widely used in wall construction.It is a new type non-flammable material made of lightweight materials.

   When compared with other similar materials, Onekin ready made partition insualted sandwich walls for india offers a number of benefits, such as totally green material and no asbestos, higher fireproof, sound insulation, heat insulation,fast installation,easier decoration, and lower the total cost for the project.

Specification

Length: 2400mm-3600mm(Customized Available)

Width: 600mm

Thickness: 90mm/100mm/120mm/150mm/200mm

Standard size: 2800*600/2900*600

Raw materials

  Onekin ready made partition insualted sandwich walls for india use magnesium oxide, magnesium chloride, planter fiber, fly ash as raw materials. All the raw materials of our panel as you can see are green and inorganic materials, that is the reason why Onekin ready made partition insualted sandwich walls for indias also called GREEN PANEL.

1. Fireproof

  Onekin green panel is a non-combustible building material, it is made of magnesium oxide can be non-combustible at 800℃ and remains flameless at 1200℃. The fire endurance of Onekin green wall panels can reach 4 hours in accordance with Chinese National Standard.

2. Lightweight & high strength

  Onekin green panel is lighter than any other traditional panels, such as cement block, concrete block, cement panel etc. The hollow core design of Onekin green panel is not just can reduce a lot of weight, and meanwhile it’s compressive strength is 5.56 Mpa.

3. Faster installation

  Onekin green panel with tongue and groove design enables 3-5 times faster installation compared with that of cement panel, or bricks. It can be easily saw, cut, drilled and taped. One skilled worker can install about 40m2 per day.

4. Low cost

  As Onekin green panel is lightweight and fast installation, it can reduce the cost on the labor, foundation, structure and transport. It’s fast installation make it can significantly shorten the construction period and project cost. According to our data, using Onekin green panel can reduce up to 30% total cost.

5. Thermal insulation

  Thermal conductivity for Onekin green panel is 0.17w/mk,while cement panel is 0.66w/mk. According to a Korean customer test, for the house built by green panel, electricity consumption is about 2 kWh per day, while for cement panel house, it is about 10 kWh per day, which means our green wall panel can save up to 80% energy.

6. Environmental friendly & Waterproof

  Onekin ready made partition insualted sandwich walls for india used 100% green raw materials do not contain harmful factor to human body, according to national environmental test, it’s without asbestos and non-radioactive, and also it does not contain formaldehyde, free of heavy metals and other harmful substances. It don’t release poisonous gas under the high temperature of 1000 degrees.

  Onekin ready made partition insualted sandwich walls for india certificates:

  Onekin is a professional mgo products supplier with 13 years’ experience, we are expert manufacturer of fireproof wall panel, waterproof wall panel, lightweight wall panels, wall partition panels and ceiling panels, we can provide certificates including ASTM, TUV, CE etc.

Onekin ready made partition insualted sandwich walls for india performances & test data:

Factory:

  Our factory covers an area of about 18000 square meters, including panel producing department, foaming agent production department, equipment maintain department and other 3000 square meters for offices and laboratory.

Customers visit:

  Onekin always follows the principle of “Customers First, Employees second, Shareholders last.” It is a fast growing company, supplying high quality of products with full ranges of after sale services.

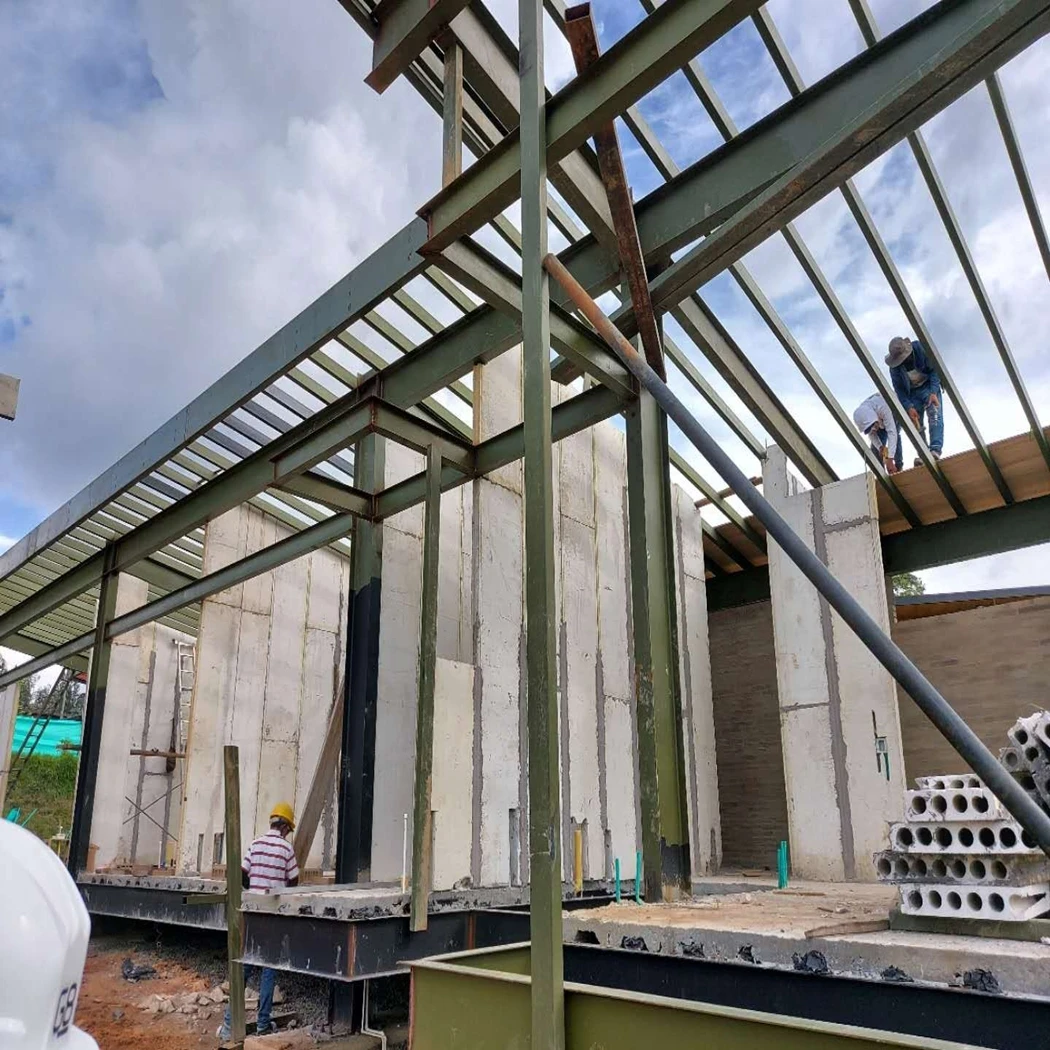

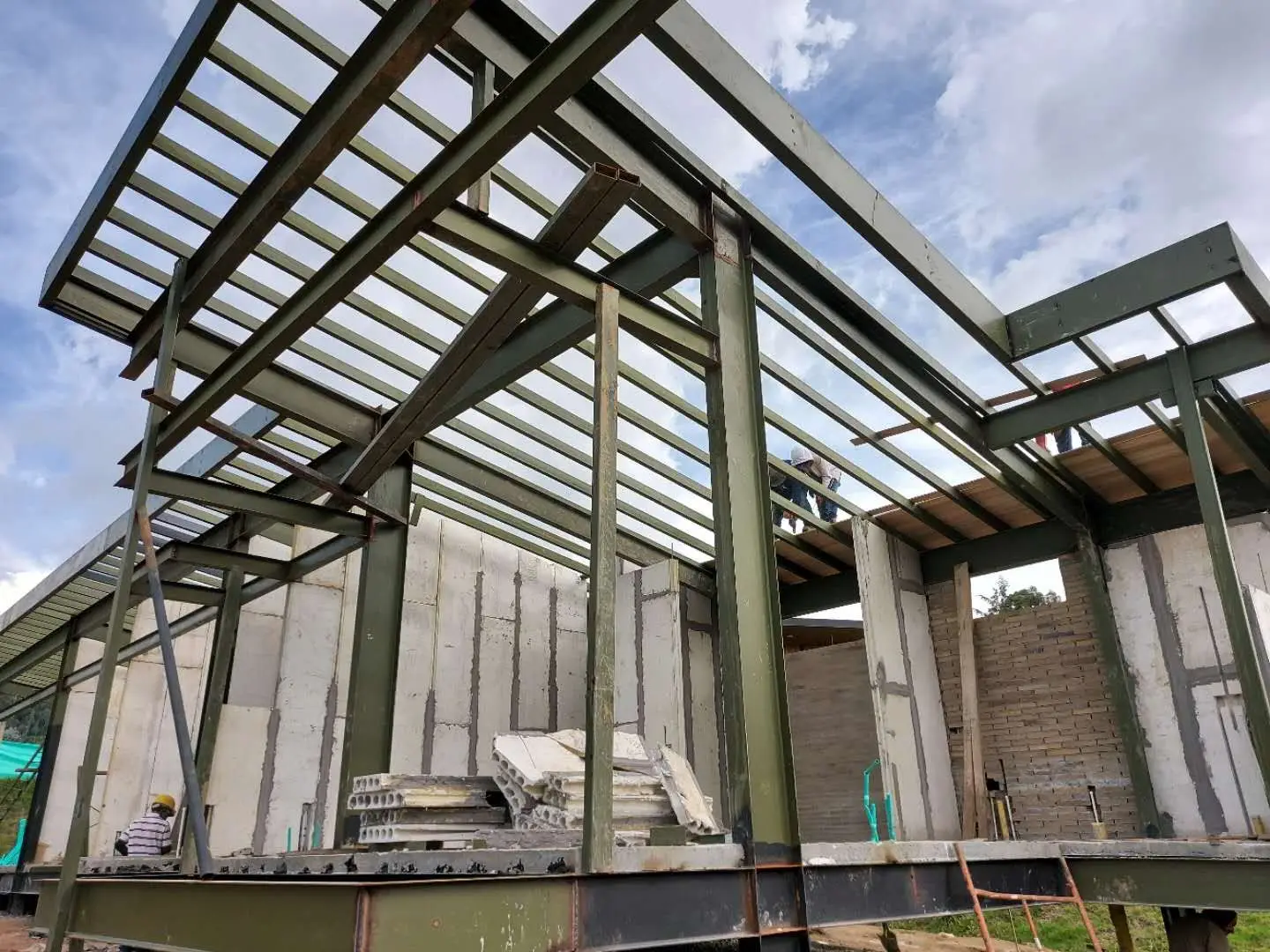

Project of Onekin ready made partition insualted sandwich walls for india:

Onekin is a expert wall panels supplier, our green wall system is widely used in many projects instead of traditional building materials like bricks, hollow block, gypsum board, cement panel etc. Below shows the project feedback from our customer.

Parking and delivery:

 Customers can choose steel belt or plywood pallet to package wall panels, and we will arrange transport as soon as possible.

 Contact us

  As a international construction materials supplier, Onekin have agent in many country, to get more information about Onekin Marketing Network welcome to visit our web or contact our sales.
