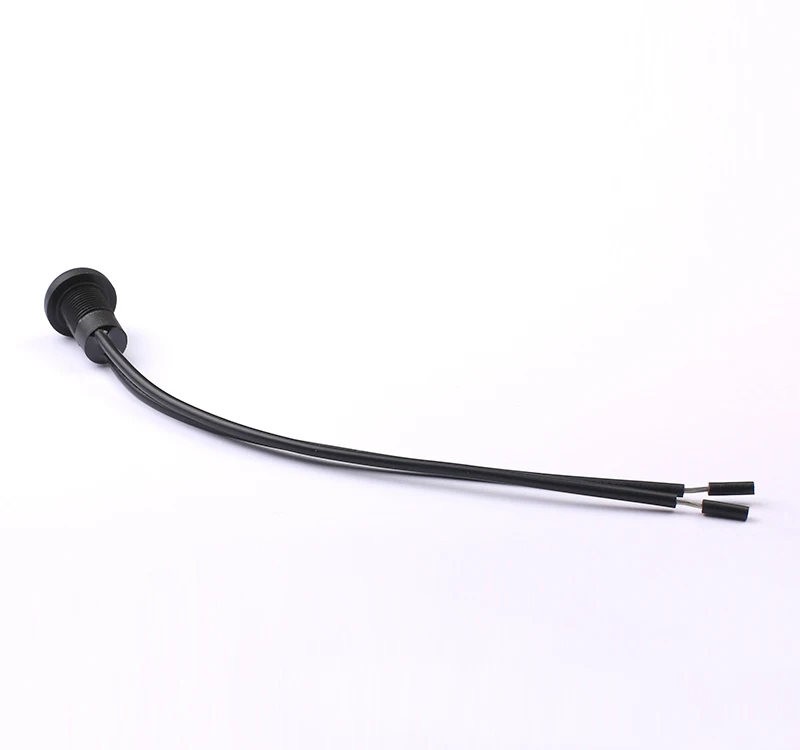

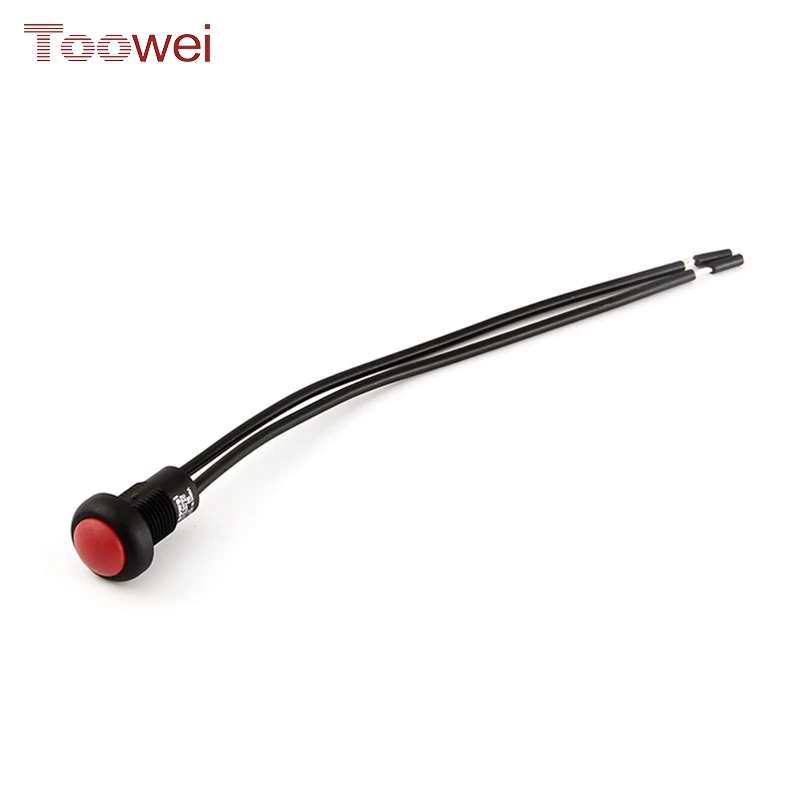

Toowei IP67 round 12mm plastic momentary waterproof push button switch with 2 wires
Toowei IP67 round 12mm plastic momentary waterproof push button switch with 2 wires
Toowei IP67 round 12mm plastic momentary waterproof push button switch with 2 wires

Toowei IP67 round 12mm plastic momentary waterproof push button switch with 2 wires

Share on (1600128688342):


Price:$1.45 - $1.70

Quantity:


Product Overview

Description



Product Description




A4126 series waterproof push button switch , protection degree reach IP67 ,installation size is 12mm. According to the material , it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment , small yacht, lamps, medical equipment , military communication intelligent network equipment and the other instruments.

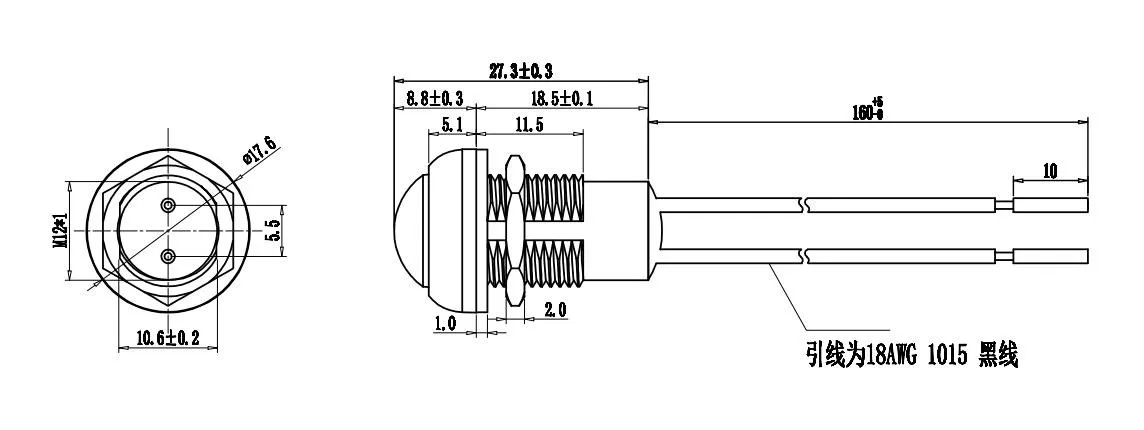

Dimension
diameter 12mm
Terminal
With 2 wires
Shape form
round
Function
momentary
LED
No LED
shell material
black plastic
Button color
Red


Technical parameters


Technical Parameters
1. Operating force ≤6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Momentary, without light, normally open


Related Products

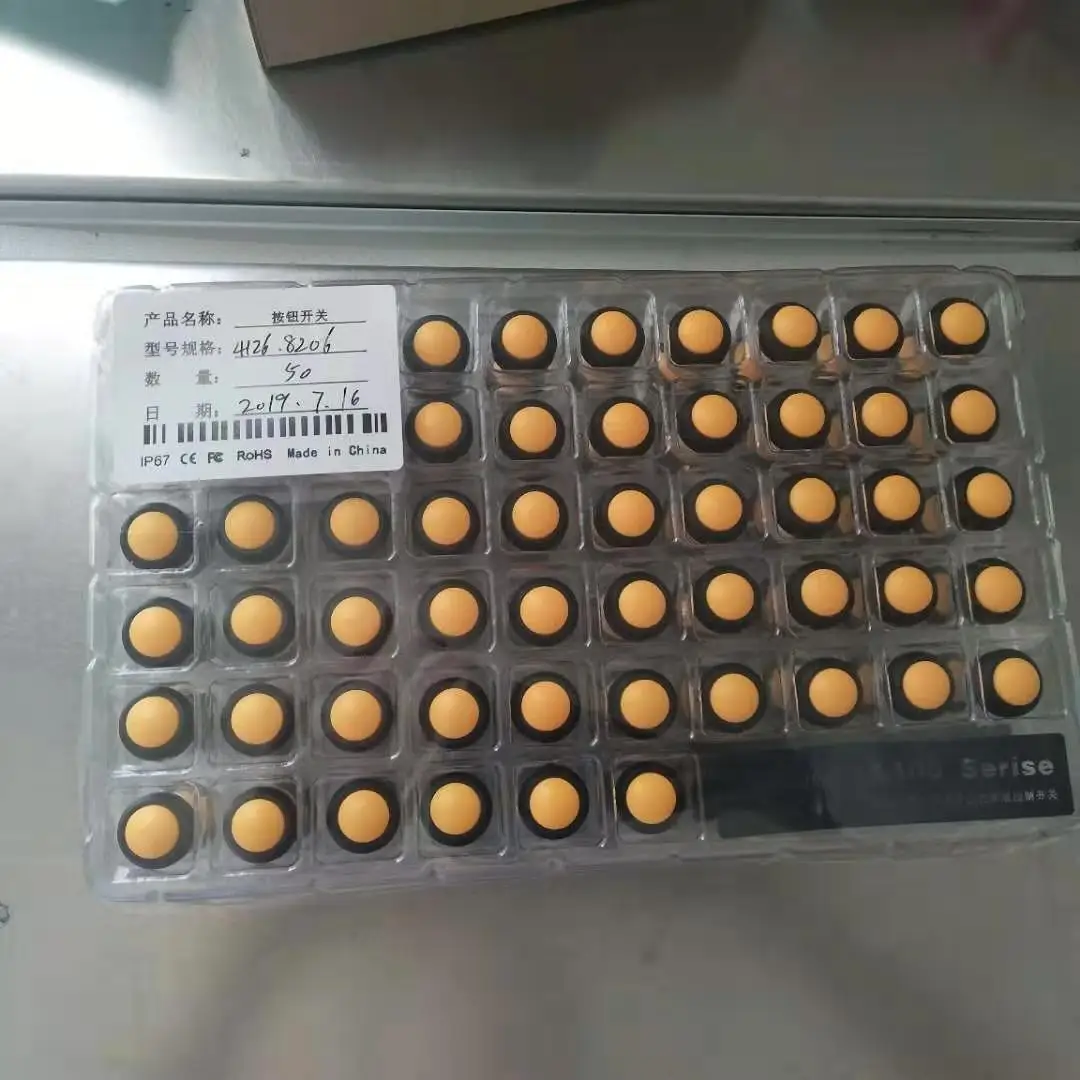

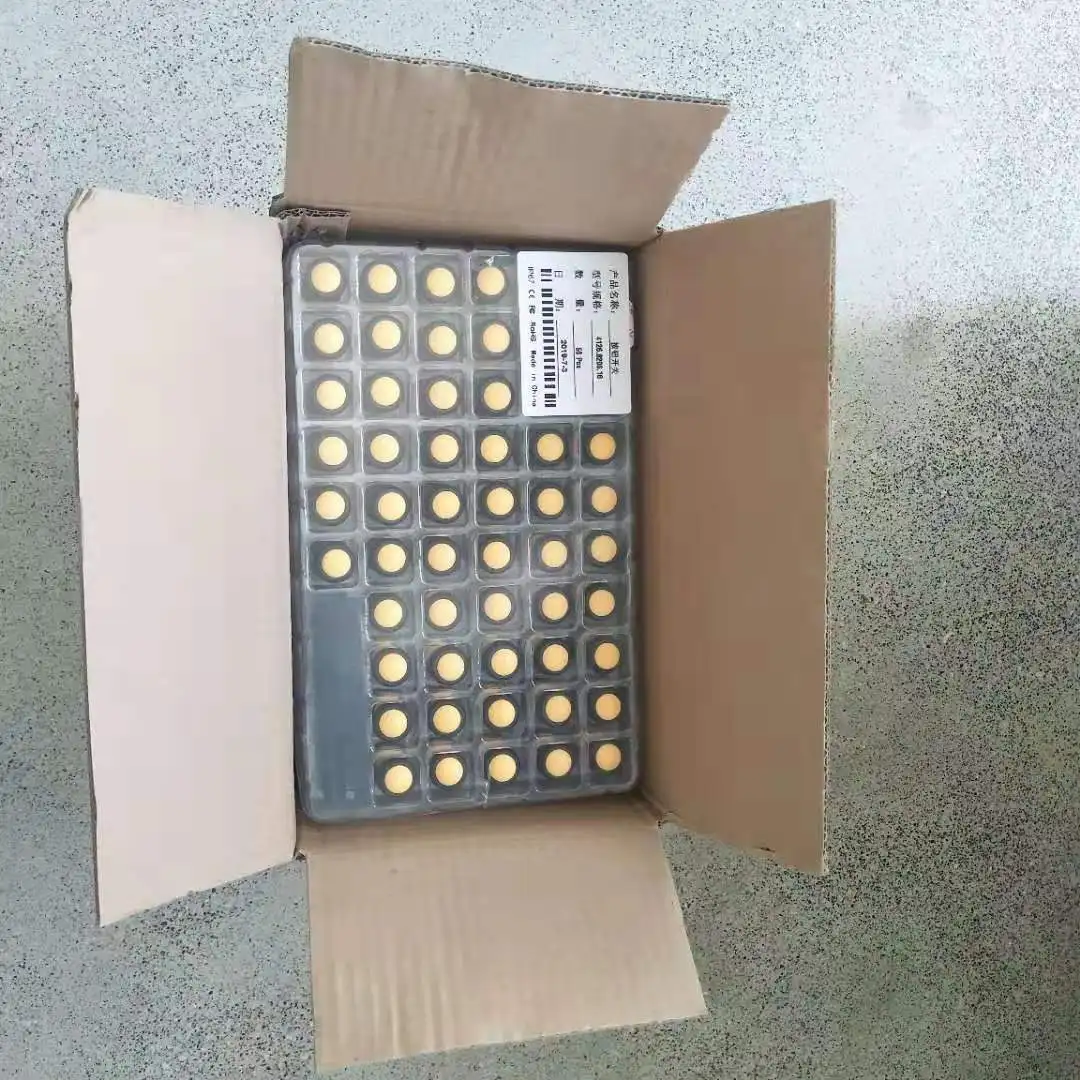

Packing&Shipping
