Steel Slag Superfine Powder Sorting Machine Ultrafine Particle Classification Air Classifier
Features and Advantages
1. | * Available D50:1.5-25μm | ||||||
2. | * The linear velocity of horizontally installed classifying wheels is up to 80m/s | ||||||
3. | * Classifying efficiency (extraction ratio) can be 60%～90%. | ||||||
4. | * System negative pressure operation, meet environmental requirements, noise <76dB(A). | ||||||
5. | * PLC control system, easy operation. | ||||||
6. | * Grinding is completed in closed system, little dust, low noise in a clean and environmentally friendly process. | ||||||
7. | * The classifying wheel can be made of ceramic materials such as alumina, zirconia and silicon carbide, without metal pollution, meeting the requirements of high-purity materials. | ||||||
8. | * Optional explosion-proof design, can also be upgraded to a nitrogen circulation system to meet the processing needs of flammable and explosive oxide materials. | ||||||
Related Engineering Case
Related Engineering Cases
Peru a paper mill
coal gangue powder classifying, output 3T/H, particle size D97:10μm, Jet Mill Production Line
Chile a mineral factory
bentonite powder classifying, output 5T/H, particle size D97:10-45μm, 2 sets of Air Classifier Production Line.
Product Paramenters
Technical Parameters

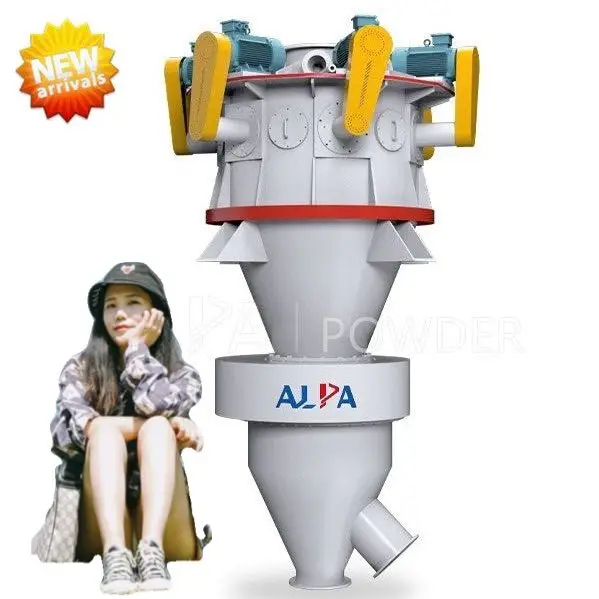

Multiple Rotor
Parameters/specifications | FW400/3 | FW400/4 | FW630/3 | FW630/4 | FW630/6 | FW800/4 | FW800/6 | FW1000/4 | FW1000/6 |
Production Capacity(T/h) | 0.2～1.5 | 0.3～2 | 1～5 | 2～8 | 3～10 | 3～10 | 5～15 | 5～20 | 8～30 |
Product Size(d97:um) | 3～45 | 3～45 | 3～45 | 3～45 | 3～45 | 5～45 | 5～45 | 5～45 | 5～45 |
Classifying efficiency(%) | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 |
Installed Power(kw) | 60～90 | 175～100 | 135～155 | 170～190 | 250～290 | 220～290 | 290～390 | 340～440 | 500～580 |

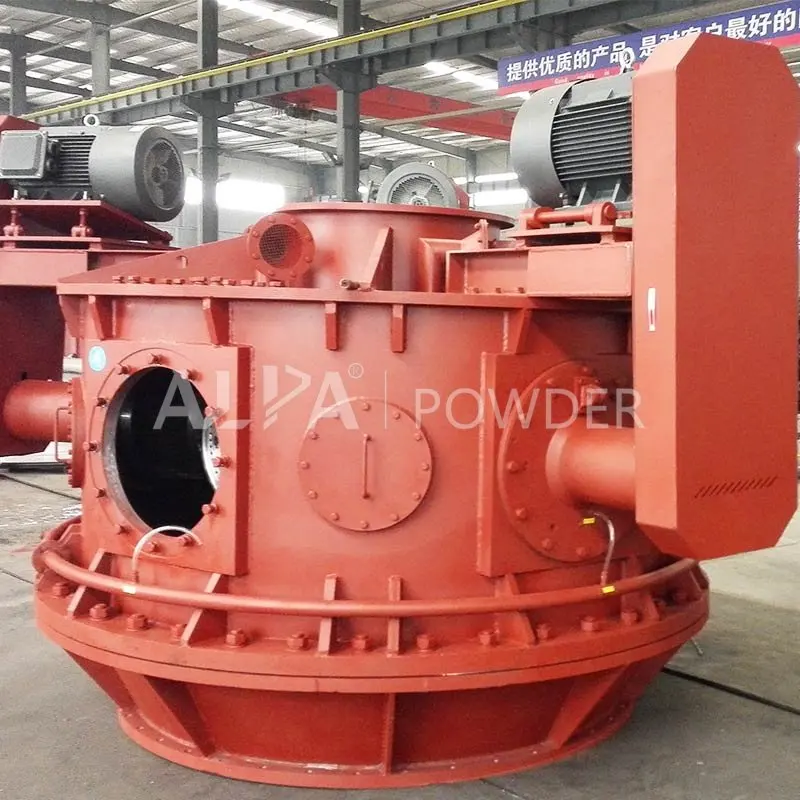

Single Rotor
Parameters/specifications | FW200 | FW280 | FW400 | FW520 | FW630 | FW800 |
Production Capacity(kg/h) | 10～100 | 20～200 | 50～500 | 100～1500 | 200～2500 | 400～4000 |
Product Size(d97:um) | 3～45 | 3～45 | 3～45 | 3～45 | 3～45 | 5～45 |
Classifying efficiency(%) | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 | 60～80 |
Installed Power(kw) | 7～11 | 15～19 | 21～28 | 23～30 | 52～60 | 67～77 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Working principle
Working Principle

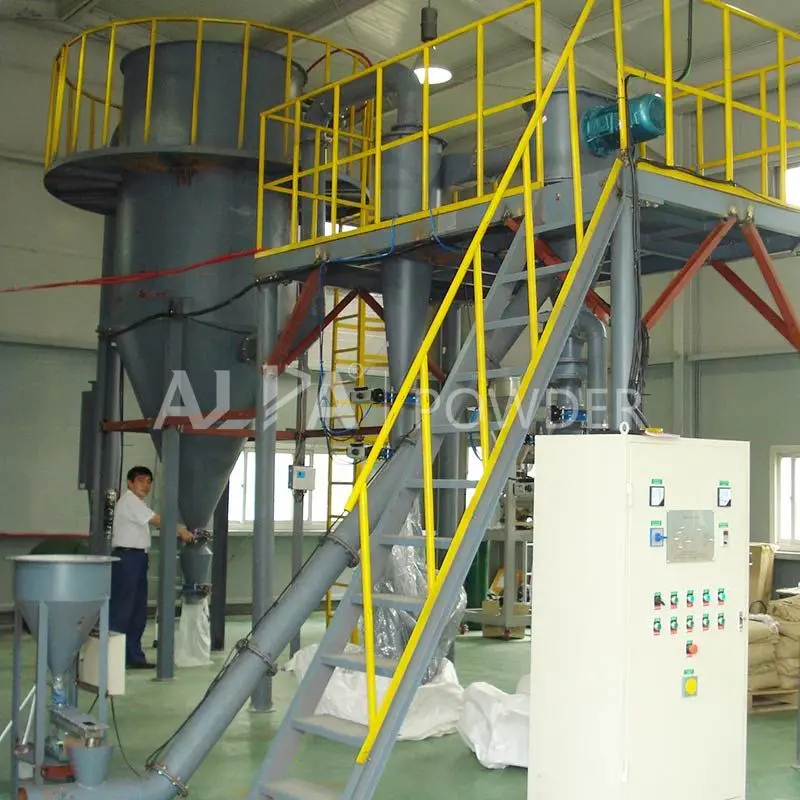

The classifier and cyclone separator, dust collector and induced draft fan form a classifying system.
Under the action of fan suction, the material is moved from the lower inlet of the classifier to the classifying zone with the ascending airflow.
Under the strong centrifugal force generated by the high-speed rotating turbine, the materials are separated and the fine particles which meet size requirements through the classifier impeller gap into the cyclone separator or the dust collector,
The coarse particles entrained part of the fine particles collided with the wall and the velocity disappeared, descending along the cylinder wall to the secondary air outlet, and the coarse and fine particles were separated by the strong washing action of the secondary air.
The fine particles rise to the classification zone for secondary classifying, and the coarse particles are lowered to the discharge port for discharging.
