ITEM | SLM-6L | SLM-6M | SLM-6H | |||
Microscope | Microscope type | Converging | ||||
Eyepiece type | High eye-point eyepiece | |||||
Center of the field resolution | ≥1800·N∕mm(N: numerical aperture) | |||||
Diameter of visual field | 10X:10mm | |||||
16X:6mm; | ||||||
25.6X:4mm | ||||||
Object lens | 1.0X | 1.0X. 1.6X | 1.0X. 1.6X | |||
Eyepiece | 10X | 10X | 10X; 16X | |||
Total Magnification | 10X | 10 X; 16X | 10X; 16X; 25.6X | |||
Working distance | 81mm | |||||
Interpupillary distance adjustment range | 45mm~78mm | |||||
Diopter adjustment | -8D~+8D | |||||
Illumination | Slit width | 0~12mm continuous | ||||
Slit length | 12mm | 1-12mm | 1-12mm | |||
Slit angle | ±30° | |||||
Aperture diameter | 12mm | ф0.2mm,ф1mm,ф5mm,ф12mm | ||||

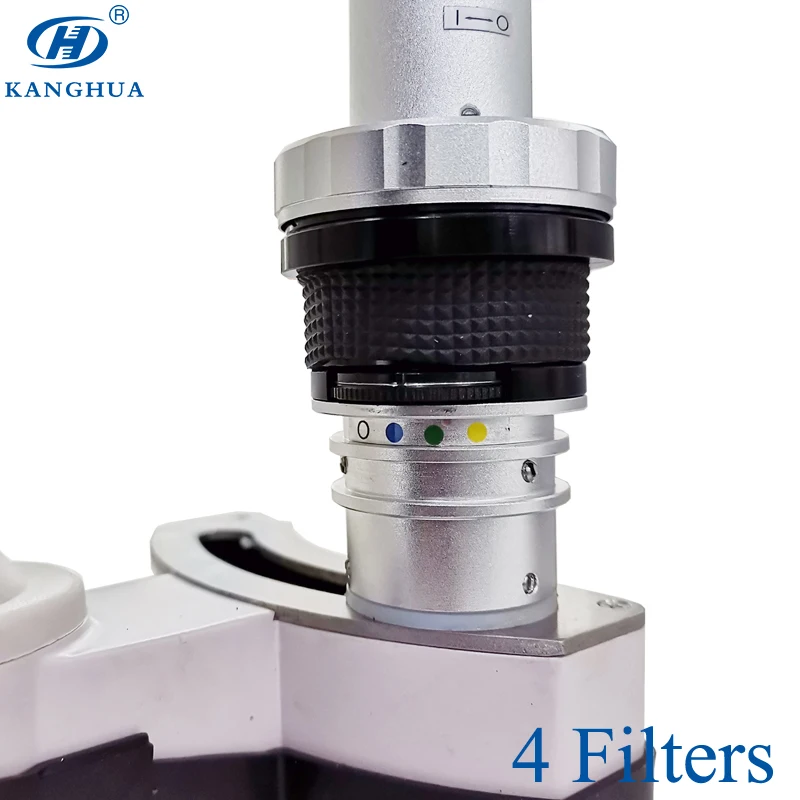

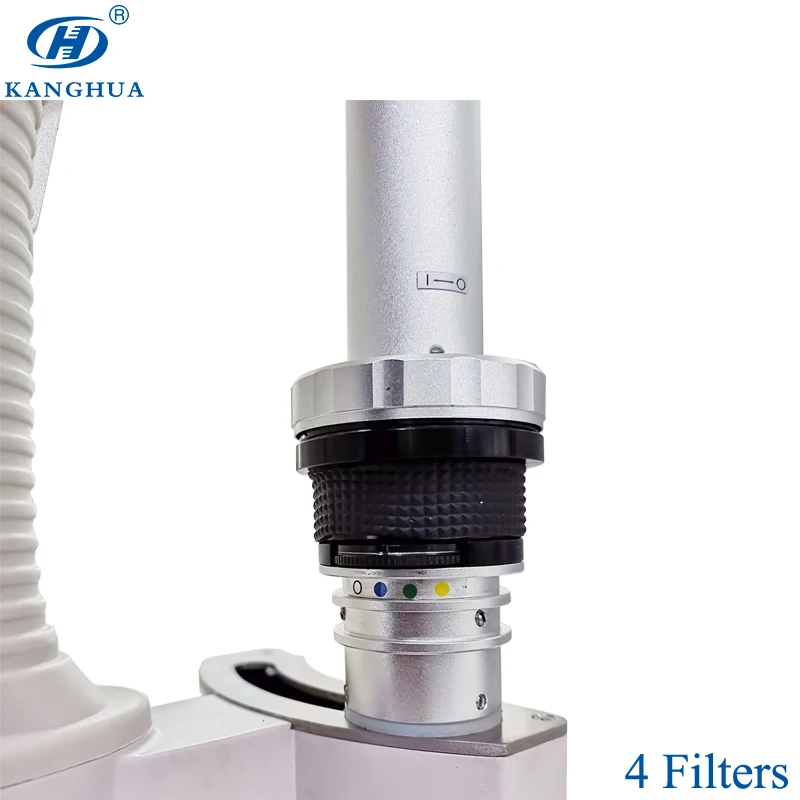

Filter | Heat Absorption, Grey, Redfree, Cobalt blue | |||||
Bulb | LED | |||||
illumination | 50000lux | |||||
Power | LED working voltage | DC3V,350mAh | ||||
Battery | Li-ion battery7.4V/680mAh,use every 5-6 hours full charge | |||||
Weight | Dimension | 169.5mm×109.5mm×228.5mm | ||||
Dimension | Weight | ≤700g(including Battery) | ||||
