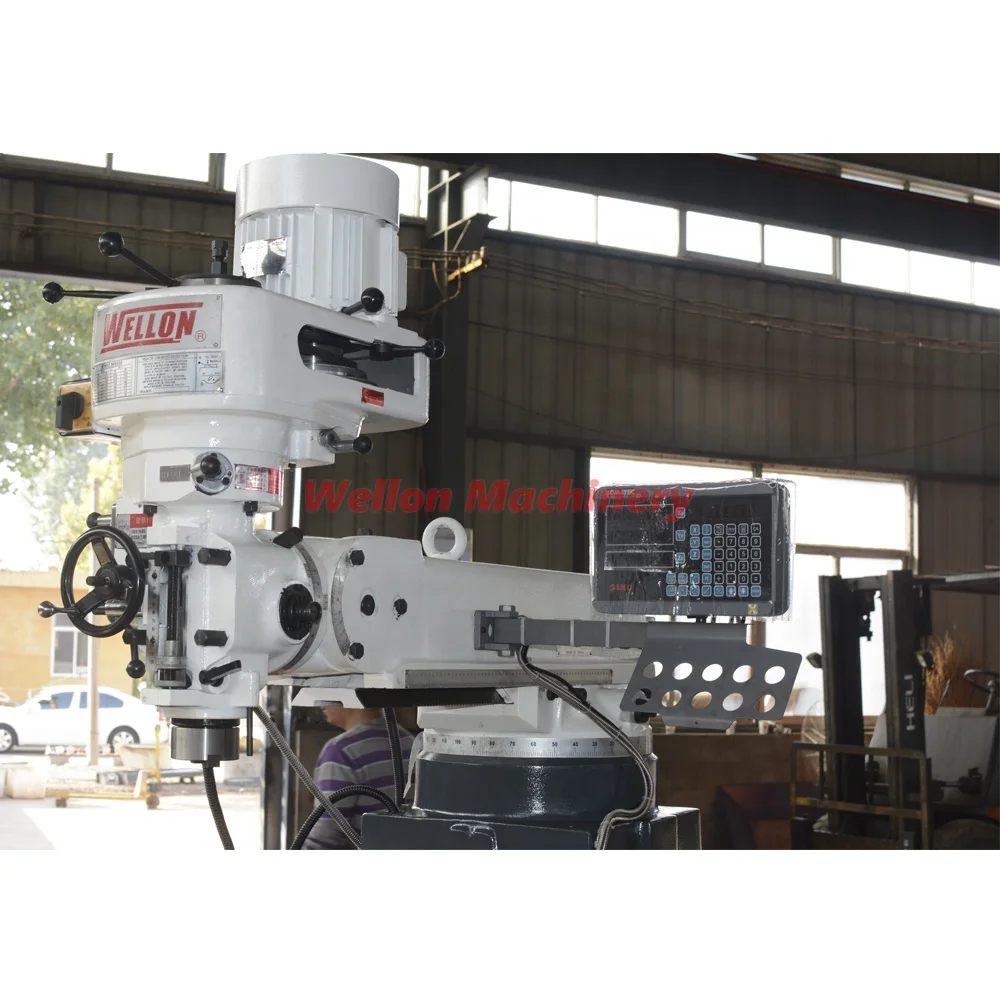

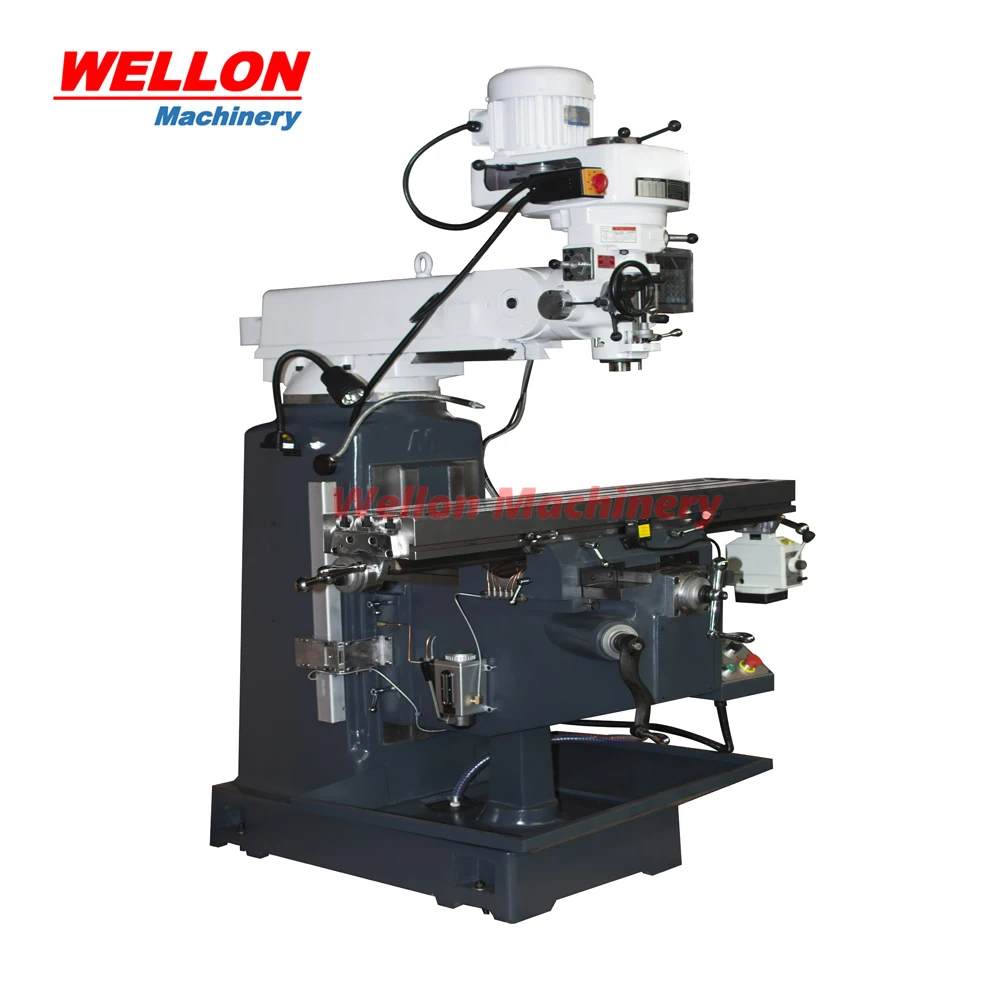

Turret Mill Machine for sale /Universal Milling machine price X6325/X6330/X6333
- Category: >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (1600129091801):
Product Overview
Description
Features:
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan
4.Harden the slide way and table surface
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving
7.XYZ axis screws are made in Taiwan
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been
designed according to the CE standard
Technical Parameter :
MODEL | X6325 | X6330 | X6333 |
Table size | 254*1370 | 305*1370 | 330*1370 330*1500 |
Long travel(mm) | 850 950 | 870 1000 | 840 1000 |
Cross travel(mm) | 420 | 360 | 360 |
Vertical travel(mm) | 420 | 380 | 400 |
T-slot No.and size(mm) | 3*16 | 3*16 | 3*16 |
Ram travel(mm) | 470 | 500 | 500 |
Distance from spindle nose to table surface(mm) | 0-420 | 0-350 | 0-450 |
Spindle hole taper | R8 ISO30 | ISO40 | ISO40 |
Spindle travel(mm) | 127 | 127 | 127 |
Spindle speed(r.p.m) | shift grade 16: 50HZ 66-4540, 60HZ 80-5440 | shift grade 16: 50HZ 65-4500, 60HZ 80-5440 | shift grade 16: 50HZ 66-4540, 60HZ 80-5440 |
| Optional variable:60-4200 | optional: variable:60-3600 | optional: variable:60-3600 |
Auto.quill feed | Three steps: 0.04/0.08/0.15mm/ revolution | Three steps: 0.04/0.08/0.15mm /revolution | Three steps: 0.04/0.08/0.15mm /revolution |
Spindle motor | 2.25kw/3hp | 3.75kw/5hp | 3.75kw/5hp |

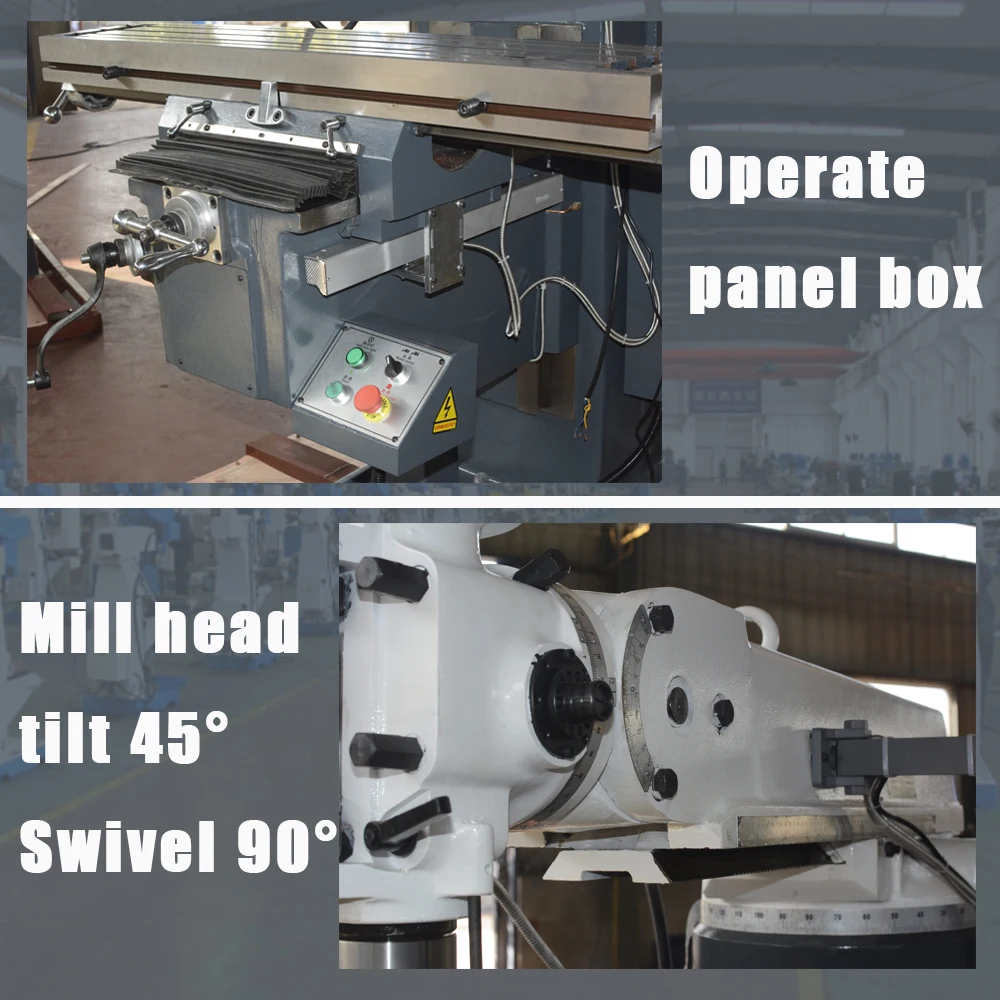

Head swivel | 90° | 90° | 90° |
Head tilting | 45° | 45° | 45° |
Dimension of package | 1516*1550*2080 | 1566*1650*2080 | 1800*2016*2180 |
G.W/set | 1280 | 1600 | 2200 |
Related Products
|
XH7132A Vertical cnc milling$12000-15000/set |
X5750 Heavy Duty Milling Machine$19000-20000/set |

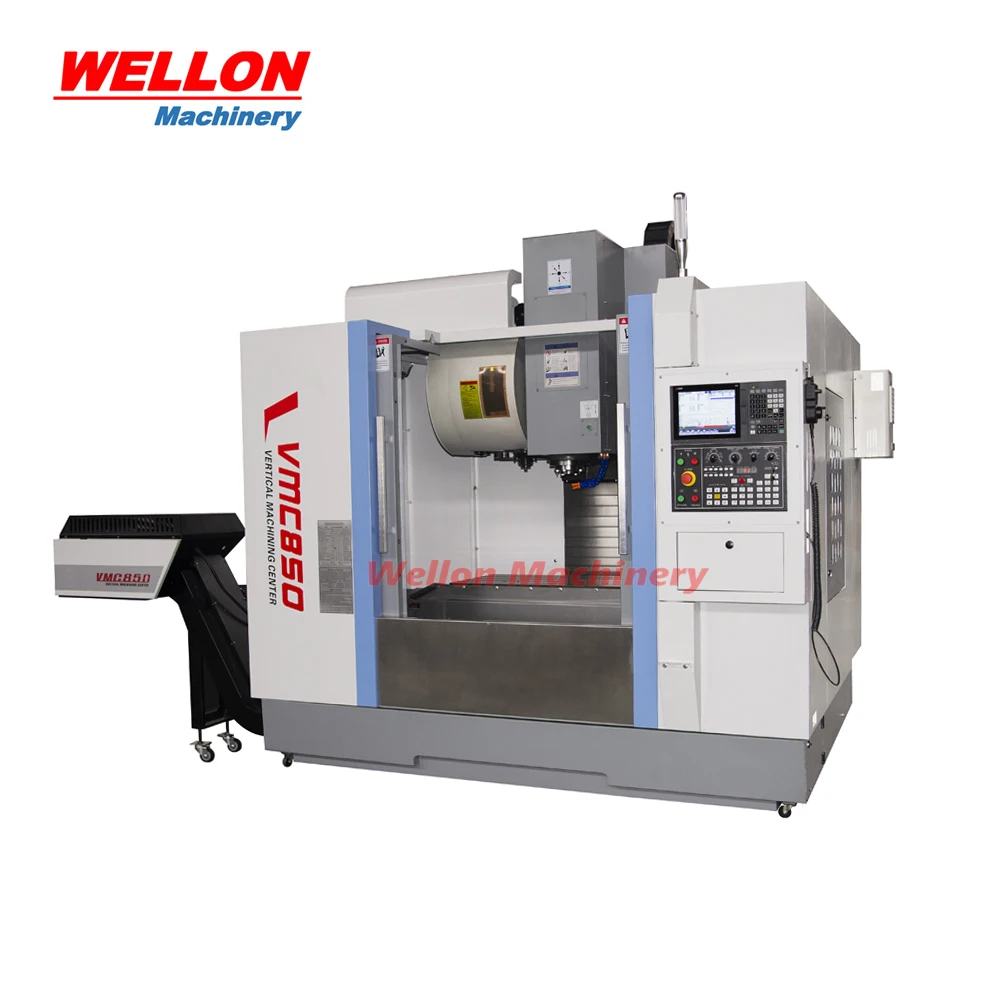

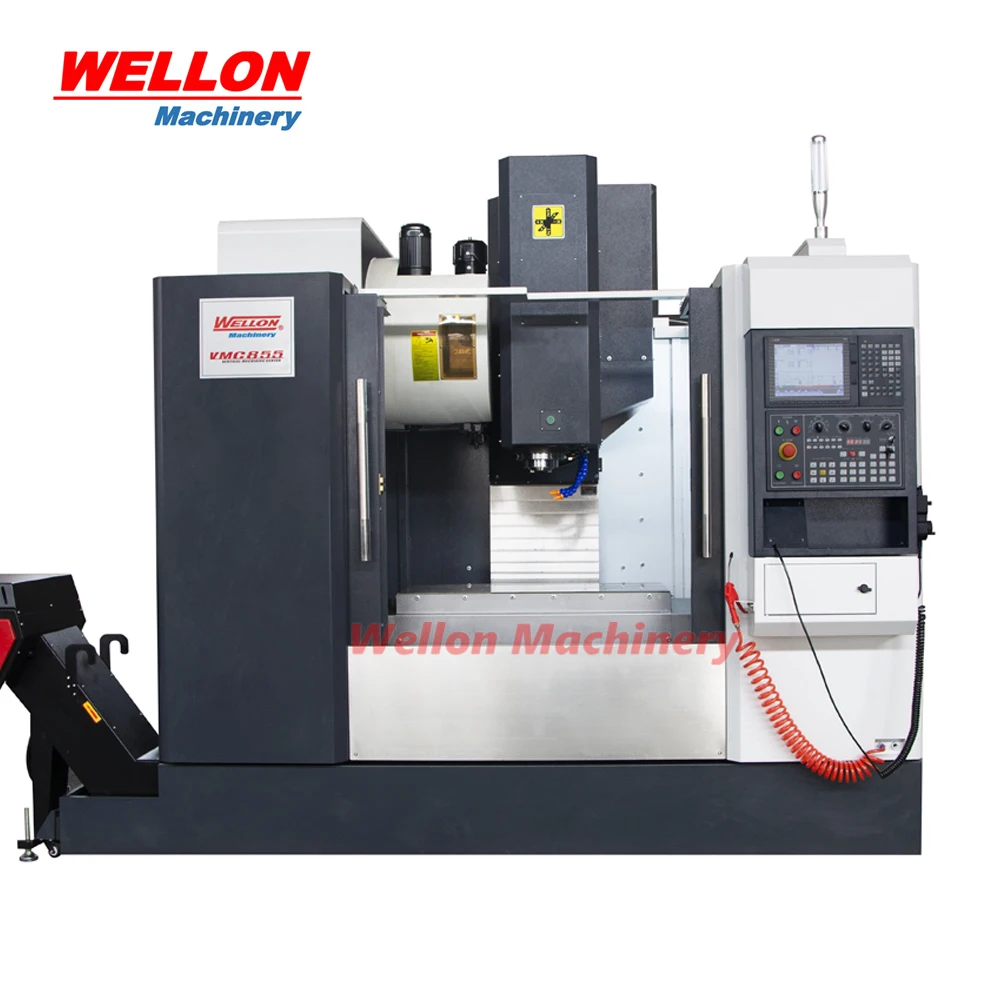

VMC855 Vertical Machining Center |
