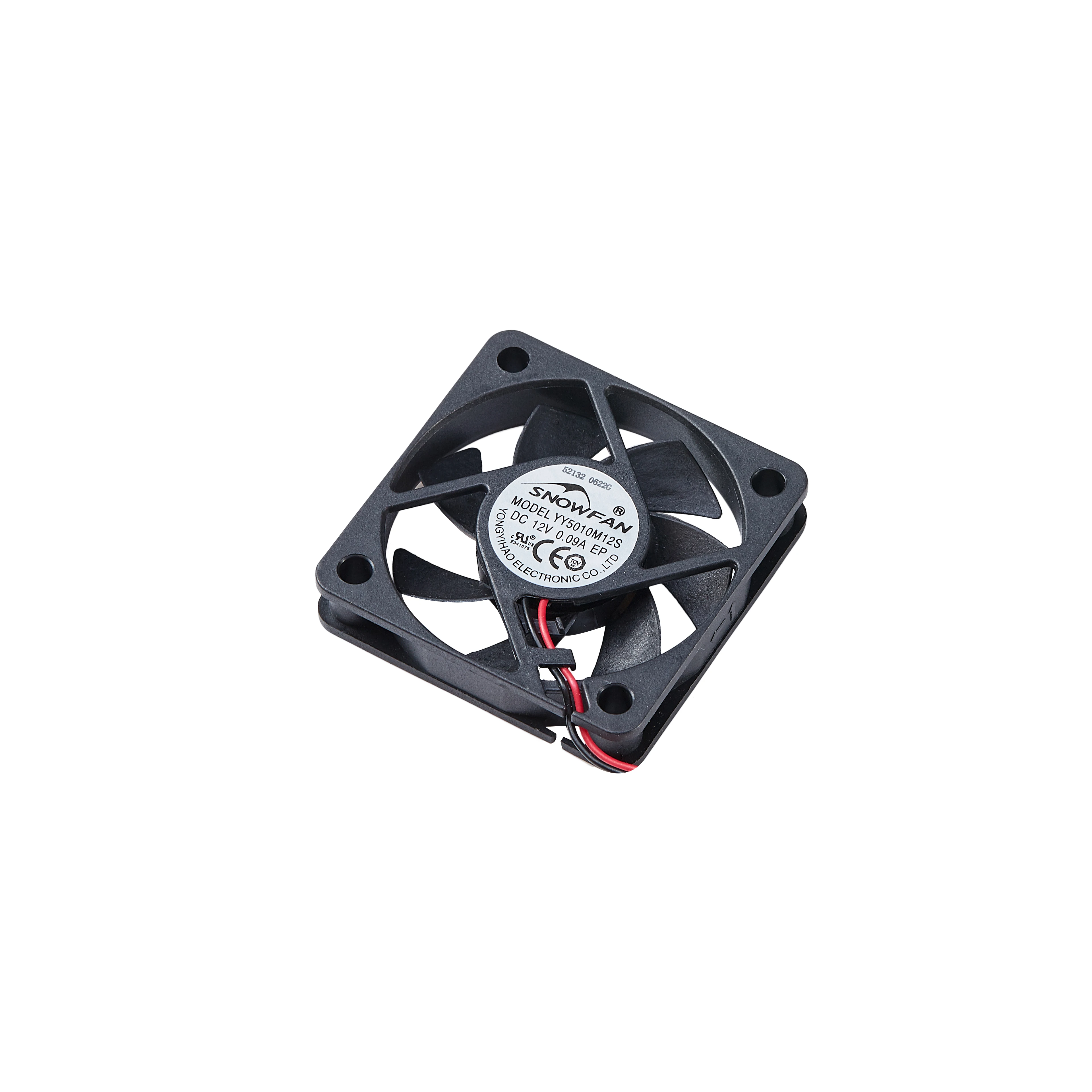

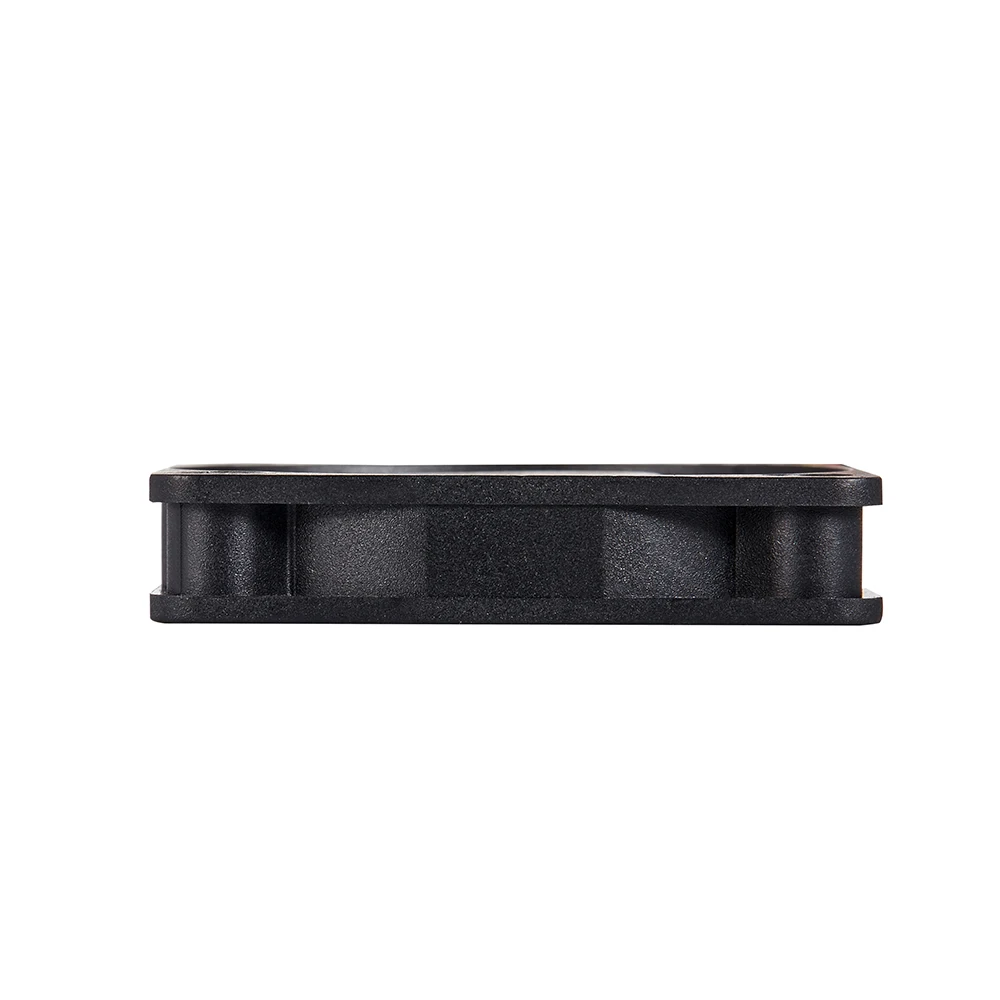

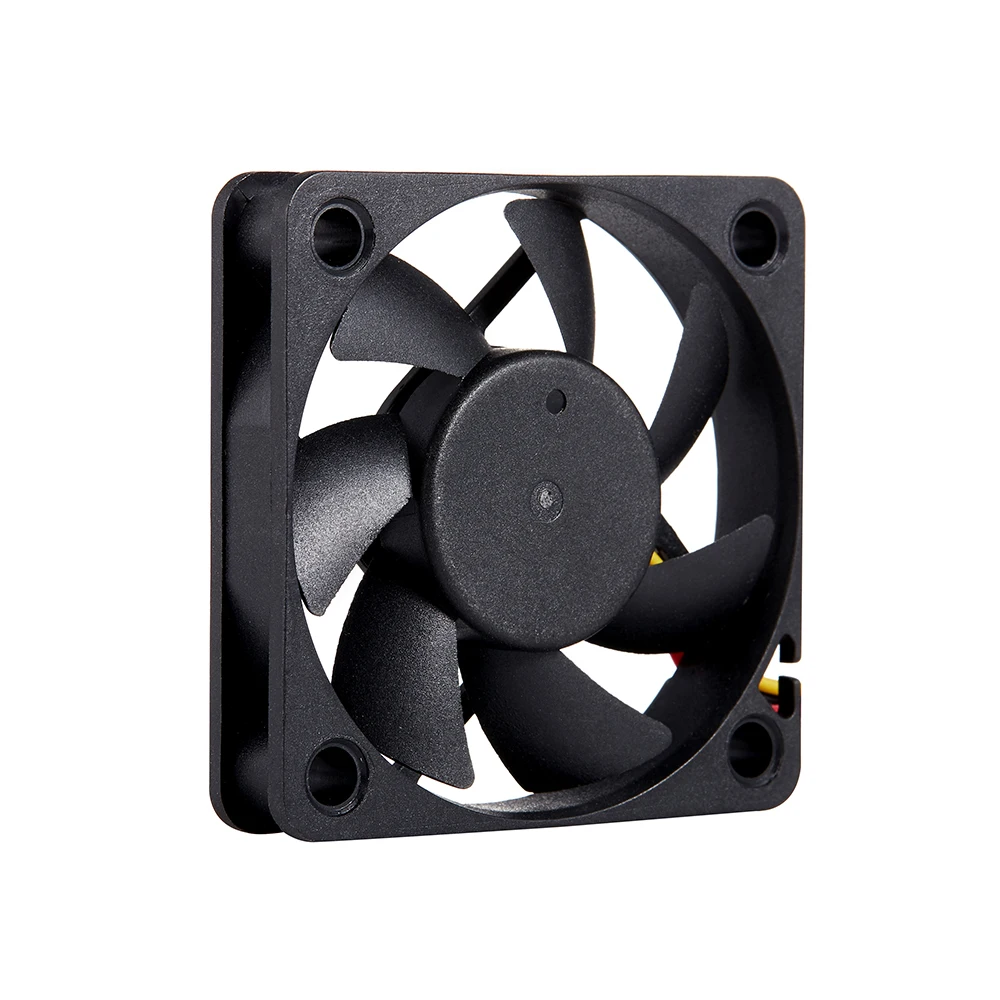

High quality dc 5010 50*50*10 mm radiator Fan 12 volt 24 volt DC Axial Cooling Fan
- Category: >>>
- Supplier: Shenzhen Yongyihao Electronic Co. Ltd.
Share on (1600129154392):
Product Overview
Description

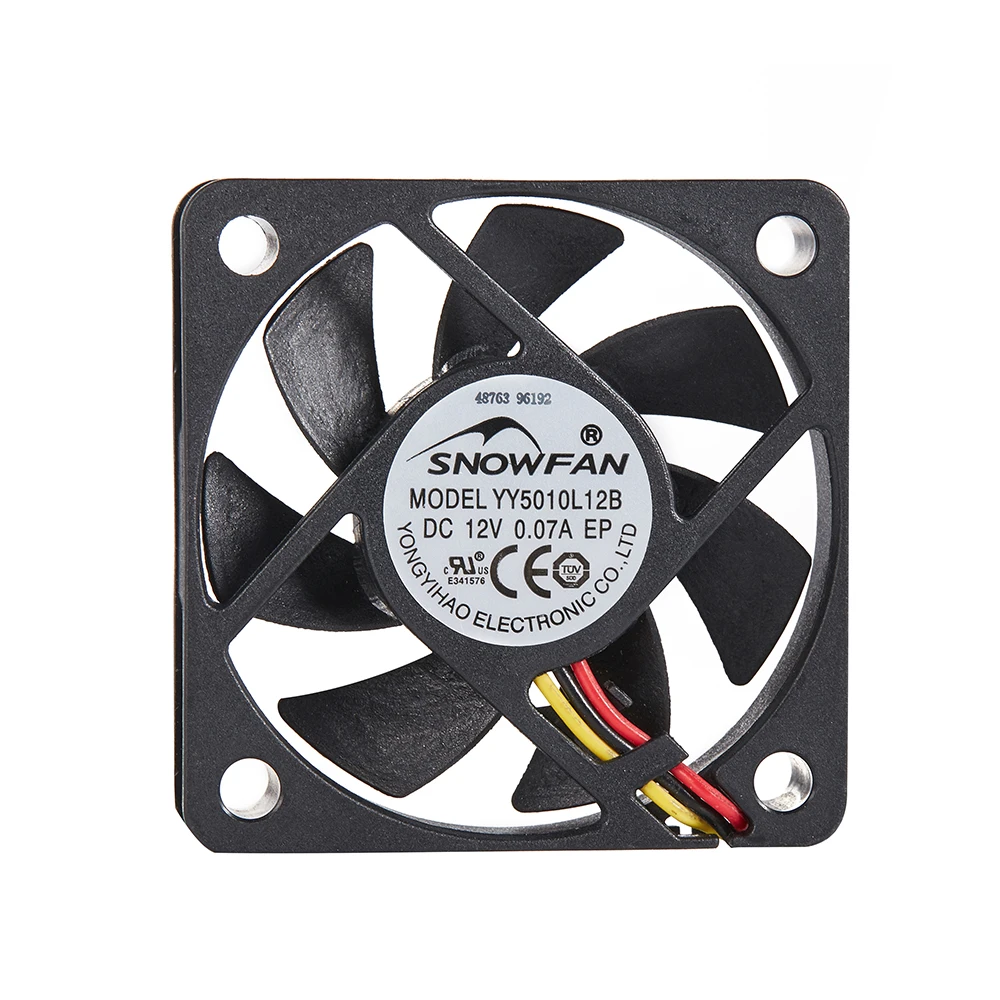

Details Images
50x50x10mm series
Bearing system:Ball or Sleeve
Frame:Themoplastic PBT UL 94V-0Impeller:Thermoplastic PBT UL 94V-0

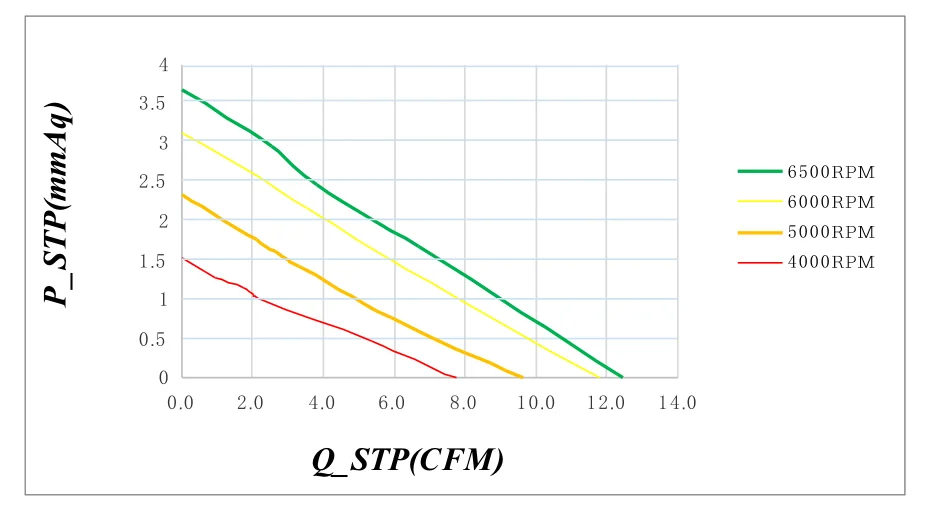

Product Paramenters
MODEL | Rated Voltage | Operating Voltage | Rated Currect | Rated Input Power | Speed | Max Air Flow | Max Air Pressure | Noise |
PART NO. | VDC | VDC | Amp | Watt | RPM | CFM | MMH2O | DB-A |
YY5010L05 | 5 | 3.6-6.8 | 0.08 | 0.4 | 4000 | 7.74 | 2.54 | 25 |
YY5010L12 | 12 | 7.0-13.5 | 0.03 | 0.36 | ||||
YY5010M05 | 5 | 3.6-6.8 | 0.12 | 0.6 | 5000 | 9.66 | 3.2 | 30 |
YY5010M12 | 12 | 7.0-13.5 | 0.05 | 0.6 | ||||
YY5010H05 | 5 | 3.6-6.8 | 0.15 | 0.75 | 6000 | 11.79 | 4.32 | 33.2 |
YY5010H12 | 12 | 7.0-13.5 | 0.06 | 0.72 | ||||
YY5010H24 | 24 | 18-26.5 | 0.03 | 0.72 | ||||
YY5010H12-HH | 12 | 7.0-13.5 | 0.08 | 0.96 | 6500 | 14.13 | 5.09 | 36.5 |
YY5010H24-HH | 24 | 18-26.5 | 0.04 | 0.96 |

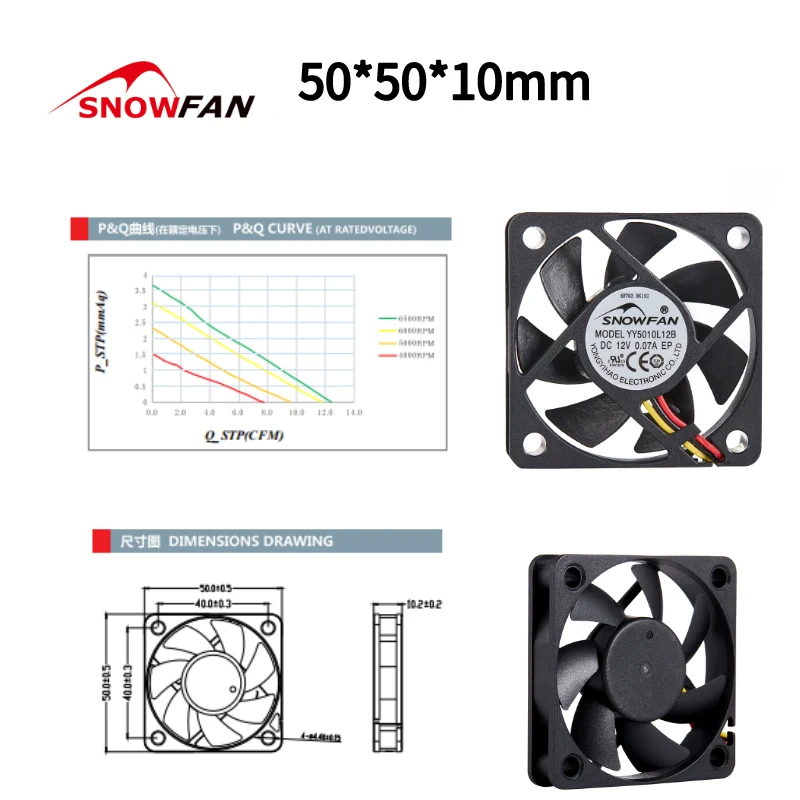

Product structure

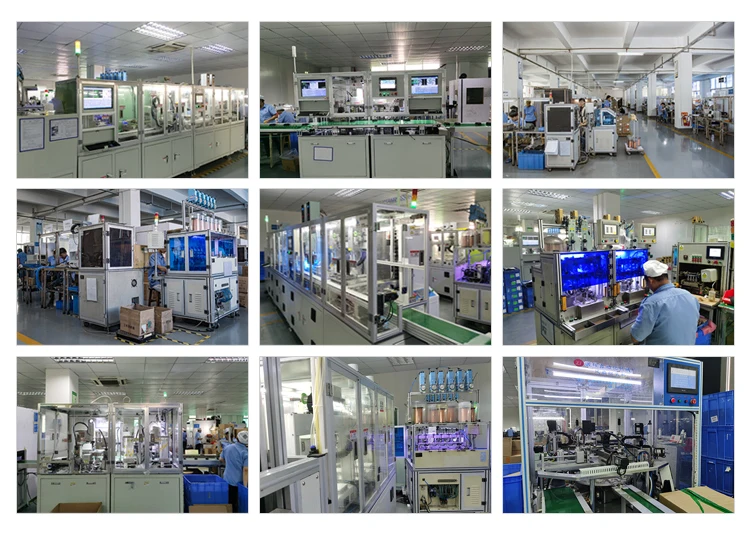

Automatic Production Line
