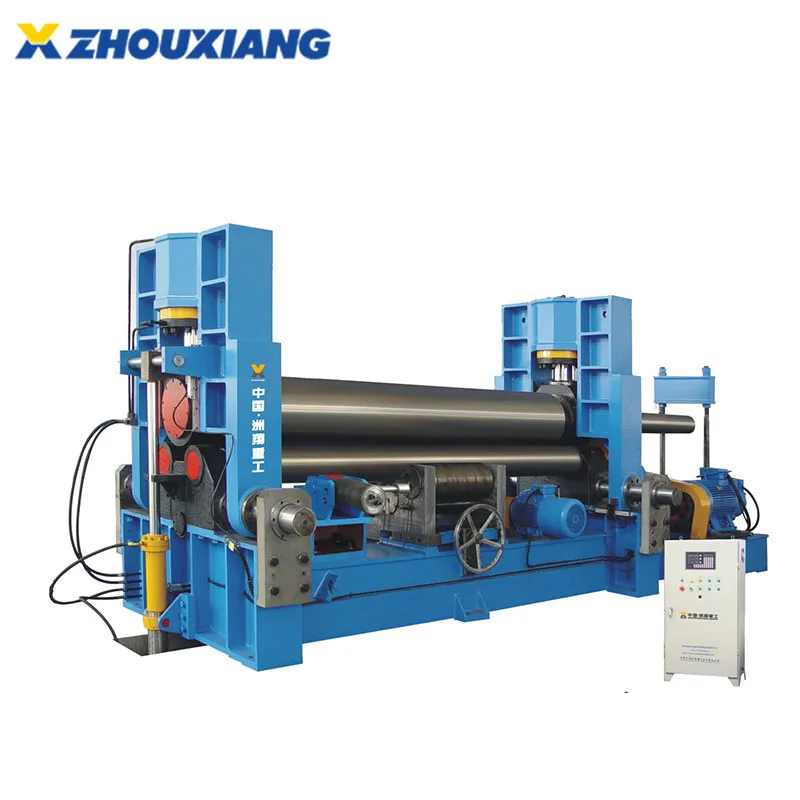

Станок для прокатки стальных пластин с 3 роликами 20 мм * 2500 мм
- Category: Plate Bending Rolls >>>
- Supplier: Wuxi,Zhouxiang,Complete,Set,Of,Welding,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Introduction:
By setting the length of the straight edge freely, the upper roller presses on the steel plate directly to achieve pre-bending. The rolling technical parameters are numerical controlled, which makes the operation easier and enhances the production efficiency largely.
Model | Max thickness (mm) | Max width (mm) | Yield limit (MPa) | Min bending Dia. (mm) | Rolling speed (m/min) | Main motor power (Kw) |
W11SNC-15×2000 | 15 | 2000 | 245 | 600 | 4 | 7.5 |
W11SNC-20×2000 | 20 | 2000 | 245 | 800 | 4 | 15 |
W11SNC-20×2500 | 20 | 2500 | 245 | 800 | 4 | 15 |
W11SNC-20×3000 | 20 | 3000 | 245 | 800 | 4 | 22 |
W11SNC-25×2500 | 25 | 2500 | 245 | 900 | 4 | 22 |
W11SNC-25×4000 | 25 | 4000 | 245 | 1400 | 4 | 30 |
W11SNC-30×2500 | 30 | 2500 | 245 | 1100 | 4 | 30 |
W11SNC-30×3000 | 30 | 3000 | 245 | 1200 | 4 | 37 |
W11SNC-30×4000 | 30 | 4000 | 245 | 1400 | 4 | 45 |
W11SNC-40×2500 | 40 | 2500 | 245 | 1400 | 4 | 55 |
W11SHNC-40×3000 | 40 | 3000 | 245 | 1600 | 4 | 55 |
Above are our standard model, it can be designed and manufactured according to customer’s request. | ||||||
Technical Features:
1. Upper and lower driving, it can finish the end prebending and rolling of metal plate without U-turn.
2. The upper roller is drum shaped roller, there’s adjustable roller supporting device under the lower roller ,which an ensure the accuracy of products.
3. The pressing oil cylinder is positioned on the top place without rod pressing down, which can save energy consumption
4. The material of upper and lower rollers is 42 CrMo, the rollers adopt solid forging with good comprehensive mechanical performance, good core tenacity and high surface hardness, it is suitable for heavy load work with long service life.
5. This machine has an independent operating table to make operation convenient for workers and a safe connecting device, to ensure safety.
6. Economical and applicable, cost-effective, suitable for medium and thick plate rolling system.
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
Trade Information | |
Trade Terms: | FOB,CIF,CFR,EXW |
Payment terms: | T/T,L/C |
Payment Condition: | 30% T/T as deposit, 70% balance before delivery |
Delivery Time: | 20-60 days after receiving deposit |
Packing: | In naked, wooden case, steel frame, export packing |
Shipping: | By sea, by air and by express delivery |
Our Services
1. All of our machines warranty for one year.
2. Our technician can offer free training in our workshop, welcome to visit our factory.
3. Our technicians can offer online training and service directly to you.
4. Our technicians can go to your place and offering service or training, but need you to bear all charges.
