Model

GNMY-12V500W-S150/80L

PV input

Solar panel

Mono Crystalline

A class

Work voltage

18.2V

Open voltage

22.4V

power

150W

Cable

10M(MC4)

Size(mm)

1480*670*35

Weight

12KG

MPPT Solar charge Controller

MPPT controller

Charging current(MAX)

20A

Over-discharge protection

10.8V

Over-discharge resume

12.6V

Over-voltage protection

16.0V

Over-voltage resume

15.0V

Balance charge protection

14.6V

Floating charge protection

14.6V

Battery(integrated)

FeLiPO4 battery

12.8V 80AH

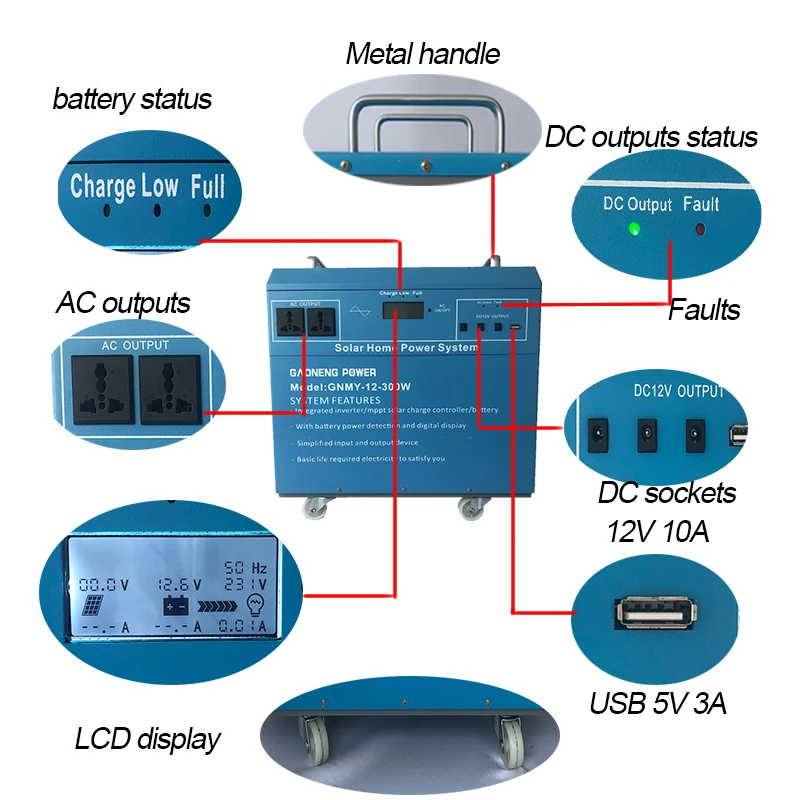

Output

DC load

12V output

10A

USB-5V

3A

voltage

10.8V~15V

5W LED

3PCS(Line length5M)

AC OUTPUT

voltage

220V/230V/240V 50HZ

Power

500W

Over load protection

550W

Short-circuit protection

1000VA

Output wave form

Pure sine wave

General parameters

Weight

55KG

Shell Protection grade

IP21

Size(mm)

400*248*410

Environment temperature

-25℃~55℃

Humidity

≤85%
