Original Weichai 6M26C450 18 450HP moteur baudouin 6m26

Product Overview

Description

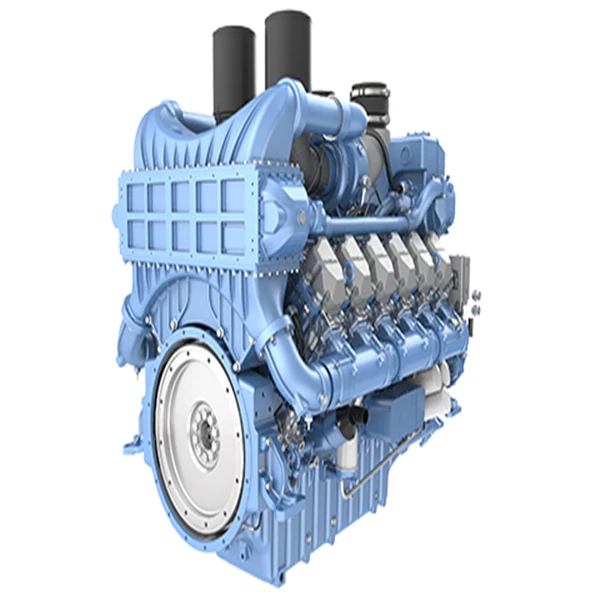

Original Weichai 6M26C450-18 450HP moteur baudouin 6m26











      France-based Moteurs Baudouin, a subsidiary of Weichai Group. With a history of over 100 years, Baudouin series products have fully integrated the advanced technologies in the field of internal combustion engine, featuring compact structure, high power and eco-friendliness. The series products are subdivided into three categories, namely 6-cylinder series, 8-cylinder V type series, and 12-cylinder V type series with a replacement of 16 liters, 21 liters and 32 liters respectively and power ranging from 330kW to 882kW (450-1200PS).

The Parameter





Item		Unit	engine type
			6M26C450-18	6M26C500-18	6M26C550-18
intake mode			turbocharged and intercooled
number of cylinders			6
bore X stroke			150×150
displacement		L	15.9
compression ratio			14
rated power		KW	330	368	405
rated speed		r/min	1800	1800	1800
min. fuel oil consumption		g/(KW.h)	——
fuel consumption @ rated power		g/(KW.h)	≤213				——
fuel consumption @ rated power		g/(KW.h)	1.065
cooling mode			sea and fresh water duel-circulation cooling system
start mode			electric start
net weight		kg	1785±50
rotation direction of crankshaft (seen from the free end)			clockwise
dimension	length	mm	1870
	width	mm	1095
	height	mm	1410



The Usage



     This series are ideally used on inland transport ships, fishing boats and public vessels. Besides, it complies with IMO Tier II emission standard and BV certificate is provided upon request.



Main Features

1. Four valves, steel crankshaft, inter-cooled.

2. Emergency circulation water pipe interface, water-cooled turbocharger.

3. Comprehensive monitoring system: sound & light alarming and emergency stop protection.

4. High reliability: TBO>32,000 hours.

5. Replacement of filter structure without power-off.
