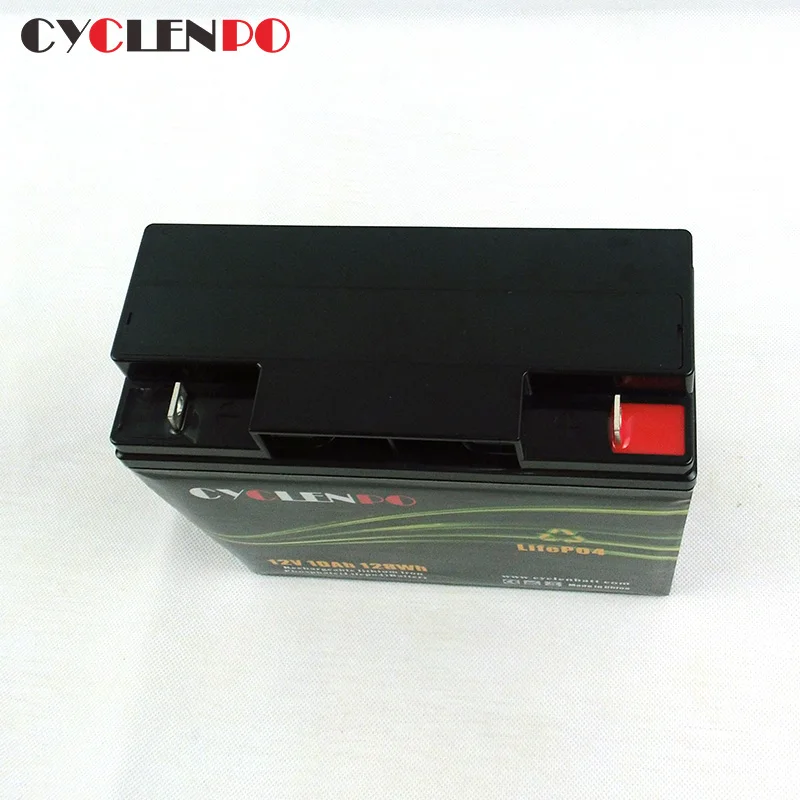

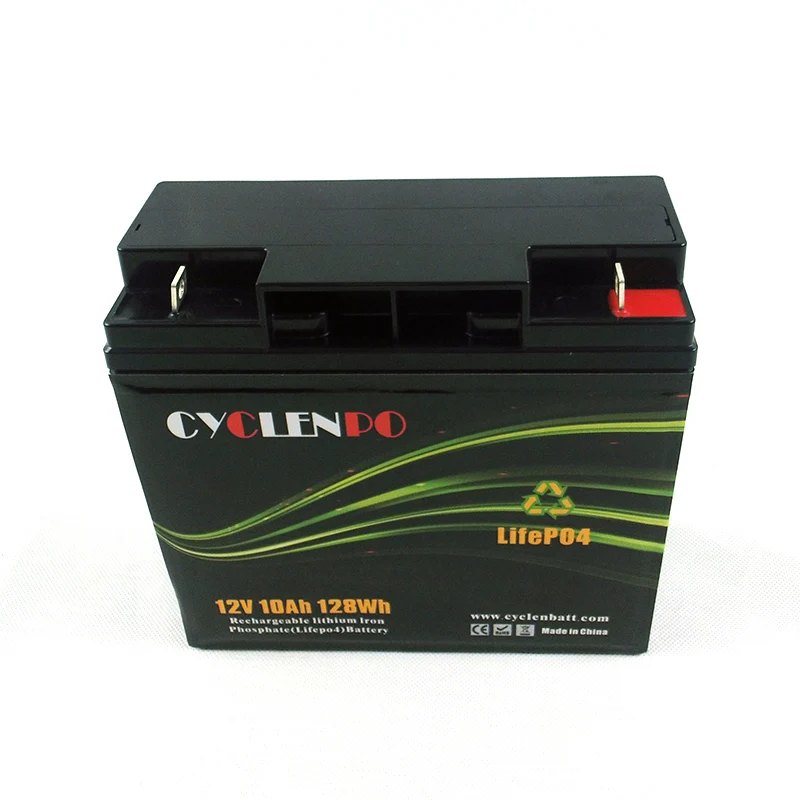

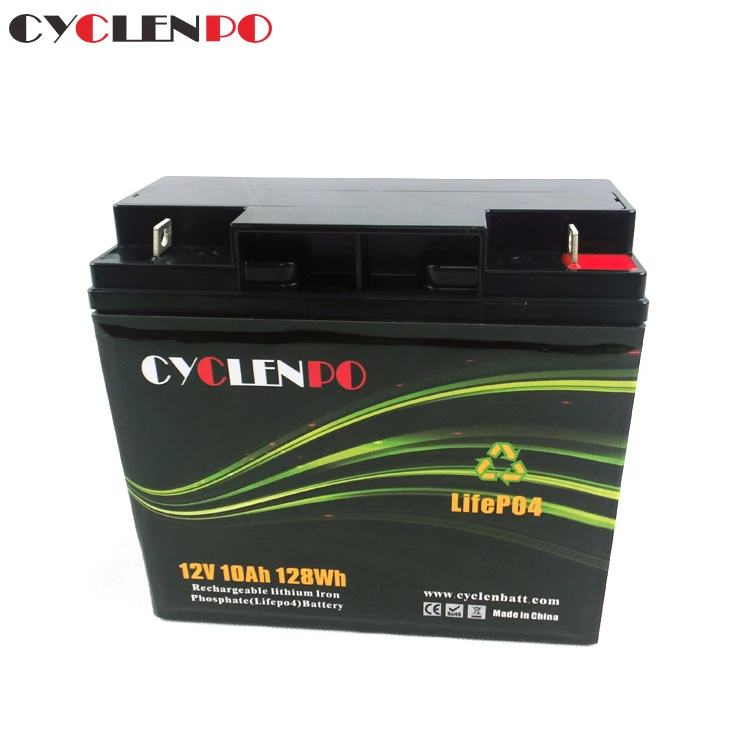

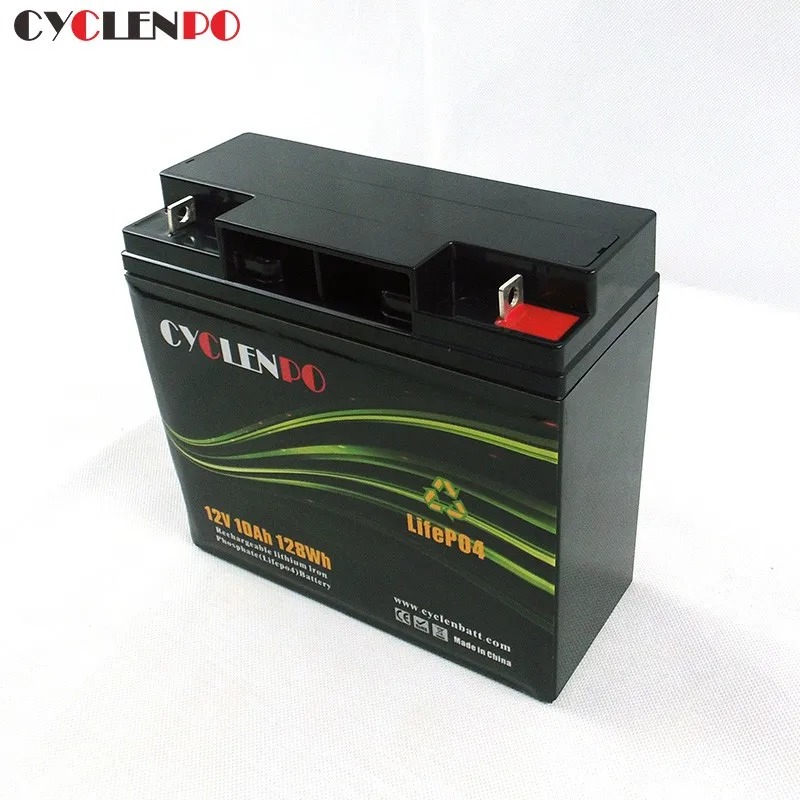

Factory wholesale lithium ion lifepo4 battery 12 volt 10 ah pack with bms
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (1600129649399):
Product Overview
Description
Product Description
Cyclen provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.
Normal performance | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | 3.2Ⅴ10Ah | Single | |||
2 | Casing material for single cell | Nickel plated steel | ||||
3 | Standard capacity(0.2C5A) | 10Ah | ||||
4 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) | |||
5 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) | |||
6 | Cut-off voltage | 9.5V | 2.50V(Single Ave. Discharge Voltage) | |||
8 | Standard charge current | 5A | 0.2C | |||
9 | charging Time | About 2.5h | ||||
10 | Max Continuous discharge current | 10A | 1C | |||
11 | Peak discharge current | 20A | 2.C10seconds | |||
12 | Battery dimension | customized | ||||
13 | (Approx.)Total weight(Approx.) | About 1.2kg | ||||
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | ||||
15 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~45℃ | |||
discharge | -20℃~45℃ | |||||
storage | -20℃~45℃ | |||||
Detailed Image
Features
1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times 100@DOD at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
Applications
Solar system, wheelchair, golfcart, motorcycle, scooter, lighting, security products,
home appliance, industrial equipment etc..
Solar system, wheelchair, golfcart, motorcycle, scooter, lighting, security products,
home appliance, industrial equipment etc..
