Product Overview

Description








GS-HS
GS-HS plastic injection machine of oil-electric compound system control series is the product newly developed by Guangsu Company with features of economic benefits, energy saving, high response and low noise.
Structure principle: during actual working status, the system directly feedbacks the pressure-flow rate signal through exit pressure sensor of oil pump and cycloscope to the high speed servo driver. The servo driver gives out electric signal to servo driving motor and oil pump, allowing for corresponding change of pressure and flow rate, therefore, the closed circuit control of pressure and flow rate is realized.


Energy-saving

Super low energy consumption, saving energy about 30% as compared to load sensitive variable pump, and about up to 80% as compared to constant flow pump, and its energy saving effect is comparable to the fully electric forming machine.
Low noise and Easy operation

Reduce greatly the noise produced by pressure control operation.Parameters setting and system speed adjustment are very simple digital operations. The customer only needs to operate the control panel just like common machine.
Reducing cost for long term and High performance
Realize energy saving and reduce running cost. Compared to electric type, the initial investment and maintenance cost is reduced greatly.
High response (30ms-130ms), high stability, accurate repeatability and energy saving.

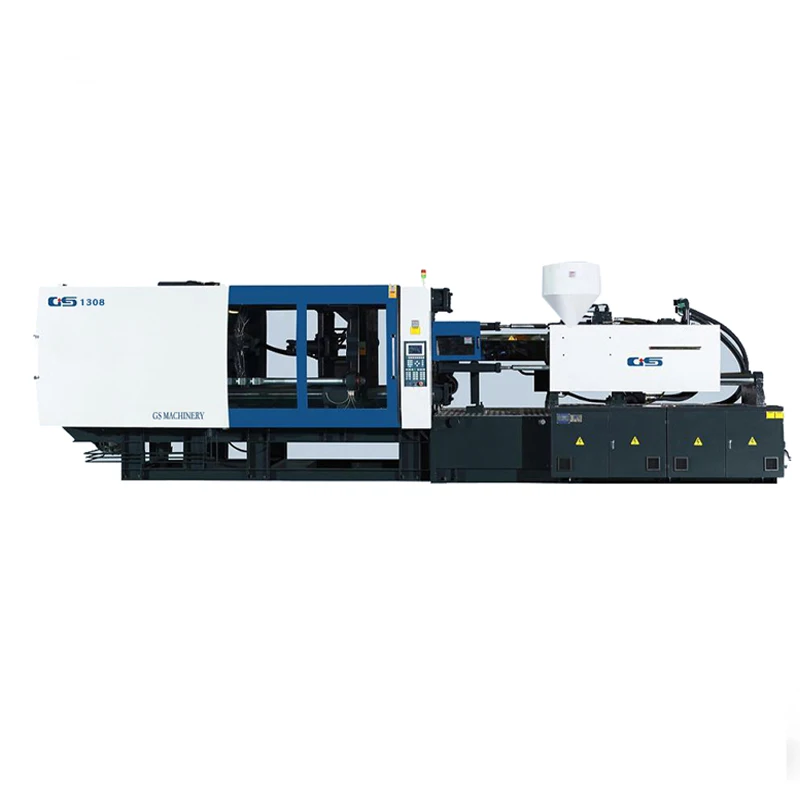

GS1308

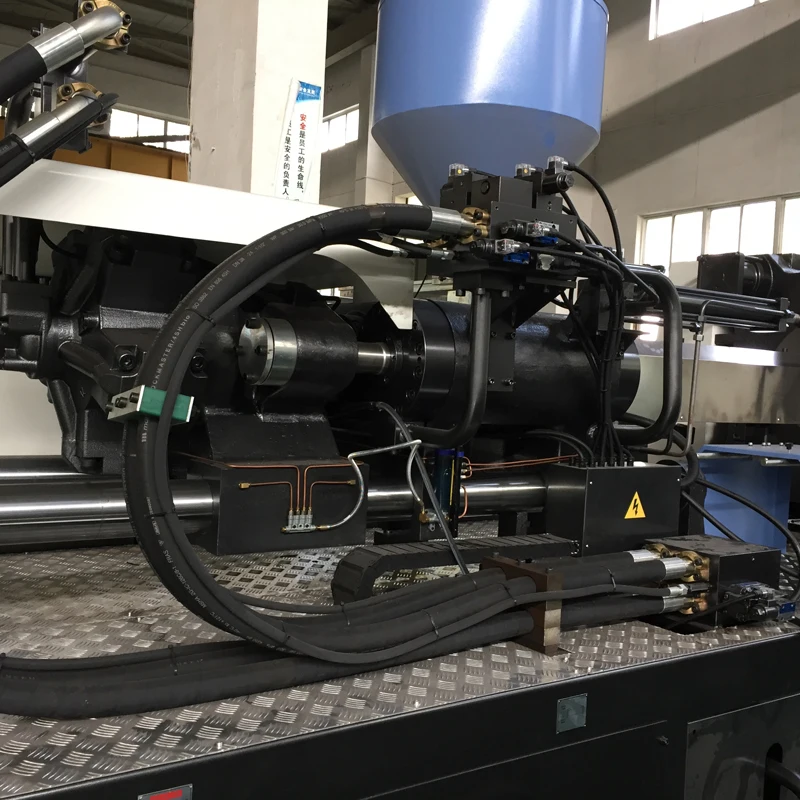

Injection Unit
A
B
C
D
Screw Diameter(mm)
110
120
130
140
Length/Diameter Ratio
24
22
20.3
18.9
Theoretical Shot Volume(cm³)
6272
7464
8760
10160
Injection Weight(PS)(g)
5708
6793
7972
9246
Theoretical Injection Pressure(MPa)
213
179
152
131
Injection Rate(PS)(g/s)
636
769
915
1074
Plasticizing Capacity(g/s)
142
178
219
257
Maximum Screw Speed(rpm)
118
Injection Stroke(mm)
660

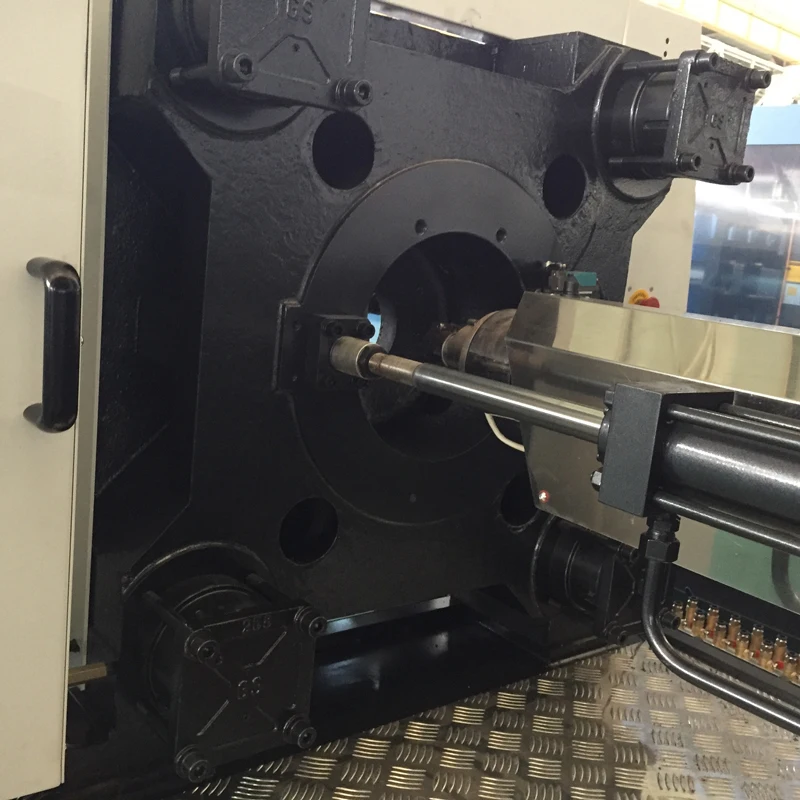

Clamping Unit
Clamp Tonnage(kN)
13080
Toggle Stroke(mm)
1400
Space Between lie Bars(H*V)
1350*1280
Max.Mold Height(mm)
1300
Min.Mold Height(mm)
600
Daylight Opening(mm)
2700
Ejector Stroke(mm)
350
Ejector Tonnage(kN)
215
Ejector Number(Piece)
25
Others
System Pressure(MPa)
16
Pump Moter Power(kW)
(HS)55+55+23
Heater Power(kW)
85.55
Machine Dimension(L*W*H)(m)
13.33*3.06*2.80
Machine Weight(t)
62
Hopper Capacity(Kg)
100
Oil Tank Capacity(L)
1300
