Double acting synchronous hydraulic jack cylinders suppliers
Product Description
Features of Synchronous Control Hydraulic Jack
High pressure Synchronous Control Hydraulic Jack is powered by ZB series of high pressureelectric oil pump, the functionfor oil pressurerebound, overflow.
It is designed a safe protect pressurizer, it can protect emergentover pressure, especial construction can protect cylinder.
Hydraulic cylinder can bear partial loading is 5% of rated pressure.
High pressure alloy cylinderis very durable,especially in the larger project, it is easily to be operatedand control.
Tonnage: 50~1000Ton Stroke: 100~500mm

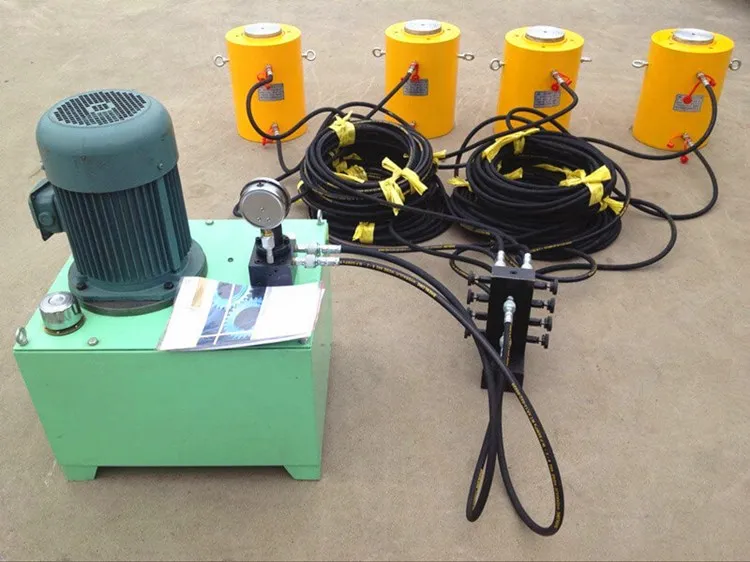

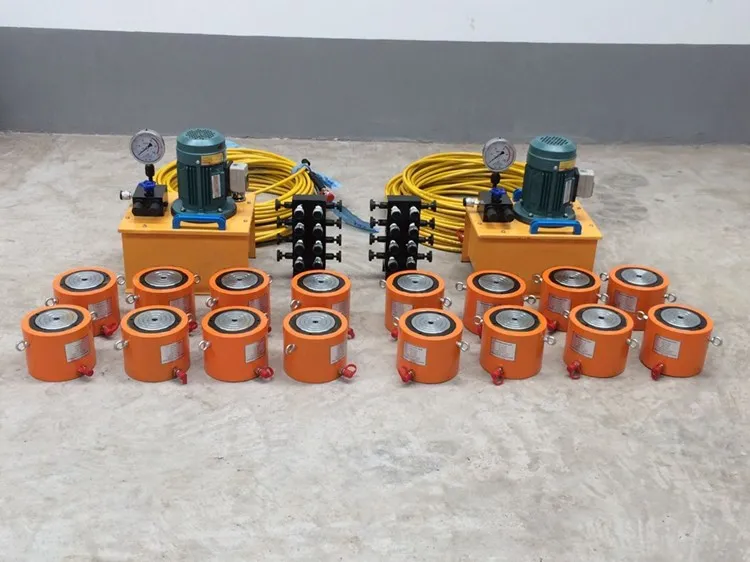

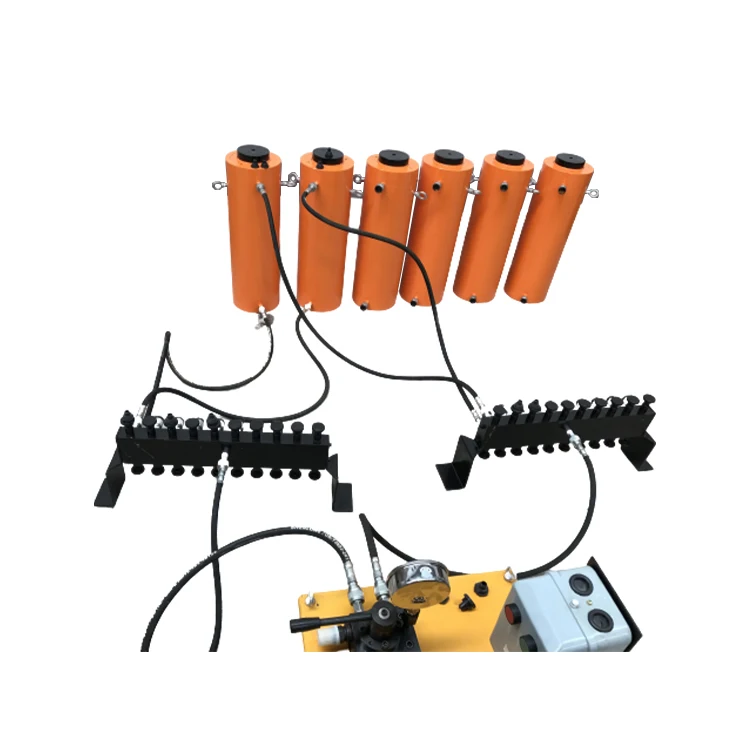

Specification: one pump with two jacks, one pump with four jacks, one pump with six jacks, one pump with eight jacks, one pump with ten jacks, one pump with twelve jacks, one pump with fourteen jacks, one pump with sixteen jacks.
We also can customize tonnage, stroke, height according to client’s requirements.
Application

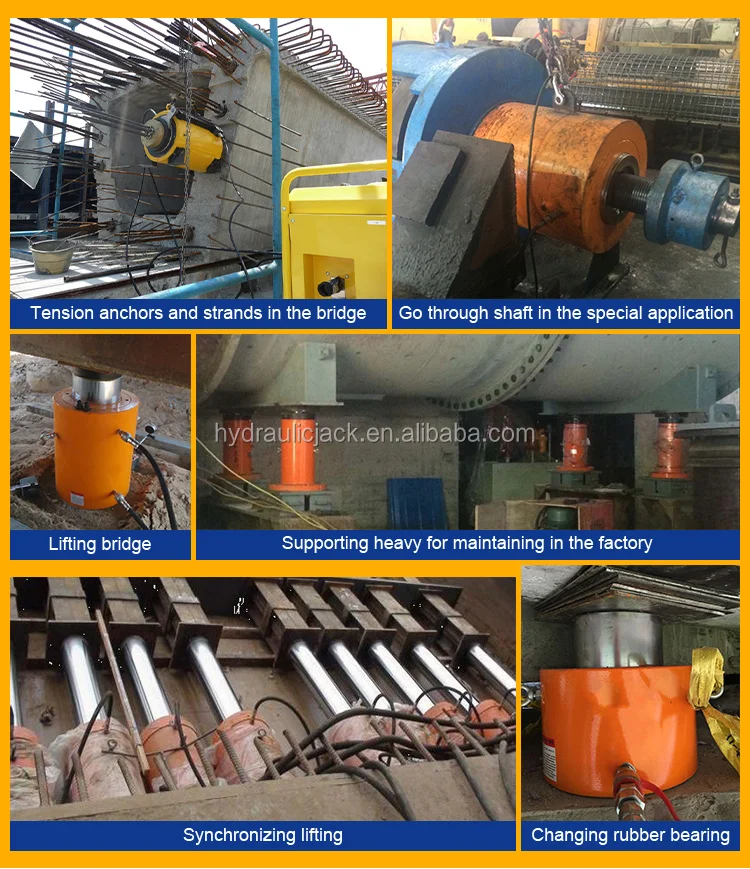

Synchronous Control Hydraulic Jack applications
1. Lifting Bridge, pushing tunnel.
2. Installing and debugging heavy equipment.
3. Lifting ship body, install or disassemble propeller, and install main machine.
4. Lifting or moving existing buildings.
5. Lifting and measuring drilling platform.
6. The synchronous press machine, horizontally move load etc.
Technical Parameters
Model
Tonnage T
Stroke mm
Closed height
mm
Extend height
mm
Outer diameter of oil cylinder mm
Dimension of plunger mm
Dimension of oil pump
mm
Weight kg
Pressure
Recommend electric oil pump
STQ50-100
50
100
225
325
127
70
100
35
63MPA
50T-200T 0.55KW 0.75KW 1.5KW 3KW 4KW 5.5KW
STQ50-160
160
285
445
39
STQ50-200
200
325
525
46
STQ50-300
300
425
725
48
STQ50-500
500
625
1125
63
STQ100-100
100
100
250
350
180
100
140
58
STQ100-160
160
310
470
63
STQ100-200
200
350
550
78
STQ100-300
300
450
750
96
STQ100-500
500
650
1150
130
STQ150-100
150
100
260
360
219
125
180
58
STQ150-160
160
320
480
69
STQ150-200
200
360
560
86
STQ150-300
300
460
760
103
STQ150-500
500
660
1160
255
STQ200-100
200
100
285
385
240
150
200
96
STQ200-160
160
345
505
103
STQ200-200
200
385
585
116
STQ200-300
300
485
785
161
STQ200-500
500
685
1185
221
STQ320-100
320
100
310
410
330
180
250
196
1.5KW 3KW 4KW 5.5KW
STQ320-160
160
370
530
240
STQ320-200
200
410
610
258
STQ320-300
300
510
810
311
STQ320-500
500
710
1210
456
STQ400-100
400
100
355
455
380
200
290
198
3KW 4KW 5.5KW 7.5KW
STQ400-160
160
415
575
231
STQ400-200
200
460
660
264
STQ400-300
300
555
855
367
STQ400-500
500
755
1255
456
STQ500-100
500
100
360
460
430
200
320
323
STQ500-160
160
420
580
330
STQ500-200
200
460
660
420
STQ500-300
300
560
860
581
STQ500-500
500
760
1260
599
STQ630-100
630
100
417
517
500
250
360
560
4KW 5.5KW 7.5KW 11KW
STQ630-160
160
477
637
633
STQ630-200
200
517
717
696
STQ630-300
300
617
917
898
STQ630-500
500
817
1317
1250
STQ800-100
800
100
488
588
560
300
400
896
7.5KW 11KW
STQ800-200
200
598
798
1040
STQ800-300
300
698
998
1380
STQ800-500
500
898
1398
1520
STQ1000-100
1000
100
530
630
600
320
450
1286
STQ1000-200
200
630
830
1332
STQ1000-300
300
760
1060
1663
We also can customize tonnage, stroke, heightaccording to client’s requirements. Contact Us

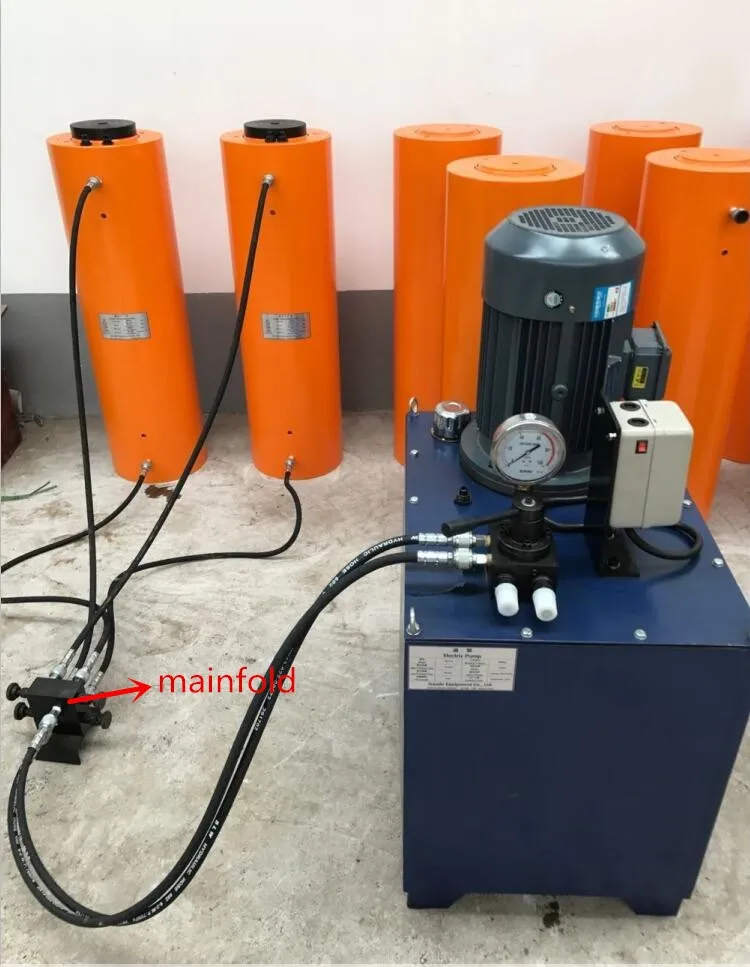

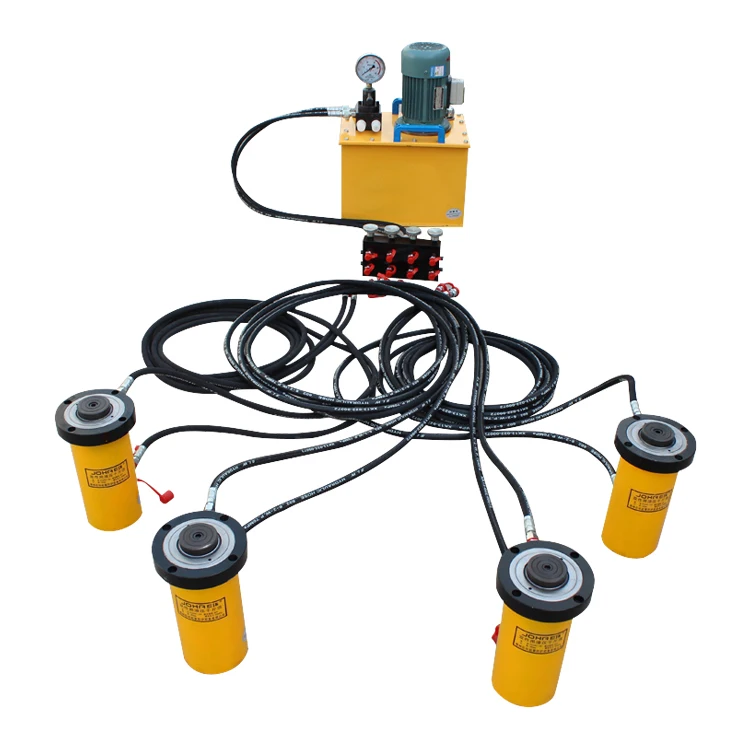

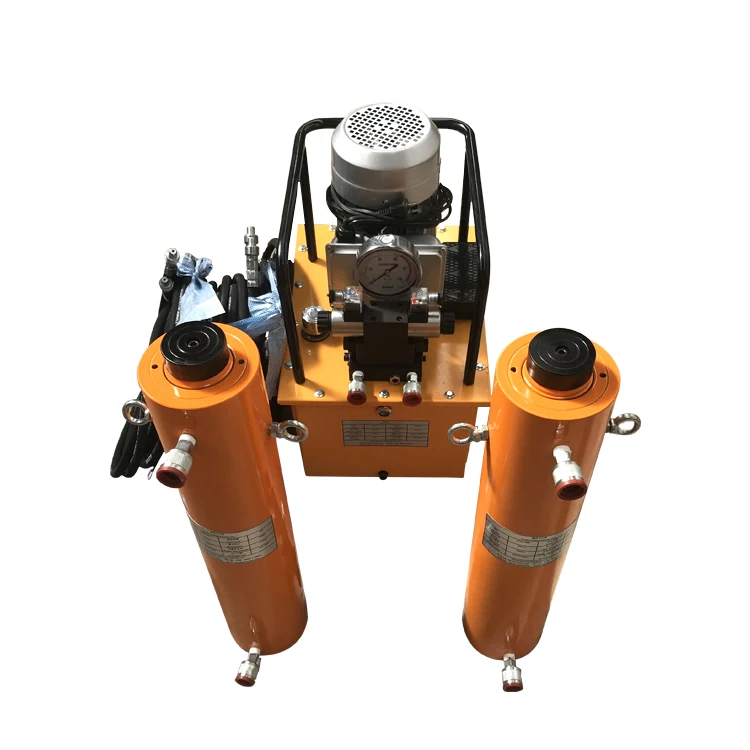

Detailed Images
Related Products
If you need large capacity works and piston return, you could choose large tonnage double acting hydraulic jack (50-2000 tons).
You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons).
If you want to install jack on the some working platforms, you need a flange type hydraulic jack(10-630 tons).
Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons).
Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack(12-100 tons).
Single acting hydraulic jackwith lock nut can be used for long time keep pressure work site(55-200 tons).
Ultra thin hydraulic jack is used for narrow work space (10-200 tons).
Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.
Hydraulic hand pump is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.
All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
1. First, hydraulic jack packaging is a bubble film packaging packaging. 2. The hydraulic jack packaging generally uses a square wooden box, which has better pressure resistance and impact resistance.
