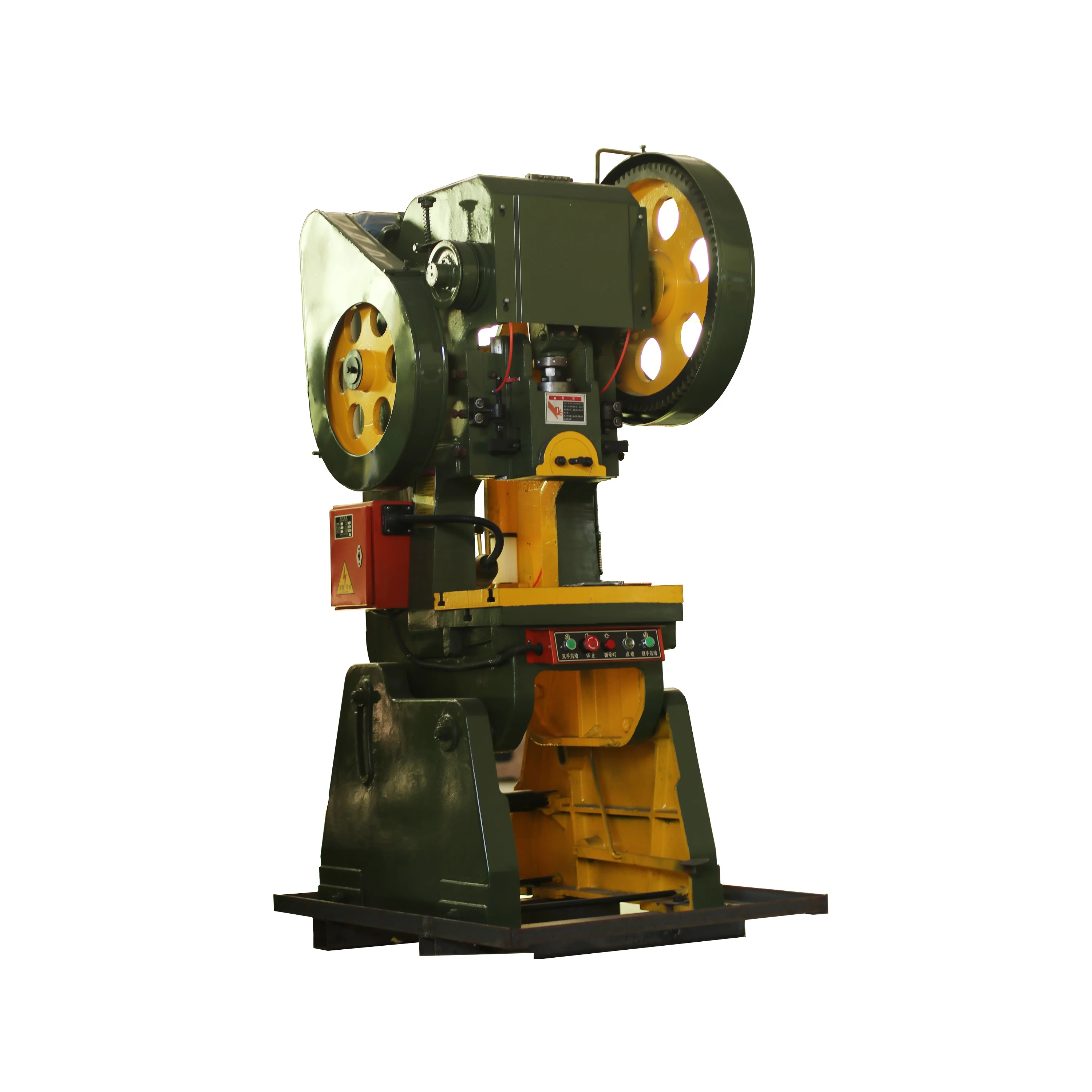

40ton J23 series inclinable eccentric small power press
- Category: >>>
- Supplier: Maanshan Haas International Trading Co. Ltd.
Share on (1600129772837):
Product Overview
Description
Machine Details
Gear
High temperature tempering, durable.
From:China
Click for details>>>>
》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》
Linkage
Transformation of lateral kinetic energy into circular kinetic energy
From: China
Understand more>>>>
》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》

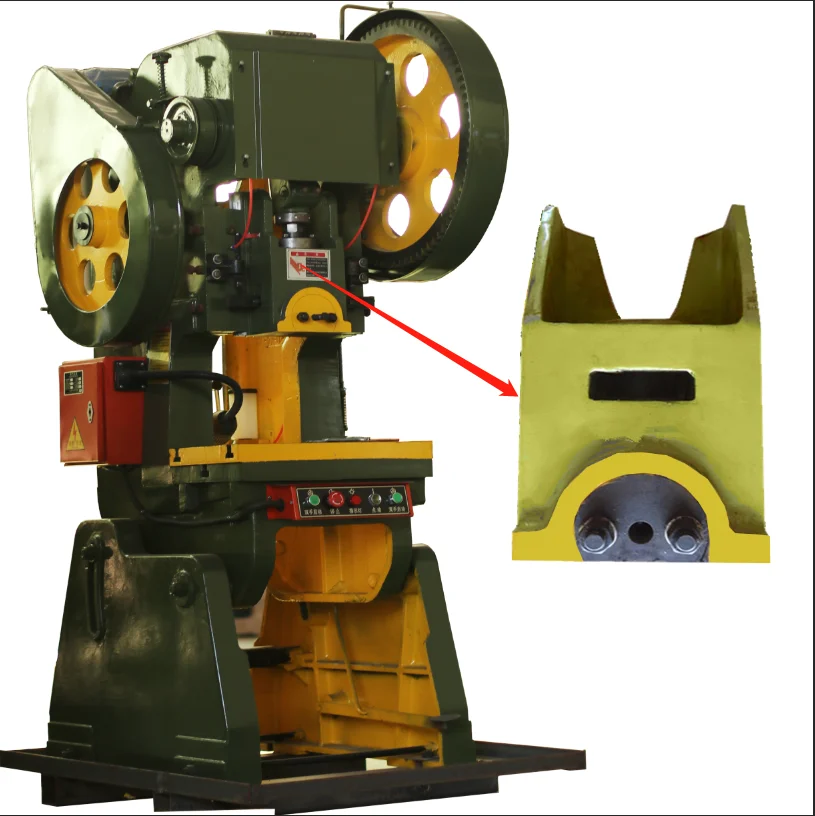

Slider punch
From:China
See more>>>>
》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》
Foot control
For more information, please contact me >>>>
》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》》
Technical parameters
Model | J23-10 | ||||||
Nominal Pressure(KN) | 100 | ||||||
Nominal Pressure Stroke(mm) | 2 | ||||||
Slider Stroke(mm) | 50 | ||||||
Slder Stroke Times(mm) | 140 | ||||||
Maximum closing height(mm) | 200 | ||||||
Closed height adjustment(mm) | 40 | ||||||
Distance from Slider Center to Machine Body(mm) | 130 | ||||||
Bolster Size(F.B*L.R) | 230*370 | ||||||
Bolster Blanking Hole Dia(mm) | 95 | ||||||
Slider Subface Size(F.B*L.R) | 100*145 | ||||||
Shank Hole Size(Dia*Depth) | 30*50 | ||||||
Columns Interval(mm) | 170 | ||||||
Bolster Thickness(mm) | 30 | ||||||
Max.Inclined Angle of Machine(°) | 20 | ||||||
Motor Power(KW) | 1.1 | ||||||
Motor Speed(R/min) | 1440 | ||||||
Machine Outline Size（L*W*H）（mm） | 740*600*1500 | ||||||
Weight(T) | 0.55 | ||||||
Machine structure description
1.The W11 three-high plate coil mill is mechanically lifted and driven. The upper roller can be separated and recycled. Various special side wheels can be installed according to customer requirements to realize the functions of rolling angle iron, rolling pipe and other special-shaped steel materials.

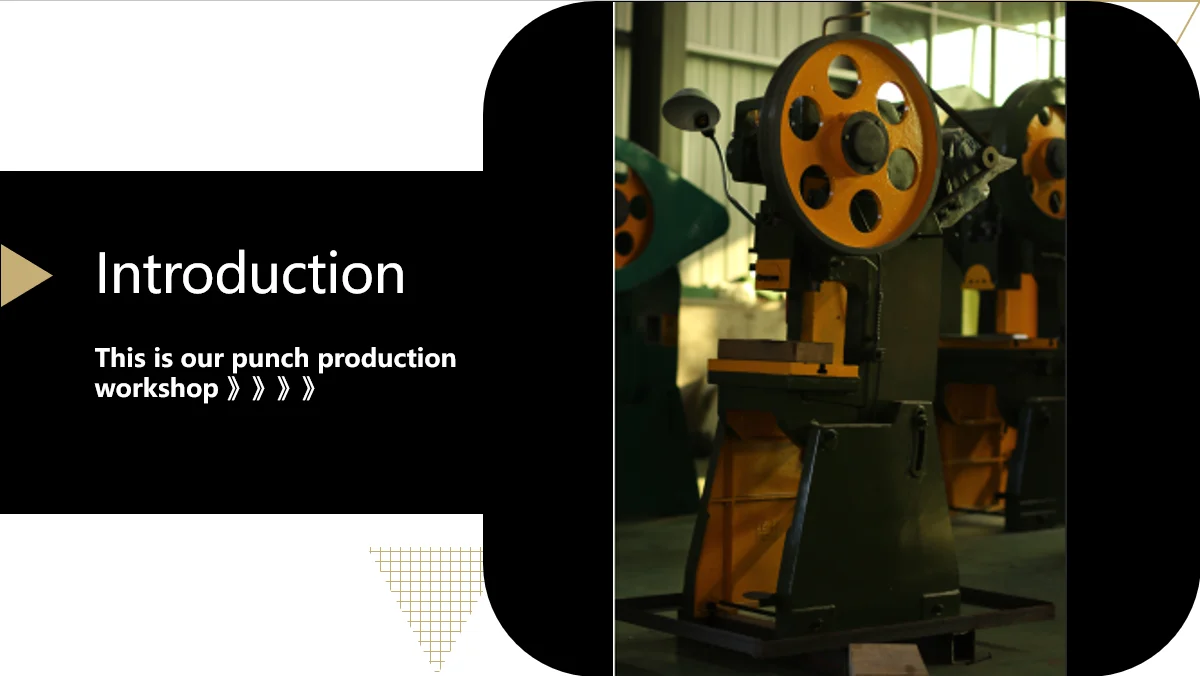

Our workshop
Delivery process
1.Buyer pays 30% advance payment.
The machine began to make processing.
The machine began to make processing.
Estimated number of days 15-20 days
2.After the machine is made, the buyer pays the remaining 70% of the amount.
The machine will be shipped to the Chinese port.
The machine will be shipped to the Chinese port.
About 2 days
The machine was transported to the ship after arriving at the port.
The machine was transported to the ship after arriving at the port.
About 1-2 days
At last :
The transportation time of the machine depends on the distance of transportation.
