Dairy Milk Cream Separator industry milk skimmer for cheese plant centrifugal pump

Product Overview

Description

milk skimmer/milk cream separator/milk degreasing Machine



Description of milk crea separator



It is a new machine used for remove fat and cream from milk, get the skim milk at last. In addition, it also can make milk more clean than before. It is can be used at home or factory. It is necessary machine for skim milk production.



The disc type centrifugal separator is designed for producing cream in milk processing line. With the advantages of high efficiency, large output, automation and the application of advanced technology,it is an essential equipment for food,beverage and some other industries,especially for milk processing industry.



It can also applies separation and detergency for similar liquids with some parts changed inside the separating bowl. It is able to separate and purify milk, oil, chemical liquid and medicine.

Its disc is electrically driven.According to different slag discharge methods,there are two

kinds of milk separators, manual separator and automatic separator controlled by PLC

system. It takes cream out of milk by using high rotating centrifugal force .And because of the proportion difference of the stuff,to heat milk to a certain proper temperature to separate the milk

into  buter, fat(light phase) and skim milk (heavy phase).









Detail Specs of Milk Skimmer:



Model	Clarify capacity (L/h)	Degrease capacity (50℃ milk L/h)	Drum diameter (mm)	Drum speed	Motor Power (KW)	Discharge way	Separator factor	Output Pressure	Weight (kgs)	Dimension (mm*mm*mm)
HH-MK203	1500	500	230	8300	3	Manual	6170	100-350	255	850*720*1000
HH-MK204	2000	500~1000	260	7300	4	Semi-auto	6950	100-350	550	830*610*1150
HH-MK207	5000	1000~1500	360	6300	7.5	Semi-auto	7000	100-350	680	1000*920*1280
HH-MK309	8000	2000~2500	400	5900	11	Full-auto	7500	100-350	980	1190*960*1400
HH-MK312	10000	3000~3500	470	6520	15	Full-auto	10000	100-350	1150	1360*964*1500
HH-MK315	12000	4000~5000	500	4500	18.5	Full-auto	9500	100-350	1350	1365*990*1550

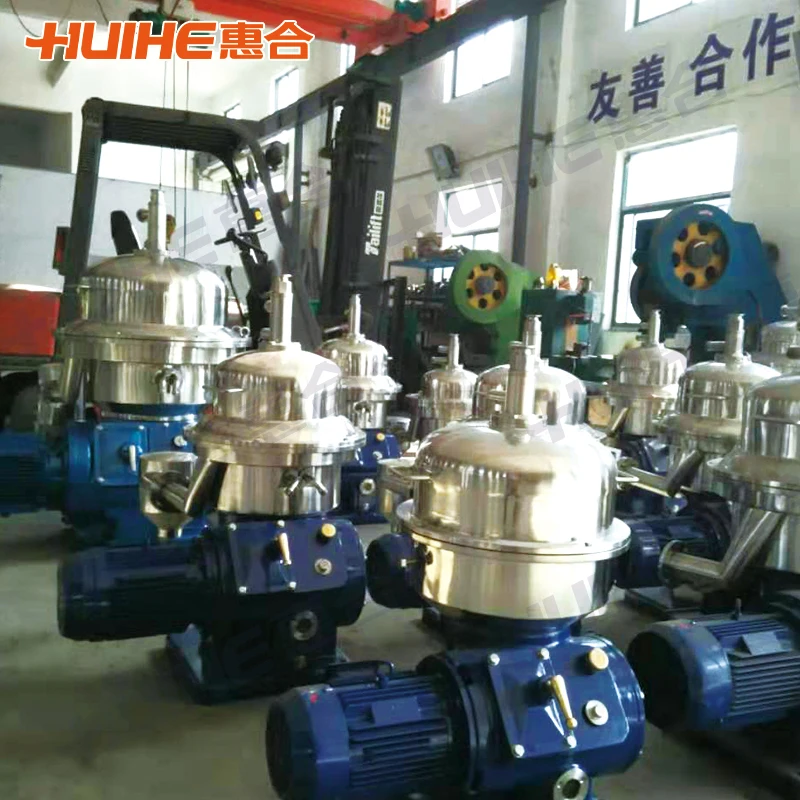

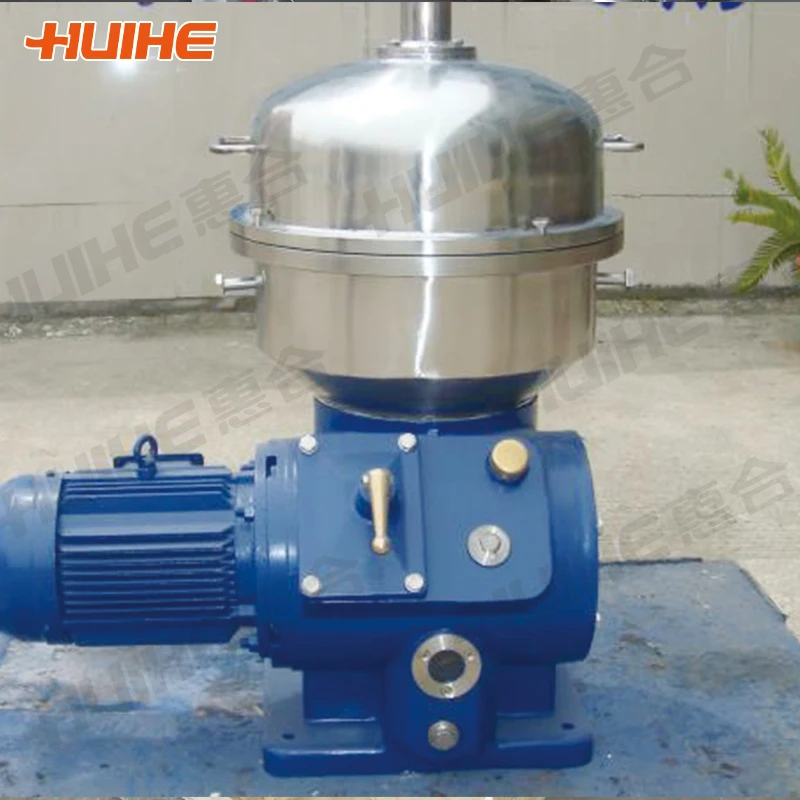

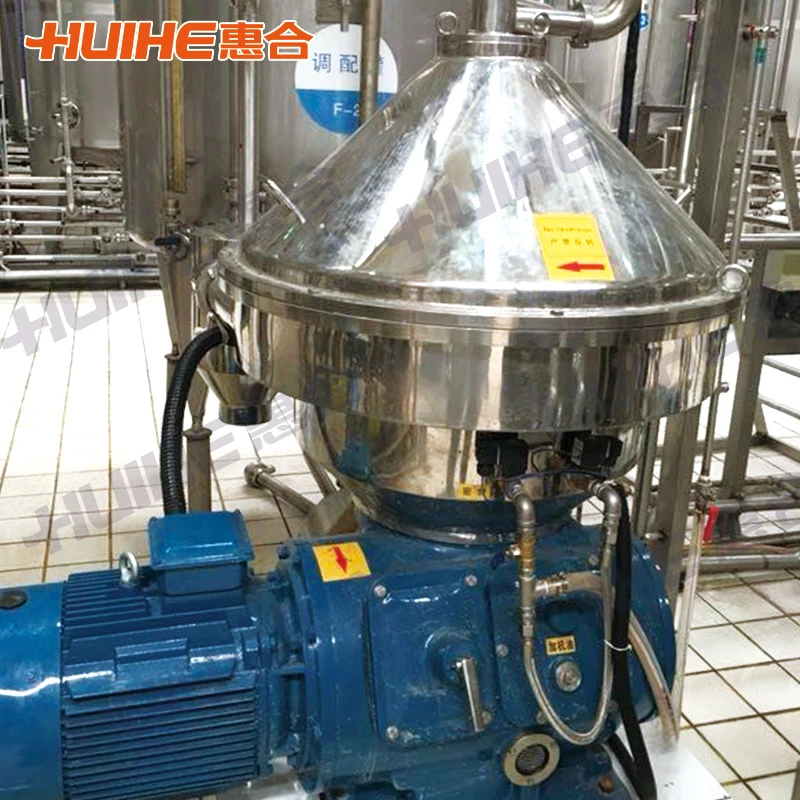

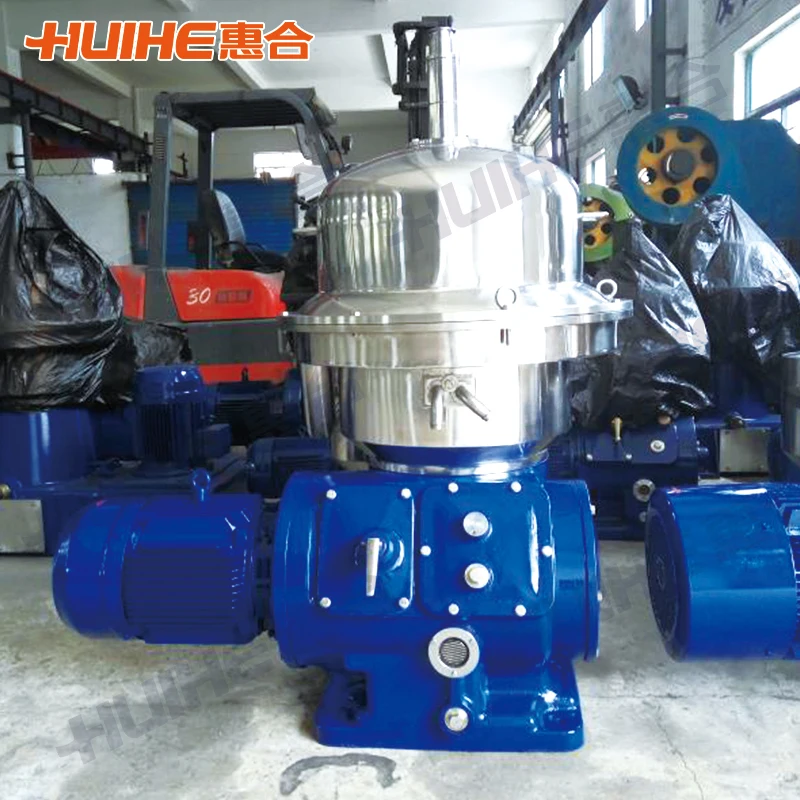

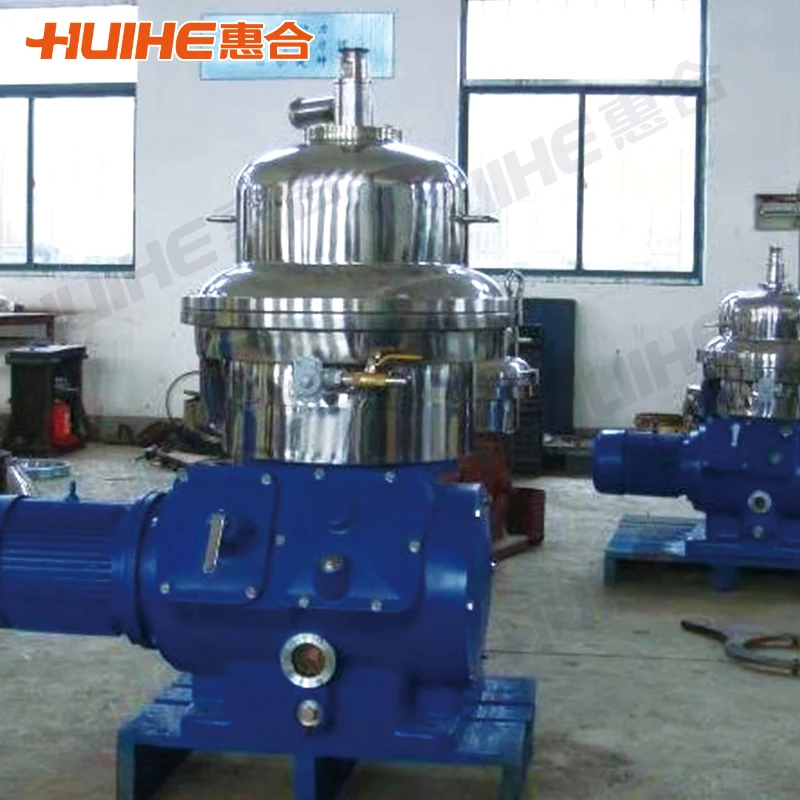

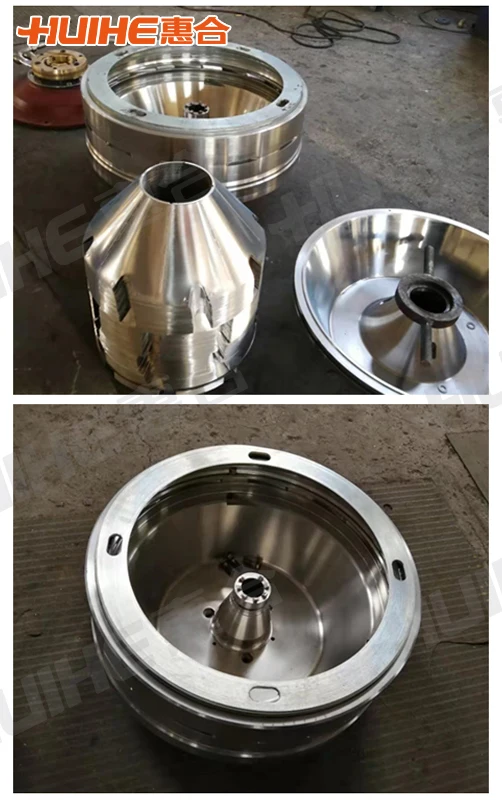

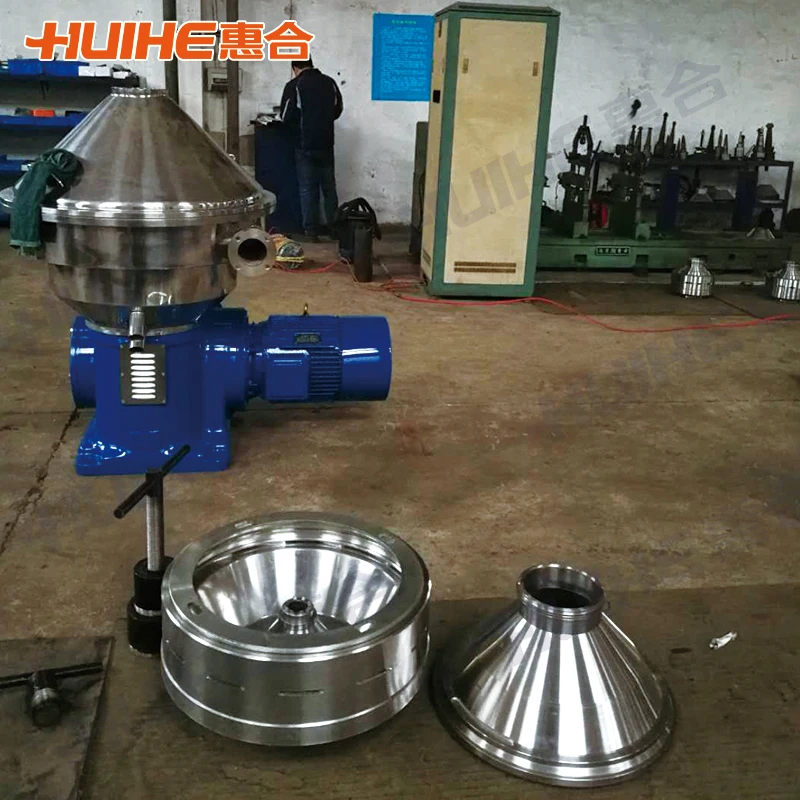

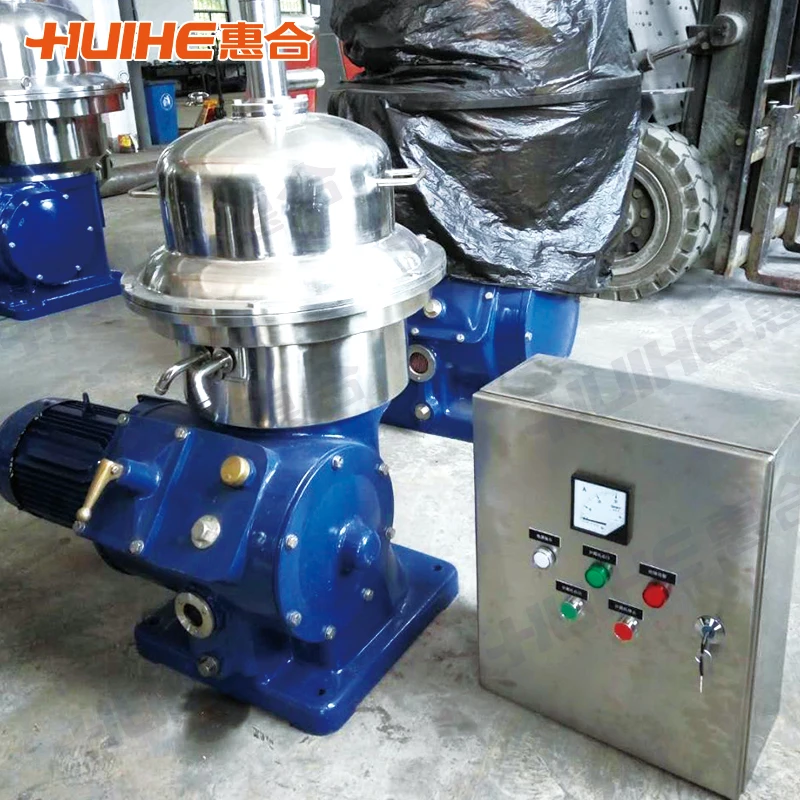

Detailed pictures:



CE Certification:

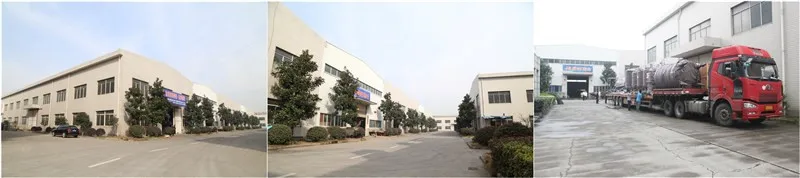

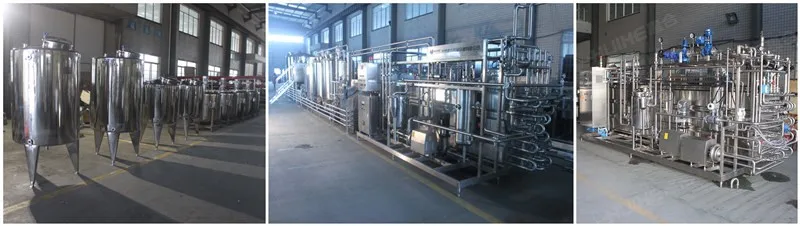

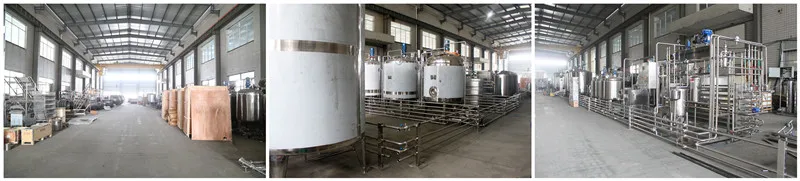

Factory and office:

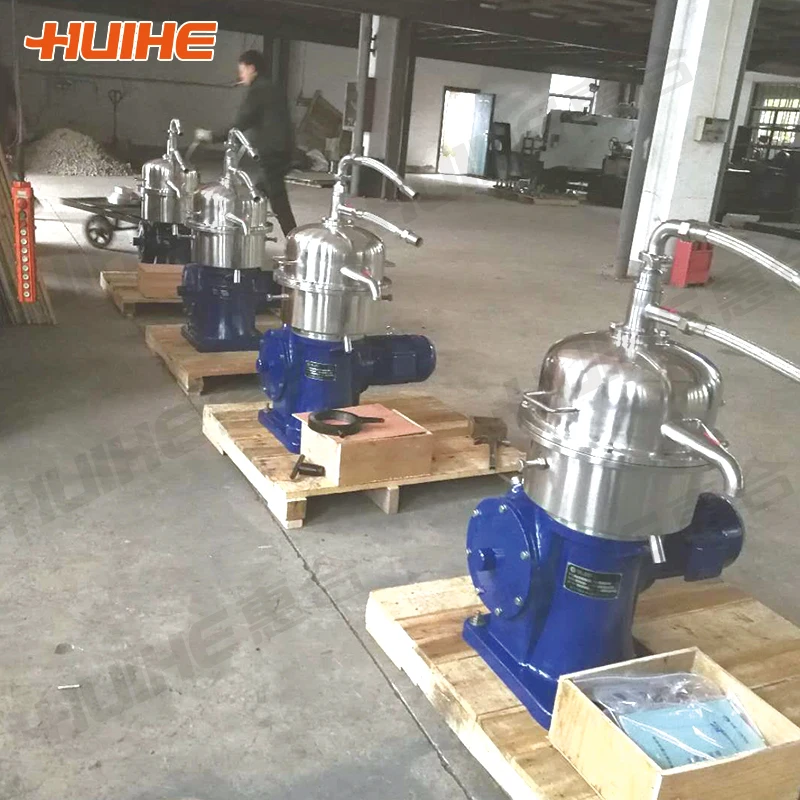

Packing and shipping:
