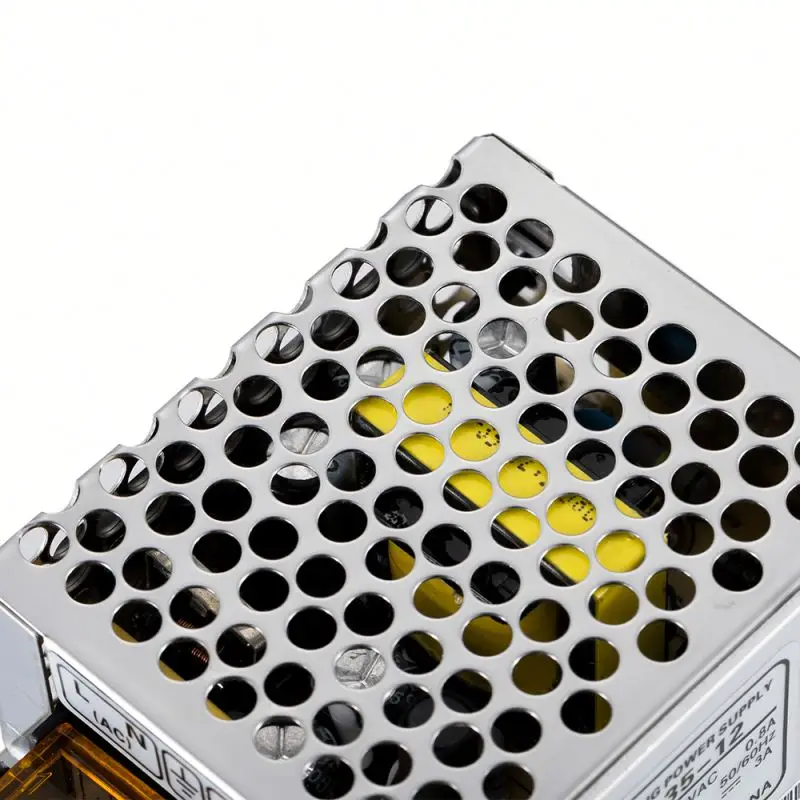

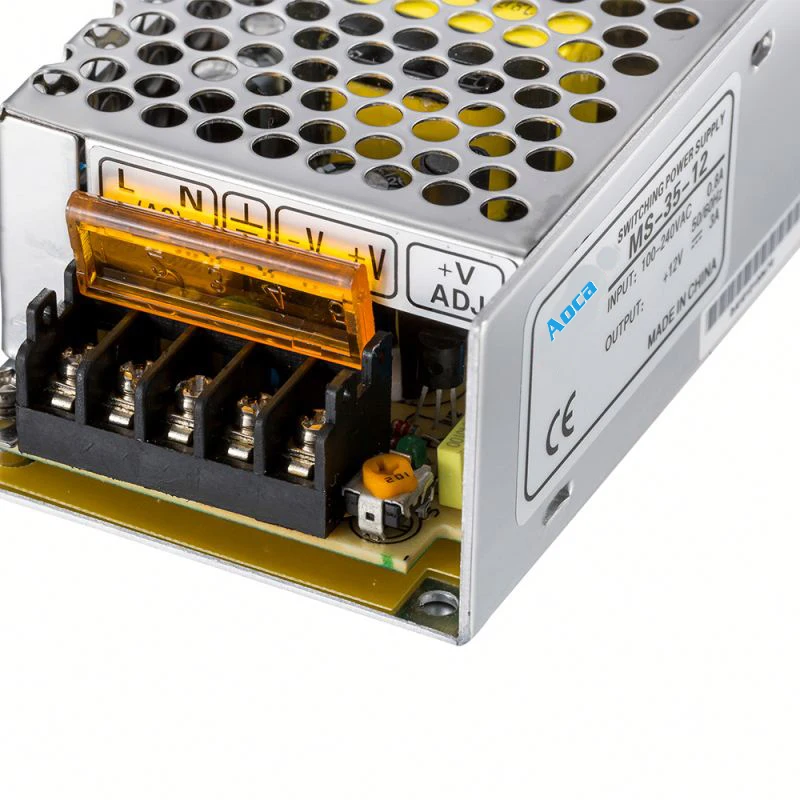

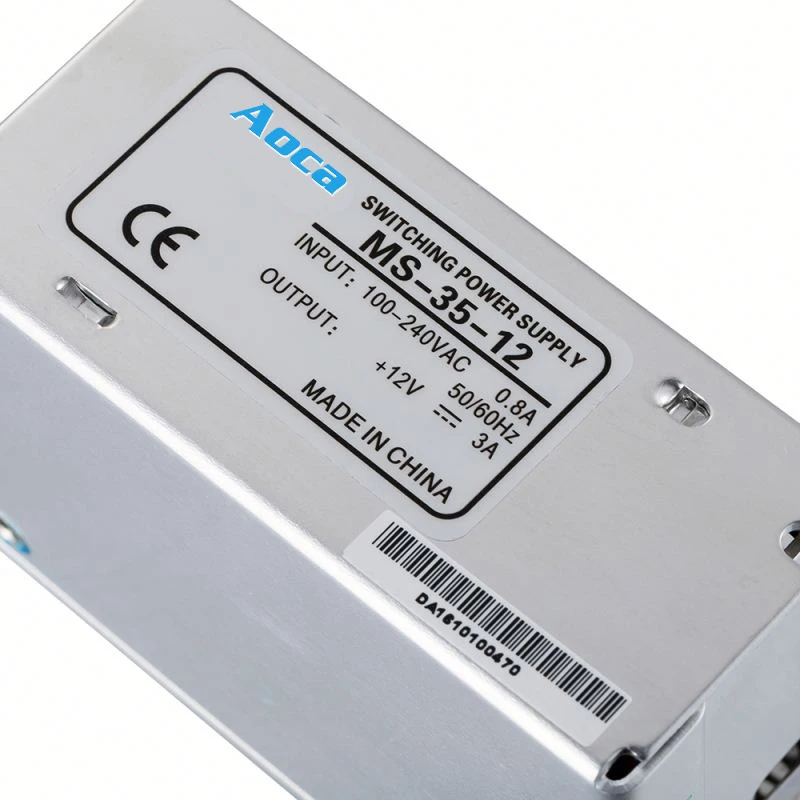

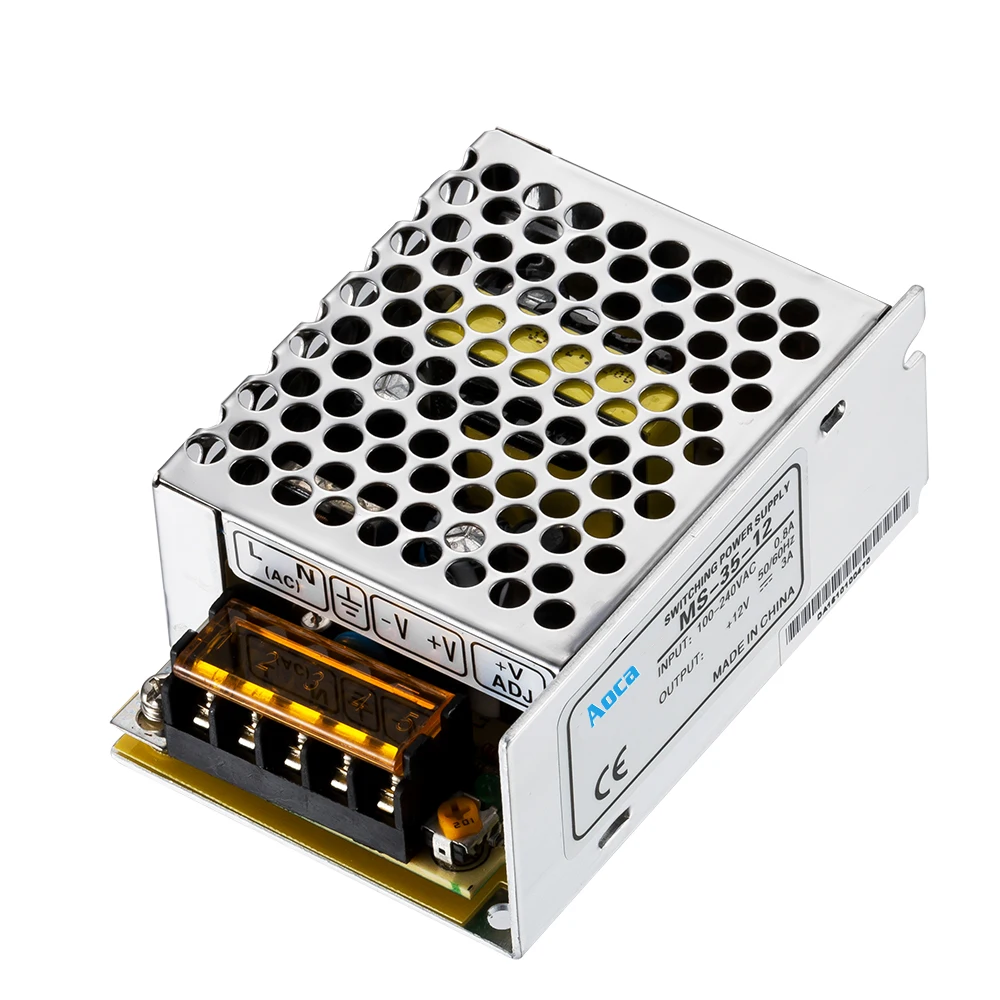

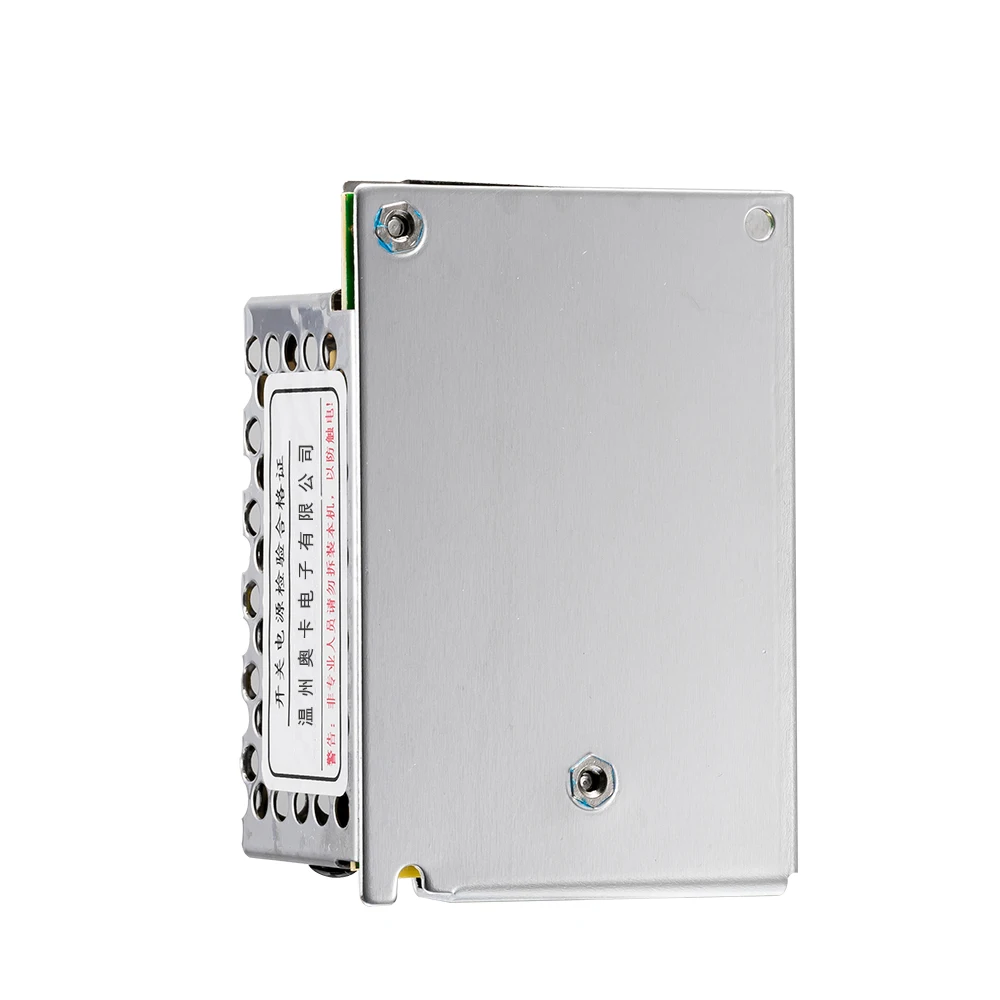

Accept quality service mini size 35w 110v/220vDC input mini size 12volt power supply
- Category: >>>
- Supplier: Wenzhou Aoca Electronic Co. Ltd.
Share on (1600130458086):
Product Overview
Description
Product Description
Product Paramenters
Model | MS-35-5 | MS-35-12 | MS-35-15 | MS-35-24 | MS-35-48 | ||||
Dc output voltage | 5V | 12V | 15V | 24V | 48V | ||||
Rated output current | 6A | 3A | 2.33A | 1.5A | 0.72A | ||||
Output current rage | 0~6A | 0~3A | 0~2.33A | 0~1.5A | 0~0.72A | ||||
Rated Power | 30W | 36W | 34.95W | 36W | 34.56W | ||||
Wave and noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | ||||
Voltage ADJ. range | 4.5-5.5V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 43.63-52.8V | ||||
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% | ||||
Efficiency | 68% | 71% | 72% | 75% | 75% | ||||
AC input voltage range | AC85~264V 47~63Hz;240~370VDC | ||||||||
AC INnrush current | Cold-start 30A/230V | ||||||||
Overload proctection | 110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd | ||||||||
Setup rise time | 200ms ,50ms , 20ms/230VAC at full load | ||||||||
Hold up time | 200ms ,50ms , 20ms/230VAC at full load | ||||||||
Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KV 1minute | ||||||||
Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ | ||||||||
Working temperature | -10°C~+50°C | ||||||||
Overall dimension | 84*58*38mm | ||||||||
Safety standards | Meet ULGB4943 UL60950 EN60950 | ||||||||
EMC standards | Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B | ||||||||
Weight | 0.21Kgs | ||||||||
Application Field
About Us
Certifications
Packing & Delivery
FAQ
Q1:How many year warranty of your Led driver?
A:Two years.
A:Two years.
Q2:What is your MOQ of switch power supply?
A:Our MOQ is 1 piece.
A:Our MOQ is 1 piece.
Q3:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.
A:Sure.Your Logo can be puted on our products by sticker.
Q4:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
Q5:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order
