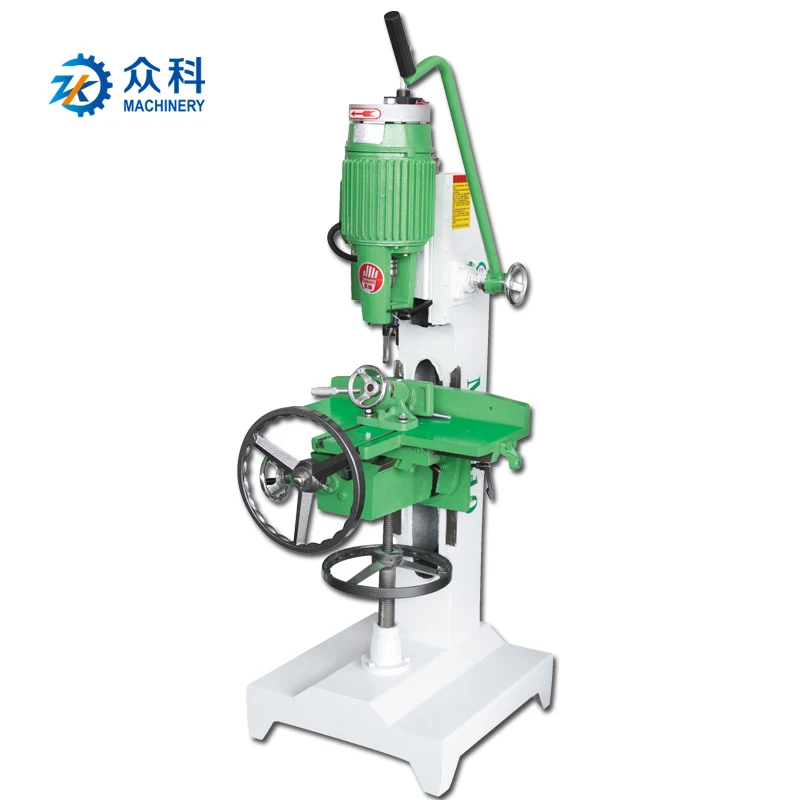

Square hole drilling machine/Woodworking vertical square drill machine for solid wood drilling square holes
- Category: >>>
- Supplier: Foshan ZK Machinery Co. Ltd.
Share on (1600130541388):
Product Overview
Description
Product Description

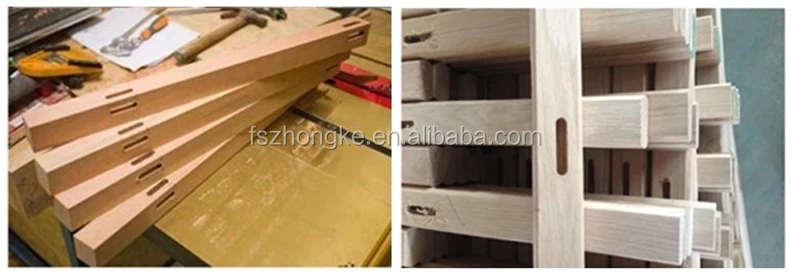

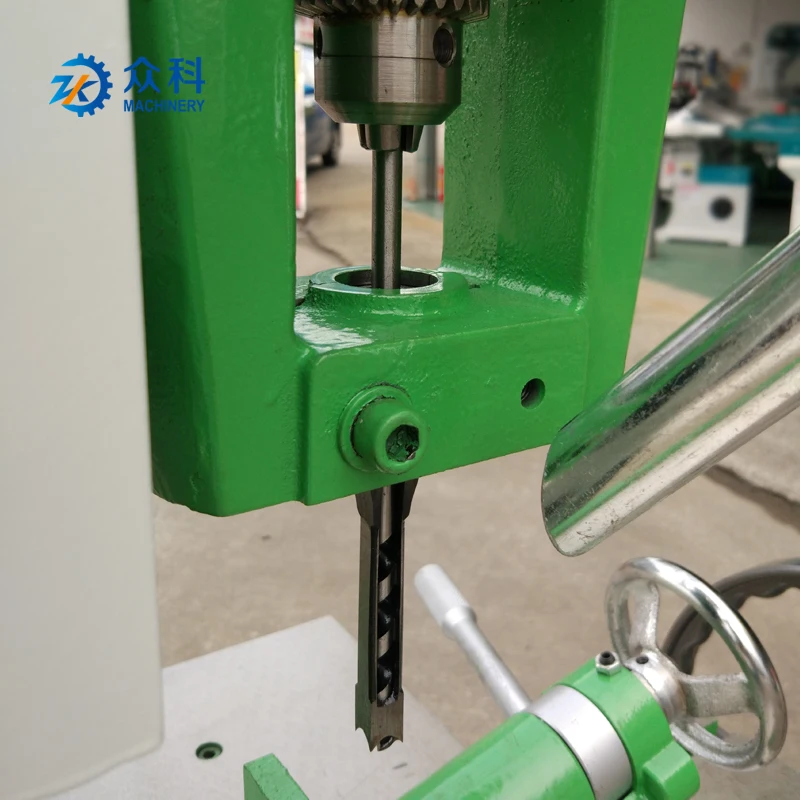

This machine is mainly used for square or rectangular groove processing of parts or components such as wood and wooden frames. It differs from the drill press mainly in the use of special tools, which are made up of a combination of a drill bit and a square chisel, which is mounted in a hollow square chisel. During the machining, while the drill bit is rotating, the hollow square chiseling is used for the reciprocating feed motion, thereby processing the desired square or rectangular groove.
Product Paramenters
Specification Of Square Drilling Machine | ||
Worktable horizontal travel | 450mm | |
Worktable vertical travel | 150mm | |
Worktable tilting angle | 0-30° | |
Max infeed stroke | 100mm | |
Diameter of drill bit | 1-13mm | |
Spindle rotating speed | 2840r/min | |
Motor power | 2.2kw | |
Weight of machine | 200kg | |
Overall size（L×W×H) | 500×530×1500mm | |
Features
1. Simple and convenient, easy to operate.
2. High precision, can handle large and small wood, accurate and reliable.
3. Flexible working form, efficient work machine.

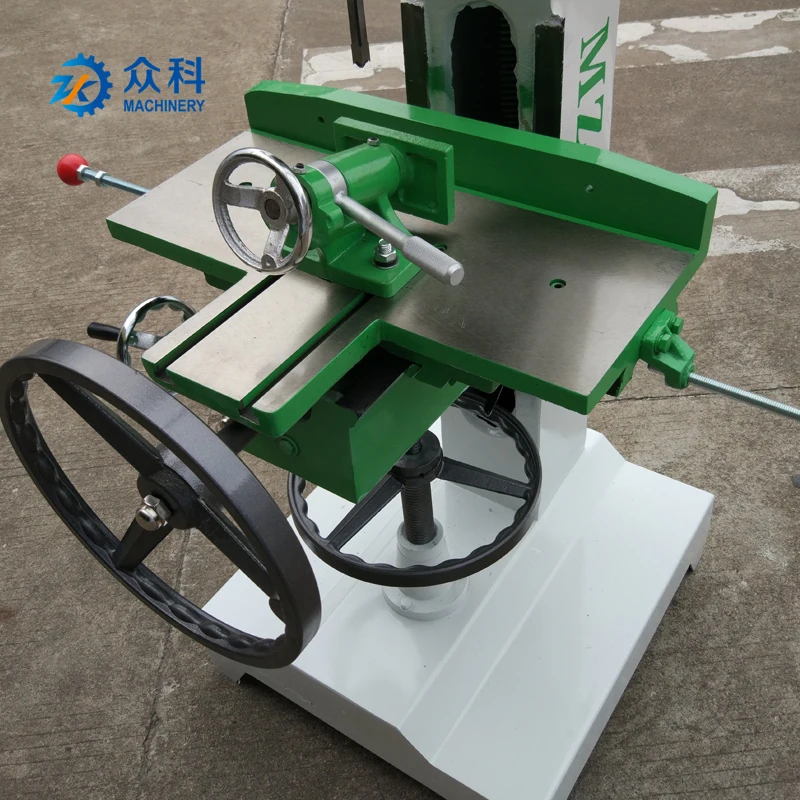

4. The table can be adjusted in angular position with an adjustable angle of 0-30°.
5. Applied to woodwork for chiseling, square shape mortising and drilling.
6. Widely used in wood processing of various furniture factories.
2. High precision, can handle large and small wood, accurate and reliable.
3. Flexible working form, efficient work machine.
4. The table can be adjusted in angular position with an adjustable angle of 0-30°.
5. Applied to woodwork for chiseling, square shape mortising and drilling.
6. Widely used in wood processing of various furniture factories.

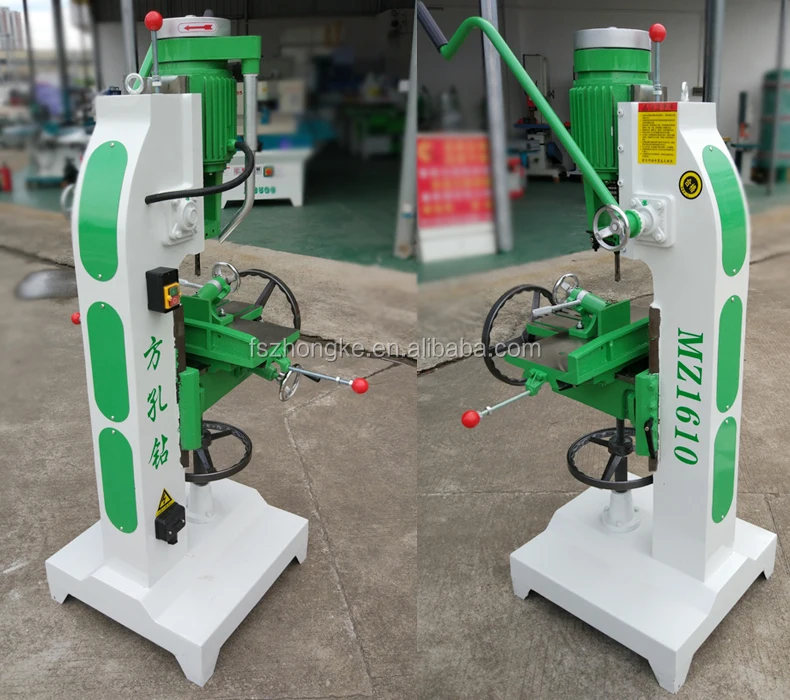

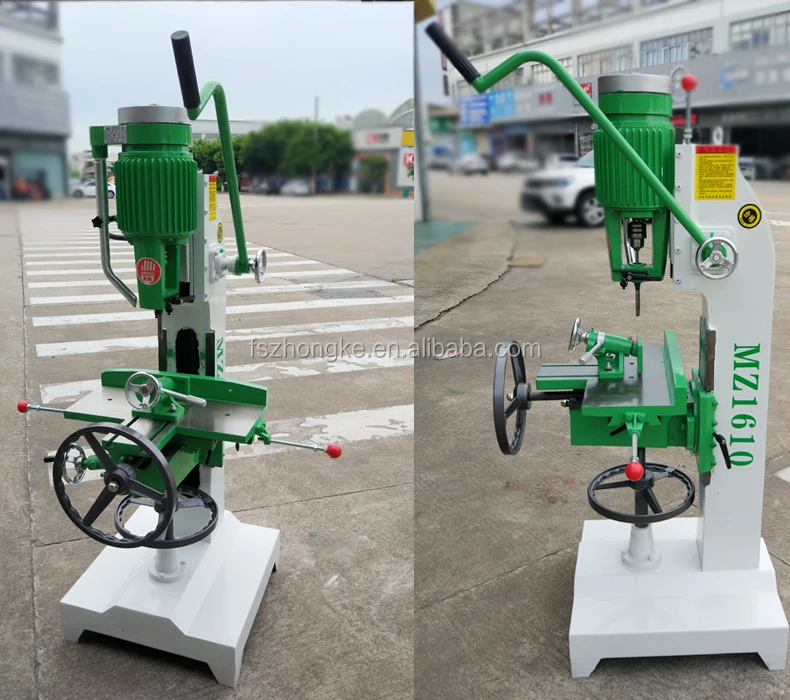

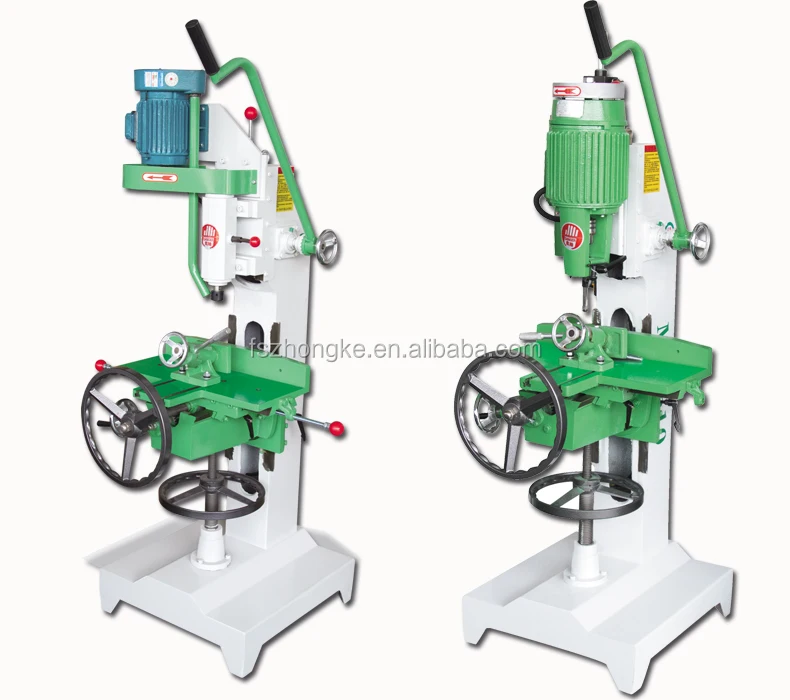

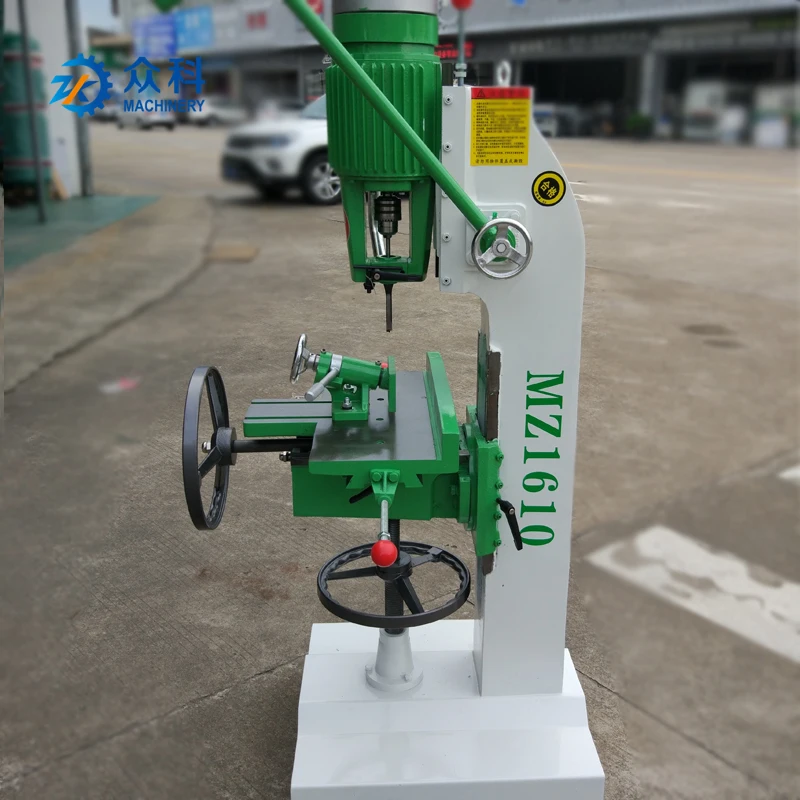

Products Show
Our Company
Packing & Delivery
Packing Details : Packing with plastic film, plywood case for optional
Delivery Details : 5-10 days after receive the payment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
