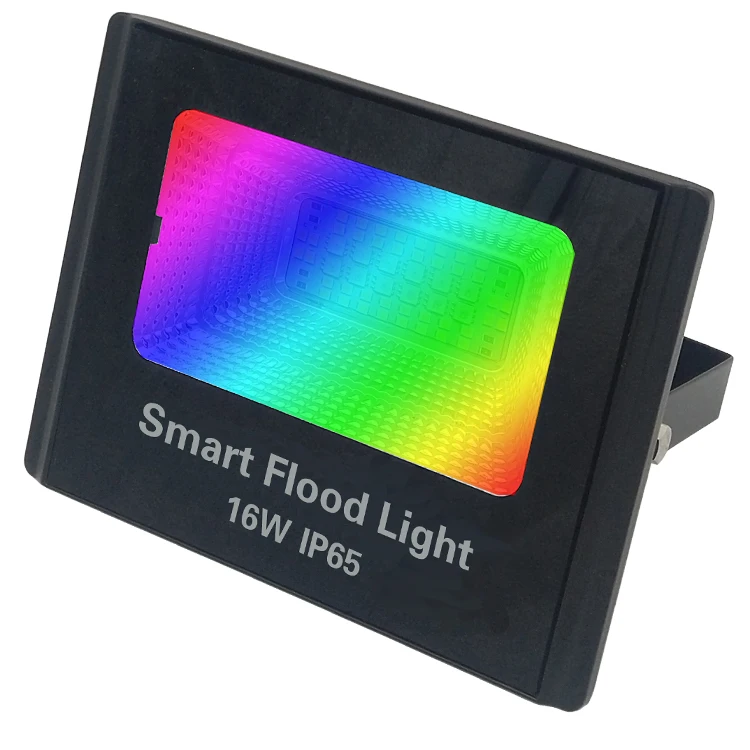

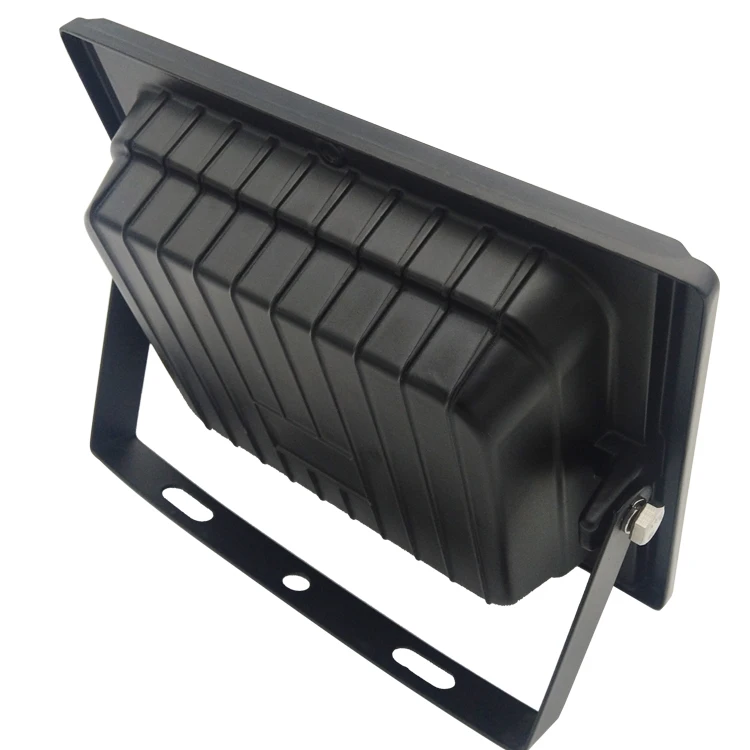

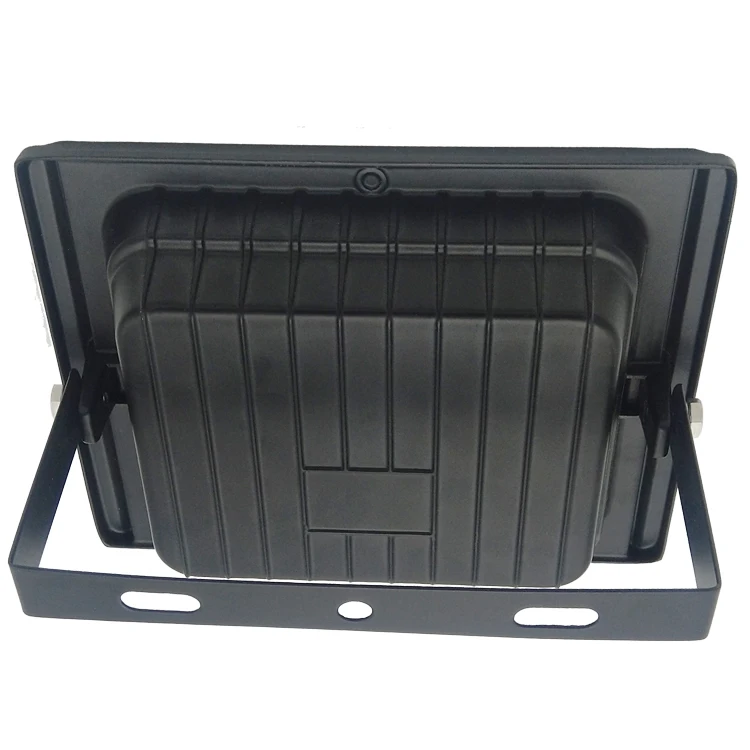

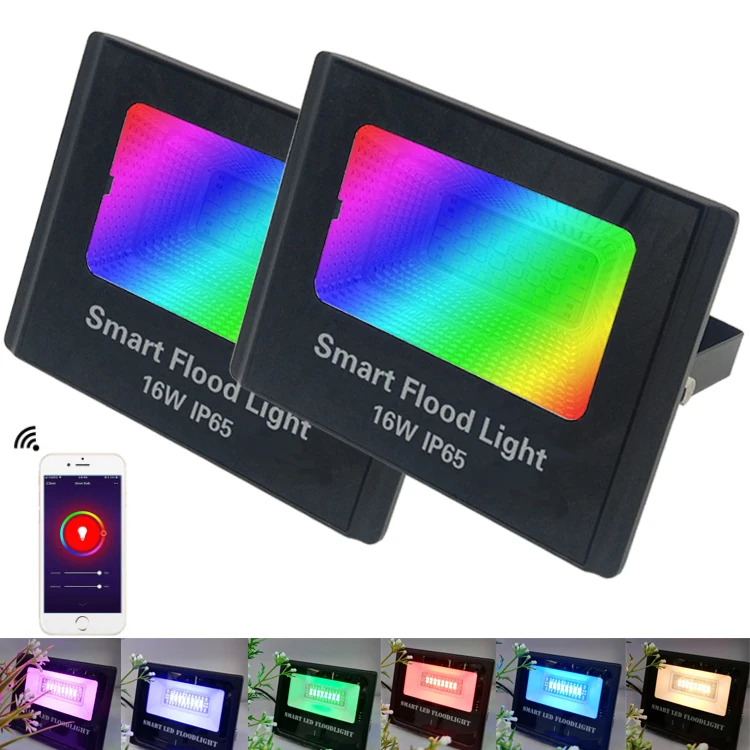

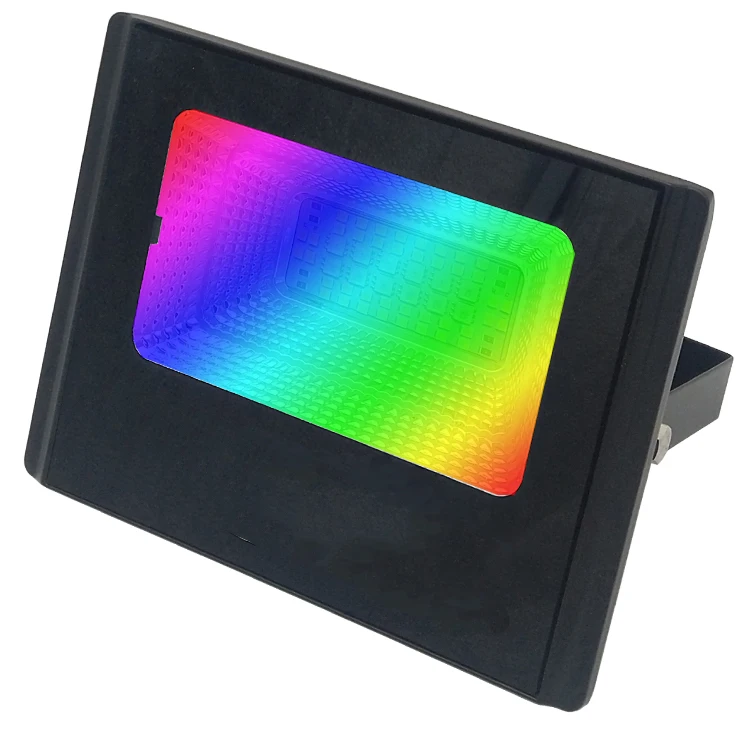

16Million Music RGBW 60W BLE App Control LED Flood Lights Outdoor Led Landscape Lightings RGBW wifi Smart Floodlights
- Category: Flood Lights >>>
- Supplier: Zhongshan Sunye Lighting Tech Co. Ltd.
Share on (1600130786647):
Product Overview
Description
Product Description
Specification
16W Floodlight Specification
Wattage:16W Working life(h):25000
Voltage:85-265V Ra:>80
Lumen:1500-1600 Waterproof Rate:IP65
Color temperature:RGB+CCT
Size:184*143*43mm
Materials :Aluminum alloy+Glass
Single weight :0.716kg
2.INPUT CHARACTERISTICS:
2.1 Input Voltage:
Rated Voltage:220Vac
Variation Range:85-265Vac
2.2 Input Frequency:
Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
2.3 Input Current:
0.19Amps max At 85 Vac and 0.06 Amps max At 265 Vac.
2.4 Inrush Current:
20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.3.PROTECTION FUNCTION:
3.1 Short circuit protection:
The power supply will be auto recovered when short circuit faults remove.
4、ENVIRONMENTAL REQUIREMET:
4.1 cooling
Cooling shall be with natural convection cooling
4.2 Operating Temperature:
0℃ to 40℃,Full load, Normal operation.
4.3 Storage Temperature:-10℃ to 60℃
With cover
4.4 Relative Humidity:
5%(0℃)~85%(40℃)RH, 5%(0℃)~85%(40℃)RH,non-condensing, Full load Normal operating.
4.5 Vibration:
1. Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm
(9~200Hz,Acceleration 5m/S2)
2. Transportation:
IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz, Acceleration=5m/S2
200~500Hz, Acceleration=15m/S2
3. Axes,10 cycles per axis.
2.1 Input Voltage:
Rated Voltage:220Vac
Variation Range:85-265Vac
2.2 Input Frequency:
Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
2.3 Input Current:
0.19Amps max At 85 Vac and 0.06 Amps max At 265 Vac.
2.4 Inrush Current:
20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.3.PROTECTION FUNCTION:
3.1 Short circuit protection:
The power supply will be auto recovered when short circuit faults remove.
4、ENVIRONMENTAL REQUIREMET:
4.1 cooling
Cooling shall be with natural convection cooling
4.2 Operating Temperature:
0℃ to 40℃,Full load, Normal operation.
4.3 Storage Temperature:-10℃ to 60℃
With cover
4.4 Relative Humidity:
5%(0℃)~85%(40℃)RH, 5%(0℃)~85%(40℃)RH,non-condensing, Full load Normal operating.
4.5 Vibration:
1. Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm
(9~200Hz,Acceleration 5m/S2)
2. Transportation:
IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz, Acceleration=5m/S2
200~500Hz, Acceleration=15m/S2
3. Axes,10 cycles per axis.
