2022 charcoal carbonization furnace/charcoal making furnace/activated carbon making machine

Share on:

Price in USD:Details


Product Overview

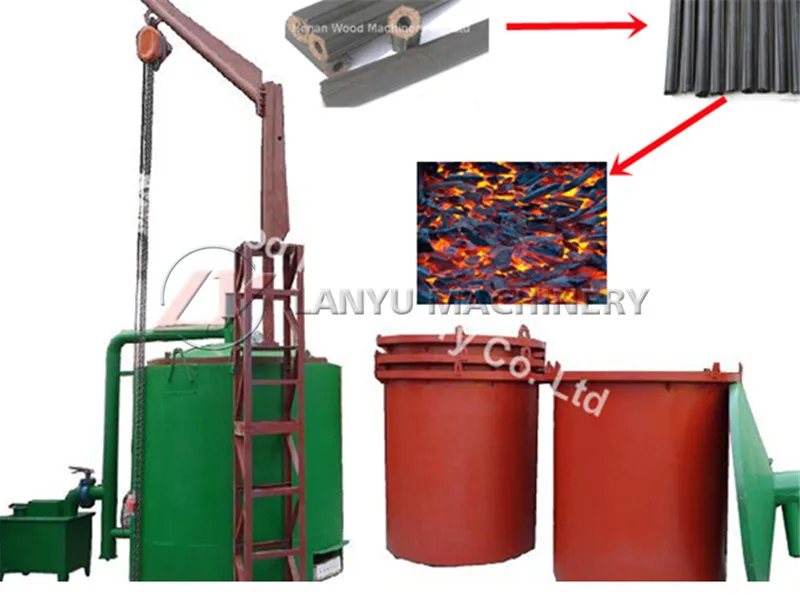

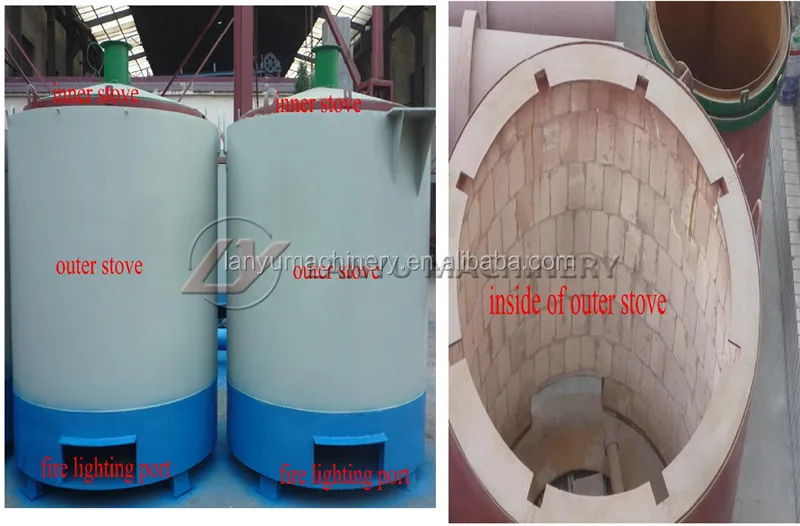

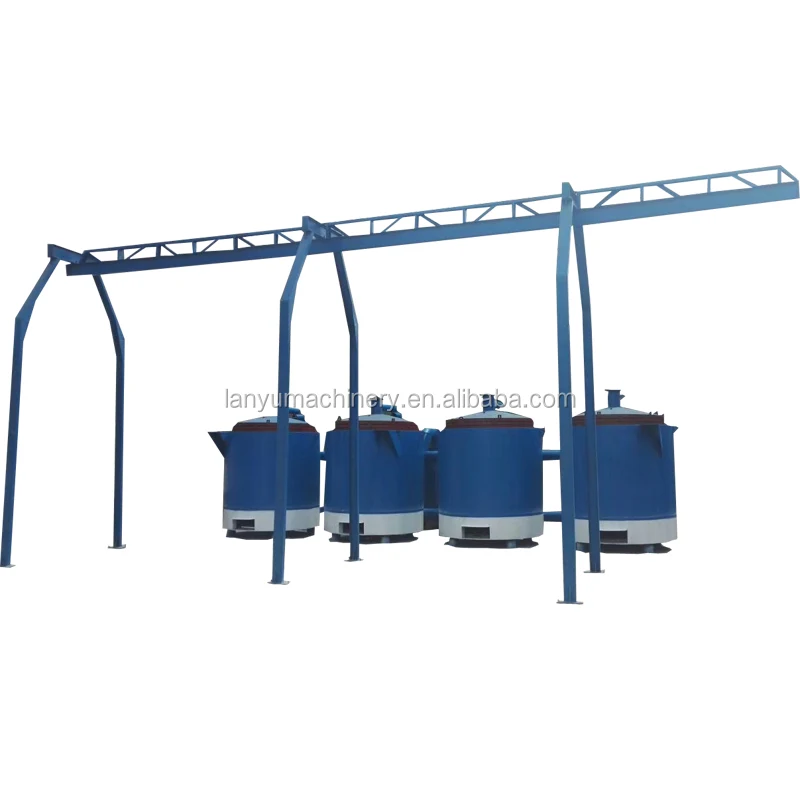

Product Description of Hoisting Charcoal Furnace
Hoisting carbonization furnace is a new invention of LanYu's environmental protection smokeless carbonization furnace equipment. The composition of the hoisting carbonization furnace comprises a furnace body, a furnace cover, a heating chamber, an exhaust pipe, a carbonized inner tank arranged in the furnace body, and a sealing cover arranged on the carbonization inner tank. The upper edge of the carbonization inner tank is fixed with a downward turning ring flange. The downward turning ring flange is fastened to the ring sealing ring fixed on the upper part of the furnace, and the hoisting ear is fixed on the side wall of the carbonization inner tank, the sealing cover on the carbonization inner tank and the furnace cover respectively. The inner tank of the carbonization furnace is separated from the combustion chamber because the continuous work can be realized by using the activated carbonization inner tank. The whole structure is simple and novel, the operation is simple and safe.

The carbonization process of hoisting carbonization furnace
1. drying stage: from the beginning of ignition combustion furnace temperature up to 160℃, this stage also belongs to the dehumidification stage, mainly depends on the heat generated by external combustion to dehumidify, this stage log or other raw materials chemical composition has hardly changed.
The initial stage of
2. carbonization: this stage mainly depends on the external calorific value, furnace temperature rise between 160~280°c. In this case, the wood thermal decomposition reaction, the composition began to change. The unstable components include carbon dioxide decomposed by hemicellulose and a small amount of acetic acid and other substances.
3. complete carbonization stage: temperature 300~650℃. At this stage, raw materials are rapidly decomposed to produce a large amount of acetic acid, methanol and wood tar and other liquid products. also produced methane, ethylene and other combustible gas, combustible gas by conveying to the bottom of the furnace for heating, the temperature in the furnace rises, and the raw rod produces carbon rod at high temperature.

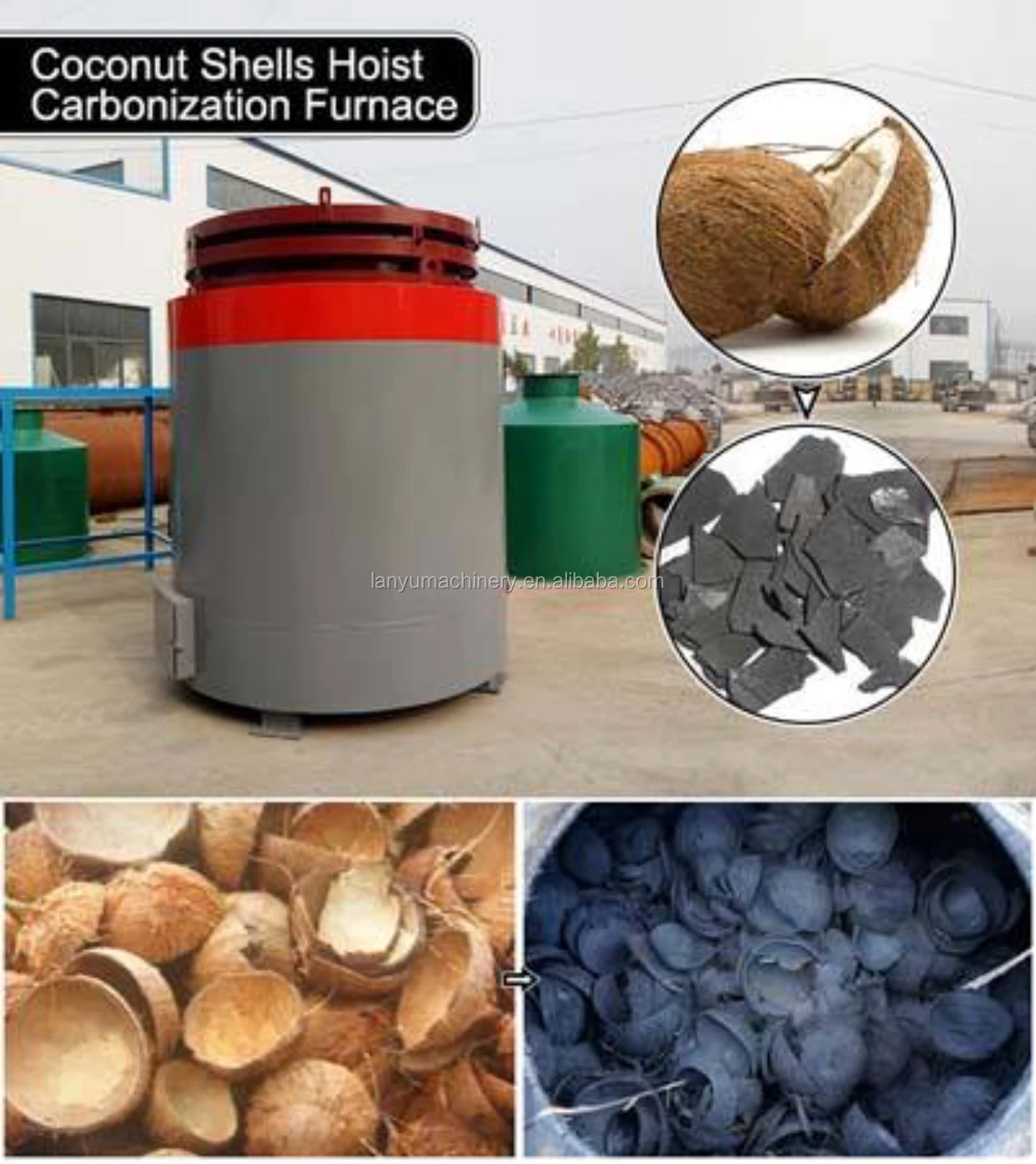

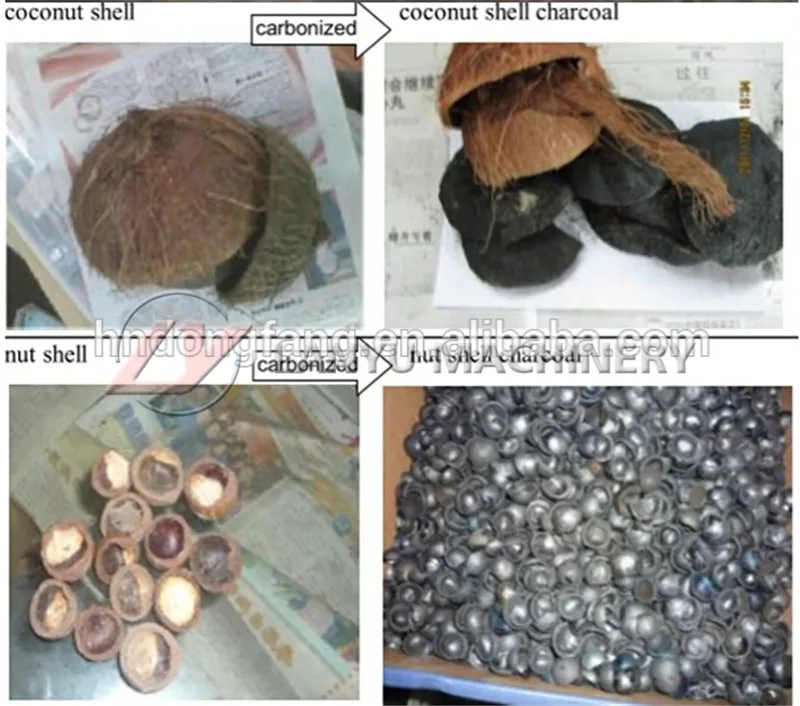

Coconut shell carbonization furnace
Coconut shell carbonization furnace is a direct carbonization equipment for coconut shell or all kinds of fruit shell containing wood fiber, because there are more coconut shell or palm shell materials in Malaysia, Philippines, Vietnam and other regions. In order to deal with these wastes, LANYU Machinery Factory has developed a new coconut shell carbonization furnace.

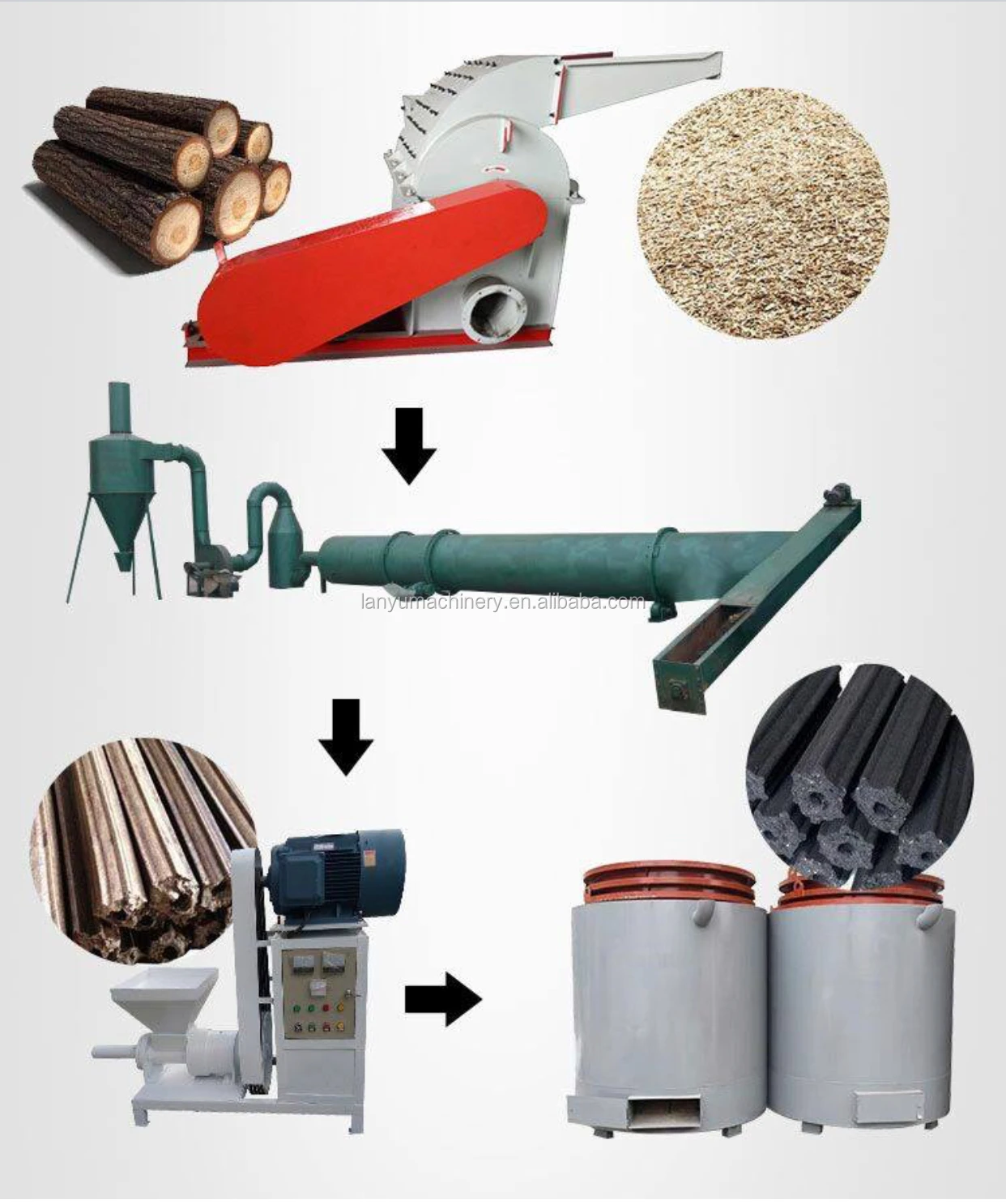

wood powder crusher machine
Air flow dryer machine for sawdust
wood briquette machine

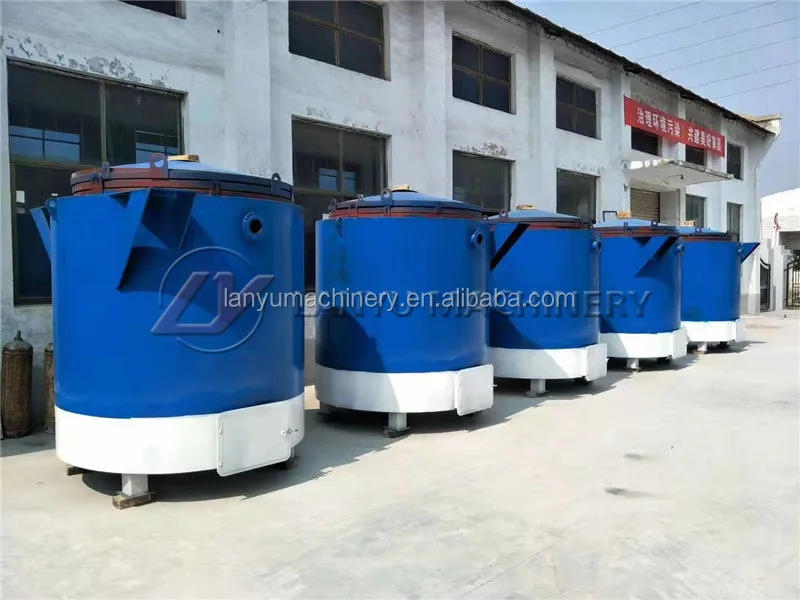

Hoist carbonization furnace
Air flow carbonization furnace

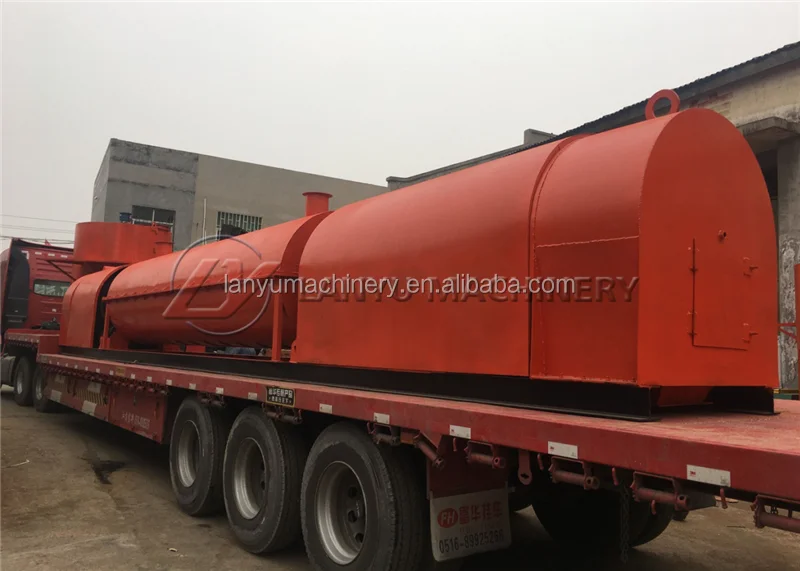

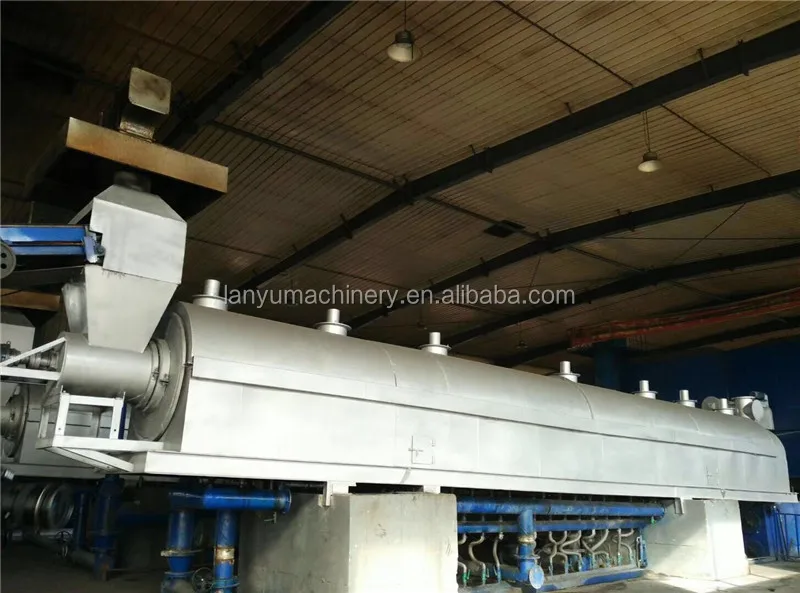

Rotary carbonization furnace


Place of Origin
Local Service Location
Canada, Peru, Indonesia, Thailand, Malaysia, Morocco, South Korea, Algeria, Romania, South Africa, Kazakhstan
Video outgoing-inspection
Machinery Test Report
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing
Brand Name
Henan Lanyu
Effective Volume
1 Year
After-sales Service Provided
Online support
Key Selling Points
Easy to Operate
Applicable Industries
Building Material Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining
After Warranty Service
Video technical support, Online support, Spare parts
Showroom Location
Philippines, Peru, Indonesia, Thailand, South Korea, Sri Lanka, Romania, Uzbekistan
Raw material
Coconut Shell
Airflow Carbonization Furnace
Product name
Hardwood Charcoal Carbonization Stove
Biomass Charcoal Directly
Customer's Request
Carbonization time
6-8 Hours
Charcoal Making Kiln

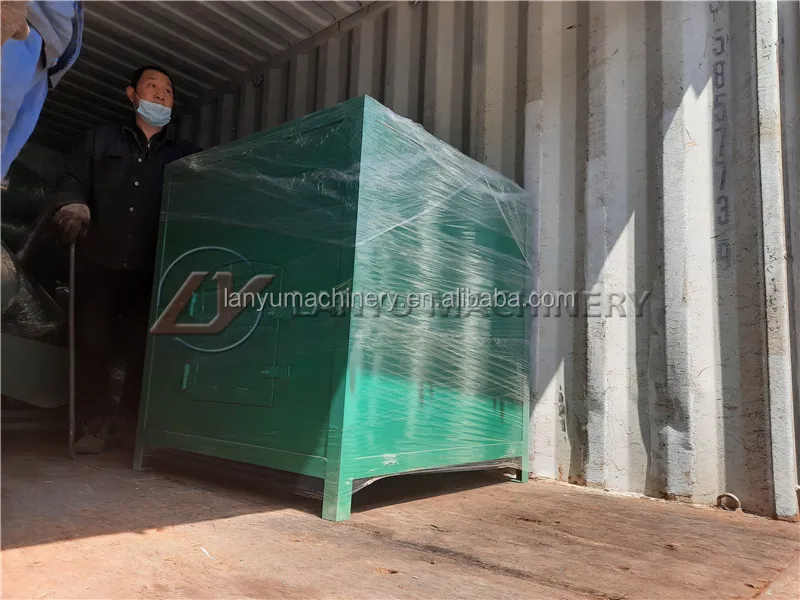

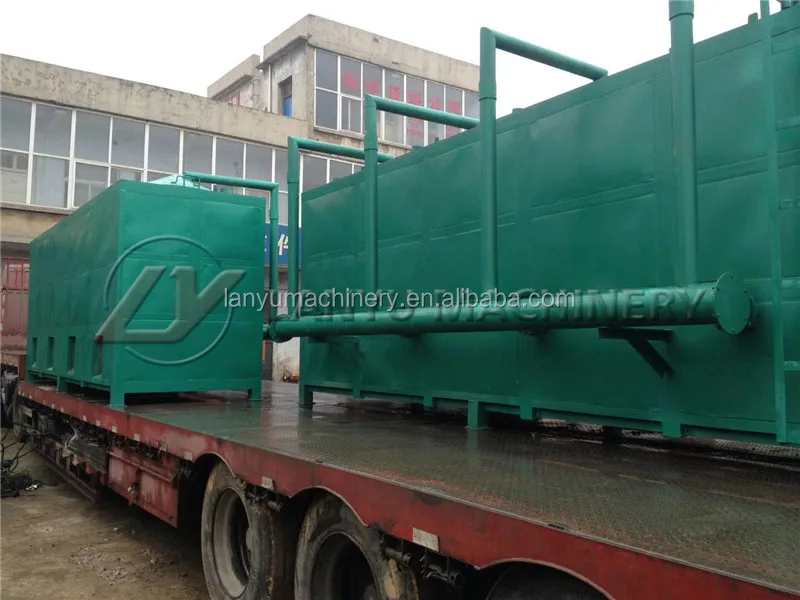

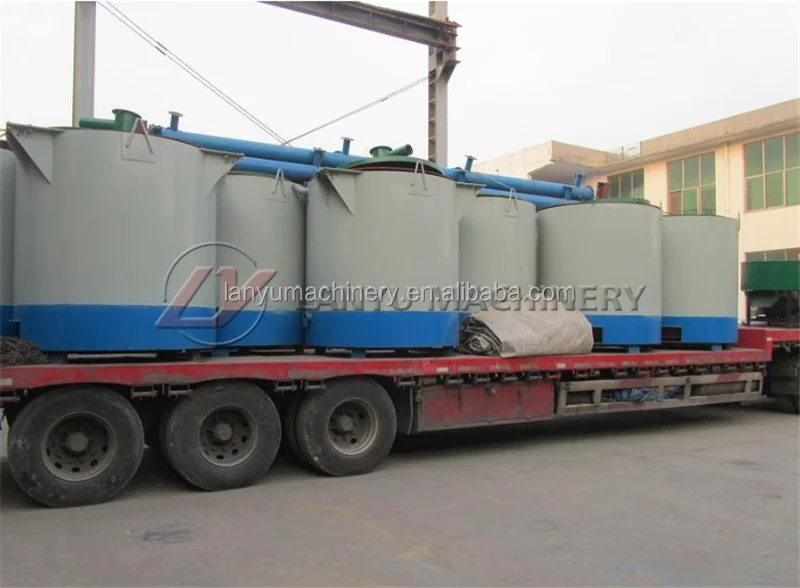

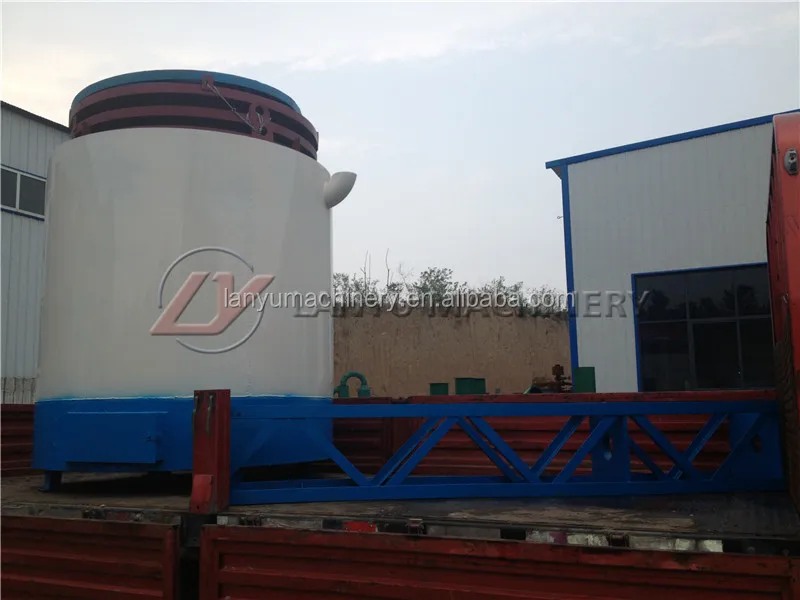

Packing & Delivery

Company Profile

Henan Lanyu Machinery Equipment Co., Ltd. is a joint-equity enterprise that has been integrated research and manufacturing mining machinery, building material making machinery. The headquarter is located in 20 meters south of the intersection of Longhai road and Tongbai road and it covers 50000 square meters and owns two standard heavy industrial buildings of 15000 square meters and 160 sets of large, medium-sized equipments for gold processing, rivet welding and assembling. Since 1985, the company has obedienced to the scientific management method of the modern enterprise, and with precise manufacture and constantly innovation, Lanyu is devoting to be a dazzling pearl of the machinery industries in China.
Our company owns more than 160 sets of the professional producing equipments, and establishes the advanced world level production line and modern testing ground, and also has established sandstone, grinding flour, mining, bricking and coal equipment research offices. The company attaches great importance to the new products and new technology development, winning six national invention patents and eight national practical and modern patents. Our company actively absorbs the foreign advanced management ideas and builds the professional team.
Our company has owned a large number of senior talents, which includes 6 D Econ, 10 MBA administrators, 30 engineers, more than 100 graduates of key colleges, 100 senior technicians and more than 1000 online staffs.
Our company has always paid attention to the international technology exchanges and cooperation and successfully introduced the advanced technology and processes of the United States, Germany, Japan, Australia and Mexico and so on.
The series of products are crushing equipment, sand making equipment, burning-free equipment, milling equipment, grinding equipment, moulding equipment, which are applied to mining, building material, highway, bridges, coal, chemicals, metallurgy, refractories and so on. Our company regards the quality of our products as the enterprise's life, and regards our clients as our god. It always follows every step and for each product. We are responsible for the user and service to the customers. Now all the products had passed the quality system certification of ISO9001:2000. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Korea, Canada and European Union etc.
To meet the needs of customers is what we are trying to realize; to meet the customers satisfaction is what we are pursuing. According to customers demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services, and track the condition of our products. "Building up the brand of Lanyu, satisfying the needs of customers."is the eternal pursuit of our company.
Unity is strength; Struggle has no end; Innovation is based on the flexible ways. All the staff in Lanyu are not afraid of hardships to make dedication to top-grade brand and making great efforts to do the biggest contribution to China national industry with all strength.


1. who are we?
We are based in Henan, China, start from 2018,sell to Africa(20.00%),South Asia(10.00%),Northern Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
briquette machine,biomass charcoal briquette machine,drying plant,mineral seperation equipment,brick making machine

4. why should you buy from us not from other suppliers?
Henan Lanyu Machinery Equipment Co., Ltd.a production machinery is given priority to, the collection scientific research, the production, sales, as one of the joint-stock enterprises. The mainly produces four series of products, namely, briquetting

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
