Западная Мелодия высокое качество WT-R 50L один слой маленькие рубашкой лаборатории стеклянный реактор покрытый кожухом для кристаллизации и реакции
- Category: Reactors >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
West Tune High quality WT-R 50L Glass Single Layer Jacketed Reactor For Crystallization and Reaction
WT-R series single and dual jacketed glass reactors are designed for synthetic reactions of different materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel, which allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
WT-R series single and dual jacketed glass reactors are designed for synthetic reactions of different materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel, which allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features：
● High borosilicate glass has good physical and chemical properties.
● Wide working temperature range: -80℃ to 200℃.
● It can work under normal pressure and negative pressure, its vacuum degree can reach 0.1MPa.
● The vessel can bear the pressure range from -0.1MPa to 0MPa.
● PTFE and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
● Designed with vacuum gauge and temperature display unit.
● High borosilicate glass has good physical and chemical properties.
● Wide working temperature range: -80℃ to 200℃.
● It can work under normal pressure and negative pressure, its vacuum degree can reach 0.1MPa.
● The vessel can bear the pressure range from -0.1MPa to 0MPa.
● PTFE and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
● Designed with vacuum gauge and temperature display unit.
Specifications:
Items | Specifications | ||
Vessel capacity (L) | 50 | ||
Vessel jacket capacity (L) | about 16.0 | ||
Heating transfer area of condenser(m²) | about 0.43 | ||
Feeding funnel capacity（ml） | 2000 | ||
Lid cover | stirrer port | 50# flange | |
temp. sensor port | 35# flange | ||
condenser port | 50# ball-ground port | ||
Liquid feeding port | 34# standard ground port | ||
Feeding funnel port | 40# standard ground port | ||
Solid feeding port | 80# flange | ||
Glassware material | borosilicate 3.3 | ||
Frame | SUS304 | ||
Working temp. range (℃) | -80～250 | ||
Pressure range（mPa） | -0.1～0.0 | ||
Jacket pressure tolerance（mPa） | ≤+0.03 | ||
Motor power（W） | 140 | ||
Speed adjustment | frequency control | ||
Speed range（rpm） | 50～400 | ||
Temp. sensor type | PT100 | ||
Temp. accuracy（℃） | ±0.1 | ||
Thermo insulation hose connector | 1/2 male screw | ||
Seal material | PTFE | ||
Drain port height（mm） | about 450 | ||
Stirrer type | Paddle, SUS304 with PTFE coated | ||
Power supply | 110-240V～,50/60Hz | ||
Operating temp. (℃) | 5～35 | ||
Ambient humidity (%) | ≤ 65 | ||
Machine size (mm) | 900W×690D×2100H | ||
N.W.（kg） | 82 | ||

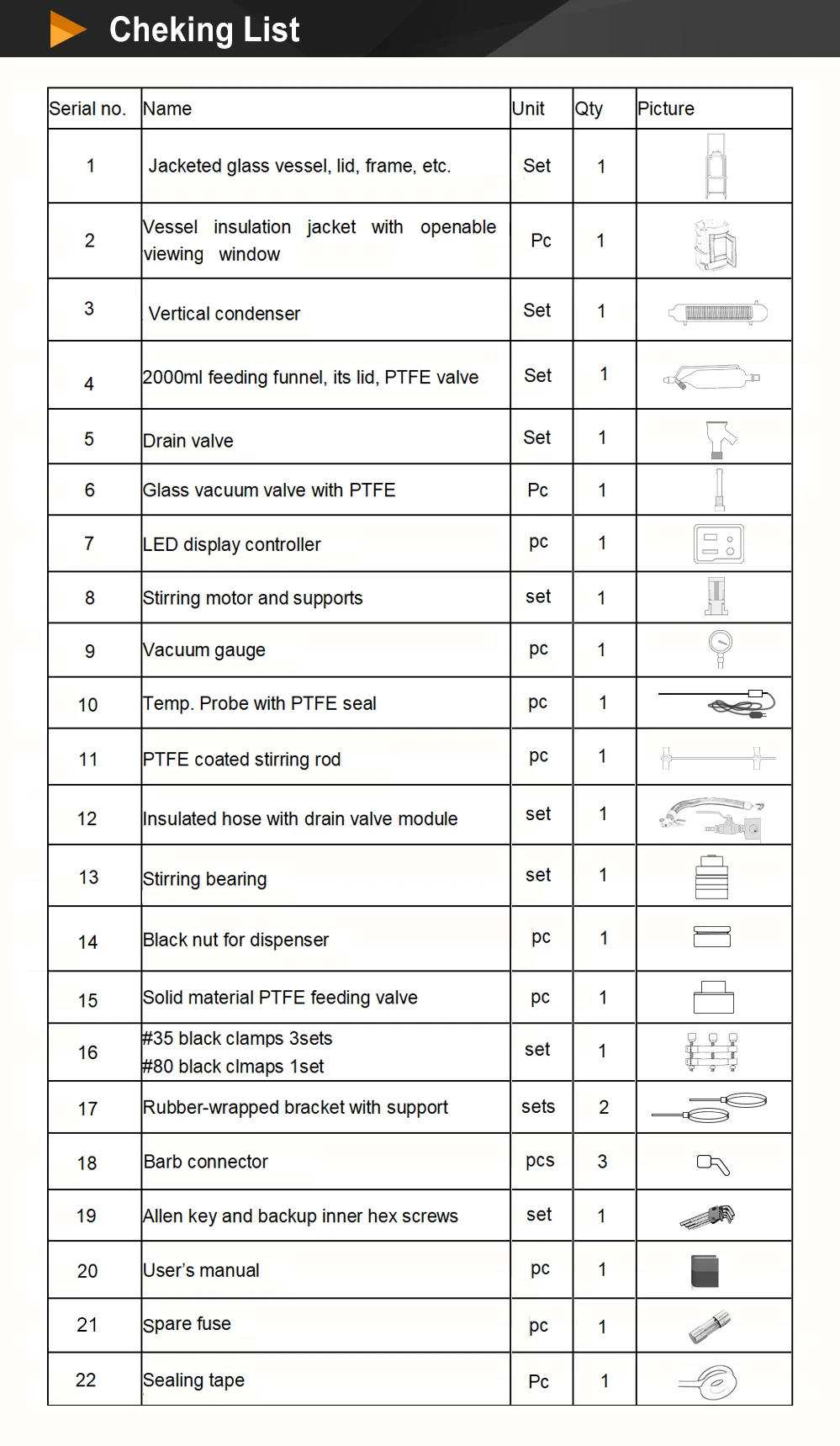

Packing List

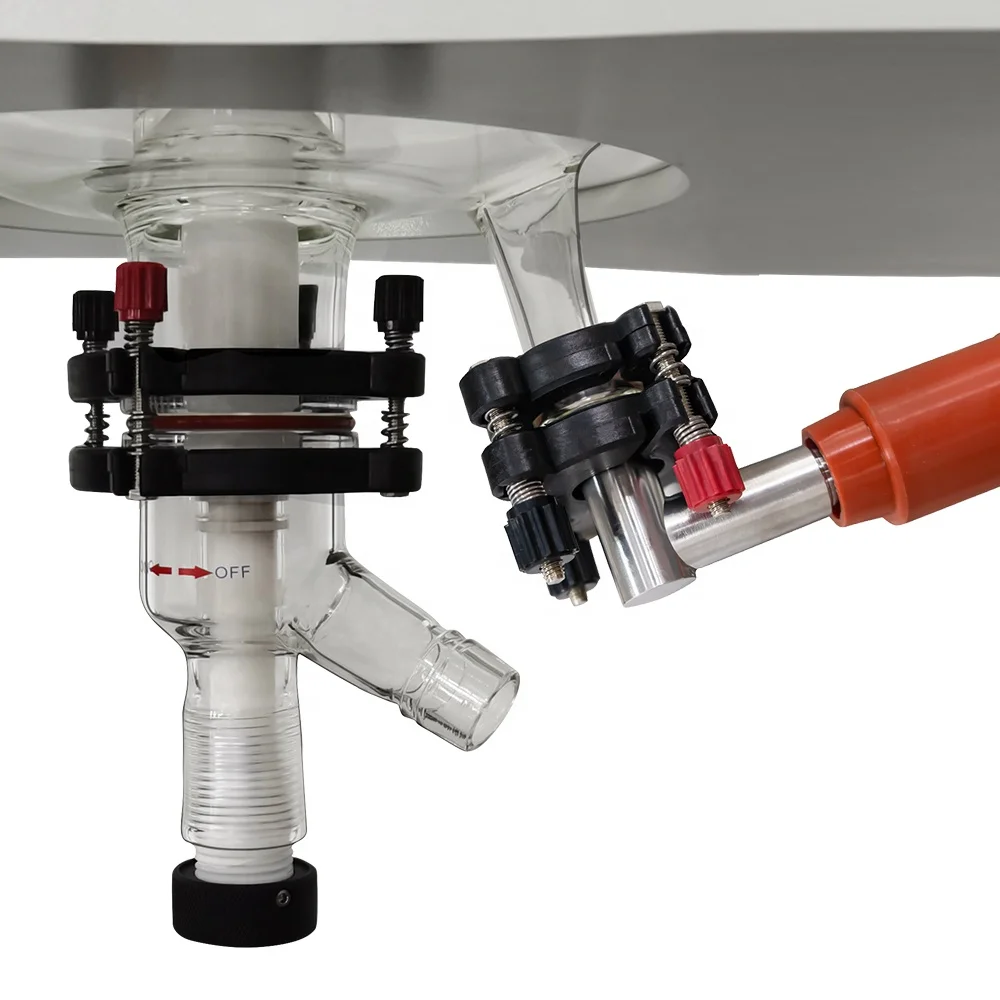

Details Images
