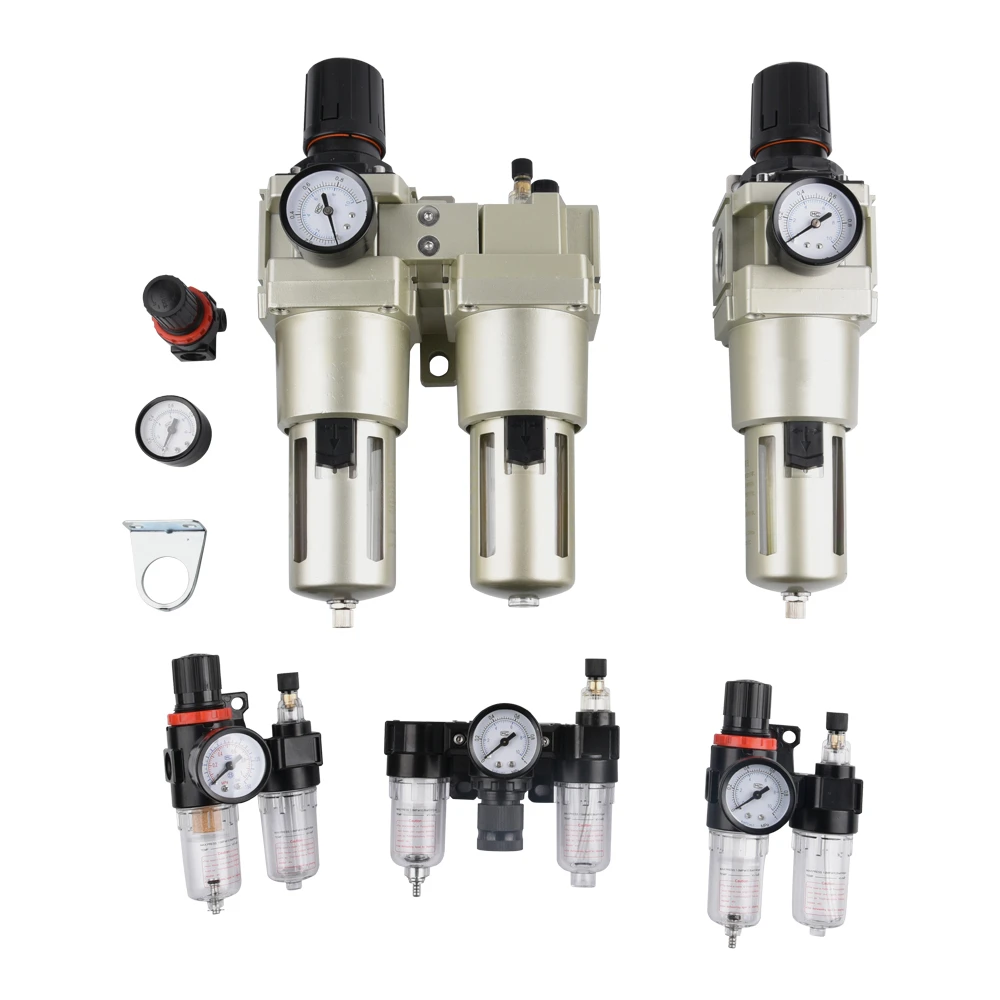

Good Quality SMC series Air Source Treatment Air Regulator Pneumatic Air Pressure Regulator

Product Overview

Description

Model	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
Port size	1/8''	1/4''	1/4''	3/8''	3/8''	1/2''	3/4''	3/4''	1''
Flow rate (L/Min)	550	550	2000	2000	4000	4000	6000	7000	7000
Fluid	Air
Proof pressure	1.5Mpa(15.3kgf/cm²)
Max. operating pressure	1.0Mpa(10.2kgf/cm²)
Ambient & fluid temperature	5~60°C
Adjustable Pressure range	0.05~0.85Mpa
Pressure gauge	Y40-01				Y50-02
Body material	Aluminum alloy



Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
