EXTRUSION BLOW SERIES

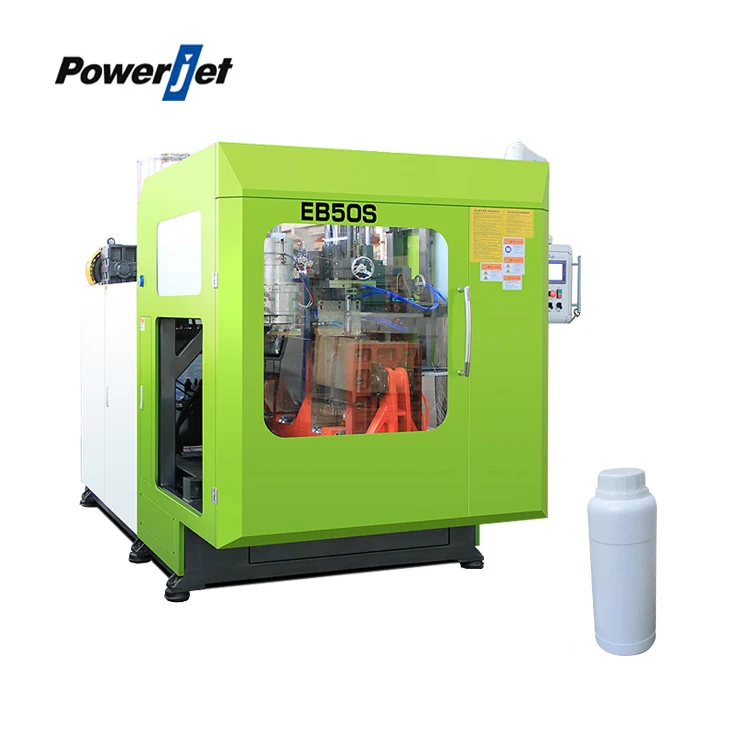

S SERIES HIGH-SPEED SINGLE STATION EXTRUSION BLOW MOLDING MACHINE EB50S.
Powerjet Double Station Extrusion Blow Molding Machine EB50S is specialized for manufacturing bottles and containers which under 5L.
Max Bottle Capacity – 5(L)
Clamping Force – 86(KN)
Extrusion Weight(HDPE) – 65(kg/hr)
Applications – Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor oil bottles, etc.
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by a linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
|Screw L/D Ratio||L/D||25|
|Screw Rotary Speed||RPM||65|
|Extrusion Weight (HDPE)||kg||65|
|Extrusion Motor Power||KW||18.5|
|Pump Motor Power||KW||11|
|Cooling Water Consumption(25°c)||L/min||70|
|Machine Dimensions (LXWXH)||mm||3600*2300*2150|
