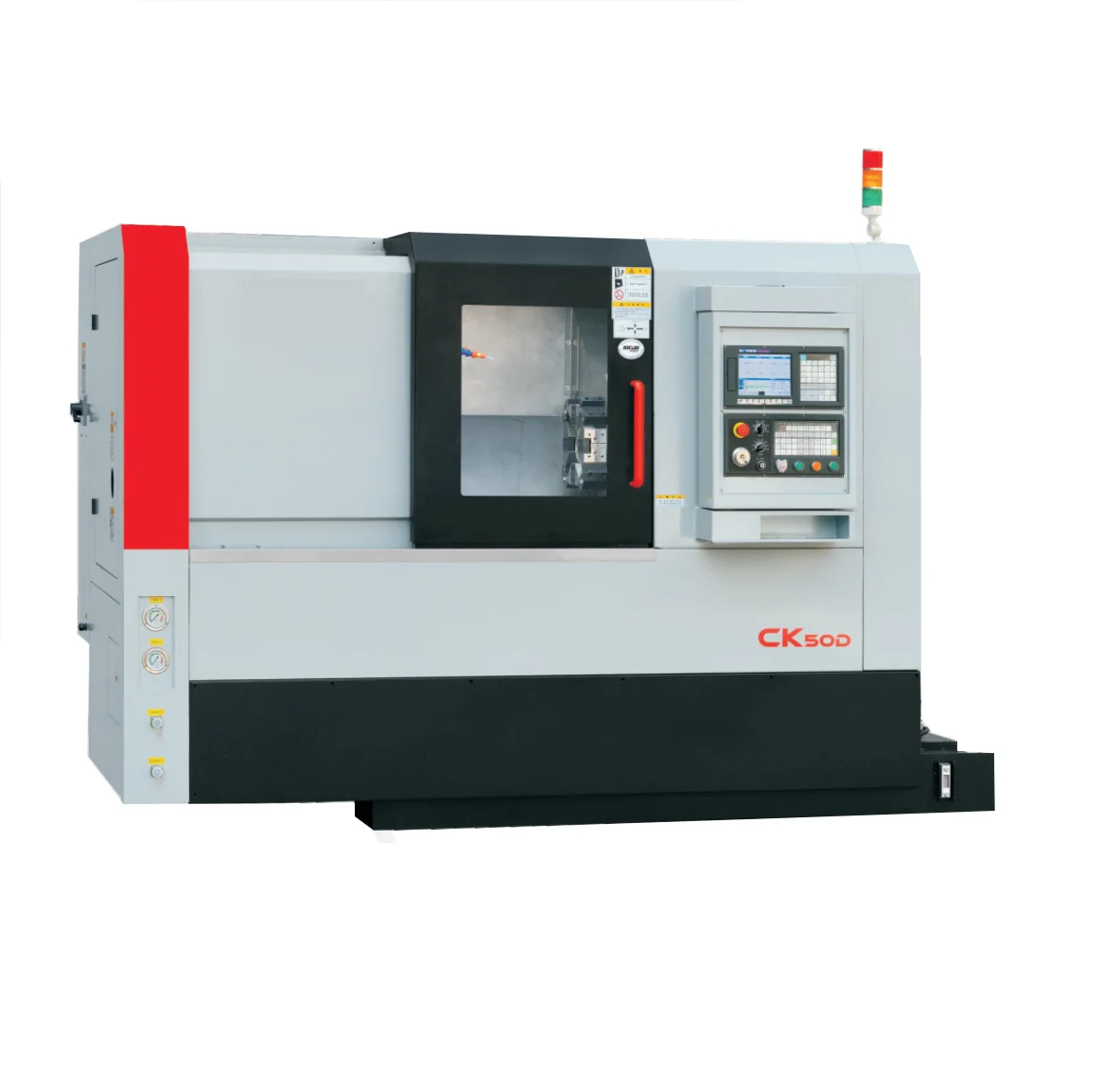

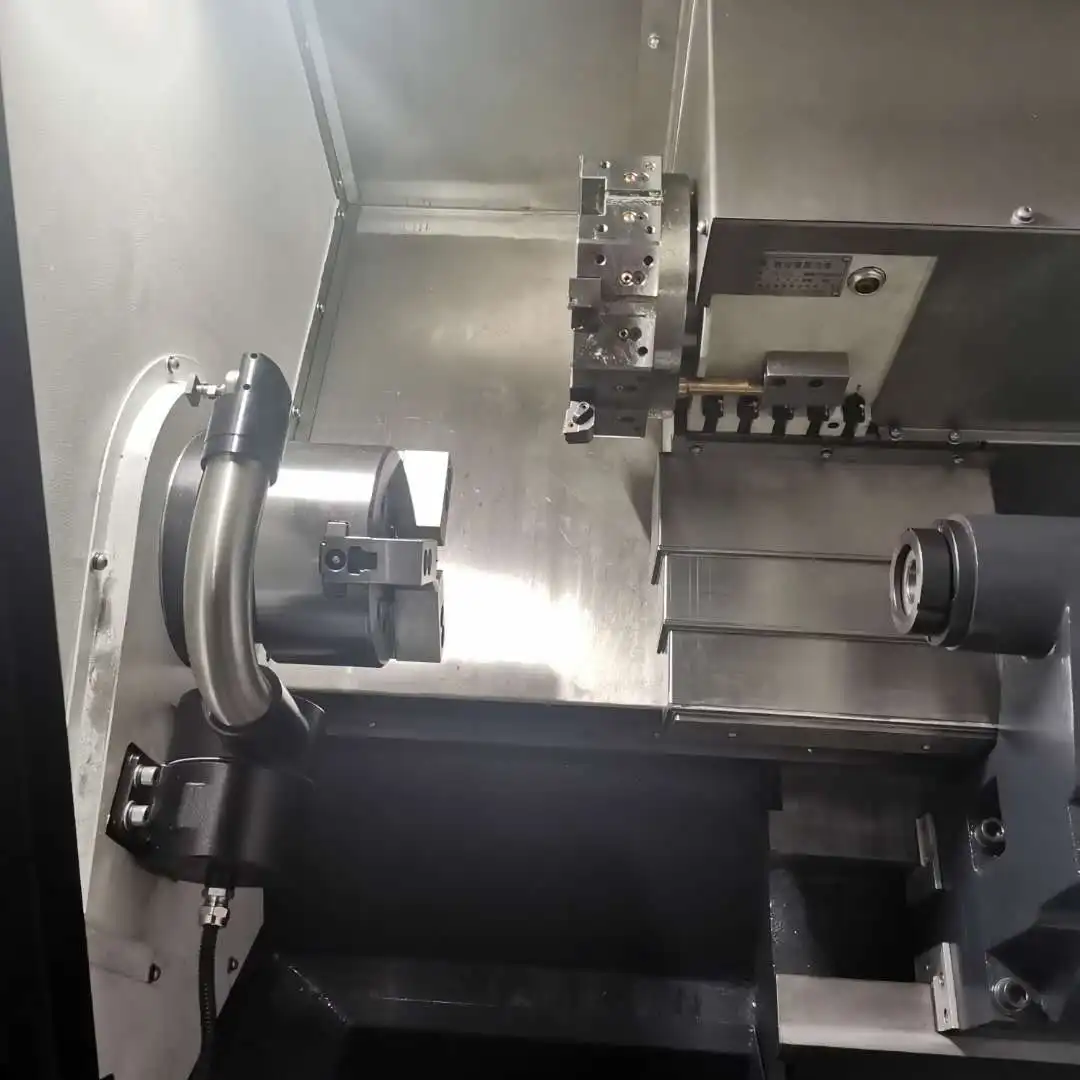

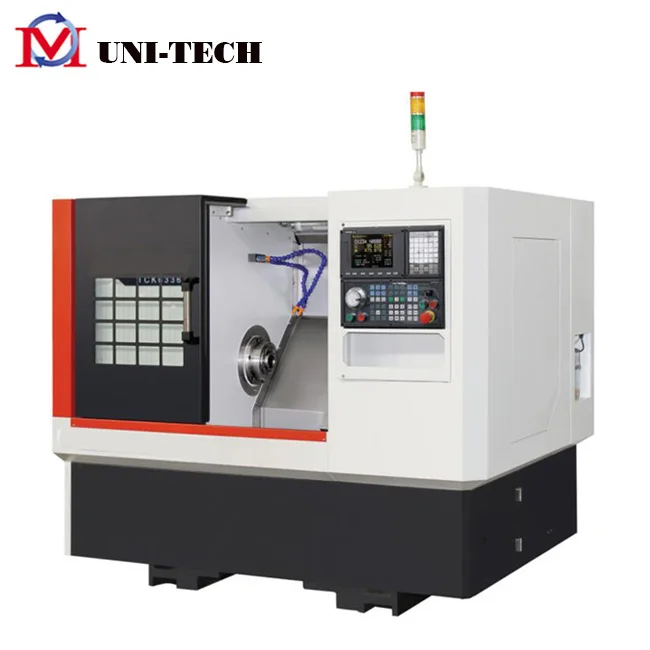

CK50D China Slant bed cnc lathe machines
Features:

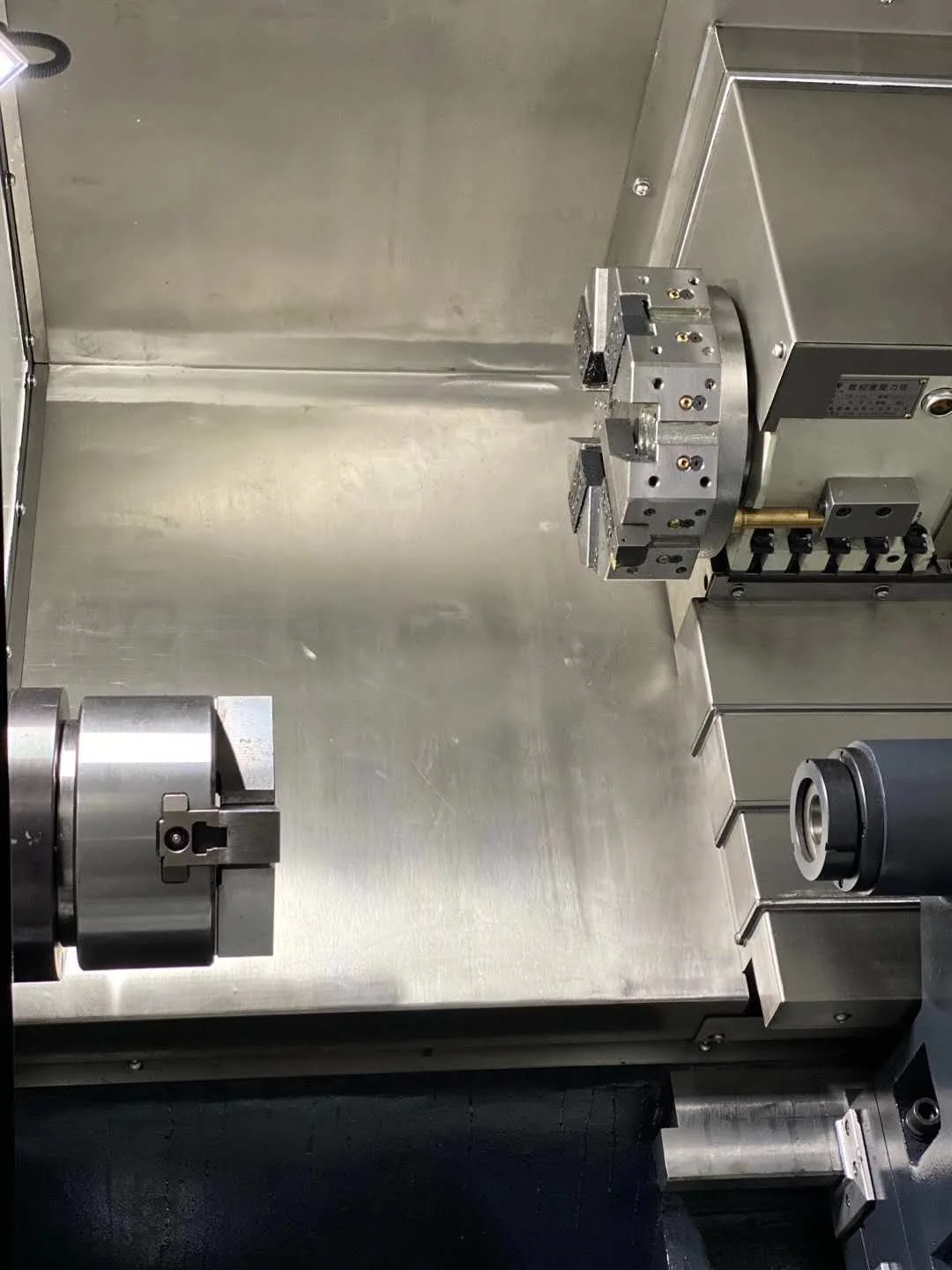

1. 45°slant carriage guide ways ensure high rigidity during turning operation.
2. High precision cartridge type spindle unit is equipped with P-4 class cylindrical spindle bearing,spindle rotates max.3000rev/min.
3. The two axis of feed use large pitch ball screw bearings with special support bearings, screw transmission
accuracy, high precision.
4. The Unique oil and water separate structure, no need oil and water separator, lubricating oil can be recovered independently .

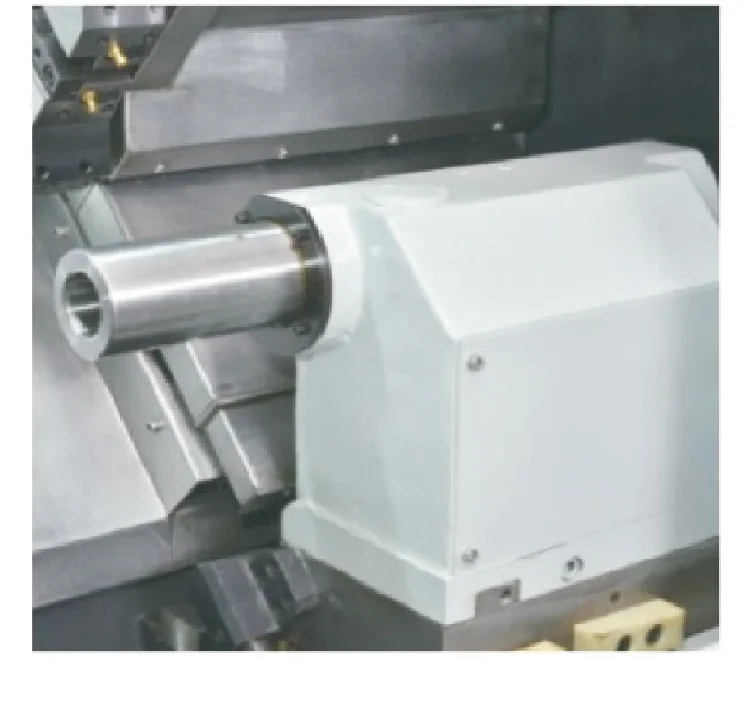

5. The tail seat guideways use a steel sliding guideways, the body of tail seat use the hydraulic automatic locking, have good guide and stability.

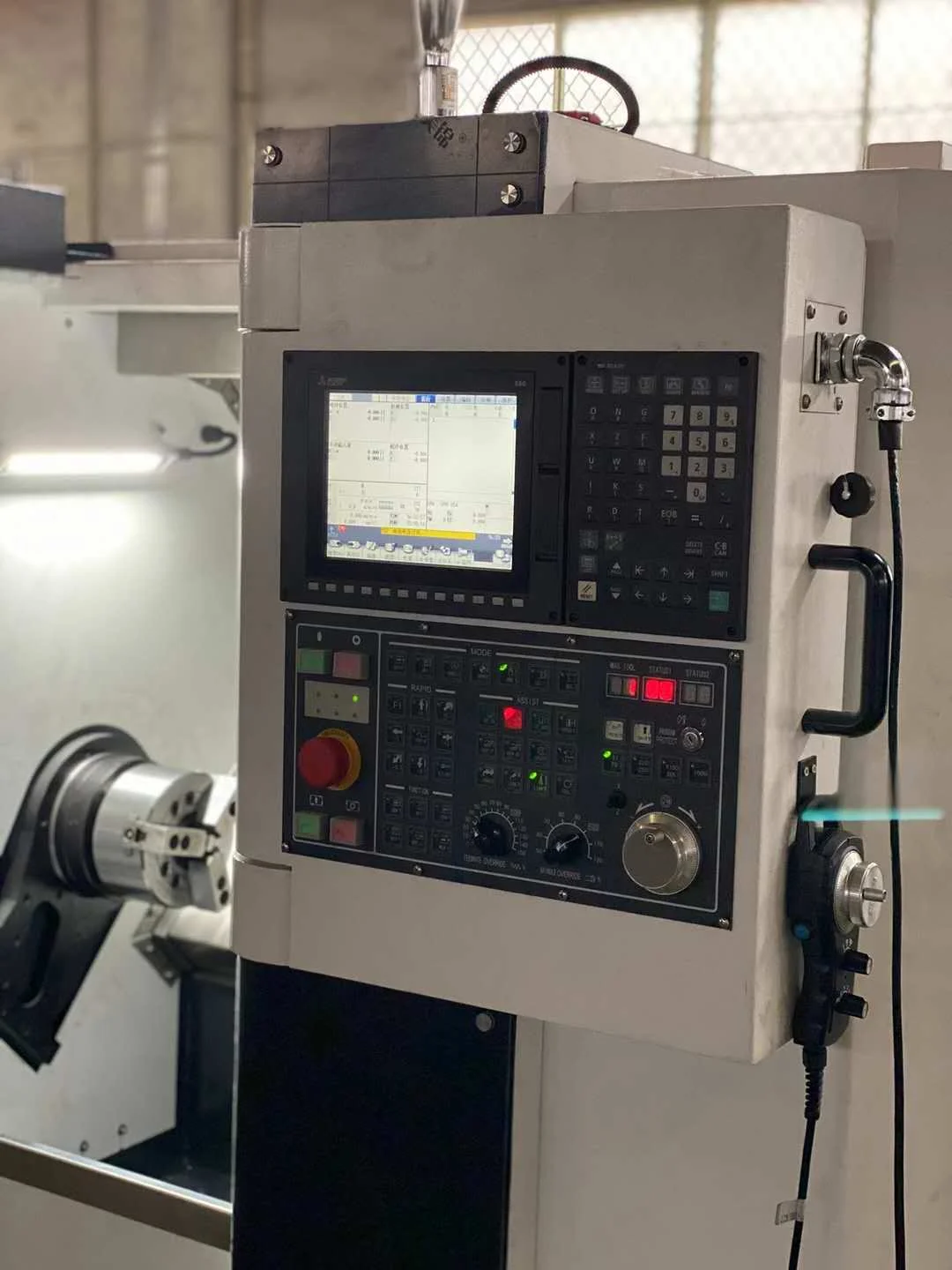

6. Fully enclosed protection, side mounted cooling and chip box, chip removal fluid and convenient; translocation type operation panel, safe and convenient to operate
Product Description

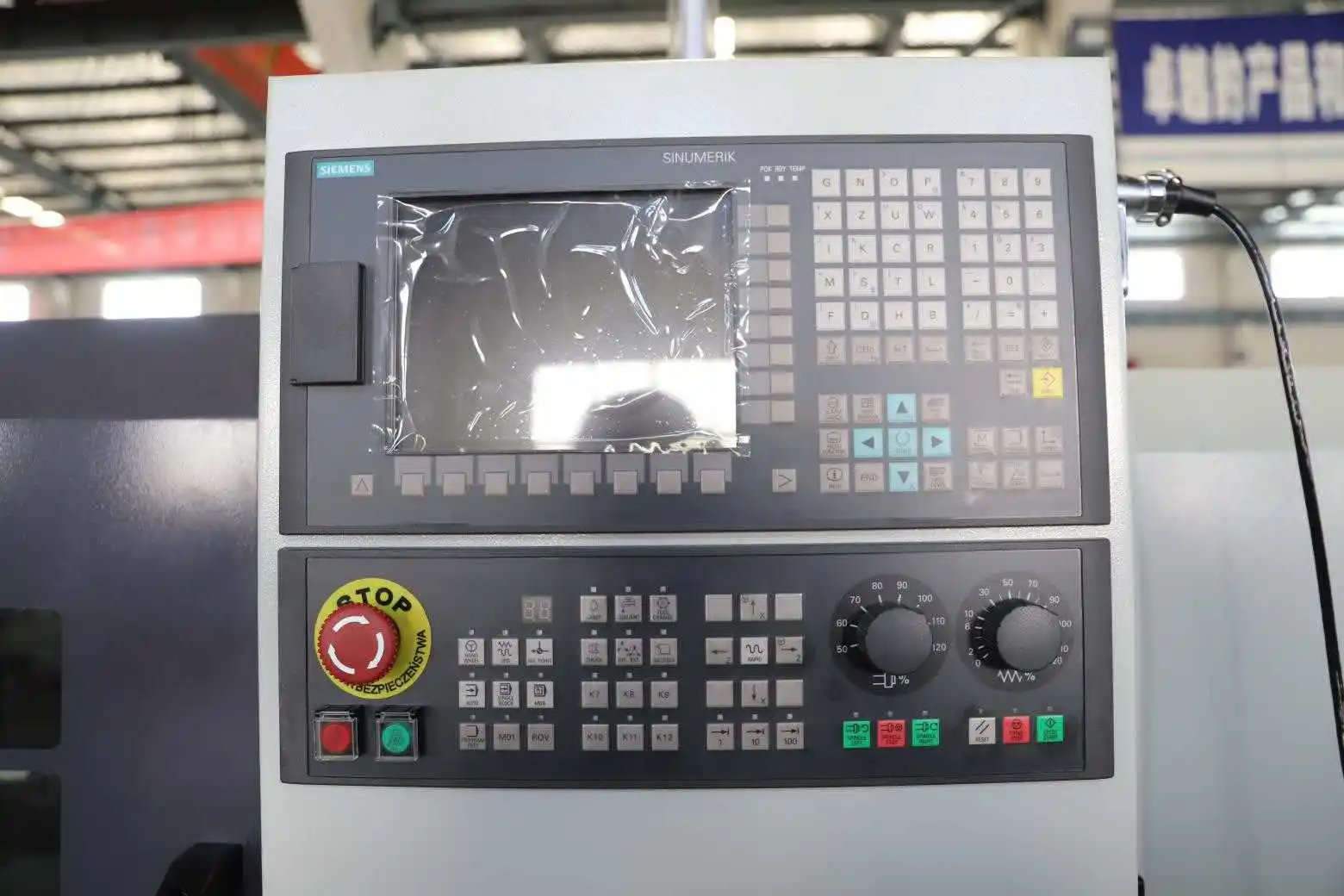

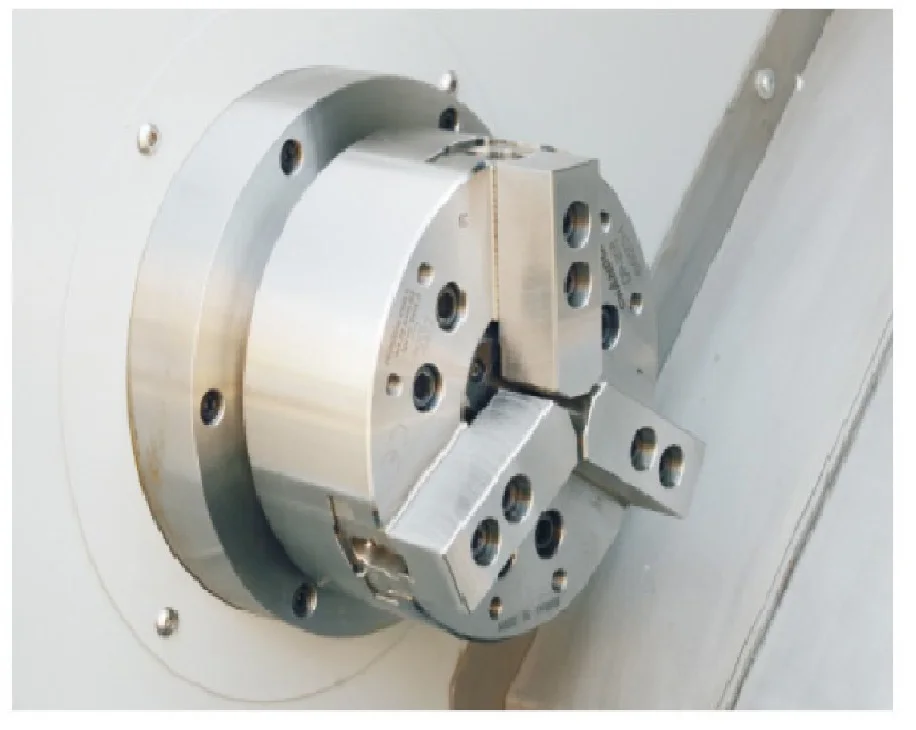

Standard equipment: | Optional equipment: |
+GSK988TA +Cartridge type spindle head +Imported P4-class cylindrical roller +bearing +Imported bearing especially for screw +Linear guideways from Taiwan +Precision ball screw from Taiwan +8″ hollow hydraulic 3-jaw chuck from Taiwan + 8″ hollow hydraulic rotating cylinder from Taiwan +7.5kW servo main motor +GSK servo feed machine +Automatic imported machine +Coolant system +Domestic 8-station horizontal electric turret +Hydraulic tailstock +Heat exchanger +Machine tool adjustment iron pad +Fully enclosed protection | +FANUC/SIEMENS/SYNTEC +8″ hollow hydraulic 3-jaw chuck from Taiwan + 8″ hollow hydraulic rotating +cylinder from Taiwan +Frequency inverting main motor +Auto chip conveyor +Electric |
Main specification

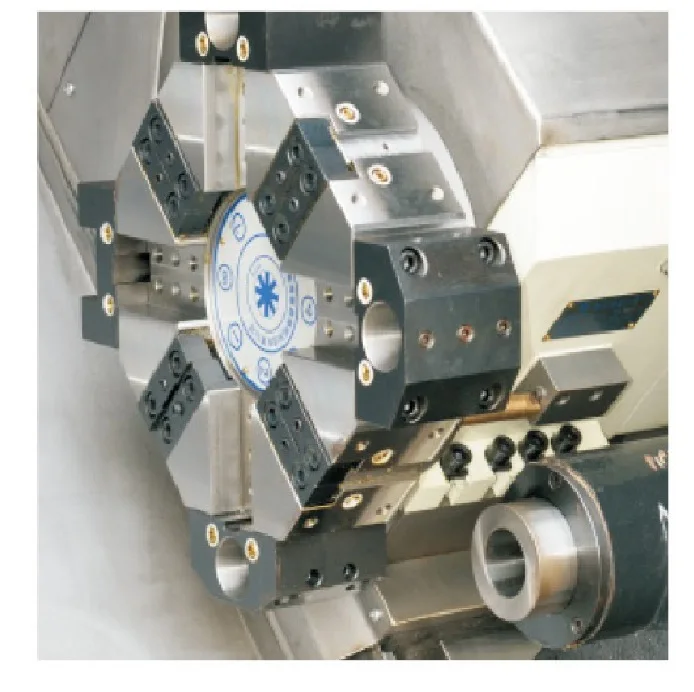

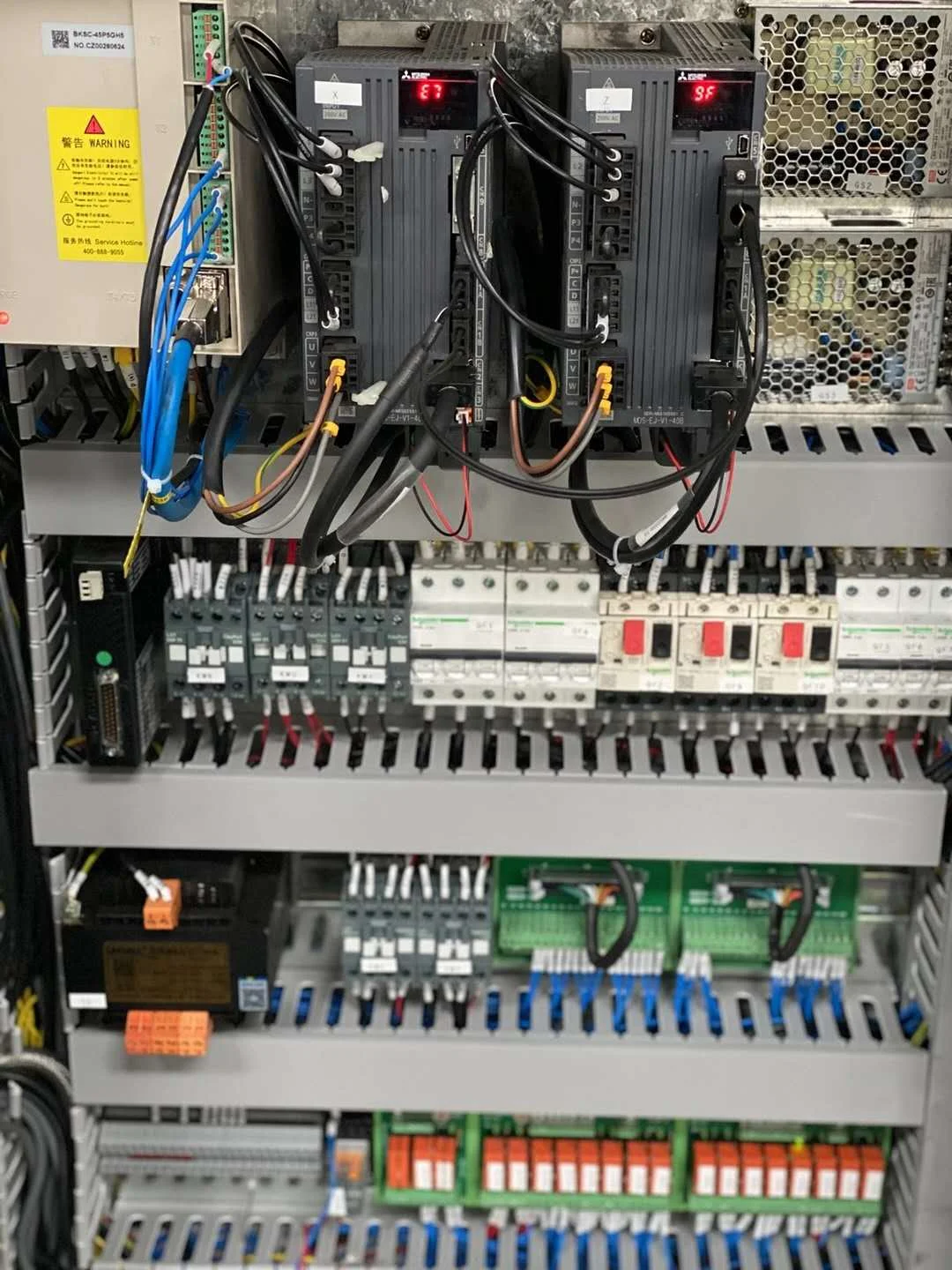

| Item | Unit | CK50D | |
| Capacity | Max.swing over bed | mm | Φ500 |
| Max.swing over slide | mm | Φ260 | |
| Max. machining dia. | mm | Φ360 | |
| Max.machining length | mm | 500(D>50) | |
| Max. dia.of bar to be held | mm | Φ50 | |
| Spindle | Spindle thru-hole | mm | Φ62 |
| spindle head | mm | A2-6 (GB5900.1) | |
| Taper of spindle bore | mm | Metric Φ68 1:20 | |
| Max.rotating speed of spindle | rpm | 3000 | |
| Chuck dia. | inch | 8 | |
| Feed | Travel X/Z | mm | 190/520 |
| Dia. x pitch of screw X/Z | mm | Φ32x8/Φ32x10 | |
| Rapid traverse X/Z | m/min | 15/15 | |
| Turret | Type of tool post | Horizontal hydraulic | |
| Number of station | pcs | 8 | |
| Center height of turret | mm | 80 | |
| Tool section:turning/boring | mm | 25x25/Φ32 | |
| Tailstock | Dia./travel of sleeve | mm | Φ75/130 |
| Taper of socket tailstock | MT No.5 | ||
| Type of quill bore | Hydraulic | ||
| Tape of moving tailstock | Manual movement/hydraulic lock | ||
| Motor | Power of main motor | kW | 7.5/11 |
| Torque of main motor | Nm | 48/70 | |
| Power of motor X/Z | kW | 2.5/2.5 | |
| Torque of motor X/Z | Nm | 10/10 | |
| Power of coolant pump motor | W | 370 | |
| Others | CNC controller | GSK 988TA | |
| Power capacity | KVA | 20 | |
| Type of guideway | Precision linear guideway | ||
| Net /gross weight of machine | Kg | 3300/3800 | |
| Dimension of machine(LxWxH) | mm | 3100x2170x2445 | |
| Dimension of packing box(LxWxH) | mm | 3100x2170x2445 | |
