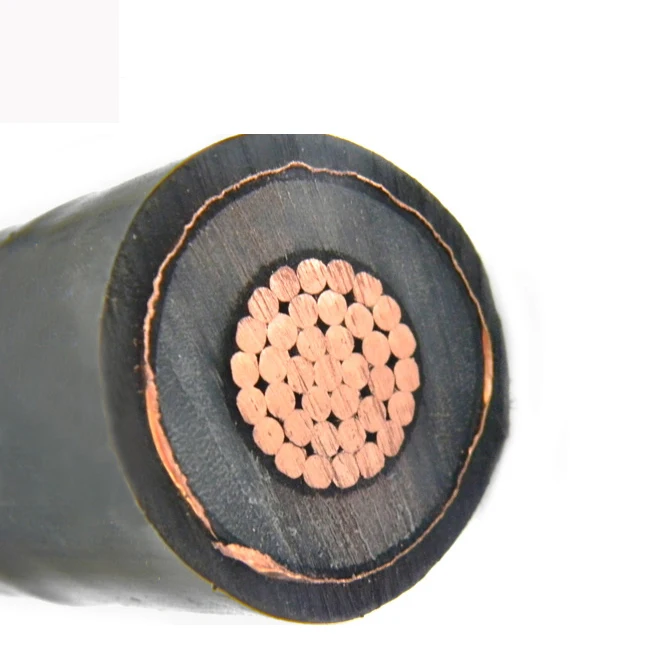

Copper/ Aluminum Conductor PVC/XLPE Insulation PVC Sheath Amoured PVC Outer Sheath Medium Voltage Power Cable
- Category: Power Cables >>>
- Supplier: Zhengzhou,Huadong,Cable,Co.,Ltd.,[Henan,China]Zhengzhou
Share on:
Product Overview
Description
Voltage: 0.6/1kv,1.8/3KV,3.6/6KV,6/10KV,10KV,11KV,15kv,8.7/15KV, 18/30KV,19/33KV, 26/35KV
Size of area: 2.5mm2-100mm2

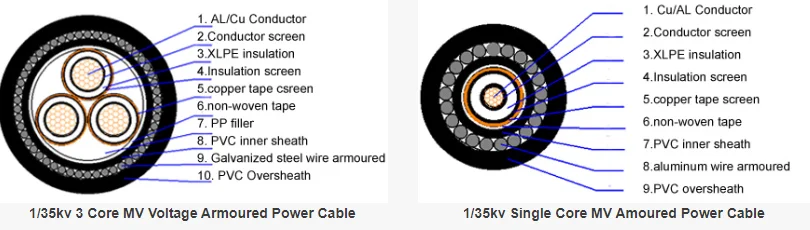

Armour type: 1. Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core Polyvinyl chloride (PVC) or PE, or HDPE.
Size of area: 2.5mm2-100mm2
Armour type: 1. Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core Polyvinyl chloride (PVC) or PE, or HDPE.
Product Paramenters
Part Number | Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Gland Size | Single Cleat | Nom. Max. DC-resist conductor 20° C | Current rating laid direct |
(mm²) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
11KVPVC3X16 | 3 x 16 | 7/1.70 | 3440 | 44.3 | 40 | 1.8 | 1.15 | 119 |
11KVPVC3X25 | 3 x 25 | 7/2.14 | 4060 | 48.5 | 50 | 2 | 0.727 | 152 |
11KVPVC3X35 | 3 x 35 | 7/2.52 | 4495 | 50.5 | 50 | R9 | 0.524 | 181 |
11KVPVC3X50 | 3 x 50 | 19/1.78 | 5115 | 53 | 63s | R9 | 0.387 | 213 |
11KVPVC3X70 | 3 x 70 | 19/2.14 | 6035 | 56.8 | 63s | R10 | 0.268 | 260 |
11KVPVC3X95 | 3 x 95 | 19/2.52 | 7180 | 61.3 | 63 | R10 | 0.193 | 309 |
11KVPVC3X120 | 3 x 120 | 37/2.03 | 8280 | 65.1 | 75s | R11 | 0.153 | 349 |
11KVPVC3X150 | 3 x 150 | 37/2.25 | 9325 | 66.8 | 75s | R11 | 0.124 | 390 |
11KVPVC3X185 | 3 x 185 | 37/2.52 | 10740 | 72.3 | 75 | R12 | 0.0991 | 436 |
11KVPVC3X240 | 3 x 240 | 61/2.52 | 13820 | 79.3 | 90 | R14 | 0.0754 | 499 |
11KVPVC3X300 | 3 x 300 | 61/2.85 | 16120 | 84.2 | 90 | R15 | 0.0754 | 553 |
11KVPVC3X400 | 3 x 400 | 61/3.20 | 19350 | 92.4 | R15 | 0.047 | 619 |
Professional power cable manufacturer from China, Meet your kinds of requirement power cables With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size.
Why Choose Us
Product packaging
Company Profile
Zhengzhou Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers. Our collaborated cocompany is Zhangzhou Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.
We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.
We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting!
We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.
We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting!
Huadong Cables welcomes your inquiry and visiting, we are at your service !
Certifications
FAQ
1.what is our payment term ? |
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight. |
2.what is the lead time ? |
The lead time usually is 10 – 30 working days. |
3.what is the package of the cable ? |
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment. |
4.Could we provide the free sample for customer ? |
Sure, we provide the free sample for customer to checking. |
